220V/380V 0.75KW Portable pmsm Motor Wheel Hvls Fan Wheel Rack Gym Large HVLS Fan Products from Fujian Diamond Electrical And Mechanical Equipment Co., Ltd.

Product Details

Install:	Detached	Fan diameter:	2M
Packaging Details:	Single piece 21403602250 mm gross weight 193 kgs plywood box	Voltage:	220V
strength:	1000 watts	Protect:	IP55
net weight:	121 kg	Maximum speed:	240 rpm
Number of blades:	6pcs	brand:	diamond
Origin:	Fujian Province, China	Warranty:	3 years
type:	other	Supply capacity:	Annual output of 10000 sets
port:	Fuzhou/Xiamen	payment terms:	L/C, Western Union, T/T
Blade material:	aluminum magnesium alloy, aluminum magnesium alloy	Effective area:	260 square meters
Air volume:	1000 cubic meters per minute	Package preview:
noise:	39 decibels	After-sales service provided:	Video Technical Support
Applicable industries:	Hotels, clothing stores, building materials stores, manufacturing plants, food and beverage factories, farms, restaurants, printing shops, construction projects, food and beverage stores	Long distance:	40m

Product Description

1.5m Large Portable Outdoor Waterproof Industrial Floor Fan

Super large air volume, super long air supply, feel free wind everywhere

Model	Big event fan HDY-200D
diameter	2 meters
Voltage & Power	220V-380V 1000W
Maximum speed	240 rpm
air volume	1000 cubic meters per minute
number of blades	6
noise	39 decibels
long distance	40m
Effective area	420 square meters
net weight	121 kg

Grid fan size (mm)

Length: 2220mm Width: 610mm Height: 2190mm

detailed image

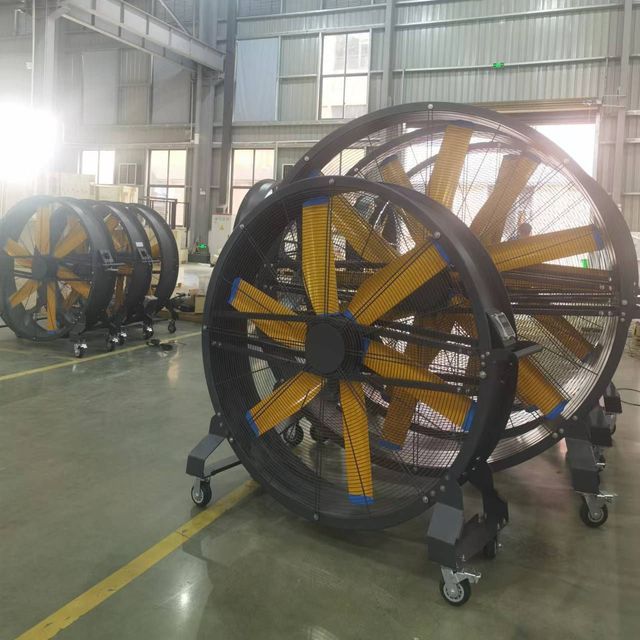

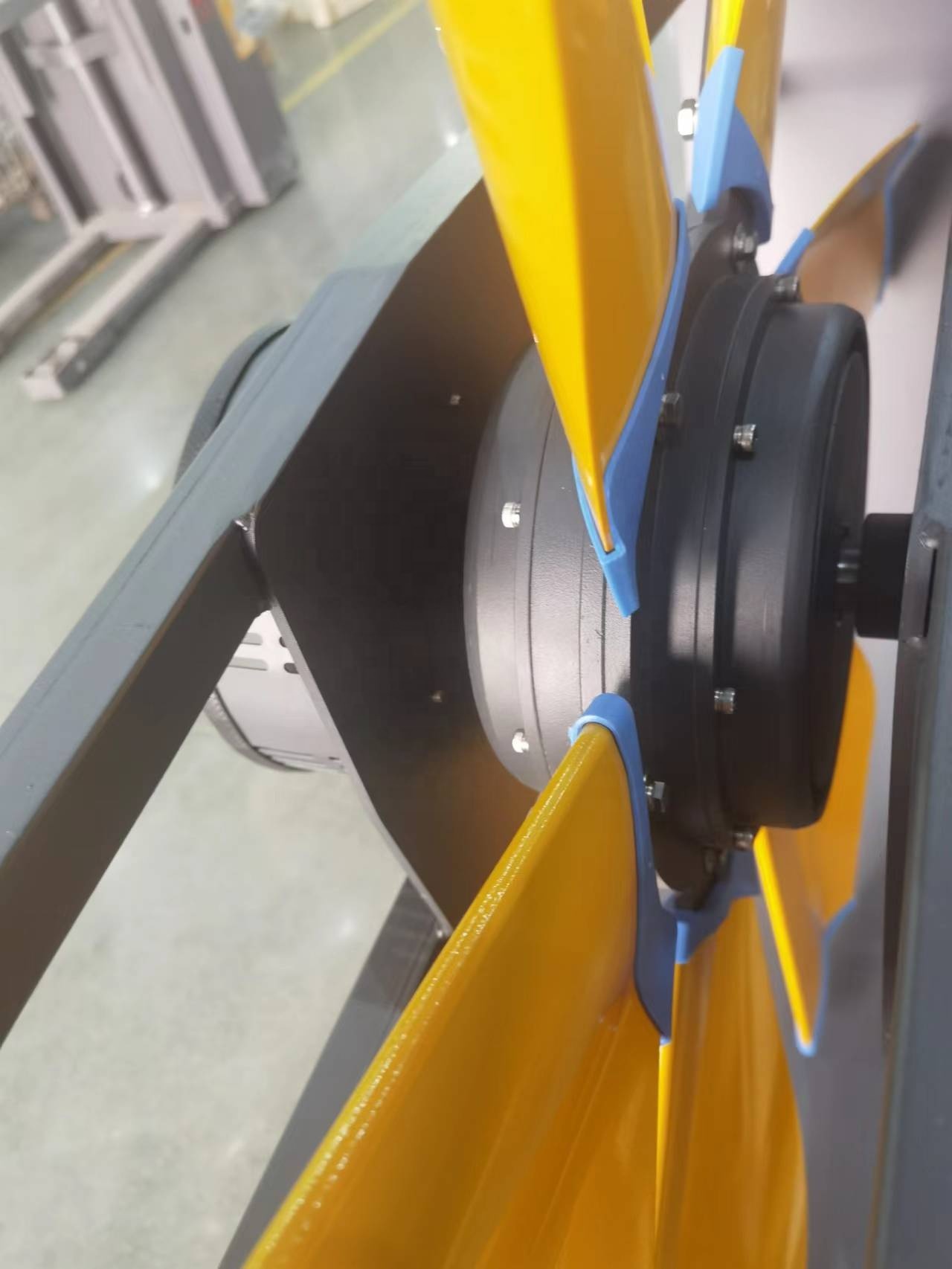

The whole large movable fan is composed of permanent magnet synchronous motor, blades, controller, bearing and other spare parts

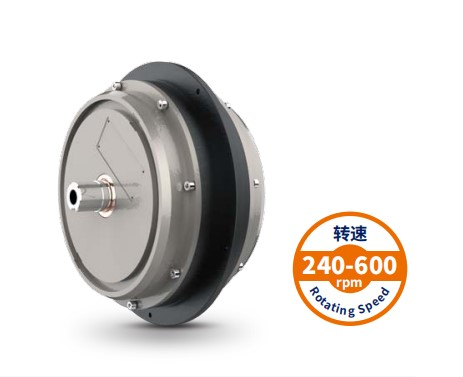

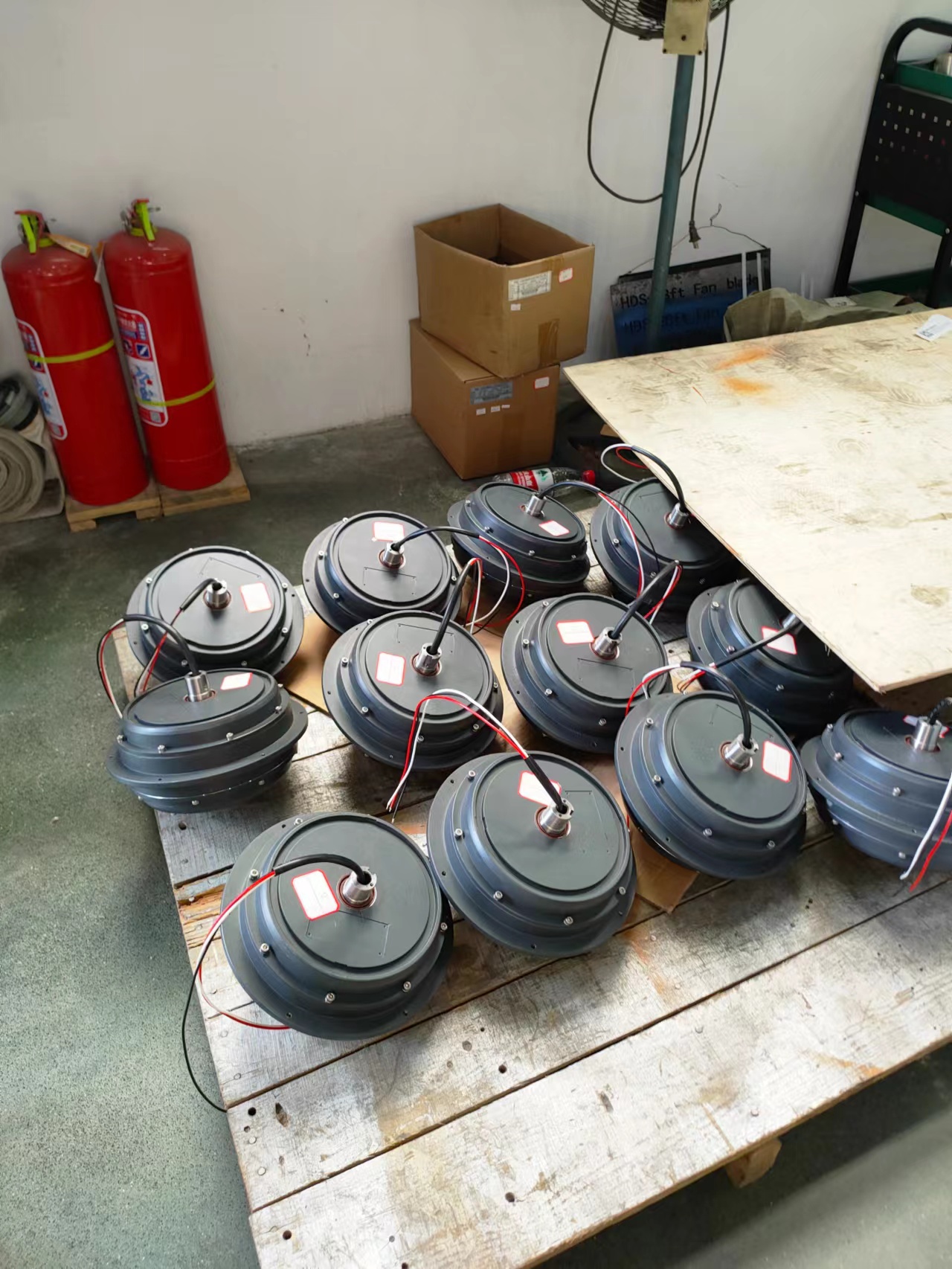

Permanent Magnet Synchronous Motor

feature:

No rotor losses

High efficiency, high precision

High power factor

Improve the grid operating environment.

FM width (0~200HZ)

Small size and light weight

Energy efficient

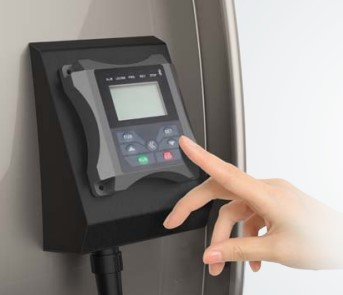

Intelligent Control System

The system has no position vector control, anti-electromagnetic interference, anti-radiation, small size, light weight and beautiful appearance.

The function of the system is simple, and the 4 buttons are easy to operate (start, stop, accelerate, decelerate).

The system has overvoltage, undervoltage, loss of voltage regulation, current, phase loss, overload, collision, overheating, lightning strike, abnormal protection.

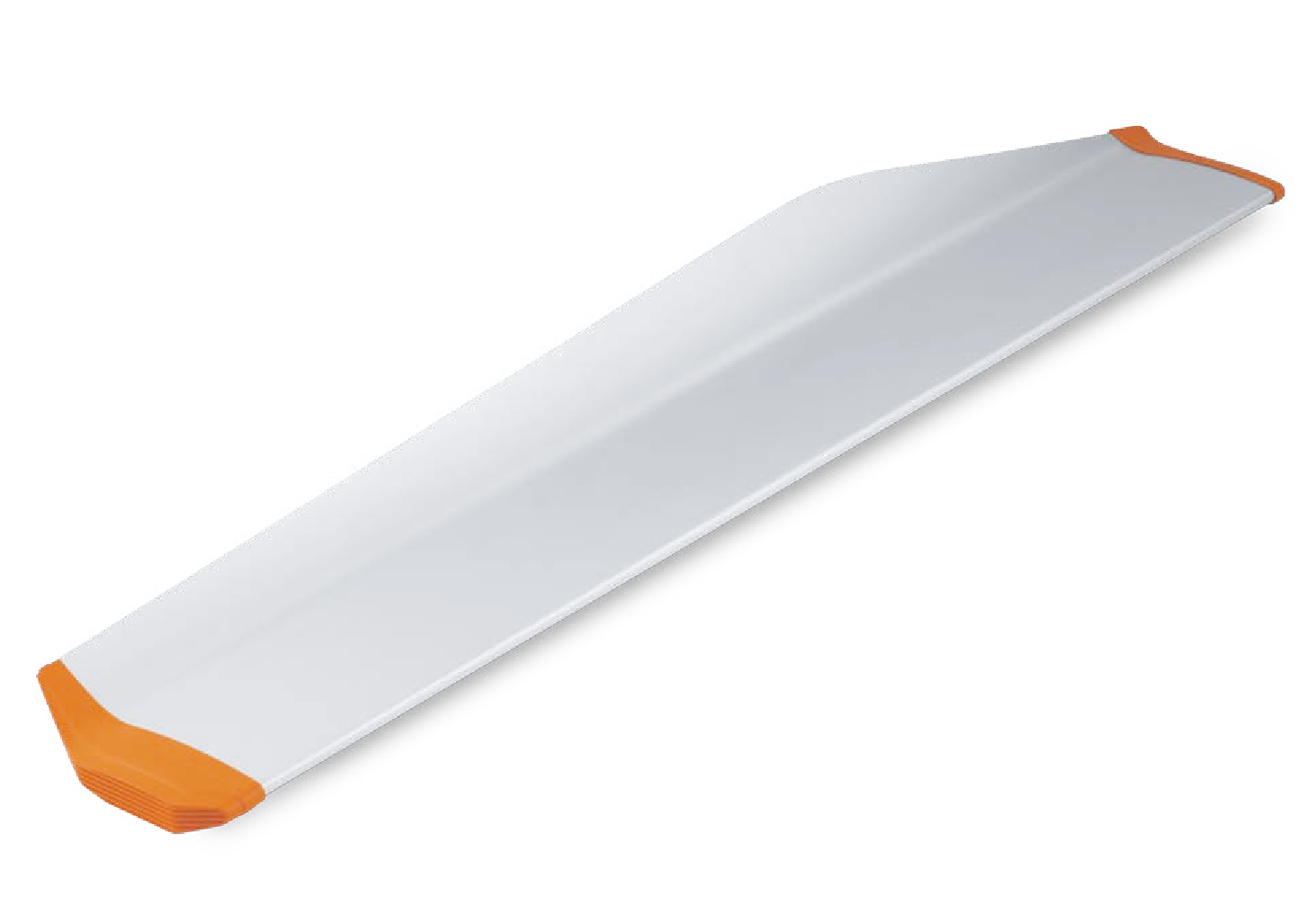

Fan blades

Blade Material: Aluminum and Magnesium. The surface of the fan blade adopts T5+ bright surface oxidation treatment to enhance the anti-corrosion and anti-oxidation ability of the fan blade, and can cope with special environment operation

Large warehouse portable large vertical DC fan Airmove series main features

1. Super large air volume: super long air supply, the effective distance is greater than 40m;
2. Easy to move: the fan adopts 4-wheel design, which can be easily moved to any place;
3. Energy saving: only 1KW power, extremely low energy consumption;
4. Quiet, low noise: low noise, only 39DB level.
5. Stepless speed regulation: PMSM motor drives fan blades, VFD stepless speed regulation, easy to operate;
6. Waterproof/dustproof: the protection level is IP55, and the whole is waterproof.
7. Durability: All the materials of the appearance are painted, the thickness of the cylinder is 2mm, and the overall hollowing reduces the weight. 8. Plug and play: No on-site installation is required, all factory pre-installed and debugged, avoiding cumbersome installation and maintenance-free use.
