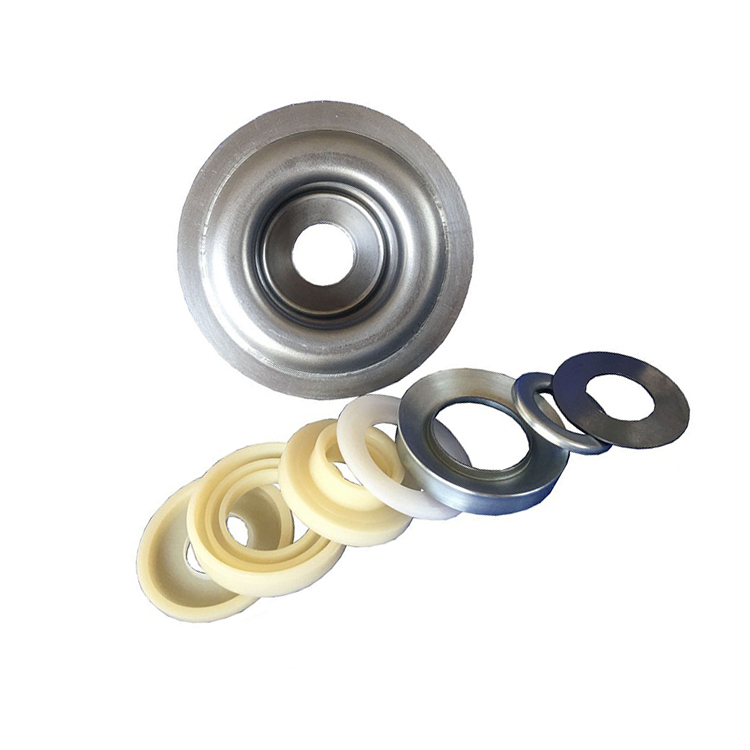

Idler bearing housing DTII6204 -89 and related seals
- 0.10 >=1000 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Applicable industries: | mining machine | Material: | SPHC/SPCC,SPHC/SPCC |
| Model: | DTII6204-89 | Supply capacity: | 20000 sets per day |
| Keyword one: | double bearing housing | payment method: | wire transfer |
| product name: | bearing seat | Origin: | Anhui, China |
| Keyword two: | Conveyor Roller Bearing Blocks | Packaging Details: | Wooden box and waterproof paper |
| Applicable industries: | mining machine | Bearing Type: | 6204 |
| brand: | Trinity | MOQ: | 1000 |
| brand: | Trinity | model: | DTII6204-89 |
| port: | Shanghai | payment terms: | wire transfer |
Idler bearing housing DTII6204 -89 and related seals |
Product Description
product information
Tongling Sany Jianxi Precision Industry Co., Ltd.
| Product Category | Idler bearing housing DTII6204 -89 and related seals |
|
Introduction
|
·100% good raw materials from Shanghai Baosteel |
| · High precision, high gloss | |
| ·Own mold development center, accept customization and engraving | |
| advantage | ·Development history--Developed from a military factory in 1988, focusing on stamping and injection molding products. |
| ·Quality - the tolerance is accurate to 0.001mm. | |
| ·Certificate--ISO9001, SGS, etc. | |
| ·Capacity--4 production lines, including 2 robot production lines. Has an independent mold R & D center. |
|
| ·Global Market—Export to 36 countries and regions. |

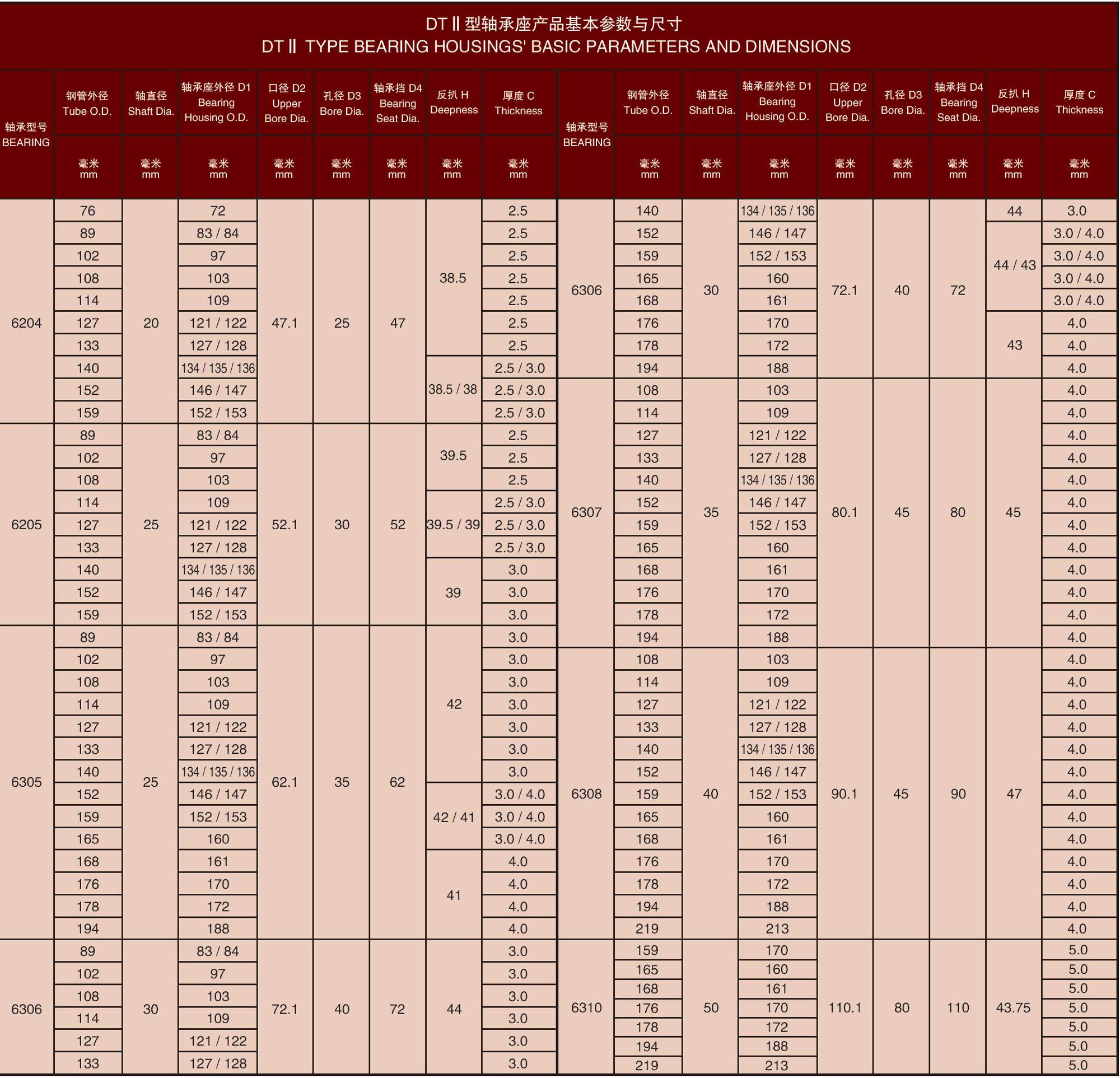

| available models | Applicable bearings: 6204/6205/6206/6305/6306/6307/6308/6309/6310 Applicable shaft: 20 ~ 50 mm Applicable pipe diameter: up to 219 mm Thickness: 2.5~5mm |
| Product advantages | 1. Automated production and advanced inspection machines control low tolerance all the time, making your assembly process easier. 2. The best raw materials will create a better running environment and bring longer service life to the bearings. 3. The bearing is in the best running state, and the idler roller keeps running with low resistance, which minimizes the wear on the conveyor belt. 4. Low resistance work also saves a lot of power. 5. The loaded material is not easy to overflow or fall, and the axial and radial runout is small. |

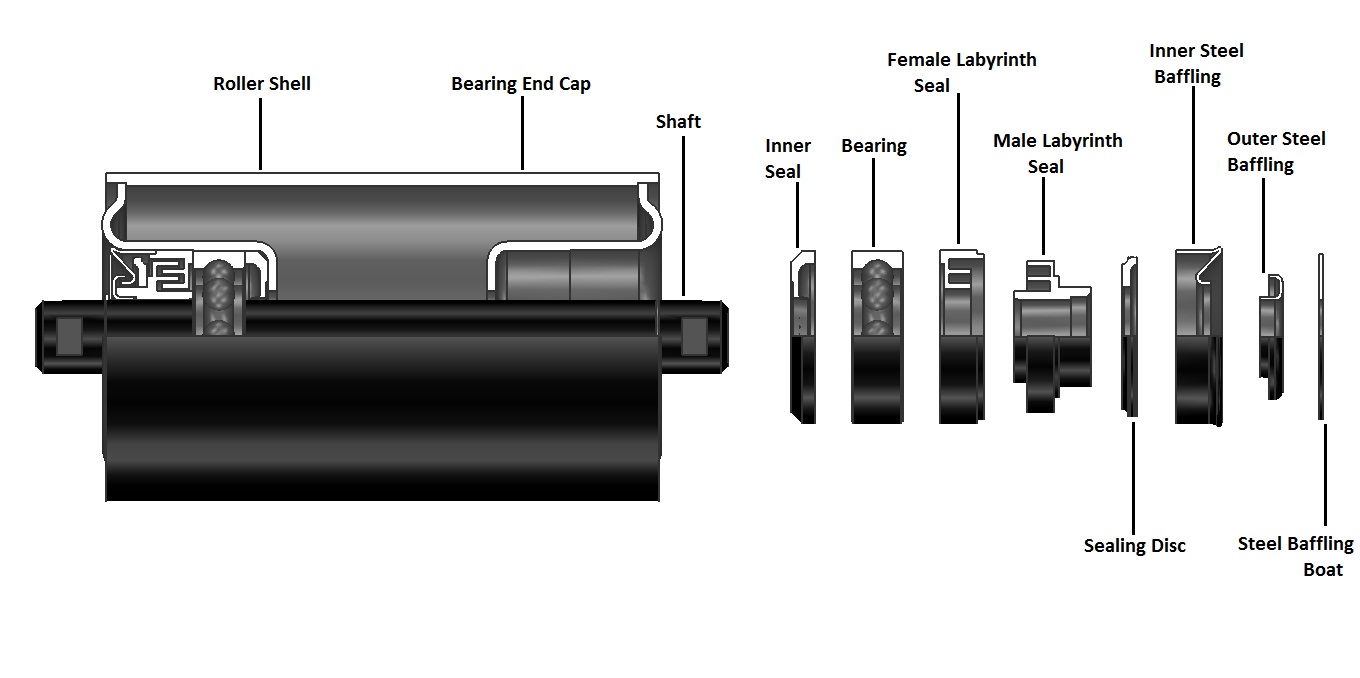

Product assembly drawing:
Other related products:
product display
Tongling Sany Jianxi Precision Industry Co., Ltd.
