Factory stock TK6204-140 transportation machinery conveyor accessories SPHC bearing housing for tube 140mm

Product details
For bearing model:6204;Tube outer diameter:140 mm;
Brand Name:Trinity;Place of Origin:Anhui China;
Model Number:TK6204-140;Upper Bore Dia.:47.1 mm;
Supply Ability:10000 Set/Sets per Day SPHC bearing housing;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;
Bottom Bore Dia.:35 mm;Product name:SPHC bearing housing;
Port:Shanghai/Ningbo;Thickness:2.5 mm;
Payment Terms:T/T;Bearing Seat Dia.:47 mm;
Shaft diameter:20 mm;Packaging Detail:Inspected goods would be packed by plywood cases or according to your requests.;
Material:SPHC(Pickled steel);Bearing housing O.D.:136 mm;
Deepness:42.5 mm;

,

Factory stock TK6204-140 transportation machinery conveyor accessories SPHC bearing housing for tube 140mm


Product Description



Product Information

Zonfa Electric (Tongling) Heart Precision Industry Co., Ltd.


Product type Factory stock TK6204-140 transportation machinery conveyor accessories SPHC bearing housing for tube 140mm



Introductions



·100% good raw material from Shanghai Baoshan Iron&Steel
·High precision & high gloss
·Own mold development center, accept customize and lettering
Advantages ·History--Develop from military factories, focus on stamping and injection   products since 1988.
·Quality--Tolerance accurate to 0.001mm.
·Certificate--ISO9001, SGS etc.
·Capacity--Four production line including two robot production lines.
 Own indepentent Mold R&D center.
·Global Market--Export to 36 coutries and areas.



Models availableFor bearing: 6204/6205/6207/6305/6306/6307/6308/6310
For shaft: 20 ~ 50 mm
For pipe diameter: up to 219 mm
Thickness: 2.5~5 mm



Product Benefits  1. Automatic production and advanced inspection machine have been controlling a low tolerance which make your assemble process easiler.
2. Best raw material will create a better operating environment and bring a longer service life for bearings.
3. With a best operating status of bearing, rollers will keep running under low resistance, which will minimize the abrasion to the conveyor belt.
4. Working under low resistance also saves a mass of electric energy.
5. The carrying material will not spill out or drop down easily with a small axial and radial runout.







Product assembly drawing:



Product Display

Zonfa Electric (Tongling) Heart Precision Industry Co., Ltd.





Related Products





Advantages
Product Advantages

Zonfa Electric (Tongling) Heart Precision Industry Co., Ltd.

Bearing housing
     1. High precision High gloss Low tolerance
     2. 100% good raw material from Shanghai Baoshan Iron&Steel
     3. No scratch and burrs
     4. Accept customize and lettering

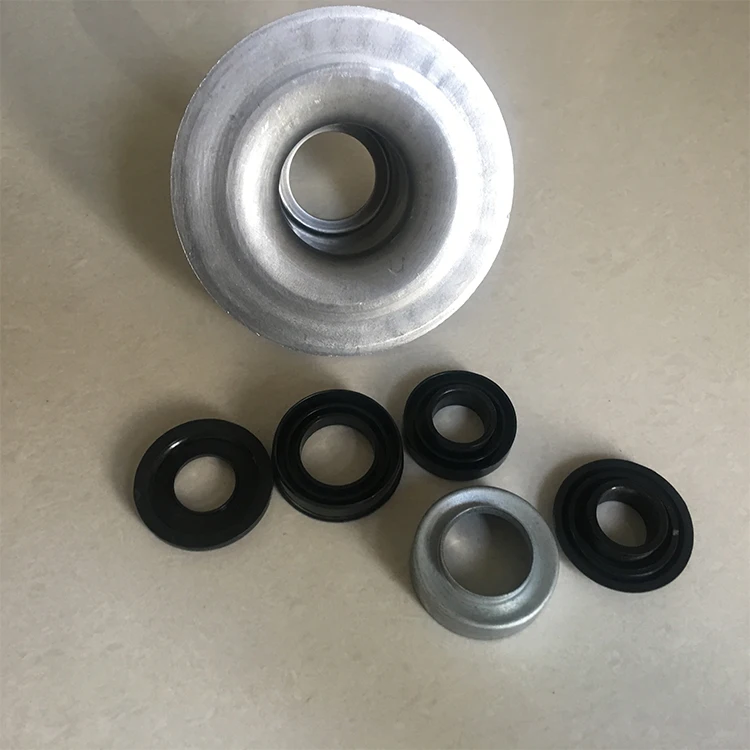

Bearing seal kits
     1. All popular structures available
     2. Capacity to provide plastic/metal/rubber seals
     3. Low tolerance and good quality
     4. Customize the material, shape and lettering





Our Services
Our Service

Zonfa Electric (Tongling) Heart Precision Industry Co., Ltd.
1. Reliable manufacturer offers factory direct service and price.
2. Relying on four production lines, we are able to provide a long-term stable supply.
3. Technical support is always here for you from our R&D team and mold centre.
4. Print your logo or website on your products or customize what you want.
5. Feel free to contact us to request free samples and place trial order with no MOQ.
6. Choose any shipping method you prefer, no matter by sea, air, land or express.
7. Variety of payment methods, we accept credit card, T/T, western union etc.
Company Information





Packaging & Shipping





FAQ
FAQ

Zonfa Electric (Tongling) Heart Precision Industry Co., Ltd.
Q1.What products you can offer?
A1:Our main products are standard&customized bearing housing and seals. We can also provide related roller spare parts including bearings, rubber rings, shaft, pipe, circlip, tools and molds etc.

Q2.What is the MOQ of your products?
A2:No MOQ for standard models we have stock. If we need to start production, MOQ will be normally 1000 pcs. We can also accept trial order of smaller qty for your first purchase.

Q3.Can you send me some free samples?
A3:Yes, we can provide some free samples, when they are in stock. Shipping cost will be paid by customers. We can ship with your express account or accept a shipment payment instead. If we don’t have stock, we will double check on sample costs.

Q4.I have my own design, could you accept customize?
A4:Yes, we can provide standard or non-standard products.
We also have technical team which can provide technical service.


Q5.Can you put my logo and website on the product?
A5:Yes, we could put these information according to your request. Please feel free to contact us.


Q6.Where are your company? Can I visit your factory?
A6:Both of our office and factory are located in Tongling city, Anhui Province. Our city own two high-speed train stations, it’s easy to arrival from any cities of China.
