1 ton small waste tire plastic pyrolysis recycling machine for fuel oil carbon black system

Supplier: Xinxiang Huayin Renewable Energy Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Huayin Group
Price: $45000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Capcity:	3 ton , 5 ton , 10 ton , 20 ton , 30 ton ...;	Packaging Detail:	standard export wooden case or as your request;
Cooling method:	Cycle Water;	Port:	Qingdao/Shanghai;
Final product:	Pyrolysis Oil Carbon Black Syngas (Steel Wire);	keywords:	plastic tires pyrolysis;
Product name:	Waste plastic to fuel oil pyrolysis plant tyre pyrolysis machine;	Certification:	CE,SGS,CE ISO SGS;
Place of Origin:	Henan China (Mainland);	Supply Ability:	20 Set/Sets per Month;
Raw material:	Waste Rubber Waste Tire;	Fuels Choice:	Coal Gas Wood Oil;
Application:	tyre plastic to oil pyrolysis;	Warranty:	1 Year;
Equipment Capacity:	10ton;	Payment Terms:	L/C,T/T;
Condition:	New;	Brand Name:	HUAYIN;
After-sales Service Provided:	Field installation, commissioning and training;	Type:	batch type;
Material of Reactor:	Q245R/Q345R Boiler Steel;

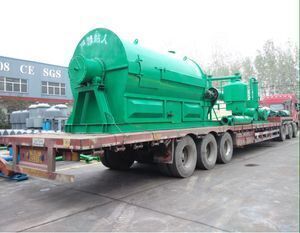

1 ton small waste tire plastic pyrolysis recycling machine for fuel oil carbon black system

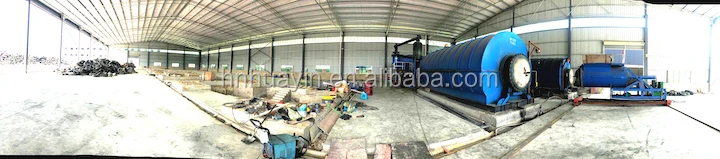

Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black. Unlike incineration, the transformation of materials occurs under oxygen-free conditions.

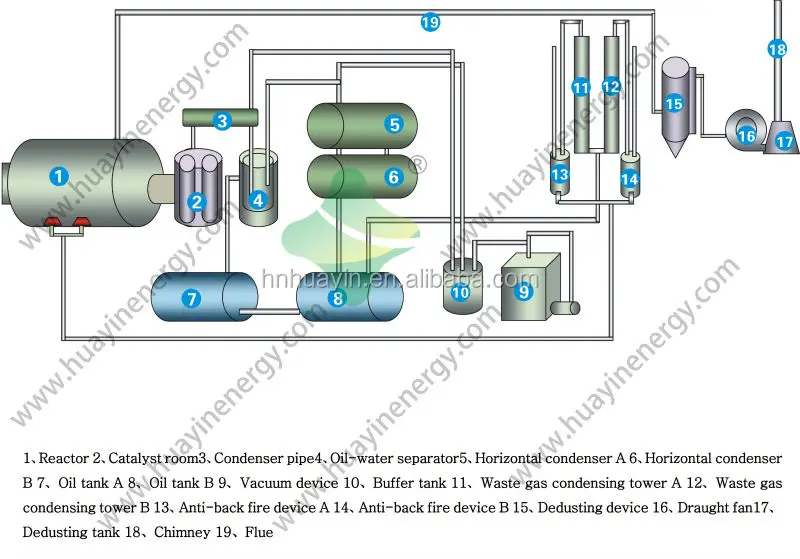

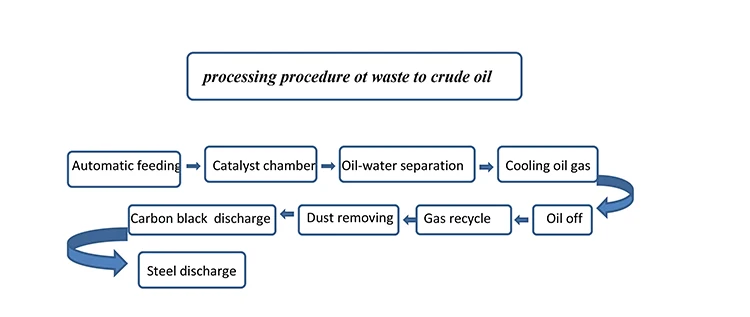

Flow chart

Processing time for one batch
1. Feeding time	2. Preheating	3. Oil producing	4. Cooling reactor	5. Discharging slag	6. Discharg steel wire	6. Starting next batch
2 hours	3 -4 hours	8-10 hours	4 hours	2 hours	0.5 hour

Description of Main Parts

NO.	Name	Function

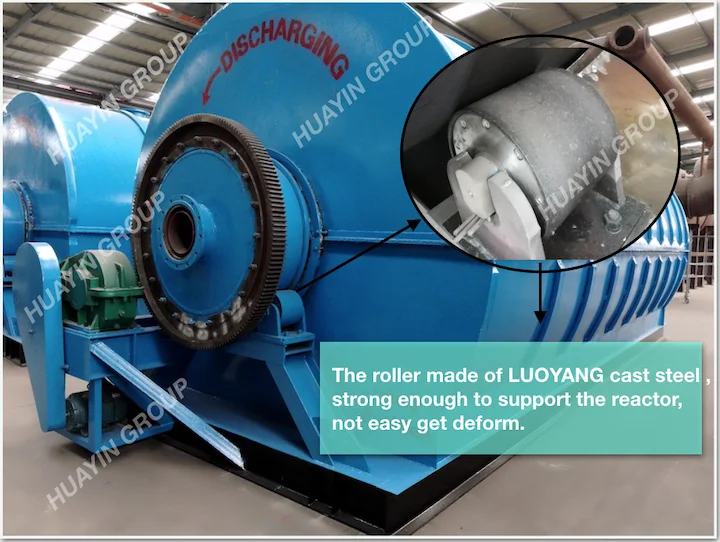

1.	Pyrolysis reactor	Q245R /Q345R steel plate , 16mm/18mm thickness. pyrolysis waste tires and plastic
2.	Horizontal condenser	Working principle: heating exchange Oil gas go through the 57 small tubes Circulating cool water covered all the small tubes Cooling area: each condenser 26.8 square meters
3.	Antiback fire device	Safety device , the anti back fire device will prevent waste gas go back to the reactor.
4.	Vacuum pump	Safety device ,make machine working under normal pressure Suck moisture content, do not let it leak out from input door. High pressure, lower pyrolysis temperature, energy saving.
5.	Oil water separator	Safety device ,pressure device , safety valve
6.	Dedusting device	Remove the acid and sulphur , ensure no black smoke emitted.
7	Slag discharging	Discharged the carbon black in totally sealed condition, automatically.

ZOOM Details

The pyrolysis reactor material is ANgang steel , all of the steel plate purchased from Chinese famous steel company.

Inside the reactor is screw plate, convey the raw material to the end side of the reactor.

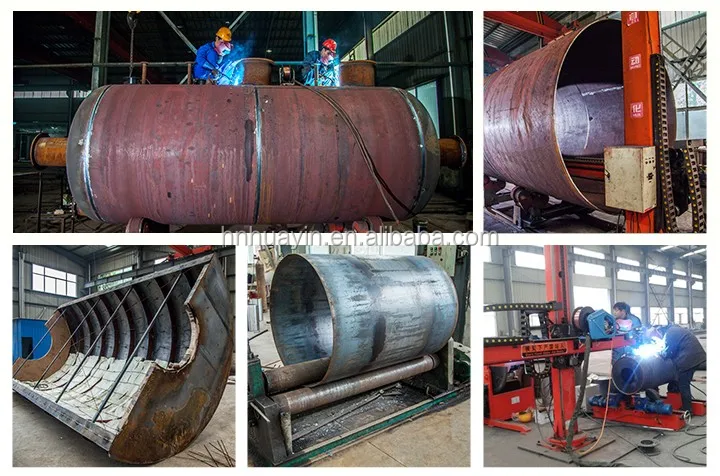

The welding outside 3 times , inside 3 times , the welding quality can be ensured.

Anti coking device ensure the reactor running smoothly.

Features of the 20 ton latest design converting waste plastic into petroleum diesel fuel oil pyrolysis plant

a) Safety

1) Two devices to avoid backfire in production: oil-water separator and anti-back fire device.

2) Vacuum device makes reactor working under ordinary pressure or negative pressure.

3) Temperature monitoring device to avoid excessive working temperature.

4) Pressure gage to monitor the pressure. If it goes above a certain level, the bell will alarm and the safety valve will release the pressure automatically.

5) Carbon black is discharged in a closed situation to avoid catching fire.

b) Environmental protection

1) The flue gas (caused by burning fuel to heat the reactor) will be purified and cooled by dust removal device, then can be released into air through chimney.

2) The procedure to remove carbon black is working under closed situation to avoid pollution.

c) High oil yield

1) We have 3 steps for cooling system: one condenser pipe, two large horizontal condensers and two vertical condensers. The oil gas pass through 3 steps cooling system in sequence. The total cooling area is 65 square meter.

2) When the oil gas pass through the condensers, it’s divided into several portions by small pipes inside condenser and be cooled separately.

3) In this way we maximize the cooling effect and improve the oil yield.

After the machine delivery to your place , We will send engineer to guide installation , training your workers to operate the machine . We have speical After sales service Department to solve your any problems.

Technical parameter

Main Technical parameter for the Mobile Waste plastic to fuel oil pyrolysis plant tyre pyrolysis machine

Item	Contents
Input-Raw Materials	Waste tire/rubber/Medical waste/MSW
By-products	Fuel oil, carbon black, steel wire, syngas
Model	Reactor size	Capacity
	HY2200*5500	5 Ton/Batch
	HY2200*7500	7 Ton/Batch
	HY2600*6600	8 Ton/Batch
	HY2800*6000	9 Ton/Batch
	HY2800*6600	10 Ton/Batch
Reactor material	Q345R/Q245R/310S+Boiler plate/Stainless steel
Thickness	14mm/16mm/18mm
Weight	15T-35T
Power	Average 15KW/h
Space needed	300-400 square meters (Width:10m, Length:30m-40m)
Labor needed	3-4 workers
Density of oil	0.89g/cm3
Combustion value	44.30KJ/KG
Note:	We supply customized mini plant: 10kg plant, 1ton plant for customer trial operation.

Output product from the latest design tire to oil plastic waste pyrolysis plant with CE certified

1	Tyre oil 50%		• can be sell directly. • make diesel and gasoline by used oil distillation machine. •can be as fuel.
2	Carbon black 30%		• can be sell directly. • make fine carbon by the carbon black grinding equipment. • make carbon brick by briquetting equipment.
3	Steel wire (only for tire) 12%		• can be sell directly. • make steel bloom by hydraulic press-packing
4	Combustible gas	8%	• can be as fuel heating the reactor • extra gas also be storage as fuel for other heating.
