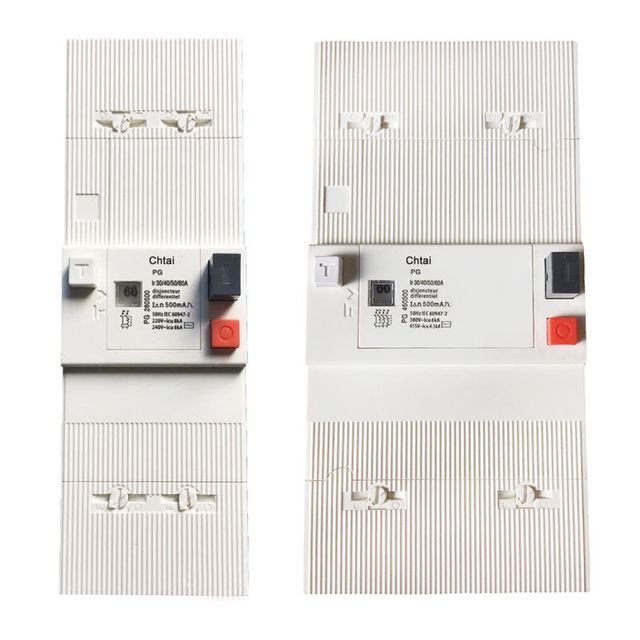

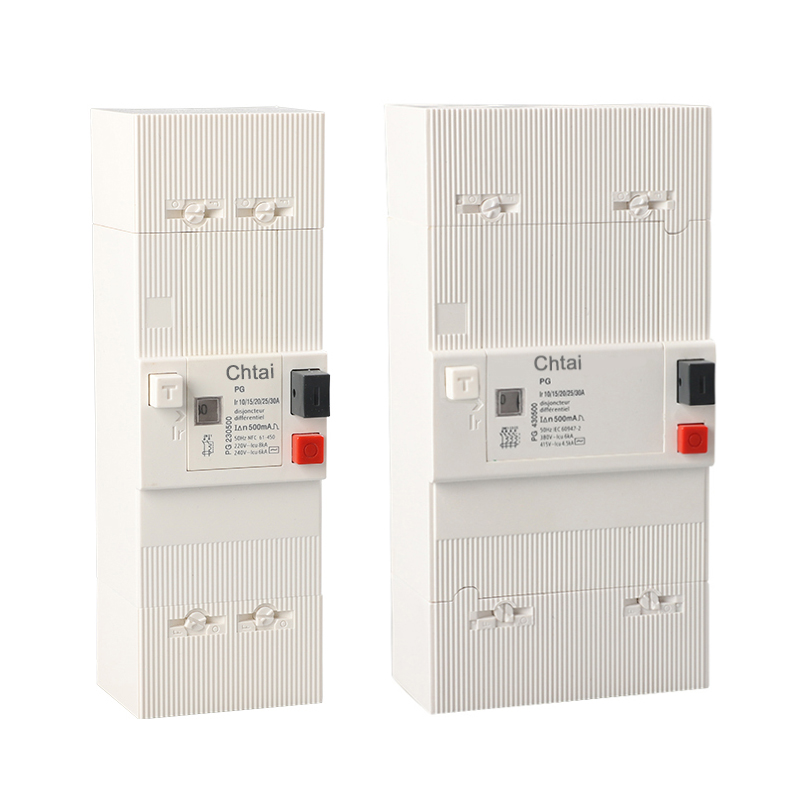

Electromagnetic PG 2P 4P 5/10/15A 30A 45A 60A Adjustable leakage circuit breaker Disjoncteur ELCB 1P+N 3P+N mcb
-
Supplier: Wenzhou Xinghe Import & Export Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Carol -
Price: $2.50 /piece -
Min. Order: 1 piece
Product details
| Number of poles: | 1 | Protection level: | Protection class 40 |
| Certificate: | CCC certification | type: | PG, circuit breaker |
| model: | PG-ELCB | Material: | Nylon 66 |
| Nominal frequency (Hz): | 50/60 Hz | Rated current: | 5/15A 10/30A 15/45A 30/60A |
| pole: | 2P 4P | Rated voltage: | 230V/400V |
| OEM: | usable | BCD curve: | C |
| Origin: | Zhejiang, China | Package preview: | |
| brand: | chai tai | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Breaking capacity: | 4.5/6KA | Operating temperature: | -5°C to 40°C |
| Supply capacity: | 5000 pieces per day | product name: | Adjustable residual current circuit breaker |
| standard: | IEC1009-1, GB16917.1 | port: | Ningbo or Shanghai |
Product Description
scope of application
PG The series adjustable RCBO has advanced structure, reliable performance, quick tripping, guide rail installation, shell and components are made of impact-resistant and high flame-retardant materials.sition. long lasting.Suitable for AC 50-60Hz, 230/400V, current rangee from 5 to 60A circuitsLeakage, overload, short circuit protection and other functionsFunction.
Conforms to the French NFC 61450 standard.

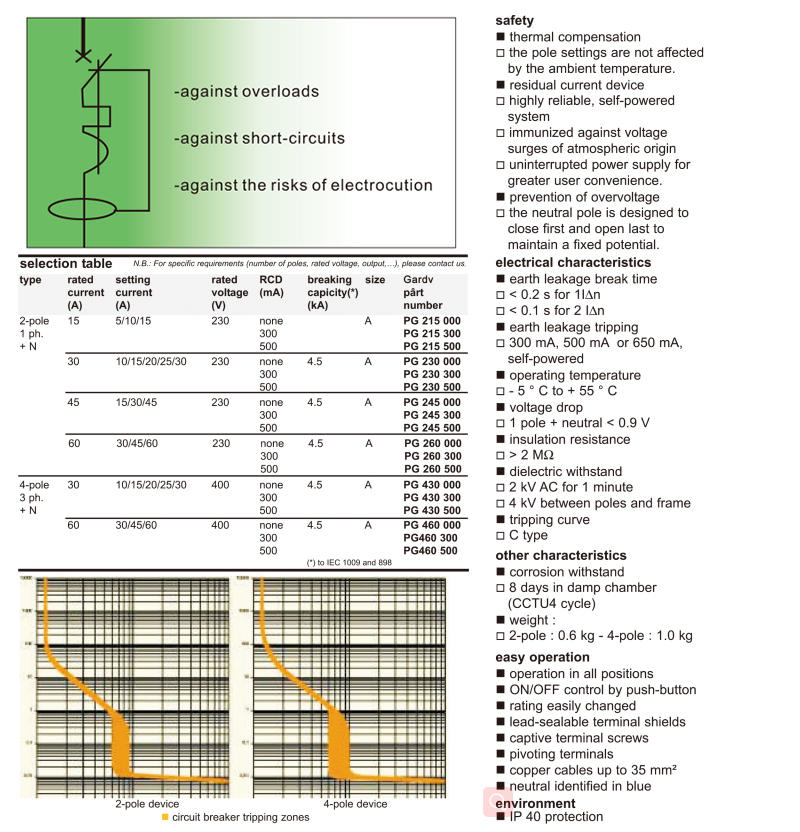

Product parameters
number | PG circuit breaker |
Rated current (In) | 5, 10, 15, 20, 25, 30, 45, 50, 60A adjustable |
type | 5-15A;10-30A;15-45A;30-60A |
leakage current | 300mA/500mA |
Leakage non-working current (mA) | 150mA, 250mA |
polish | 2P 4P |
Material | Nylon 66 |
Rated voltage (Ue) | 230V/400V AC~ |
rated frequency | 50/60 Hz |
Rated breaking capacity | 4.5/6KA |
Thermomagnetic release characteristics | CD |
Operating temperature | -5°C to 55°C |
protection level | IP40 |
Protect | Overload, short circuit, leakage protection |
Install | rail installation |
standard | NFC 61450 |
Certificate | CCC certification |
OEM | usable |
detailed drawing
application
