Factory direct factory 2P 6kA capacity MCB 10amp miniature circuit breaker safety electrical disconnector circuit breaker

main specifications

Alibaba Wholesale Reliable Performance Power Distribution Cord Green and White 18mm 1p 230/400V Mini Circuit Breaker
Chint Deli Xiyuan Metal Parts Supplier

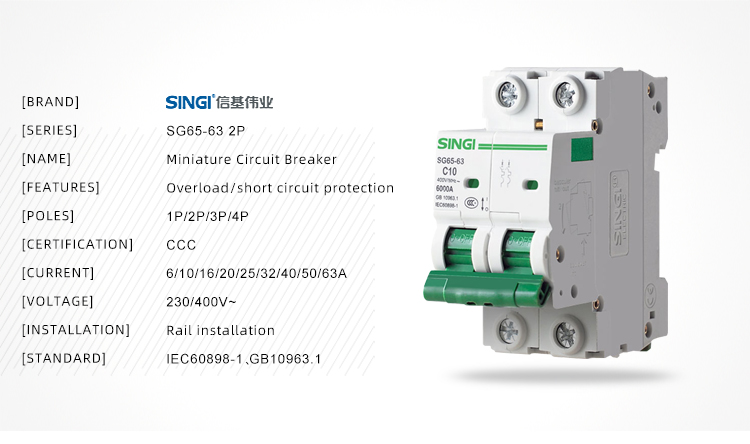

key parameter:

· CE/CB/ISO9001/CCC certificate;
· Rated voltage: 230/400VAC;
·Frequency 50/60Hz;
Rated current: 1, 3, 6, 10, 16, 20, 25, 32, 40, 50, 63A;

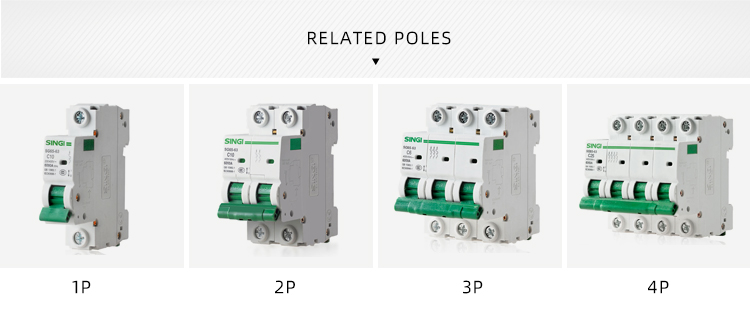

1/2/3/4 pole optional;
· Mechanical life: 20000 times;
Flame retardant: PA66 nylon material;
· Protection class: IP20;
· With overload/short circuit protection function;
· Standard: IEC60898;
· Temperature resistance 30°C
· Breaking capacity: 6KA;
· Optional lighting/motor protection

application

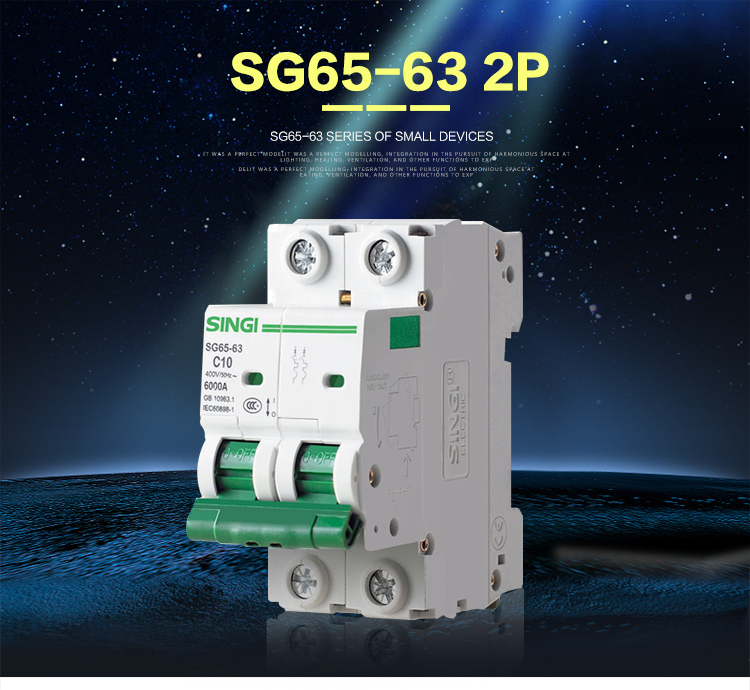

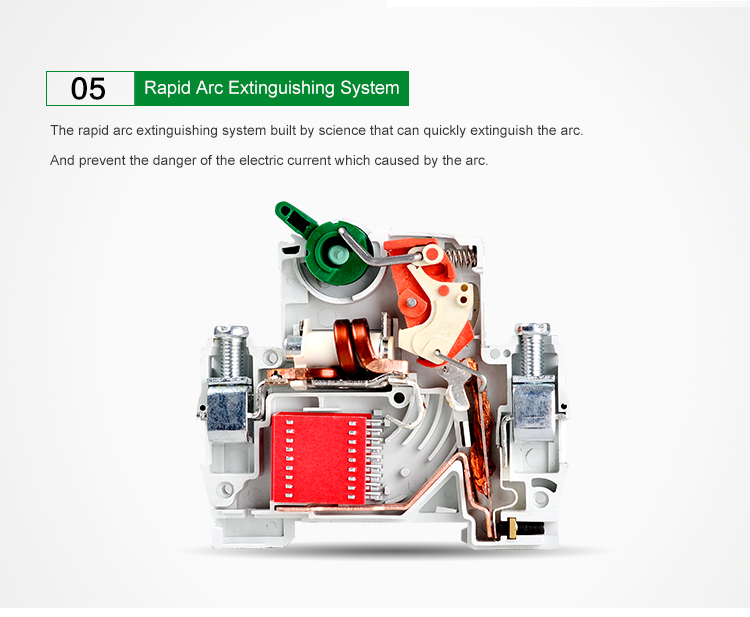

SG65-63 high-breaking miniature circuit breaker has the characteristics of advanced structure, reliable performance, high breaking capacity and exquisite appearance. The shell and parts are made of impact-resistant and flame-retardant materials.

Suitable for power systems with 50 or 60 frequency, Ue 400V and below, Ui 63A and below.

It is mainly used in lighting, power distribution and overload and short circuit protection of equipment in office buildings and residences. Typically also used in power systems with infrequent conversions. Comply with IEC60898 and GB10963.1 standards.

Technical Parameters

Comment:

1. Mechanical life: 20,000 times (break-open)

2. Heat resistance: Class 2 (temperature 55°C, relative humidity 95%).

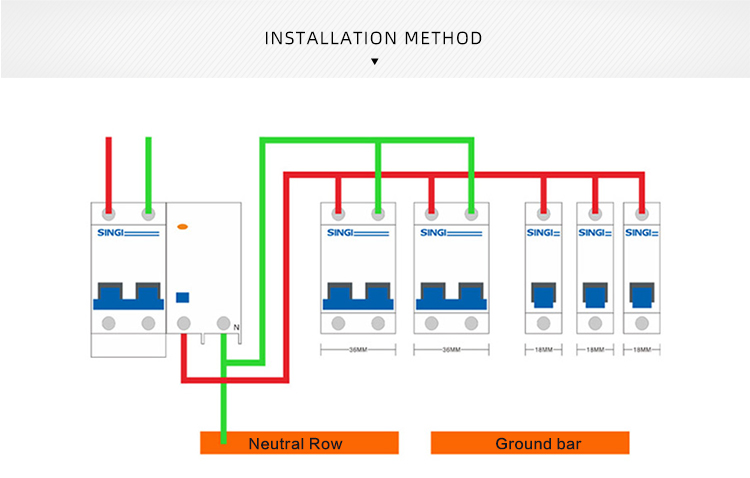

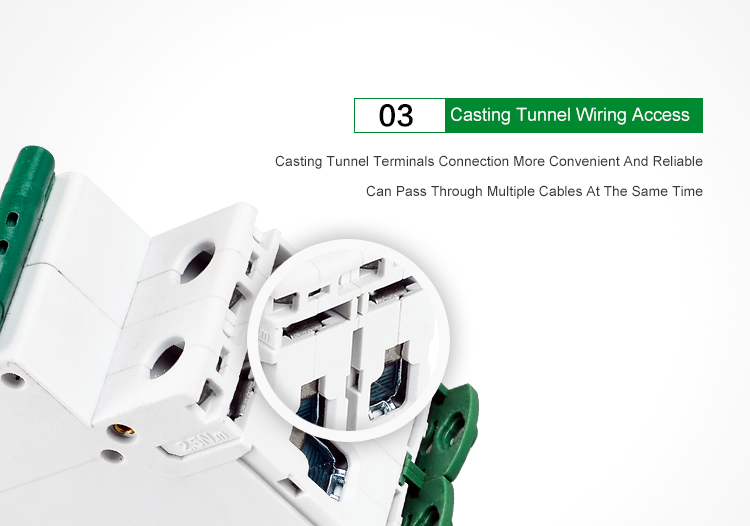

3. The wiring method is a clamp terminal, wire diameter: 25mm2
