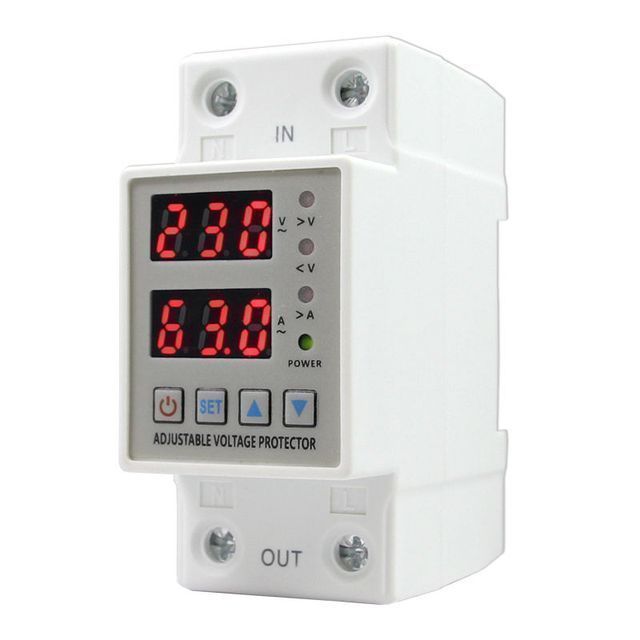

Din Rail Adjustable Digital Voltage Protector 63A 230VAC Overvoltage and Overcurrent Protection with Switch

Supplier: Wenzhou Xinghe Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Carol
Price: $2.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certificate:	CCCC CE	Undervoltage protection:	AC140-210
Rated current (In):	1-63A	Overvoltage Protection:	AC230-300
pole:	1P+N	standard:	GB12762
Voltage:	230V	Packaging Preview:
Supply capacity:	5000 pieces per day	OEM ODM:	available
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	brand:	Chete
port:	Ningbo or Shanghai	exhibit:	Dual LED Display
place of origin; place of origin:	Zhejiang, China	Function:	Voltage and Current Protection
model:	CTGQ-63

Product Description

Scope of application

Overvoltage and Undervoltage Protection Device (OUPA)

1. Power supply: 230VAC 50/60Hz
2. Maximum load power: 1~40A adjustable (default: 40A)

1~63A adjustable (default: 63A)
3. Overvoltage protection value range: 230V~300~OFF (default: 270V)

Overvoltage recovery voltage range: 225V--295V (default: 250V)
Overvoltage protection action time: 0.1s~30s (default: 0.5s)

Overvoltage recovery delay time: 1s~500s (default: 30s)

4. Undervoltage protection value range: 140V--210V --OFF (default: 170V)

Undervoltage recovery voltage range: 145V--215V (default: 190V)
Undervoltage protection action time: 0.1s~30s (default: 0.5s)
Undervoltage recovery delay time: 1s~500s (default: 30s)
5. Overcurrent adjustment range: 1-40A (default: 20A) 1-63A (default: 40A)
Overcurrent action range: 0.1~30 seconds (default: 0.5s)
Overcurrent recovery delay time: 1s~500s (default: 30s)
6. Boot delay time: 1s~500s (default: 10s)

7. Power consumption: <2W
8. Motor life: 100,000 times
9. Installation: 35mm DIN rail

famous:When connecting the product for the first time, wait about 10 seconds (power-on delay time:

1s~500s (default: 10 s)), after the red light goes out, the product starts to work.

Function:

1. Overvoltage protection
2. Undervoltage protection
3. Overcurrent protection
4. Automatic recovery

5.Adjustable movement and recovery time
6. Voltage display (voltage measurement)
7. Current display (current measurement)
