GD-41SA Gecen 4 In 1 Out Satellite FTA TV LNB DiSEqC Satellite Receiver Switch

Supplier: Zhuhai Gecen Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Catherine Xia
Price: $0.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Warranty:	1 year
Processing:	able to provide	Frequency Range:	950-2400(MHz)
DC maximum power through:	500(mAh)	Insertion loss:	3 (decibels)
Origin:	Guangdong, China	model:	GD-41SA
Supply capacity:	10000 pieces per month	Normal working voltage:	12-20(V)
DC power consumption:	10(mA)	Packaging Details:	Color box, white box, customer's own logo box
Return Loss:	8 (decibels)	Impedance (all ports):	75(Ω)
brand:	GECEN	isolation:	20(decibel)
port:	Zhuhai/Shenzhen/Guangzhou port

Product Description

feature:

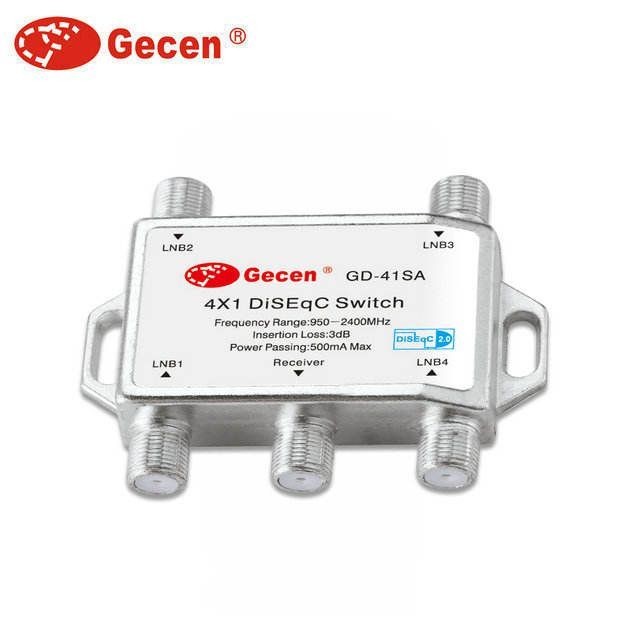

Product Name: DiSEqC Switch 4 in 1
Model: GD-41A
feature:
Zinc die-cast housing, nickel-plated
High-quality components, professional circuit design, low loss
High-quality chips, professional programming, compatible with more models of satellite receivers
It can work normally in an outdoor environment without shelter, with a beautiful plastic case
DiSEqC 2.0, supports bidirectional DiSEqC full control function
Select one of the two satellite signals via the DiSEqC command provided by the satellite receiver
Simultaneous transmission of control commands and satellite signals using one coaxial cable
DiSEqC "standby" command supported

thing	Specification	thing	Specification
Frequency Range	950-2400(MHz)	normal working voltage	12-20(V)
Insertion loss	3 (decibels)	DC power consumption	10(mA)
isolation	20(decibel)	DC maximum power through	500(mAh)
return loss	8 (decibels)	Impedance (all ports)	75(Ω)
