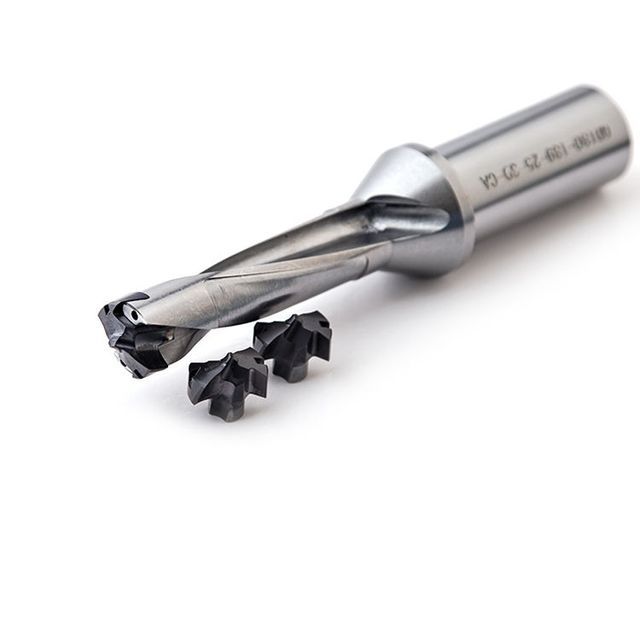

Fengyi Custom Carbide Blade Shank CNC Machining Center Hole Metal Drilling Tool U-Type Quick Drill Single Pointed Line Shank

Supplier: Fengyi Yinhu (Chengdu) NC Tools Co.,Ltd
Region: Sichuan, China
Contact: Mr Fengyi NC Tools
Price: $212.40 / 1 - 9 pieces
$99.60 / >=10 pieces
Min. Order: 1 piece

Click here to contact

Product details

sampling time:	a week	MOQ:	1
Package:	cartoon	Packaging Details:	box cartoon
usage:	quick drill	Processing:	support
Mechanical test report:	not available	Origin:	Sichuan, China
Material:	Tungsten carbide	Video shipment inspection:	not available
product name:	Indexable drill holder	Health status:	new
Package preview:		Warranty:	unavailable
Supply capacity:	5,000,000 boxes per year	Showroom location:	not any
Marketing Type:	New product	brand:	Fengyi
function C:	Interchangeability and flexibility;	payment terms:	wire transfer
application:	metal drilling	Weight (kg):	1.2
Function one:	A variety of drill bits are available;	Function B:	Innovative self-locking connection system;
Applicable industries:	manufacturing plant, machinery repair shop, machinery

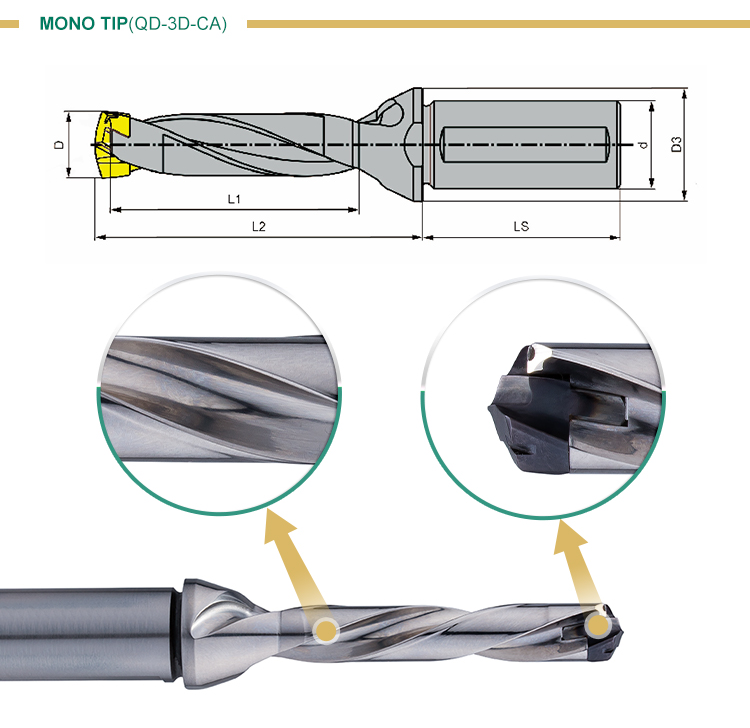

Fengyi Single Point Carbide Indexable Fast Drill

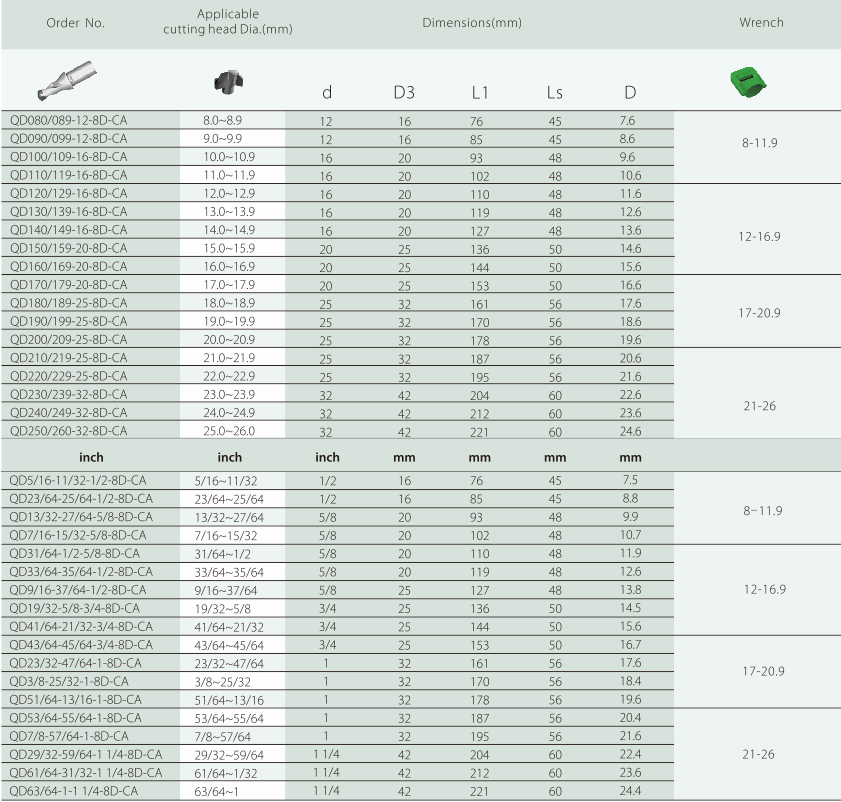

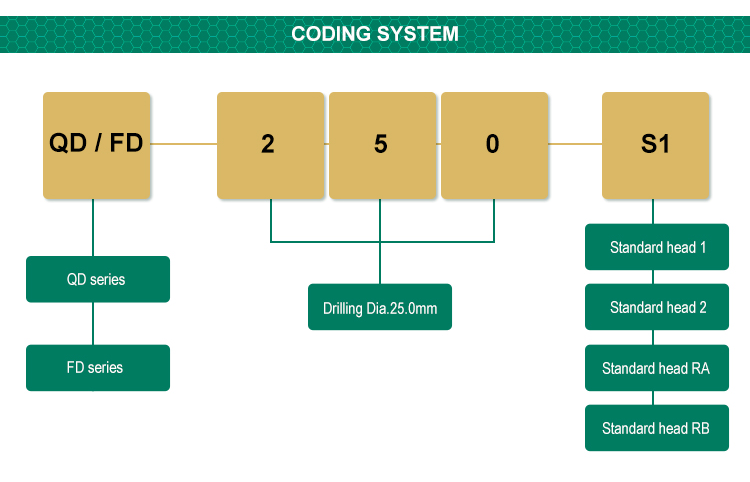

Applicable cutting head diameter (mm)	φ8mm-φ26mm, with a size interval of 0.1mm. For example: 16.0mm, 16.1mm, 16.2mm, 16.3mm.....

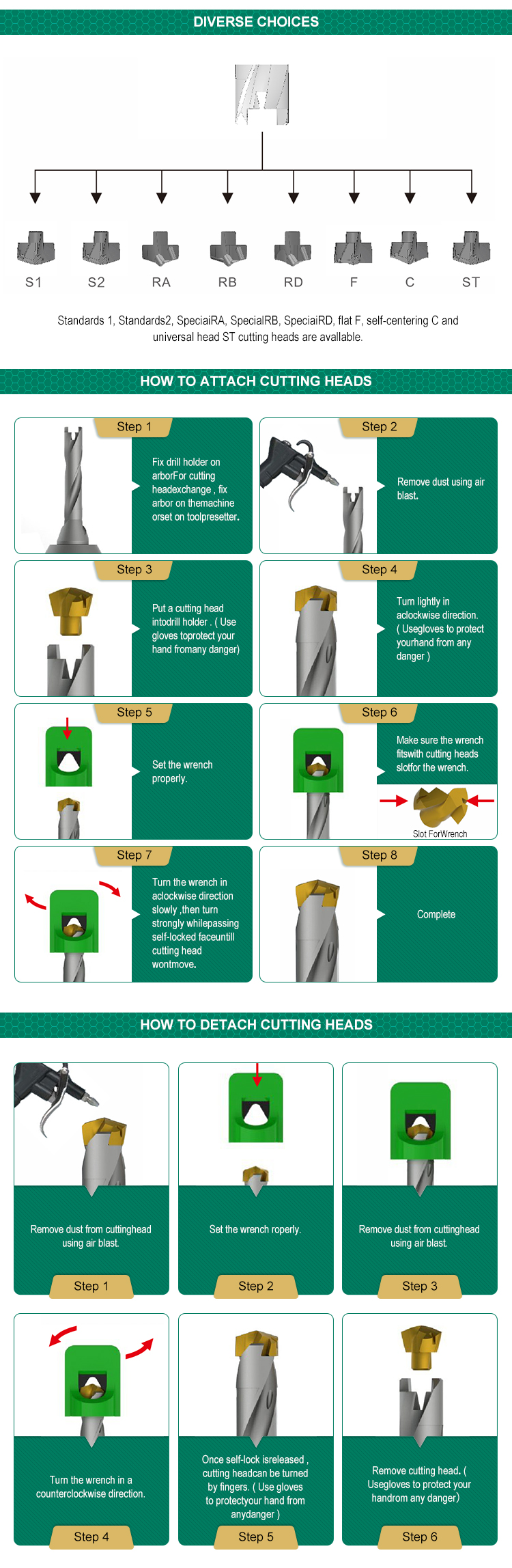

Drilling edge design	S1/S2/RA/RB


Applicable diameter selection:	1.5D/3D/5D/8D/10D/12D


Precision	The radial and axial runout is 0.02mm, and the hole precision after machining is controlled at 0.05mm.


Advantages and Features	Independent drill bit, good integrity, smooth hole wall after processing, high precision

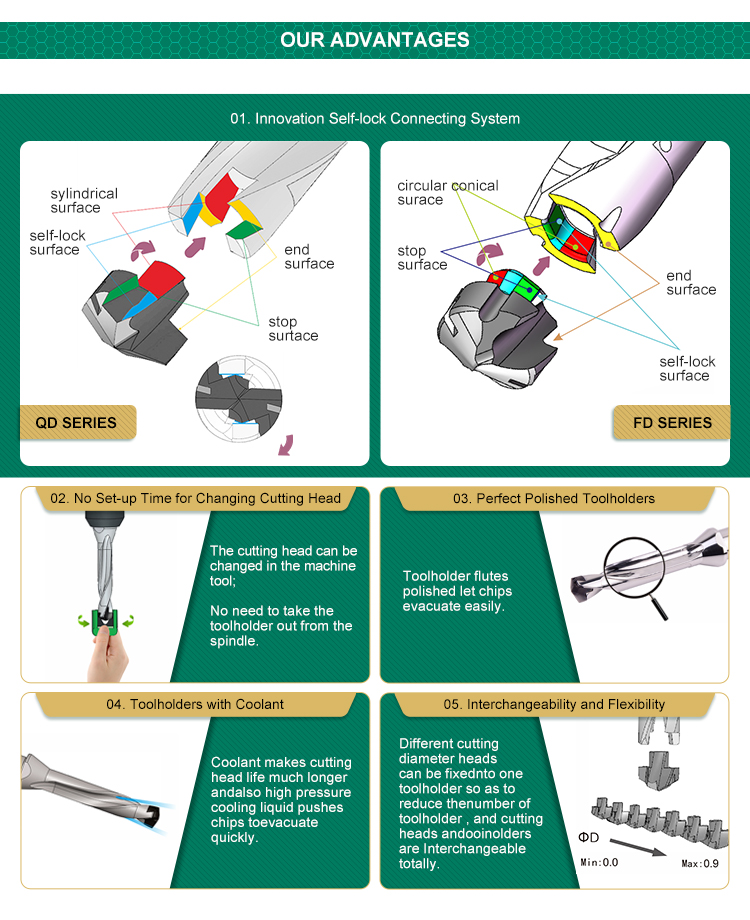

	Screw-free locking, self-locking structure, quick replacement of drill bits

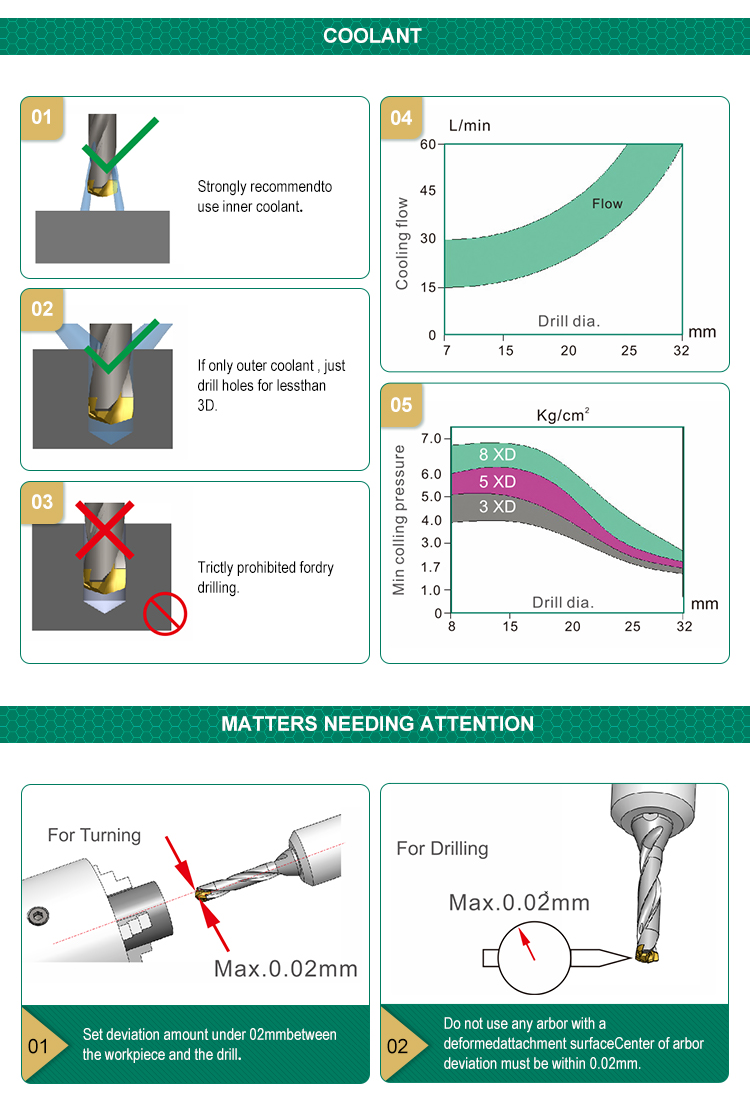

	Internal cooling structure, fully cooling the drill tip during processing

custom made	We can design and manufacture special multi-blade drilling tools according to customers' drawings.

Drilling edge design and machining material recommendation

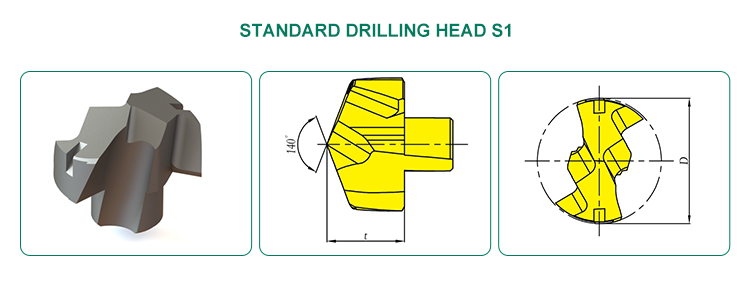

Drill S1	S1 cutting head is recommended for medium and high carbon steel, alloy steel, ductile iron, etc. (especially below 5D)

Drill S2	S2 cutting head is recommended for gray cast iron, ductile iron, etc.

Drill RA	RA cutting head has the advantages of drilling self-centering and small drilling force. Can be used for medium and high carbon steel, alloy steel, etc. (especially below 5D)


Drill RB	The RB cutting head can drill by self-centering, and the drilling force is small. It can be used for stainless steel, titanium, nickel-based alloys, manganese steel and other unbreakable materials.

1. Are you a trading company or a manufacturer?

A: We are a professional manufacturer with independent export rights.

2. What is the address of your company?

A: Our production and sales are both in Chengdu, Sichuan Province, China.

3. Can you produce according to samples? Does the sample picture match the real thing?

A: Yes, we can produce according to your samples or technical drawings, and the actual products are produced exactly according to the sample pictures.

4. What is your delivery time?

A: In stock: Ship within 48 hours after the payment arrives. Out of stock: 5-35 days (depends on quantity)

5. Can you send samples?

A: Yes, we provide sample sending service, for more information, please click the contact button on the right side of the screen to contact us.
