Turning and facing tool holders for 40-position Multifix quick-change tool holders

Supplier: Dezhou Zhongyi Industry And Commerce Co., Ltd.
Region: Shandong, China
Contact: Mr Jack zhao
Price: $22.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Marketing Type:	normal product	brand:	favorite
Packaging Details:	Cartons Cartons, pallets can be provided according to customer requirements	Applicable industries:	Manufacturing plants, machine repair shops, metal processing
application:	Clamp turning tool, turning tool	payment terms:	L/C, Western Union, T/T, Alibaba, paypal
After warranty service:	online support	Video shipment inspection:	if
Mechanical test report:	if	port:	Qingdao Xingang
Health status:	new	hardness:	HRC45-50
place of origin; place of origin:	Shandong China	Supply capacity:	1000 pieces per month
Weight (kg):	0.5	accuracy:	0.01mm
Warranty:	6 months	Showroom location:	not any

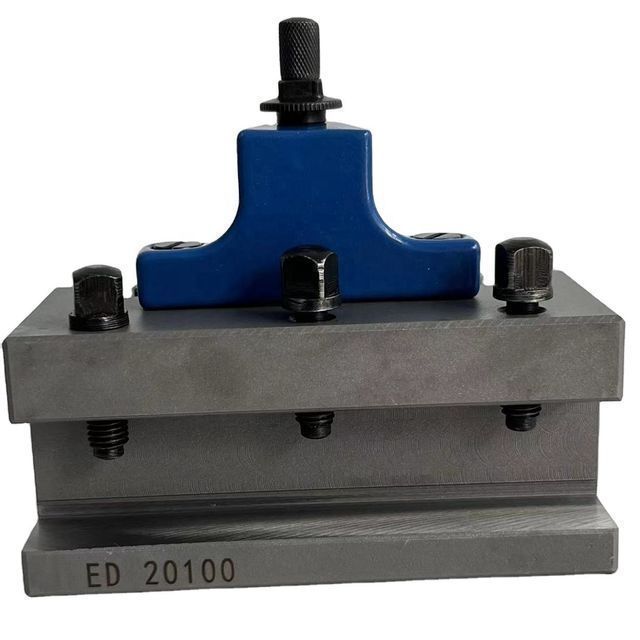

Turning and facing tool holders for 40-position Multifix quick-change tool holders

1) It is the main part of a common lathe, working together with the tool post
2) Quick tool change
3) High positioning accuracy

The quick-change tool post is the main accessory of the machine tool, which includes a tool post and various tool holders. According to the processing requirements of the workpiece, select the corresponding tool holder to complete the processing of the outer circular end face, end face, cutting, drilling, reaming, boring and so on. We can install knives outside the machine through them. It can change the tool quickly, with high precision and strong rigidity. It is a satisfactory product to replace the traditional square turret.

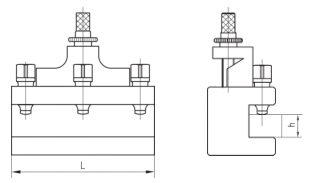

4) The following are the dimensions for turning and facing toolholders:

model.	Well)	length (mm)	model.	Well)	length (mm)
AaD12X50	12	50	BD25X140	25	140
AD16X75	16	75	BD32X120	32	120
AD16X90	16	Post-90s	BD32X140	32	140
AD20X75	20	75	CD32X150	32	150
AD20X90	20	Post-90s	CD32X170	32	170
ED20X100	20	100	CD40X150	40	150
ED25X100	25	100	CD40X170	40	170
BD25X120	25	120	CD45X170	45	170

5) The dimensions and specifications of the 40-position quick-change tool holder are as follows:

order number.	lathe swing	Xmin	Xmax	Yes	h	v	second	you	Ton
what	120-220	18.5	26.5	6.5	12	68	37	34.75	13
One	150-300	25.5 29.5	36.5 40.5	9.5	16 20	104	155	52	20
Second	200-400	32 37	49 52	12	20 25	132	68	66.5	20
Second	300-500	38 46	58 57	13 14	25 32	150	76	75	32
C	400-700	48 56 61	88 92 91	16 16 16	32 40 45	192 201 202	107	92 102 102	40
