Plywood MDF Wood Melamine Lamination Heat Press Door Manufacturing Woodworking Hydraulics

Product details
Table size (mm):1550*2800mmWarranty:1 year
Packaging Details:Stretch film or wooden caseMain selling points:high productivity
Core components:engineWeight (kg):7000 kg
Cylinder number & diameter:8-85mmDimensions:3200*1550*3590mm
Installed power:4+0.75+48KWCore component warranty:1 year
port:FOB Guangzhouworking layer:3
Health status:newpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, by discussion
Video shipment inspection:ifPower (kW):7.5
type:Hot Pressproduct name:AY214*8/12(3)H1RC 120dT heat press machine
brand:Saint LiePlaten size:4-2500x1300x42mm
Maximum total thrust:120 tonsSupply capacity:100 sets/month 120T hot press
pressure:120 tonsMaximum temperature:120°C
Showroom location:United States, Italy, Brazil, Peru, Indonesia, India, Russia, Chile, Colombia, South Africa, Nigeria, AustraliaPlaten opening:120mm
Marketing Type:New Products 2020net weight:7000 kg
Mechanical test report:ifDimensions (L*W*H):3200*1550*3590mm
Applicable industries:Building material stores, machinery repair shops, manufacturing plants, retail stores, construction projectsOrigin:Guangdong, China
Maximum pressure (T):200t(4.6kg/cm²)Layers:3
Package preview:
Product Description

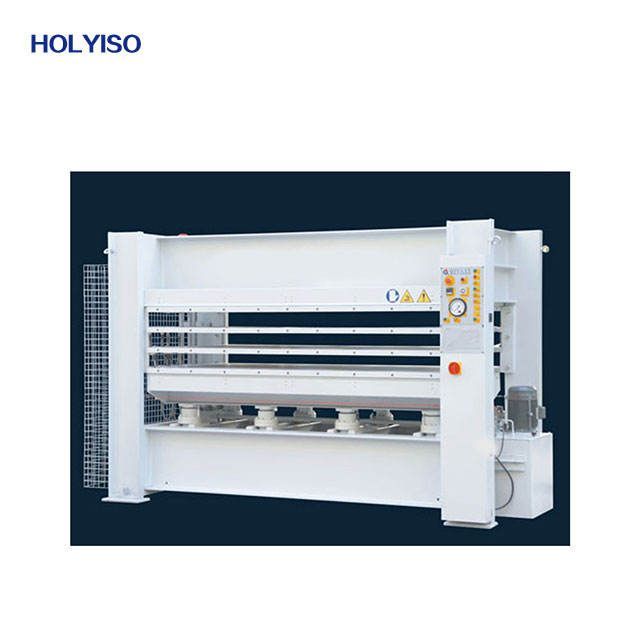

Hot Press
application:
Laminating hot press machine is suitable for furniture factory or board decoration factory, it can coat the board, such as
Wooden doors, core panels, MDF, plywood, chipboard with various decorative papers HPL or veneer. It can also be used for drying or leveling veneer.
feature:
1.PLC programmable control system makes the closing smooth, fast, stable, effective and pre-pressed
2. Hot pressing plate: Drilled from high-quality carbon solid steel, with high precision, high strength and durability.
3. Manufactured on a dedicated workbench, making the hot plate easy to operate.
Electric oil heaters do not use coal or wood as fuel and are environmentally friendly.
4. Hydraulic system: "triple filter", with excellent oil pump and electric motor.
Right-angle one-way valve is adopted, and the work is stable. Pressure is adjustable.
5. Control system: microcomputer, manual/automatic control.
Advantage:
1. It has the functions of raising and lowering the hot plate, closing and separating, pressurizing, maintaining pressure, timing, and lowering the hot plate.
2. The oil heater has the characteristics of adjustable, safe, uniform temperature and energy saving.
3. Cylinder: It is processed by excellent CNC precision machine tools.
4. Adopt high-quality oil seal to prevent oil leakage.
product name:
Hot Press
Model:
AY214×8/12(3)H1RC
total pressure:
1200KN/120T
Specific pressure:
3.9 kgf/cm2
working layer:
3
Platen No. & Size:
4-2500x1300x42mm (Mylar included)
Platen opening:
120mm
Cylinder number diameter:
8-φ85mm
Maximum temperature:
120°C
heating method:
Heat conduction oil electric heating
Heating medium:
heat transfer oil
Installed power:
4+0.75+48KW
Press plate opening method:
manual
Loading method:
long side, manual
Voltage:
380V 50HZ
Package:
bare but protected
gross weight:
About 7500.00 kg
Dimensions:
3400*1530*2050mm
The container requires:
1X20'GP

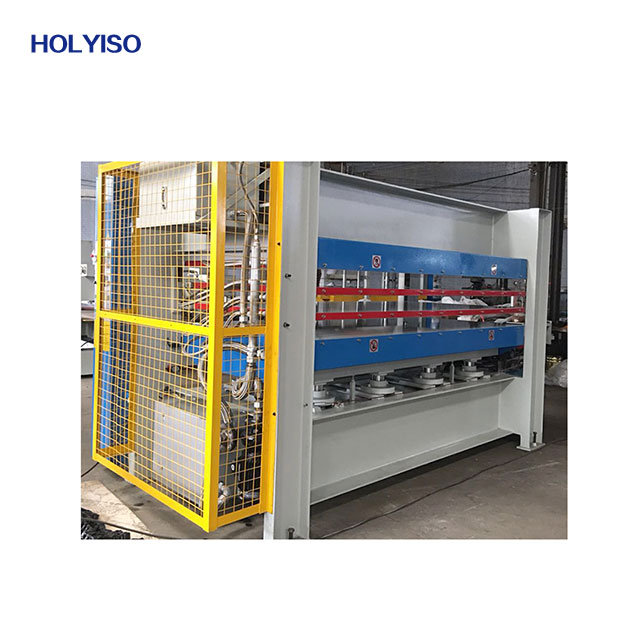

detailed drawing

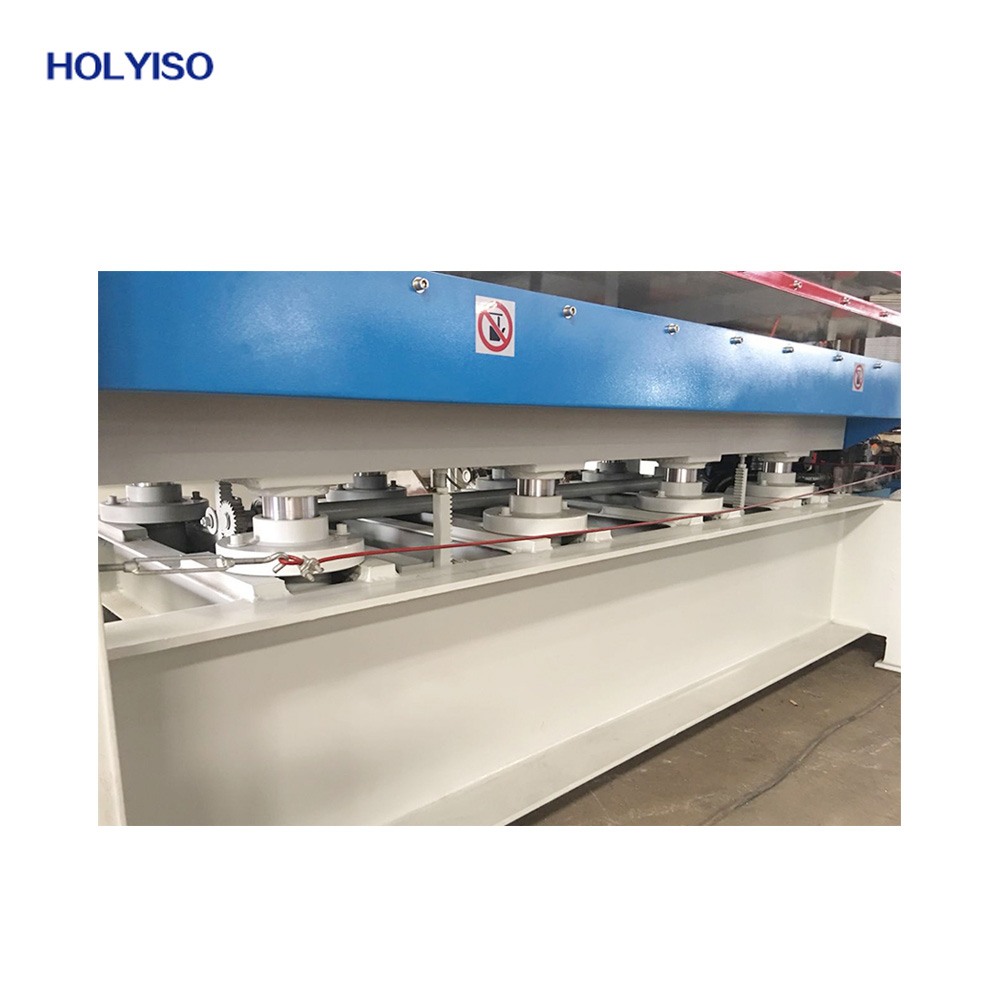

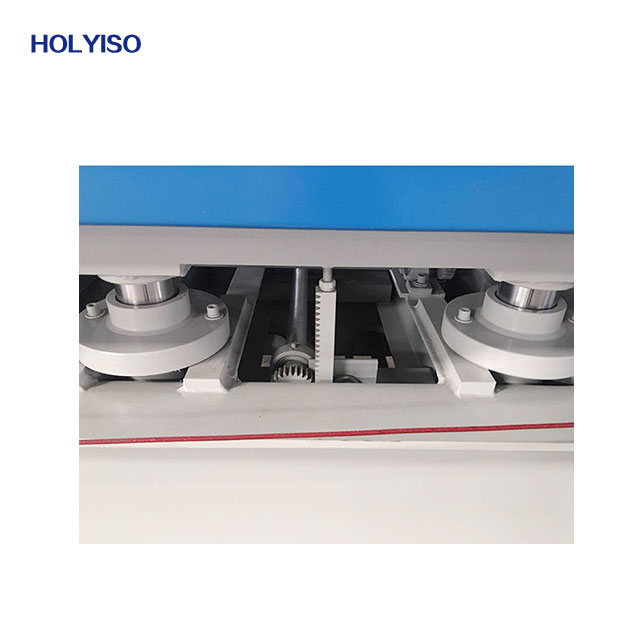

chain drive
Make the machine move more smoothly and faster

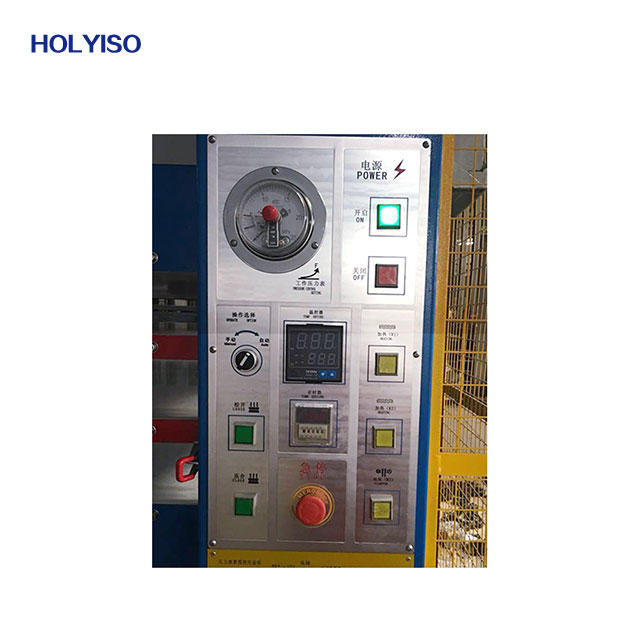

Humanized Control Panel
Easy to adjust the machine up and down, more convenient to operate

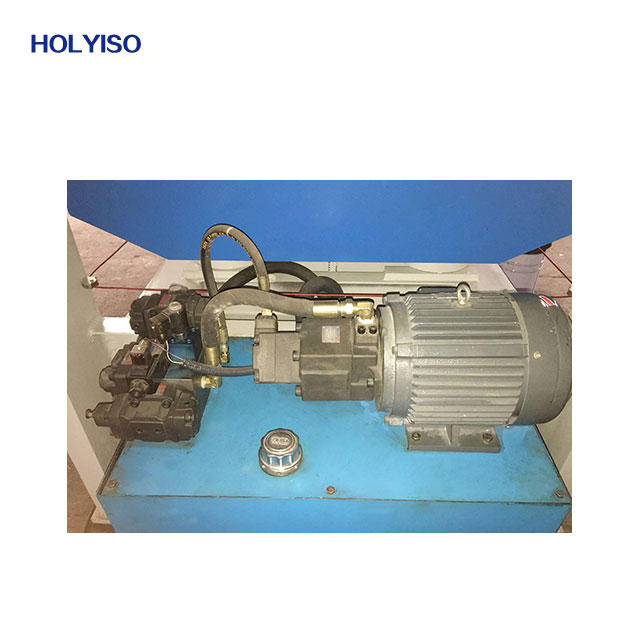

hydraulic pump
Reduced noise, low energy consumption, high speed
application
