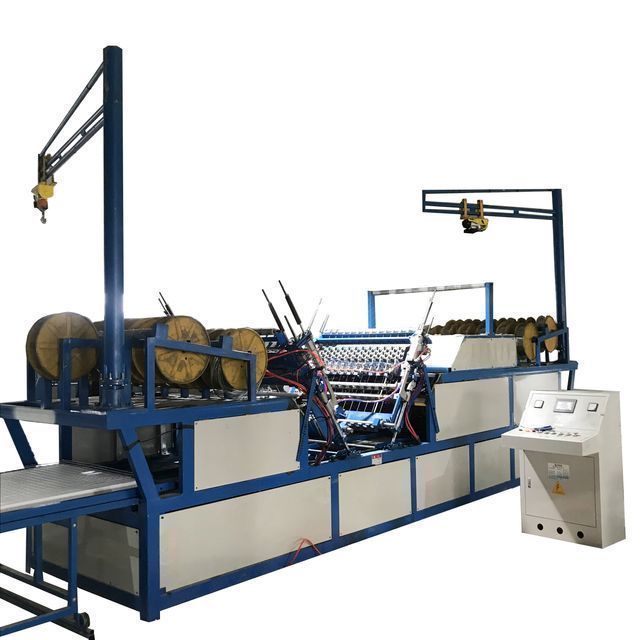

Fully automatic EPS 3D sandwich wall panel welding machine

Supplier: Hebei Kaiye Machinery Equipment Co., Ltd.
Region: Hebei, China
Contact: Mr Larry Liu
Price: $38800.00 / 1 - 1 sets
$37800.00 / 2 - 2 sets
$36800.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

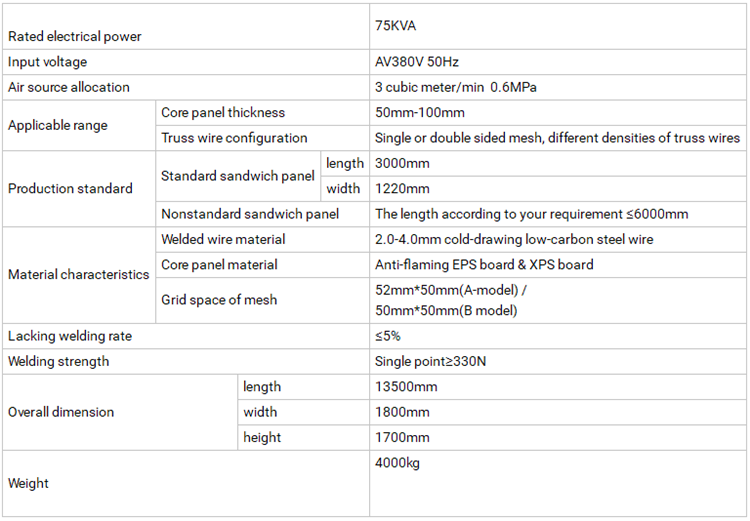

Screen size:	50 mm 75 mm 100 mm	Origin:	Hebei china
After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support	Packaging Details:	The main machinery is packed in plastic and steel wires fixed in the container, and the accessories are packed in wooden boxes.
Health status:	new	Voltage:	220V/380V/415V/440V
Insertion distance:	50-100 mm	Certification:	CE ISO SGS
Standard panel length:	3000 mm	Supply capacity:	50 sets per year
brand:	Kaiye	Warranty:	2 years
Nominal Duty Cycle:	60%	current:	5
aspect:	800012001800mm	Wire Insertion Type:	one side or both sides
port:	Tianjin	Standard core thickness:	50-120mm
weight:	4000 kg	usage:	Production of building materials
Wire insertion inclination:	30-90	Wire Diameter:	2.0-3.0mm
Package preview:		Rated Capacity:	40kva*8
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Applicable industries:	Hotels, building materials stores, manufacturing plants, construction projects
Standard Panel Thickness:	70-150 mm	Core:	Polystyrene and extruded polystyrene
Standard Panel Width:	1200mm	type:	Wire machine

Product Description

Applications

3D panels are a unique and effective way to easily create strong and insulated concrete buildings or walls. Due to the flexibility and ease of design, 3D panels are widely used in various types of concrete structures. Thousands of structures and walls have been built with 3D panels around the world. Many of them use panels for all elements of the structure, including walls, floors, stairs and trim. 3D panels are used in affordable housing all the way up to multi-million dollar housing, residential, commercial, institutional multi-story can be easily created.

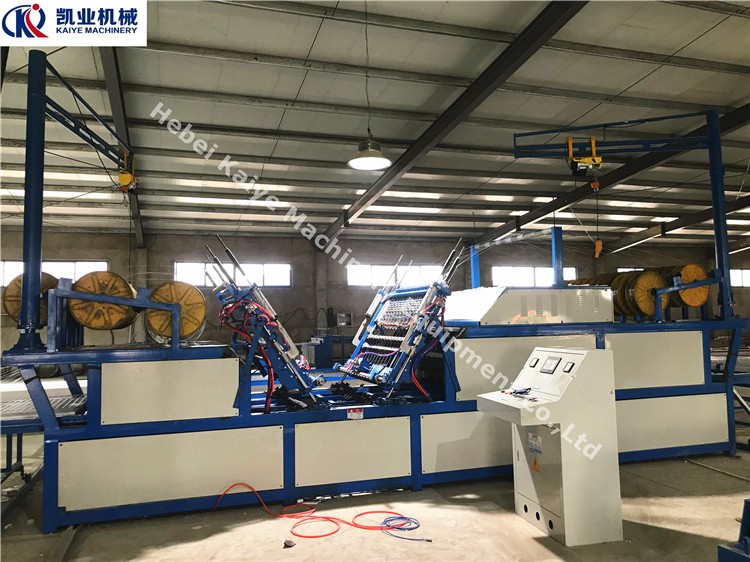

3D puzzle machine line introduction:

The 3D plate production line is mainly composed of 2 machines, one is a steel mesh welding machine, and the other is an insertion welding machine (3D plate machine).

This 3D jigsaw machine production line adopts PLC and touch screen system, and the silk screen, EPS panel and truss line cross panel are strictly positioned.

Features of 3D Panel and eps board machine production line

1) The flatness of the screen panel is good.

2) Strong welding strength.

3) The joint omission rate is low.

4) The truss line insertion, truss line length and mesh size are highly accurate.

5) One machine can produce different kinds of 3D panels with different numbers of truss wires to achieve different usage suggestions.

6) PLC control. Operate via touch screen.

certified

detailed image

Mechanical Parts

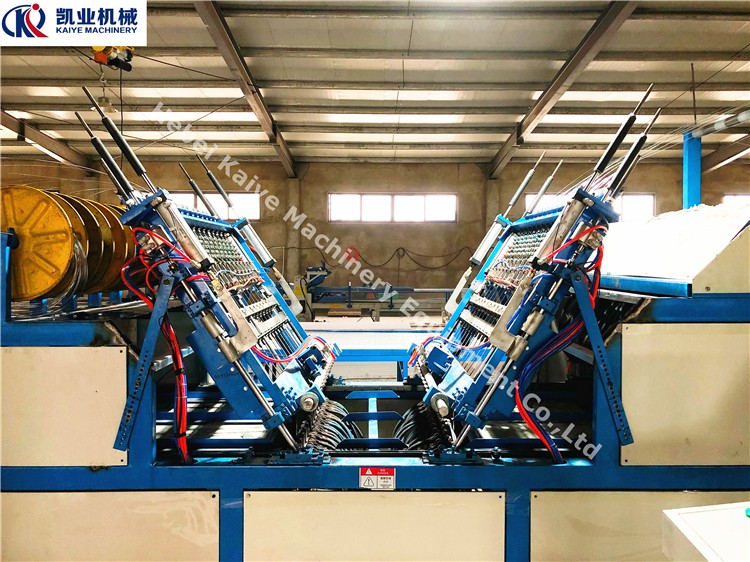

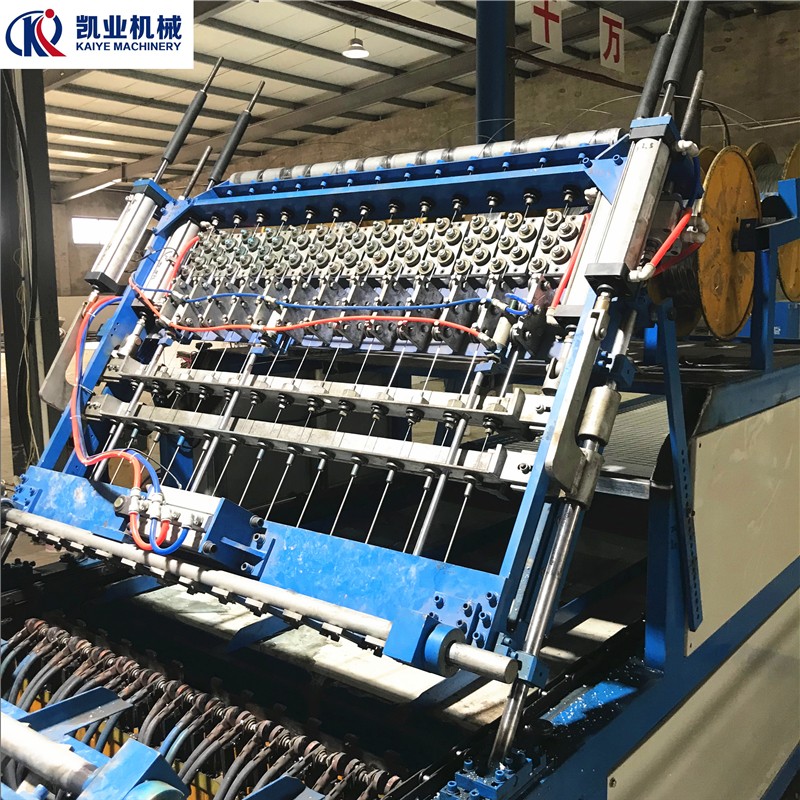

Name:Incoming system

The wire insertion angle can be adjusted to make different kinds of 3D panels.

main feature

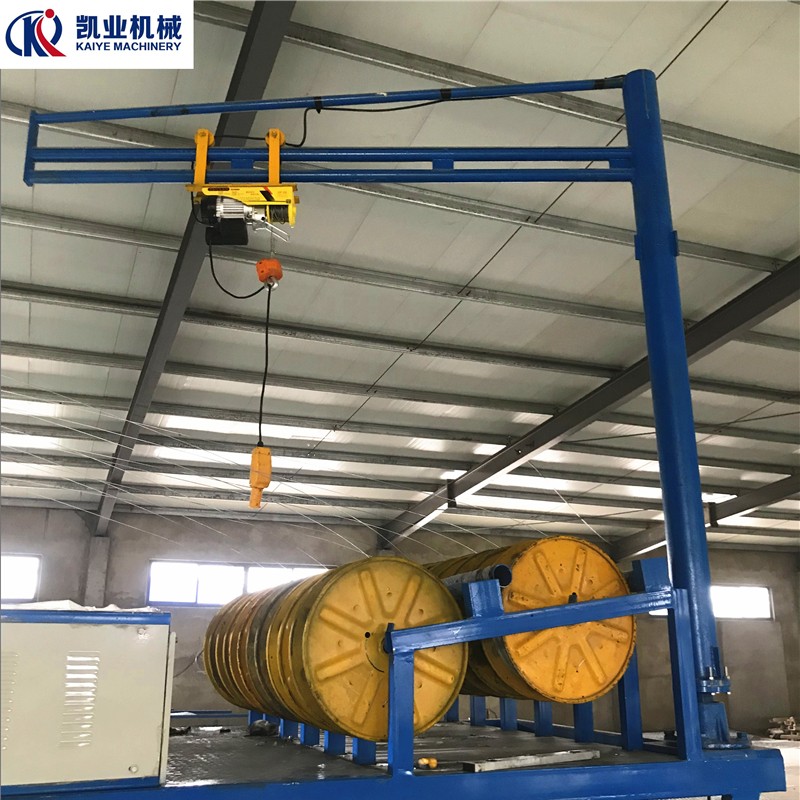

Name:crane
The mechanical feeding system is equipped with a crane to facilitate the supply of raw materials and reduce the workload.

Mechanical Parts

Name:cylinder
The mechanical power system adopts high-quality cylinders to ensure the service life of the machine.

main feature

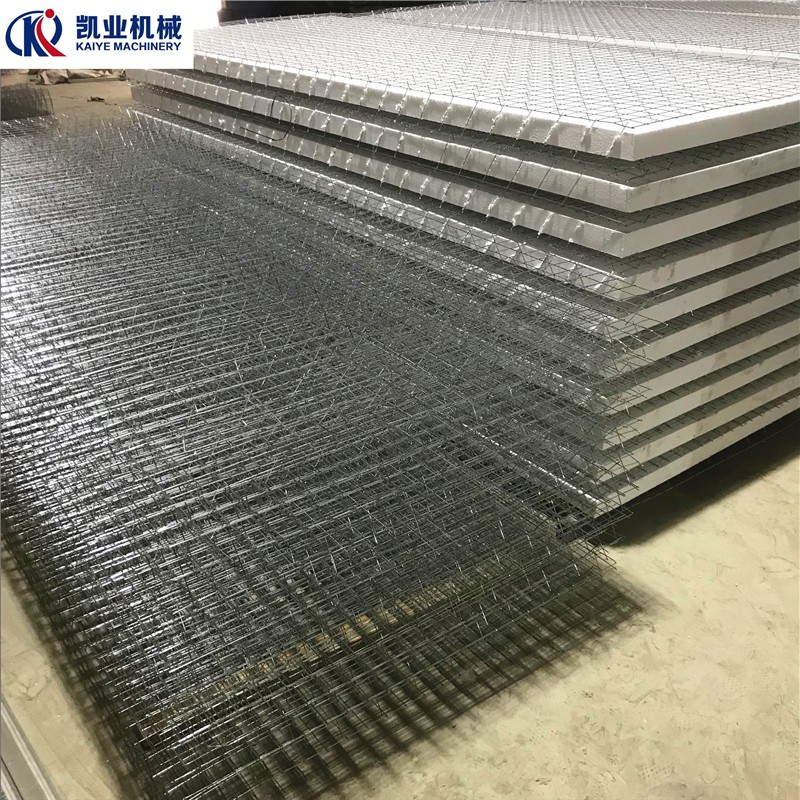

Name:3D panel production

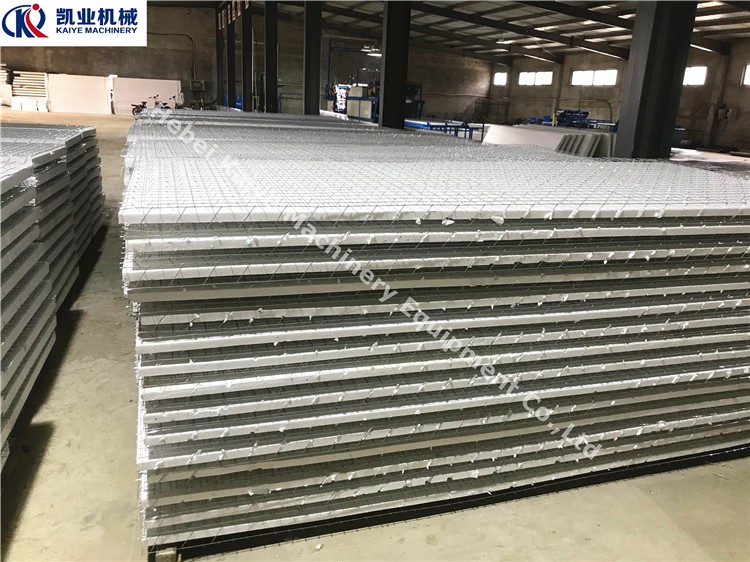

The same machine can produce different products, 3D board with EPS core and 3D board without EPS core.

our service

pre-sale service

* Inquiry and consultation support.

* Sample testing support.

* Check out our factory.

After-sales service

* Training how to install the machine, training how to use the machine.

* Engineers are available to service machinery overseas.

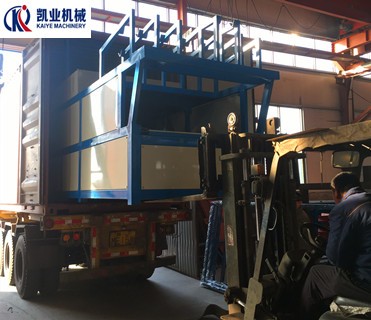

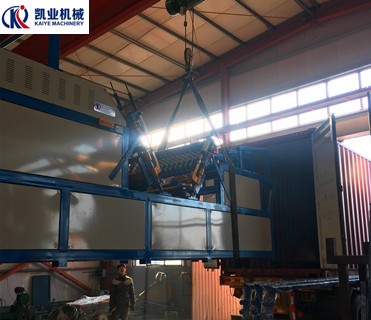

Packaging and Shipping

Package
size	8.0m (length) * 1.2m (width) * 1.8m (height)
weight	4.0 tons
packaging details	The host plastic packaging wire rope is fixed in the container.

Package
size	8.0m (length)1.2m (width)1.8m (height)
weight	4.0 tons
packaging details	All hosts are packaged in plastic and then secured in the container. All accessories are packed in wooden cases.

our company

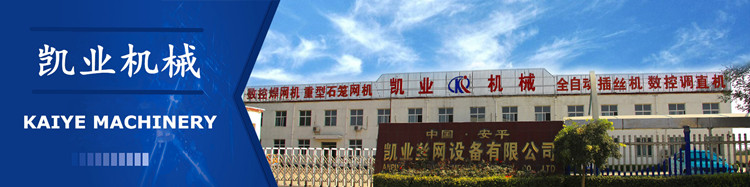

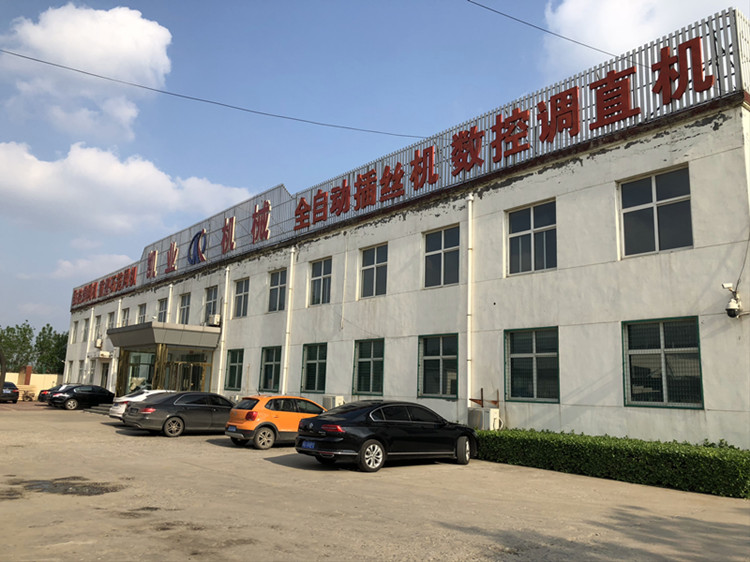

Factory history

Hebei Kaiye Machinery Equipment Co., Ltd. was founded in 2000 and is known as the "Hometown of Wire Mesh" in China. We are a professional manufacturer of wire mesh machinery. Our company is developing smoothly and rapidly, with more than 150 employees.

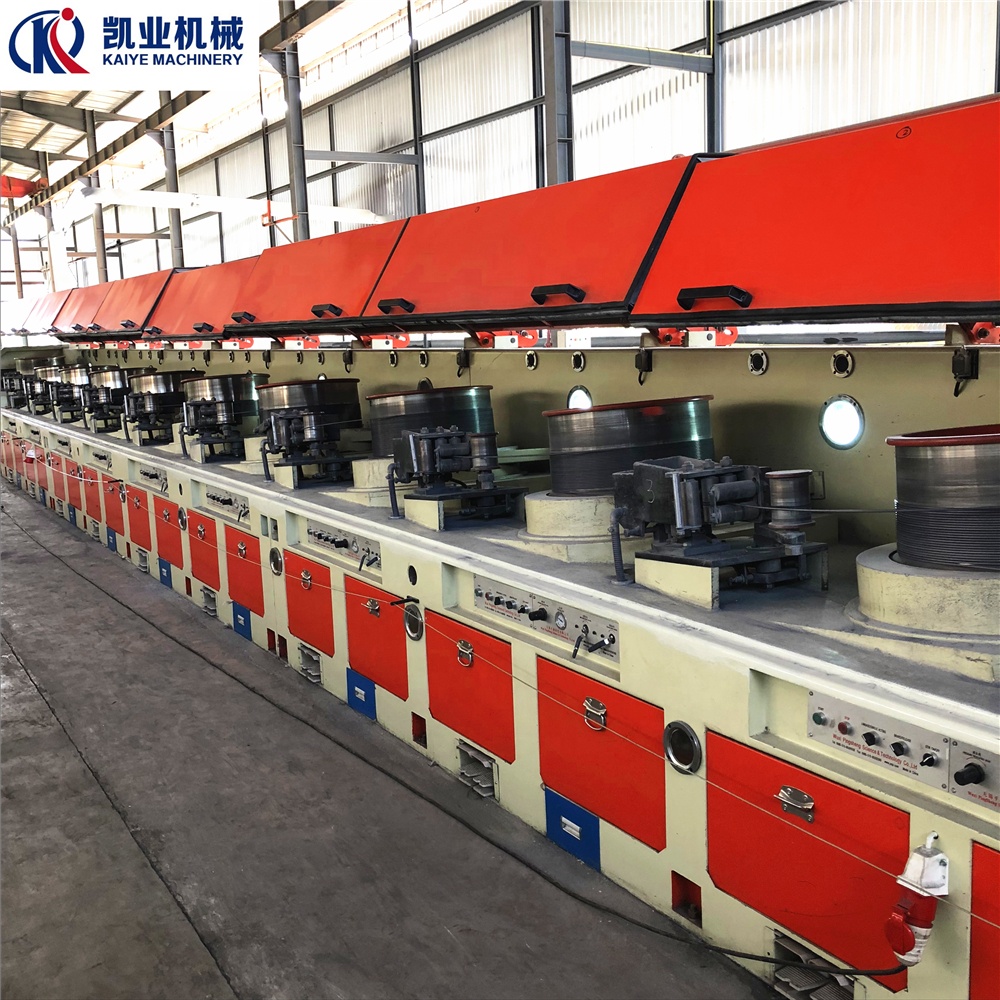

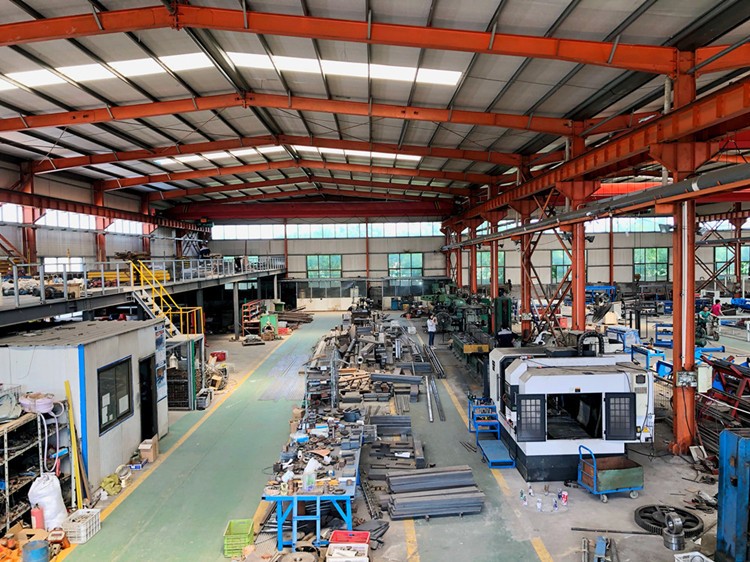

factory machinery products

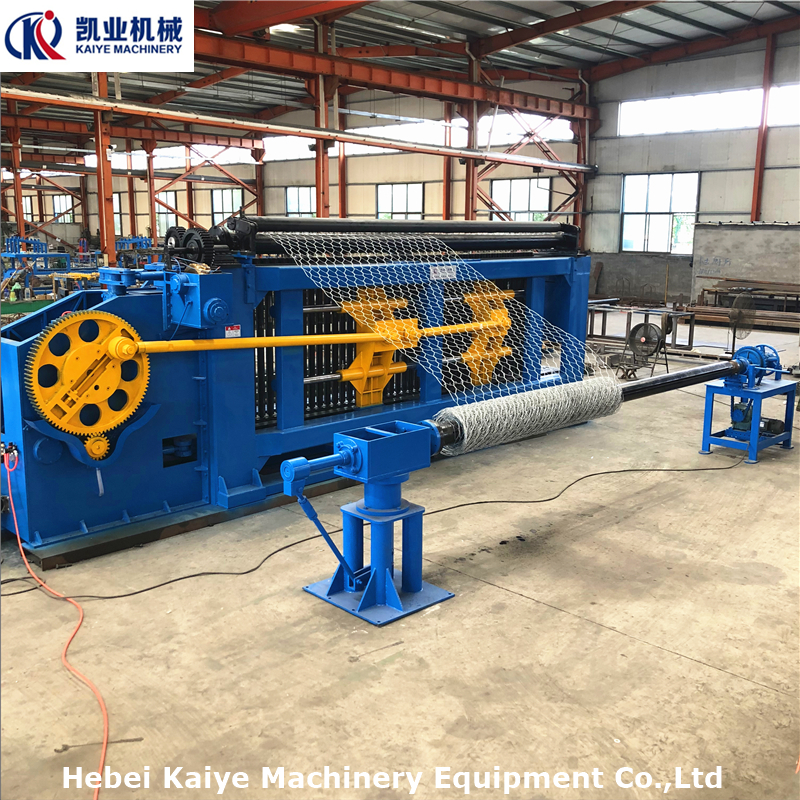

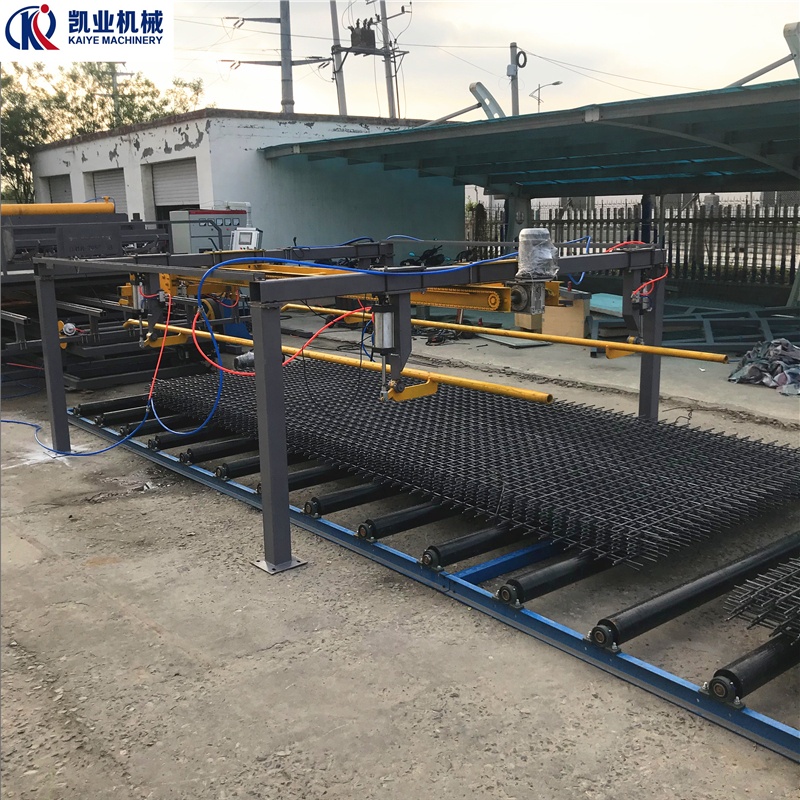

We have our own wire mesh machinery and several pilot plants, strong technical force, advanced production and testing equipment. Our main products: wire mesh welding machine, 3D board production line, steel mesh welding machine, EPS board production line, gabion machine, mining screen mesh welding equipment, hexagonal mesh weaving machine, expanded metal machine, razor wire machine, King Kong Net machine, pneumatic spot welding machine, straightening and cutting machine.

Factory R&D Team

The factory has a strong and experienced R&D team. Team engineers have an average working experience of more than 8 years. Our technology follows the most advanced international route, and we can design reasonable solutions according to customer requirements.

factory partner

Kaiye's quality has been managed through the ISO9001 international quality management system standard. We have established a good reputation among our customers with high-quality products, reliable services and reputation. We have been supplying the domestic market and also exporting to Romania, Turkey, Poland, Ukraine, Russia, Kazakhstan, Iran, Saudi Arabia, Vietnam, Philippines, India, Thailand, South Africa, Algeria, Australia, Mexico, Colombia, Argentina, Bolivia and Brazil .

If you are interested in wire mesh machinery, please contact us now.
