Hollow rotating platform Bearing- XSU080168 Crossed roller bearing
-
Supplier: Luoyang Boying Bearing Co., Ltd. -
Region: Henan, China -
Contact: Ms Louise wei -
Price: $170.00 /piece -
Min. Order: 1 piece
| Number of Row: | Single Row; | Seals Type: | Rubber seals; |
| Outside Diameter: | 205 mm; | Material(spacer): | Nylon; |
| Number of Groove: | 1; | Brand Name: | BYC; |
| Structure: | Other Structure; | Radial load rating Cr (KN): | 42; |
| Single package size: | 20X20X10 cm; | Type: | Roller; |
| Bore Size: | 130 mm; | Groove type: | linear; |
| Single gross weight: | 4 KG; | Applications: | Robotic arm,Machine tools,Rotary table,Medical equipment; |
| Package Type: | 1. Industrial Neutral Packing,Package as your requirements. 2. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton 3.Large size Bearings:Plastic film+Brown paper+Roll tape+Wooden Box; | Delivery Detail: | 2 days after payment; |
| Selling Units: | Single item; | Types of Lubrication: | grease; |
| Package Preview: | https://sc02.alicdn.com/kf/HTB12JDgizihSKJjy0Feq6zJtpXay.jpg_640x640.jpg; | Weight (Kg): | 3.3; |
| Axial load rating Ca (KN): | 66; | Model Number: | XSU080168; |
| Place of Origin: | Henan China (Mainland); | Material: | GCr15 bearing steel; |
| Thickness (mm): | 25.4; | Precision Rating: | P5; |

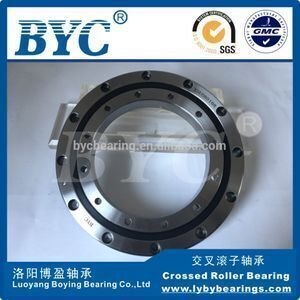

High precision XSU080168 crossed roller bearing| thin section bearing|130*205*25.4mm

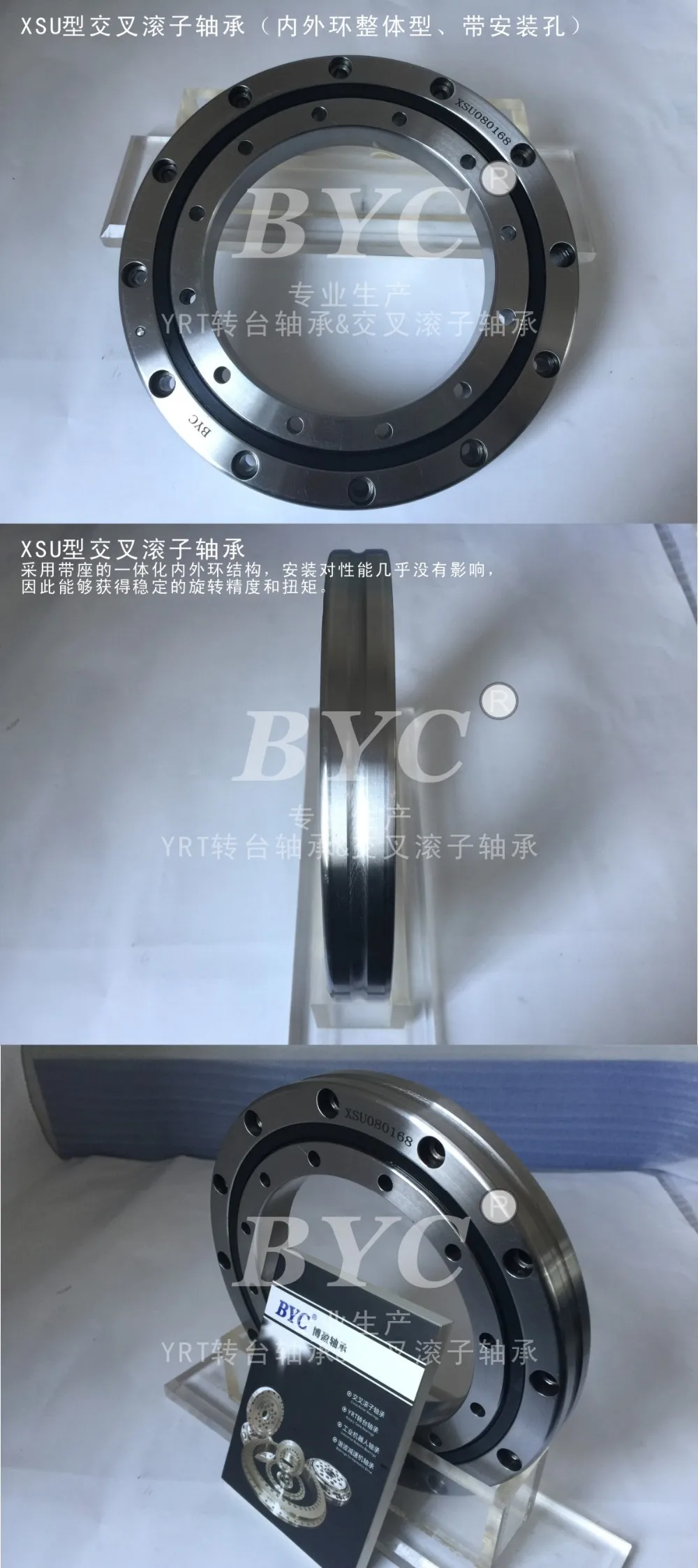

(Integrated Inner/Outer Ring Type
Model XSU:Since the mounting holes are provided, XSU080168 crossed roller bearing does not require a presser flange or housing.In addition, because it has an integrated inner/outer ring structure and is equipped with washers, its performance is minimally affected by the mounting procedure, ensuring stable rotation accuracy and torque. This model can be used for both inner-ring rotation and outer-ring rotation.
Model number | Main dimensions | Basic load rating (axial) | Basic load rating(radial) | Limiting speed | weight | ||||||||
inner ring d (mm) | outer ring D (mm) | width B(mm) | nB | Chamfer r(min) | φLa | φLi | Ca KN | C0a KN | Cr KN | Cor KN | r/min | Kg | |
XSU080168 | 130 | 205 | 25.4 | 12 | 1.1 | 190 | 145 | 66 | 240 | 42 | 96 | 227 | 3.3 |
XSU080188 | 150 | 225 | 25.4 | 16 | 1.1 | 210 | 165 | 71 | 275 | 46 | 110 | 203 | 3.7 |
XSU080218 | 180 | 255 | 25.4 | 20 | 1.1 | 240 | 195 | 77 | 315 | 49 | 127 | 175 | 4.3 |
XSU080258 | 220 | 295 | 25.4 | 24 | 1.5 | 280 | 235 | 84 | 375 | 54 | 151 | 148 | 5.1 |
XSU080318 | 280 | 355 | 25.4 | 28 | 1.5 | 340 | 295 | 93 | 465 | 59 | 185 | 120 | 6.3 |
XSU080398 | 360 | 435 | 25.4 | 36 | 2 | 420 | 375 | 106 | 590 | 68 | 236 | 96 | 7.8 |

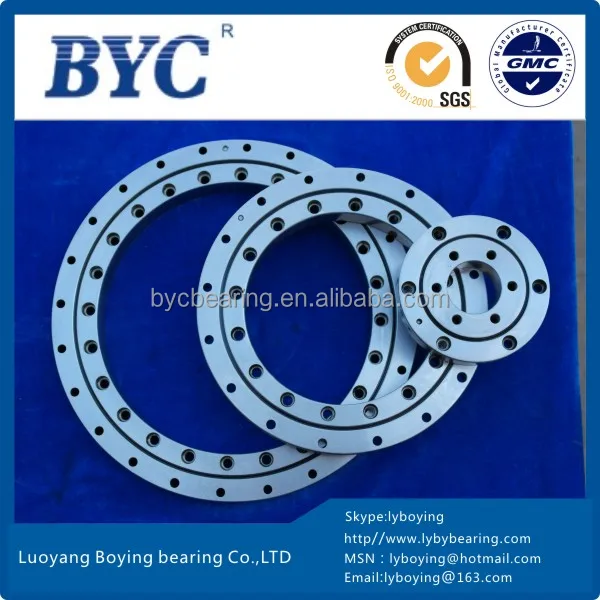

BYC Boying Bearings can produce percision crossed roller bearings and YRT rotary table bearings as THK/INA/IKO quality,which percision grade reach to P4/P2.
Crossed roller bearings RB series:
RB4010,RB4510,RB5013,RB6013,RB7013,RB8016,RB9016,RB10016,RB10020,RB11012,RB11015,RB11020,
RB12016,RB12025,RB13015,RB13025,RB14016,RB14025,RB15013,RB15025,RB15030,RB16025,RB17020,RB18025,
RB19025,RB20025,RB20030,RB20035,RB22025,RB24025,RB25025,RB25030,RB25040,RB30025,RB30035,RB30040,
RB35020,RB40035,RB40040,RB45025,RB50025,RB50040,RB50050,RB60040,RB70045,RB80070,RB90070,RB1000110
,RB1250110
Crossed roller bearings SX series:
SX011814,SX011818,SX011820,SX011824,SX011828,SX011832,SX011836,SX011840,SX011848,SX011860,SX011868
,SX011860,SX0118/500
Crossed roller bearings XSU series:
XSU080168,XSU080188,XSU080218,XSU080258,XSU080318,XSU080398, XSU140414,XSU140544,XSU140644,
XSU140744,XSU140844,XSU140944
Crossed roller bearings RA series:
RA10008,RA11008,RA12008,RA13008,RA14008,RA15008,RA16013,RA17013,RA18013,RA19013,RA20013
Crossed roller bearings RE series:
RE4010,RE4510,REB5013,RE6013,RE7013,RE8016,RE9016,RE10016,RE10020,RE11012,RE11015,RE11020,
RE12016,RE12025,RE13015,RE13025,RE14016,RE14025,RE15013,RE15025,RE15030,RE16025,RE17020,RE18025,
RE19025,RE20025,RE20030,RE20035,RE22025,RE24025,RE25025,RE25030,RE25040,RE30025,RE30035,RE30040,
RE35020,RE35025,RE40035,RE40040,RE45025,RE50025,RE50040,RE50050,RE60040
Crossed roller bearings RU series:
RU124G,RU148G,RU178G,RU228,RU297,RU445,RU228X,RU297X,RU445X,RU228G,RU297G,RU445G
Crossed roller bearings XU series:
XU050077-XU060094-XU060111-XU080120-XU080149-XU120179-XU120222-XU160260-XU080264-XU160405-XU080430-XU300515
Crossed roller bearings CRB series:
CRB4010,CRB4510,CRB5013,CRB6013,RB7013,CRB8016,CRB9016,CRB10016,CRB10020,CRB11012,CRB11015,
CRB11020,CRB12016,CRB12025,CRB13015,CRB13025,CRB14016,CRB14025,CRB15013,CRB15025,CRB15030,
CRB16025,CRB17020,CRB18025,CRB19025,CRB20025,CRB20030,CRB20035,CRB22025,CRB24025,CRB25025,
CRB25030,CRB25040,CRB30025,CRB30035,CRB30040,CRB35020,CRB40035,CRB40040,CRB40070,CRB45025,
CRB50025,CRB50040,CRB50050,CRB50070,CRB60040,CRB60070,CRB600120,CRB70045,CRB70070,CRB700150,
CRB80070,CRB800100
Crossed roller bearings CRBC series:
CRBC4010,CRBC4510,CRBC5013,CRBC6013,CRBC8016,CRBC9016,CRBC10020,CRBC11020,CRBC11020,CRBC12025
,CRBC13025,CRBC14025,CRBC15025,CRBC15030,CRBC20025,CRBC20030,CRBC20035,CRBC25025,CRBC25030,
CRBC25040,CRBC30025,CRBC30035,CRBC30040,CRBC40035,CRBC40040,CRBC40070,CRBC50040,CRBC50050,
CRBC50070,CRBC60040,CRBC60070,CRBC600120,CRBC70045,CRBC70070,CRBC700150,CRBC80070,CRBC800100
Crossed roller bearings CRBH series:
CRBH10020A,CRBH11020A,CRBH12025A,CRBH13025A,CRBH14025A,CRBH15025A,CRBH20025A,CRBH25025A
Rotary Table Bearings:
YRT series(Standard percision grade ):
YRT50,YRT80,YRT100,YRT120,YRT150,YRT180,YRT200,YRT260,YRT325,YRT395,YRT460,YRT580,YRT650,YRT850,
YRT950,YRT1030,YRT1200
YRTS series(Standard percision grade ):
YRTS200,YRTS260,YRTS325,YRTS395,YRTS460,YRTS580
YRTM series(Standard percision grade):
YRTM150,YRTM180,YRTM200,YRTM260,YRTM325,YRTM395,YRTM460,YRTM580
ZKLDF series(Standard percision grade):
ZKLDF100,ZKLDF120,ZKLDF150,ZKLDF180,ZKLDF200,ZKLDF260,ZKLDF325,ZKLDF395,ZKLDF460,ZKLDF580
http://lyboying.goepe.com http://vuker0937.1688.com
1. Industrial Neutral Packing
2. Package as your requirements.
3. Small size Bearings:Plastic vacuum packaging bag+Paper Box/Neutral Carton
4.Large size Bearings:Plastic film+pergamyn paper+Roll tape+Wooden Box
5.Shipping:By air or By sea:DHL/TNT/UPS/EMS etc
1.Your inquiry to our product & price will be replied within 24 hours.
2.Well-trained & experienced staff are to answer all your inquiries in English of course.
3.OEM & ODM projects are highly welcomed. We have strong R&D team here to help.
4.Your business relationship with us will be confidential to any third party.
5.Good after-sale service offered, please get back if you got question
6.Nowadays, as a professional percision bearing manufacture, we are proud of continual innovation, flexible production, speedy delivery, rapid after-sales service(2 years) and quick response.
Luoyang BoYing Bearing Co., Ltd,(BYC)is a professional manufacturer of high precision bearings, The main products of our company are crossed roller bearings, YRT rotary table bearings, crossed tapered roller bearings,cylindrical thrust roller bearing. The leading products include crossed roller bearing RB, RE, RU,RA,CRBC, CRBH, XSU, SX series, rotary table bearings YRT, YRTS,YRTM,ZKLDF series, crossed tapered roller bearing JXR, XR series, almost whole range of precision bearings. The accuracy grades are P5, P4, P2, and the size of inner ring are ranging from Φ50mm --- Φ1300mm. Our products are optimal for applications such as joints and swiveling units of industrial robots, swiveling tables of machining centers, precision rotary tables, medical equipment, measuring instruments and IC manufacturing machines,mainly to replace the imported bearings. Also, we can design,choose and manufacture non-standard,large size precision bearings as customer requested.
