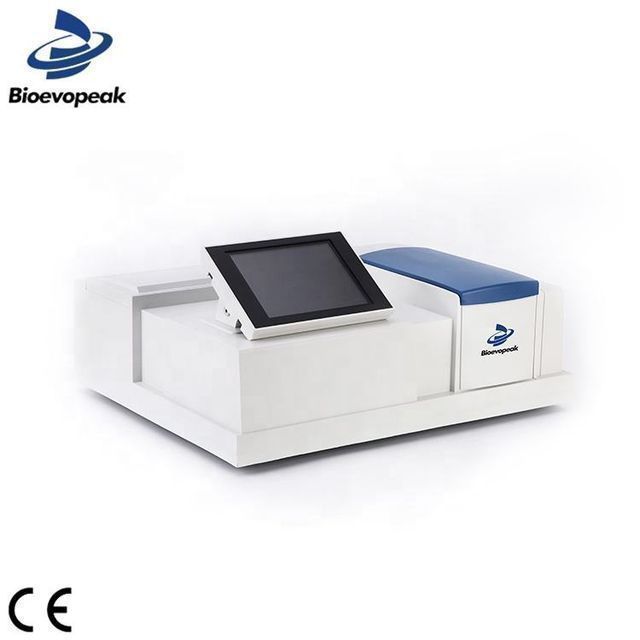

Bioevopeak Dual Beam UV-Vis Spectrophotometer / UV-Vis Spectrophotometer
- 354.00 unit
| size: | 584*504*360mm | Raster: | 1600 lines/mm |
| Origin: | Shandong China | model: | SP-IUV8, SP-IUV9 |
| port: | Qingdao, Shanghai, Tianjin, Ningbo, Guangzhou, Shenzhen | Metering: | double beam |
| Monochromator type: | Czerny-Turner | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| focal length: | 200mm | Customization support: | OEM,ODM,OBM |
| Supply capacity: | 200 units per month | weight: | 34/42.5kg |
| Wavelength range: | 190-1100nm | Warranty: | 2 years |
| brand: | peak of biological evolution | detector: | Silicon photocell |
| Packaging Details: | Premium Carton/Crate |
Bioevopeak Dual Beam UV-Vis Spectrophotometer / UV-Vis Spectrophotometer
SP-IUV8 and SP--IUV9 double-beam UV-Vis spectrophotometers, as basic equipment for quality control, technical evaluation and scientific research, can be widely used in drug sensitivity testing, medicine and health, biochemistry, environmental monitoring, commodity inspection, petrochemical industry, etc. fields etc.
feature
- new optical table
The host has excellent optical performance, metrology performance, low stray light and noise, high metrology accuracy and stability.
- easy to use&Rreliable performance
USB communication port.
- inch color touch screen, with a good man-machine interface, easy to operate
Imported long-life deuterium lamps, imported OSRAM tungsten lamps.
- Unique deuterium and tungsten lamp mounting system
It is convenient for the light source to automatically switch to the best position, making it more convenient, accurate and safe for users to operate the instrument, replace the light source and maintain the instrument.
- Powerful spectral data processing and storage capabilities
Sophisticated hardware and software design.
Automatic scanning measurement spectrum, multi-wavelength (1~3λ) measurement, kinetic measurement, 1-3 curve fitting, 1-4 derivative spectrum.
Spectral printing and storage and data analysis.
| Model | SP-IUV8 | SP-IUV9 |
| Metering | double beam | |
| Monochromator type | Czerny-Turner | |
| focal length | 200mm | |
| Grating | 1600 lines/mm | |
| detector | Silicon photocell | |
| Spectrum bandwidth | 2nm or 1nm | 0.5nm, 1nm, 2nm, 4nm, 5nm |
| Wavelength setting | 8 inch color touch screen | |
| wavelength range | 190-1100nm | |
| Wavelength Accuracy | ±0.3nm | |
| wavelength repeatability | ≤0.1nm | |
| scanning speed | fast-medium-slow | |
| stray light | ≤0.02%T (at 220nm NaI, 360nm NaNo2) | |
| Photometric range |
0.0-200.0%T -0.301-4.000A 0.000-9999℃ |
|
|
Photometric accuracy |
±0.3%T ±0.002Abs (0-0.5A) ±0.004 absolute value (0.5-1A) |
|
| Photometric repeatability |
≤0.15%T 0.001 absolute value (0-0.5A) 0.002 absolute value (0.5-1A) |
|
| baseline | ≤±0.0008A(200-1090nm) | |
| Acoustic emission |
100%(T) acoustic emission ≤0.1%(T) , 0%(T)AE≤0.02%(T) |
|
| drifting | ≤0.004 Abs/h (250nm and 500nm after 2h preheating) | |
| serial port | USB | |
| light source | Hamamatsu D2Lamp, Osram tungsten halogen lamp | |
| electricity | AC220V±22V, 50Hz±1Hz, 200W | |
| Net weight/Gross weight | 34/42.5kg | |
| Product size (L*W*H) | 584*504*360mm | |
| Shipping Dimensions (L*W*H) | 730*630*450mm | |
