TB6600 4.5A Single Axis Controller for Driving Space Motor Board
-
Supplier: Shenzhen Shengtaixin Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Mr shaosheng xu -
Price: $2.00 /piece -
Min. Order: 1 piece
| best price: | Please contact us | weight: | 0.2KG |
| Current scope: | 0~4.5A | port: | China |
| payment terms: | Western Union, T/T, MoneyGram | Warranty: | see description below |
| Applicable motor: | 2 phase nema 17, nema 23, nema 34 stepper motor | place of origin; place of origin: | China |
| brand: | original | model: | TB6600 4.5A |
| product name: | TB6600 Two-phase hybrid stepper motor drive controller board |

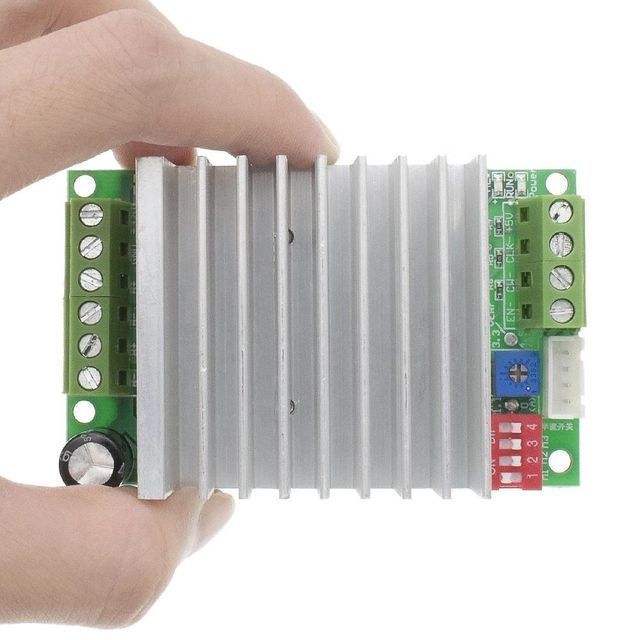

TB6600 4.5A stepper motor drive board stepper motor board stepper motor drive single axis controller
describe:
1) Working voltage DC 10V-45V. It is recommended to use DC32V switching power supply.
2) The high-speed optocoupler 6N137 ensures that the step will not be lost at high speed.
3) Brand-new high-current, high-voltage TB6600HG brand-new original chip, with low-voltage shutdown, overheating shutdown and over-current protection circuits, the short-circuit protection function has increased compared with TB6560.
4) The rated maximum output reaches: ±4.5A.
5) Suitable for two-phase/four-phase/four-wire/six-wire stepper motors within 4.2A 42, 57, and 86.
6) Automatic semi-flow function.
7) Subdivision: full step, half step, 1/4 step, 1/8 step, 1/16 step, up to 16 segments.

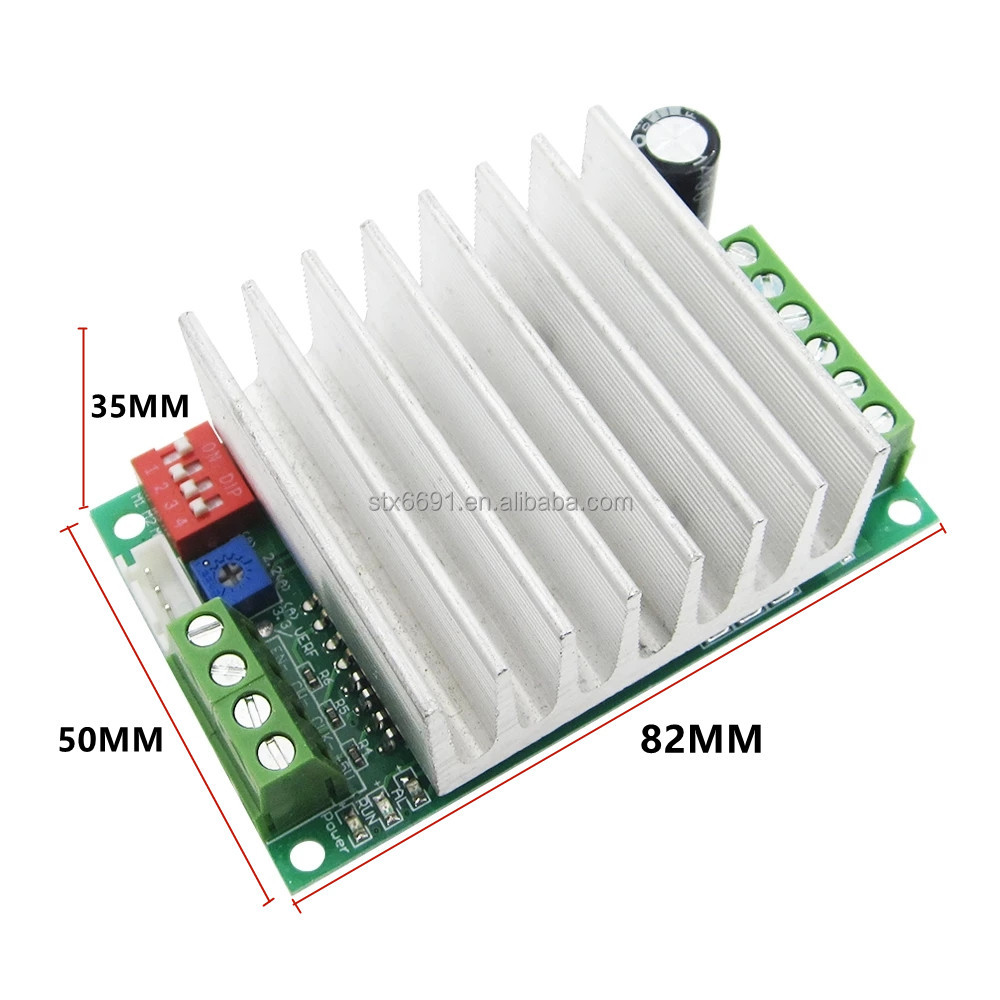

8) Volume: width and length 82*50*height 35 (MM)
feature:
1. The output current is steplessly adjustable to meet your various application needs.
2. Automatic semi-flow function. And with a semi-automatic flow switch, easy to use.
3. The high-speed optocoupler 6N137 is used to ensure high-speed synchronization.
4. The subdivision setting instructions are printed on the back panel.
5. It is used to increase the heat sink, which has good heat dissipation.
6. Output short-circuit protection, safe to use.
7. It adopts common anode input mode and has two input terminals, which is more convenient for wiring.
-
