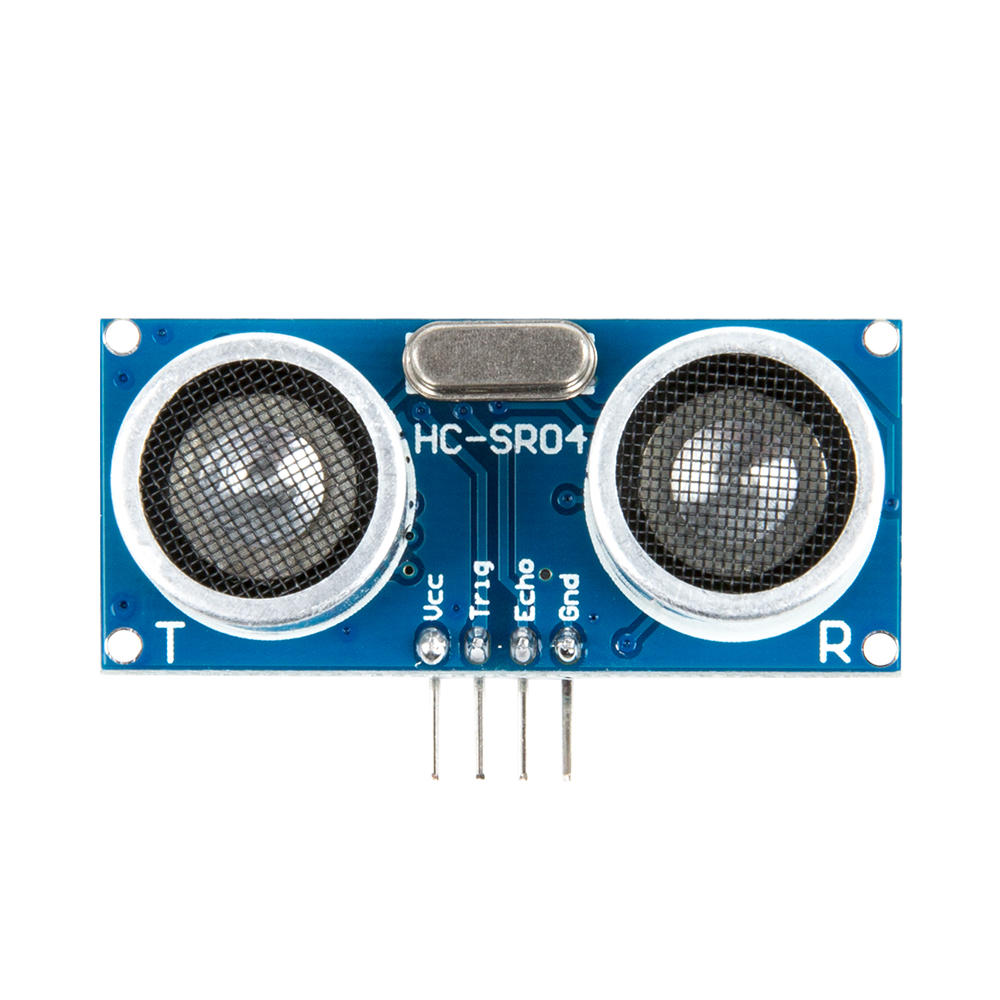

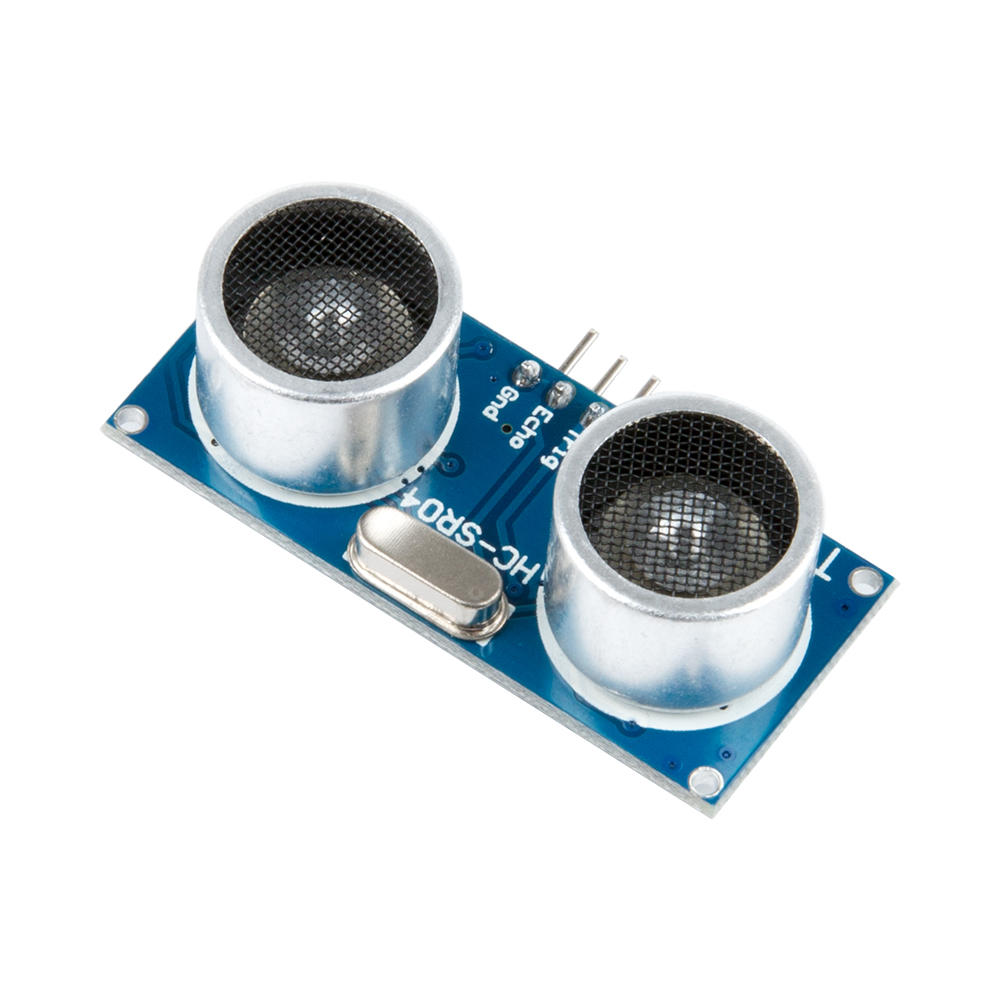

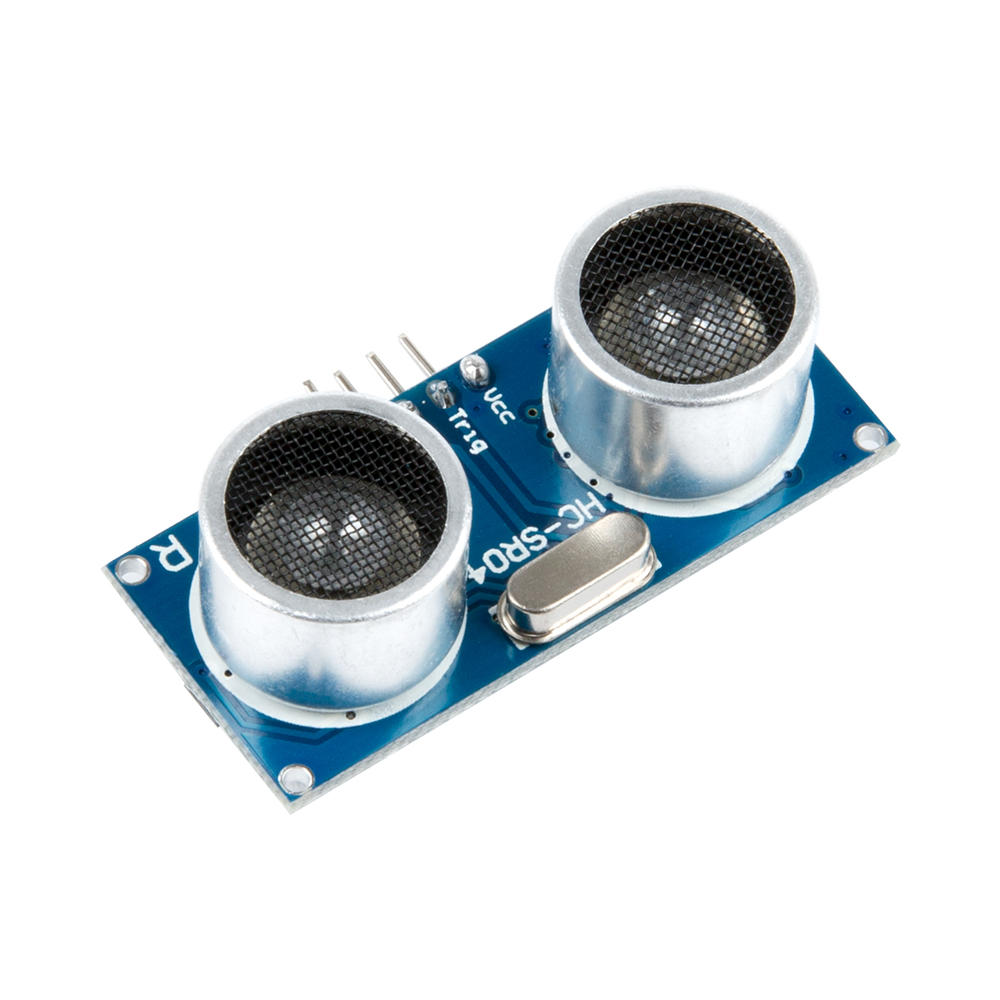

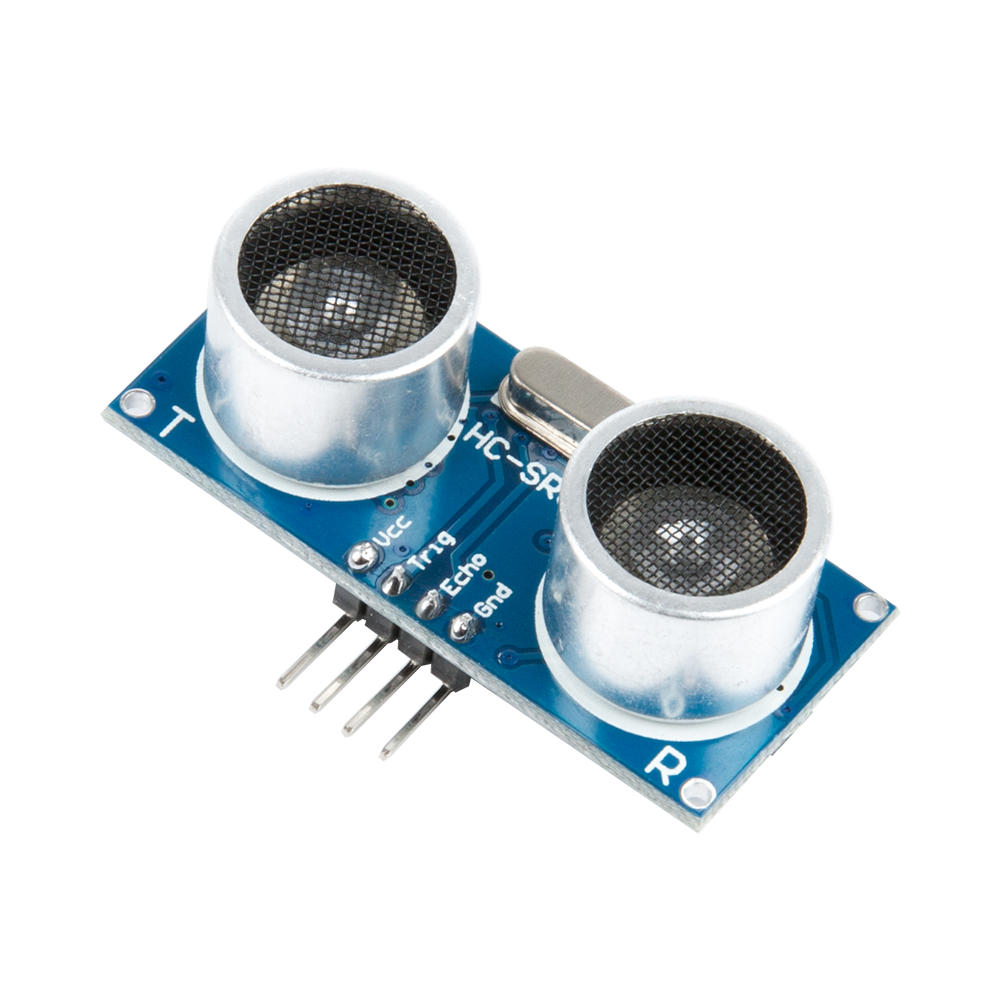

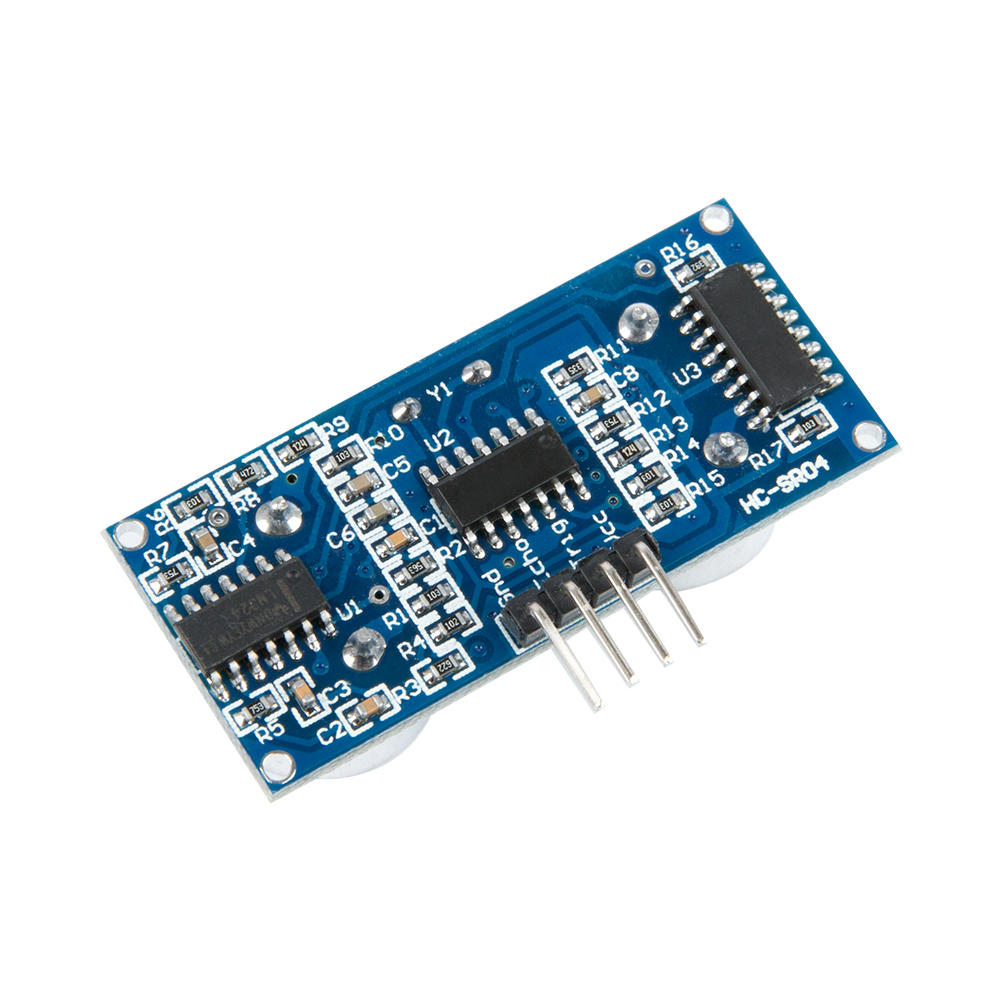

New Wholesale Sr04 4 Pin Ultrasonic Sensor
- 0.42 2 - 49 pieces
- 0.22 50 - 199 pieces
- 0.18 >=200 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| model: | AB043 | port: | Shenzhen/Hong Kong |
| payment terms: | Western Union, T/T, Paypal, Alipay, Wechat, Cash, Credit Card | color: | picture |
| place of origin; place of origin: | Guangdong, China, China | application: | electronic product |
| describe: | SR04 Sensor Module, 5V HC-SR04 Ultrasonic Sensor | output: | HC-SR04, 5V HC-SR04 ultrasonic sensor |
| delivery time: | 1-7 working days | usage: | Ultrasonic Sensor, 5V HC-SR04 Ultrasonic Sensor |
| Operating Voltage: | DC 5V | brand: | Shengyao |
| Types of: | 5V HC-SR04 Ultrasonic Sensor, Ultrasonic Sensor | Supply capacity: | 10000 pieces per month |
| quality: | high quality | Packaging Details: | Original carton, anti-reverse plastic bag |
| theory: | 5V HC-SR04 Ultrasonic Sensor |
Product Description
feature:
1. Detection distance: 2cm-450cm, super close to the blind spot (2cm)
2. Provide a full set of ranging process
3. The measurement accuracy can reach 3mm
4. Use IO trigger by providing a high level signal of at least 10us sequence
5. The module automatically sends 8 40KHz square waves and automatically detects whether the return pulse signal is received
6. If the signal returns, by outputting a high level, the duration of the high level is the time from the ultrasonic wave
transmit to receive
7. Static current: less than 2mA
8. Working voltage: DC 5V
9. Output signal: electric frequency signal, high level 5V, low level 0V
10. Induction angle: no more than 15 degrees
11. Connection mode: /trig(T)/echo(R)/GND
1. Detection distance: 2cm-450cm, super close to the blind spot (2cm)
2. Provide a full set of ranging process
3. The measurement accuracy can reach 3mm
4. Use IO trigger by providing a high level signal of at least 10us sequence
5. The module automatically sends 8 40KHz square waves and automatically detects whether the return pulse signal is received
6. If the signal returns, by outputting a high level, the duration of the high level is the time from the ultrasonic wave
transmit to receive
7. Static current: less than 2mA
8. Working voltage: DC 5V
9. Output signal: electric frequency signal, high level 5V, low level 0V
10. Induction angle: no more than 15 degrees
11. Connection mode: /trig(T)/echo(R)/GND
