MT-120 / KH-240 / GW-1632 MECHANICAL CRIME TOOL - CRIME TOOL - CABLE CRIME TOOL
-
Supplier: N.i.u Electric Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr NIU ELEC -
Price: $1.00 / >=500 pieces -
Min. Order: 500 pieces
Product details
| Crimp Type: | Crimp crimp | Crimp range: | 10-120mm2 / 10-240mm2 / 16-300mm2 |
| place of origin; place of origin: | China | payment terms: | L/C, Western Union, T/T, MoneyGram |
| port: | Ningbo/Shanghai | Standard or non-standard: | standard |
| Packaging Details: | standard meal | Supply capacity: | 2000 pieces per day |
| model: | MT-120 / KH-240 / GW-1632 | length: | 570mm / about 720mm / 580mm |
Product Description

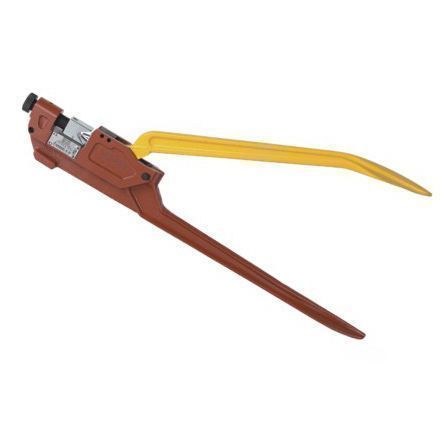

MT-120 / KH-240 / GW-1632 Mechanical Crimp Tool
feature:
1) One die per die but different crimp sizes, there are two main crimp shapes - hex and notch.
2) No molded joints, no need to change molds.
MT-120
| Product information | |
| Crimp range | 10-120mm2 |
| Crimp type | Crimp crimp |
| length | 570mm |
| weight | Approximate net weight: 3.2kgs Gross weight: 4kgs |
| pack | carton |
KH-240
| Product information | |
| Crimp range | 10-240mm2 |
| Crimp type | Crimp crimp |
| length | Approx.720mm |
| weight | Approximate net weight: 3.7kgs Gross weight: 4.5kgs |
| pack | carton |
GW-1632
| Product information | |
| Crimp range | 16-300mm2 |
| Crimp type | Hex crimp |
| stroke | 17mm |
| mold | 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300mm2 |
| length | 580mm |
| weight | About 4.0kgs |
| pack | plastic box |
Shipping:
Port of departure: Ningbo or Shanghai
Delivery time: 15 days after payment received
