AUS Type Connecting Terminals Cable Lugs With Copper
- 0.10 >=500 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Material: | Copper; | Type: | Lug,lug; |
| Surface treatment: | Tin Plated; | Supply Ability: | 2000 Piece/Pieces per Day; |
| Port: | Ningbo or Shanghai; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
| Certificate: | ISO9001; | Package: | Carton; |
| Packaging Detail: | Standard Package; | Color: | Silvery; |
| Model Number: | AUS; | Place of Origin: | China,Zhejiang China; |
| Payment: | T/T,L/C,Western Union,MoneyGram; | Port: | Ningbo or Shanghai; |
| Brand Name: | NIU,NIU; |

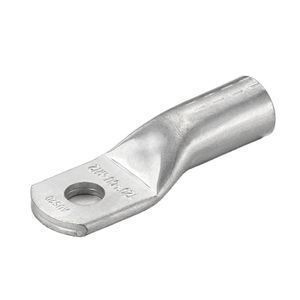

AUS Type Connecting Terminals Cable Lugs With Copper
•Clear markings on barrel to indicate correct crimping location
•In accordance with DIN 46235
Material: Cu ≥99.9%
Surface: electro tin plated
Application: medium voltage
| Item No. | Size of Bolt | Φ±0.5 | D±0.5 | d±0.5 | L±2 | C1±0.5 | C2±0.5 | W±1.5 |
| AUS-10 | M6 | 6.2 | 6.5 | 5 | 29 | 8 | 8 | 9.5 |
| AUS-16 | M8 | 8.2 | 8 | 6 | 36.5 | 10 | 10 | 11.5 |
| AUS-25 | M8 | 8.2 | 10.5 | 8 | 36.5 | 12 | 12 | 15.3 |
| AUS-35 | M8 | 8.2 | 12.5 | 9.5 | 41.5 | 13 | 13 | 18 |
| AUS-50 | M10 | 10.5 | 14.5 | 11 | 54 | 15 | 15 | 20.5 |
| AUS-70 | M12 | 12.5 | 16.5 | 13 | 57 | 15 | 15 | 24 |
| AUS-95 | M12 | 12.5 | 19 | 14.5 | 63 | 15 | 15 | 27.5 |
| AUS-120 | M12 | 12.5 | 20.5 | 16 | 68 | 16 | 16 | 30 |
| AUS-150 | M14 | 14.5 | 23.5 | 18 | 79 | 16 | 16 | 34 |
| AUS-185 | M16 | 16.5 | 26 | 20.5 | 82 | 17 | 17 | 38 |
| AUS-240 | M16 | 16.5 | 28 | 22.5 | 90 | 21 | 21 | 41 |
| AUS-300 | M16 | 16.5 | 30 | 23.5 | 99 | 21 | 21 | 43 |
