NF type single-core UV protect anchor clamp for fiber cable

Supplier: N.i.u Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr NIU ELEC
Price: $0.50 / >=500 pieces
Min. Order: 500 pieces

Click here to contact

Product details

Structure:	Other;	Breaking load:	5KN,8KN;
Port:	Ningbo or Shanghai;	Usage:	Other;
Material:	Other;	Packaging Detail:	Standard Package;
Product name:	Dead End Clamp;	Model Number:	NF;
Supply Ability:	2000 Piece/Pieces per Day;	State of Origin:	China;
Place of Origin:	Zhejiang China;	Standard or Nonstandard:	Standard;
Conductor(mm):	(3-7)-(8-10);	Port:	Ningbo or Shanghai;
Certification:	ISO9001;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Type:	Clamp;	Brand Name:	NIU;

Product Description

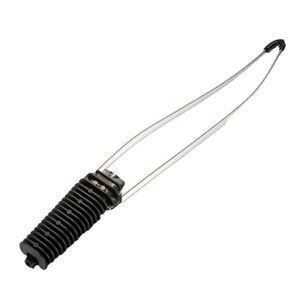

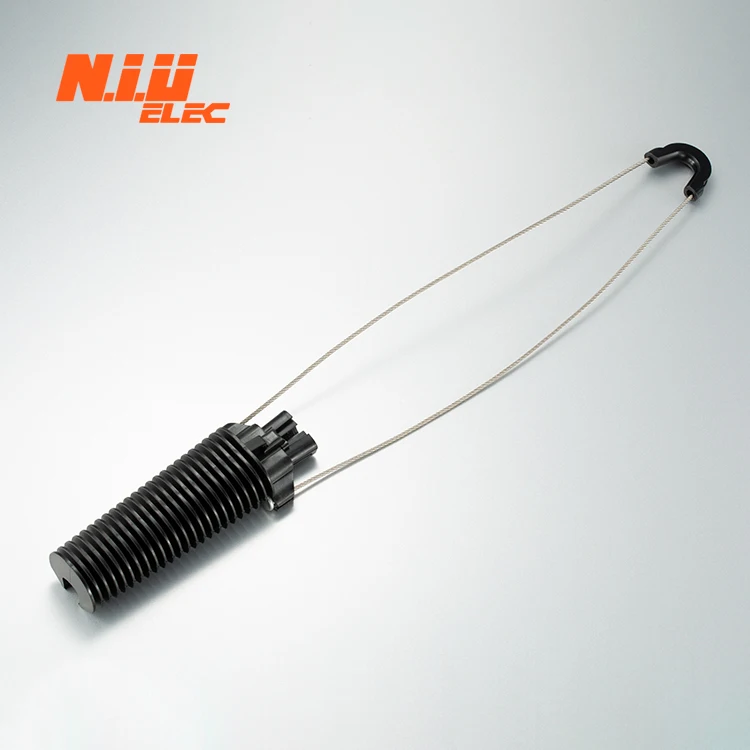

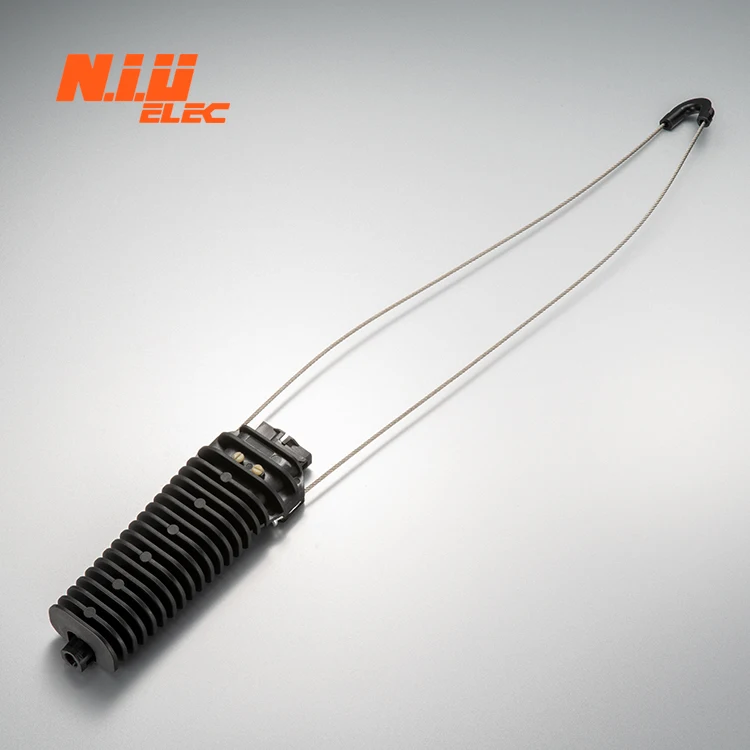

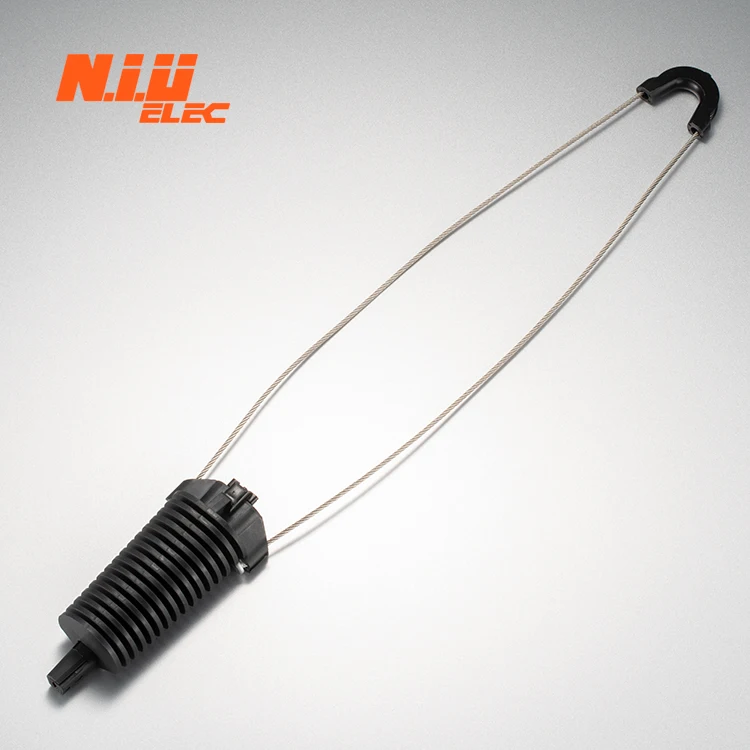

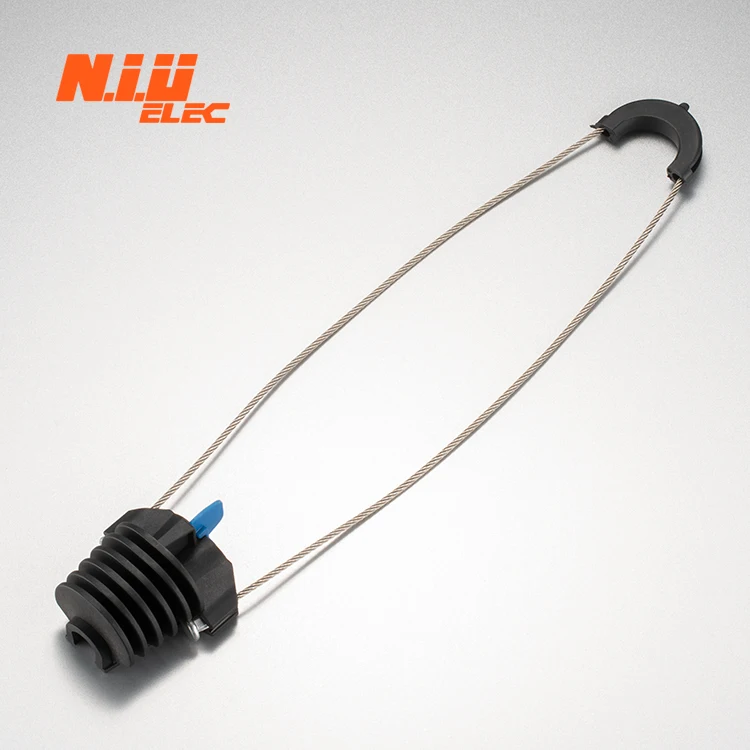

NF Single-core UV protect Anchor Clamp

•The NF UV Protect Dead End Clamp is designed for a fast, easy and reliable dead-ending of fiber optic cables on access networks with spans up to 100 m.

•A pair of wedges grips the cable automatically within the conical body.

•The installation does not require any specific tools and the operating time is drastically reduced.

•Standard: NFC33-042

Item No.	Conductor(mm)	Breaking load	Package(pcs)	Gross weight(kg)
NF037	3-7	5KN	100	10
NF068	6-8	5KN	100	12
NF0810	8-10	5KN	100	13
NF01012	10-12	8KN	100	20
NF01214	12-14	8KN	100	21.5
NF01416	14-16	8KN	100	22
NF01618	16-18	8KN	100	24
NF01820	18-20	8KN	100	25
