JFLO energy plastic cable drag chain 25mm drag chain J25Q.1.S bridge opening cable drag chain

Click here to contact

Product details

Applicable industries:	Manufacturing plants, machinery repair shops, energy and mining	product name:	Machine cable drag chain
Material:	Nylon, PA66	application:	Mobile Cable Protection
Package preview:		Warranty:	1 year
Marketing Type:	normal product	Italiano:	bridge double opening
brand:	Jeffrey, Jeffrey	port:	Ningbo, Shanghai
Supply capacity:	300,000 meters per month	payment terms:	Western Union, D/P, T/T
Types of:	drag chain	Features:	protect mobile cables
Video shipment inspection:	if	Showroom location:	not any
State of health:	new	Model:	J25Q.1.S
Packaging Details:	Micheng export CARTON	brand:	Geoffrey
Core components:	engine	structure:	Bridge plastic cable chain
Weight (kg):	1.5	Mechanical test report:	if

Item #	Hello	pair	what	-bar	bending radius	Bracket P/N #
J25Q.1.25S	25	25	40	42	R55 R63 R75 R100 R125 R150 R200 R225	J25Q.1.25S-FJT
J25Q.1.38S	25	38	40	55			J25Q.1.38S-FJT
J25Q.1.50S	25	50	40	67			J25Q.1.50S-FJT
J25Q.1.57S	25	57	40	74			J25Q.1.57S-FJT
J25Q.1.60S	25	60	40	77			J25Q.1.60S-FJT
J25Q.1.75S	25	75	40	92			J25Q.1.75S-FJT
J25Q.1.77S	25	77	40	94			J25Q.1.77S-FJT
J25Q.1.100S	25	100	40	117			J25Q.1.100S-FJT
J25Q.1.103S	25	103	40	120			J25Q.1.103S-FJT
J25Q.1.125S	25	125	40	142			J25Q.1.125S-FJT
Basic technical data
asphalt=46MM, eachMETER=22 LINKS, chain length=S/2+K, S=stroke

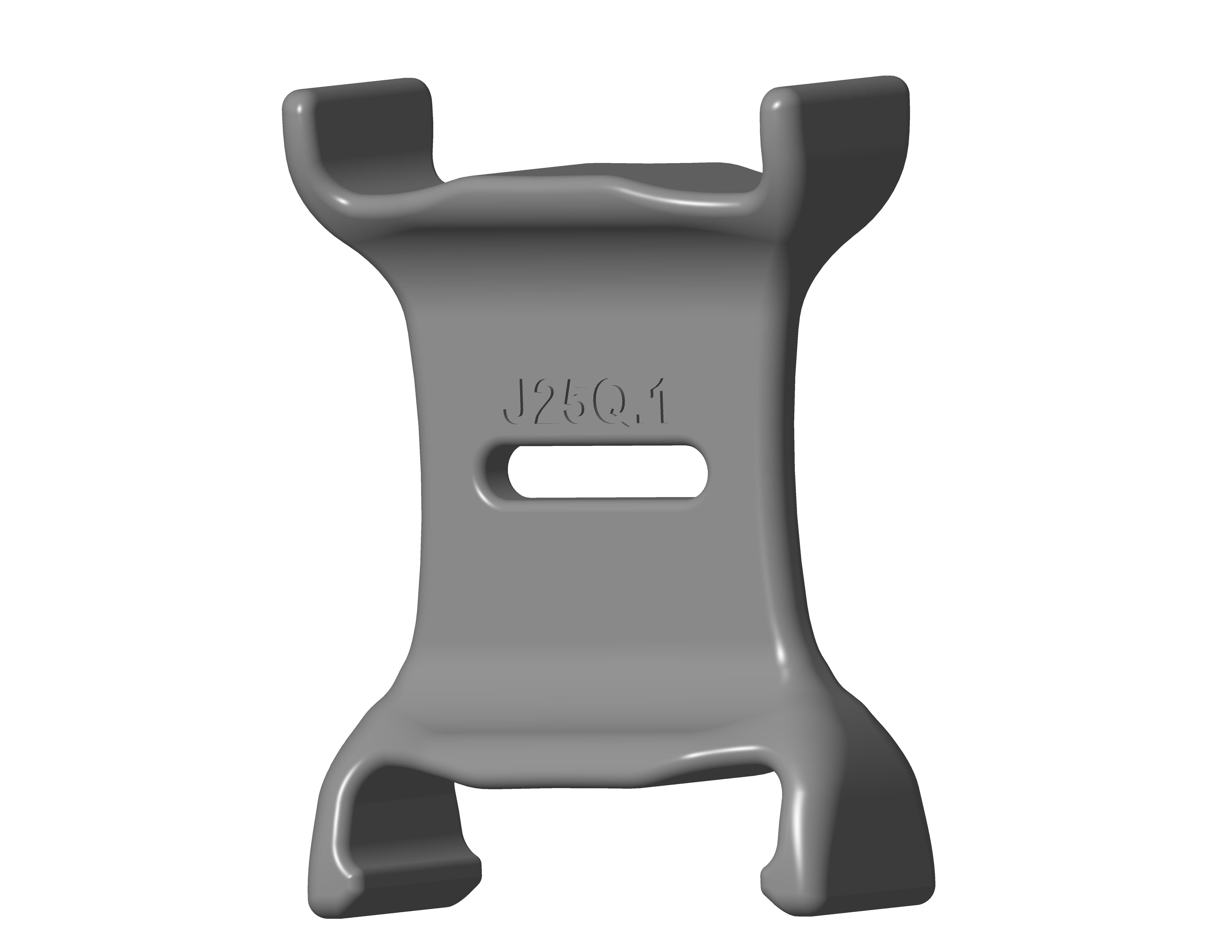

Main body details and split spacers (vertical spacers) are pictured below. The unit price shown does not include brackets or any spacers. If you need more information about Horizon Shim or other products, please feel free to contact us by mail.
