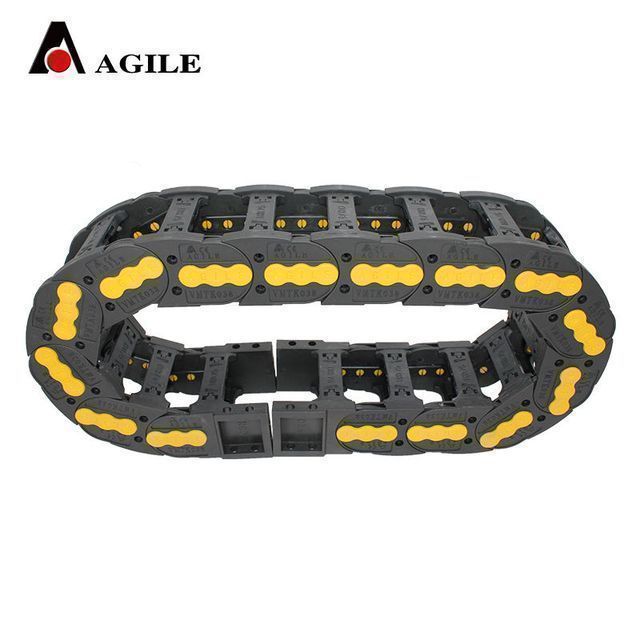

VMTK cnc nylon cable pull chain 38*75mm Products from Shijiazhuang Anjie Electric Co., Ltd.

Product Details

After-sales service provided:	Online support, video technical support	Mechanical test report:	if
Packaging Details:	1. Carton 2. Pallet 3. Wooden case. 4. Customization	Package preview:
Core components:	frame	temperature range:	-40℃-130℃
brand:	Angie	Single package size:	62X62X20 cm
Internal dimensions:	38*75 mm	Video shipment inspection:	if
Local service location:	not any	asphalt:	64 mm
Warranty:	3 months	Gross weight per piece:	1.800 kg
feature:	Anti-corrosion	structure:	open
Function:	cable protection	Material:	reinforced nylon
Model:	VMTK-058	Marketing Type:	Hot Products of 2021
Health status:	new	Bending radius:	R75/R90/R120/R140/R170/R210
After warranty service:	Video technical support, online support	type:	drag chain
Applicable industries:	Manufacturing plants, machine repair shops, printing houses, energy and mining, machine tools	Number of pitches:	16 balls/m
Card:	Angie	Speed of work:	2-5m/s
Showroom location:	not any	color:	Black with yellow or colored pins
Sales unit:	single product

1. Material: reinforced nylon PA6, PA66

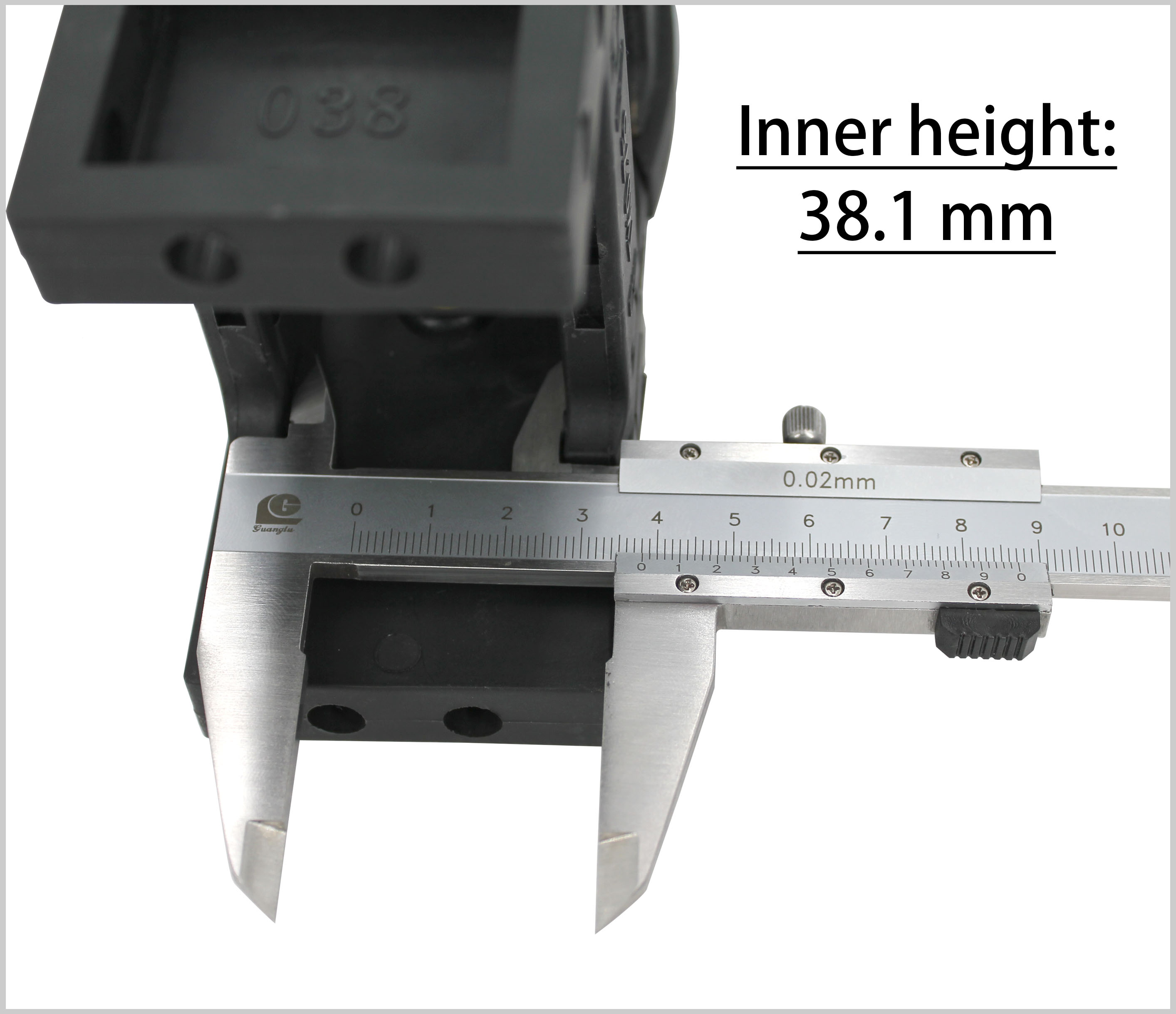

2. Size: inner size: height*width, 38*75mm
3. Various sizes of molds are available. There are different types and models. We can make new mold

special requirements.
4. Raw materials: Original new nylon raw materials. We don't use recycled material, it's cheap but

Physical performance for a week.
5. Operation and maintenance: easy. We constantly modify and improve our mold structure according to

Feedback from customers after use. And always with a strong focus on functionality.

product name	High Strength Nylon Tank Chain
Material	PA6, PA66
color	Black
standard	DIN GB ISO JIS BA ANSI
Operating temperature	-40-130℃
recommended clearance	10%
feature	Wear-resistant, elastic, fireproof, self-lubricating.
open side	both sides.

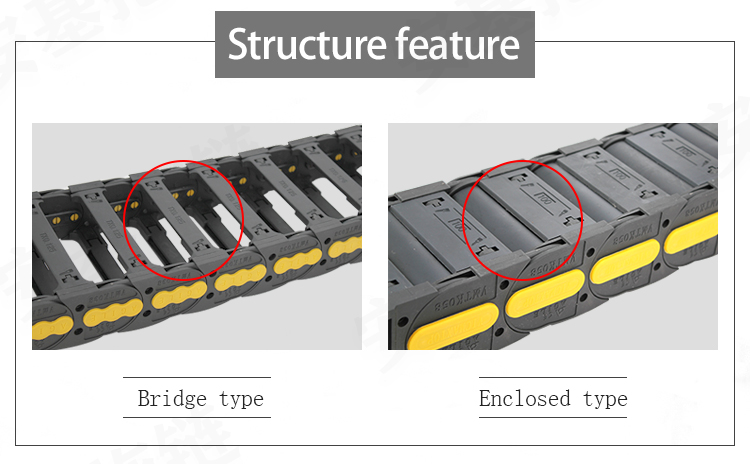

structure

38*75 size

series dimension

type	Internal Dimensions Height*Width	Dimensions Height*Width	radius	asphalt	Spacing/m	weight kg
VMTK25	25*30	40*47	R55 R85 R100 R125	46	twenty two	0.6
		24*38		40*57		45.7	twenty two	0.8
		24*50		40*69		45.6	twenty two	1.2
		25*57		40*74		46	twenty two	1.2
		25*75		40*92		46	twenty two	1.3
		25*100		40*117		46	twenty two	1.7
VMTK38	38*50	60*78	R75 R90 R120 R140 R170 R210	63	16	1.88

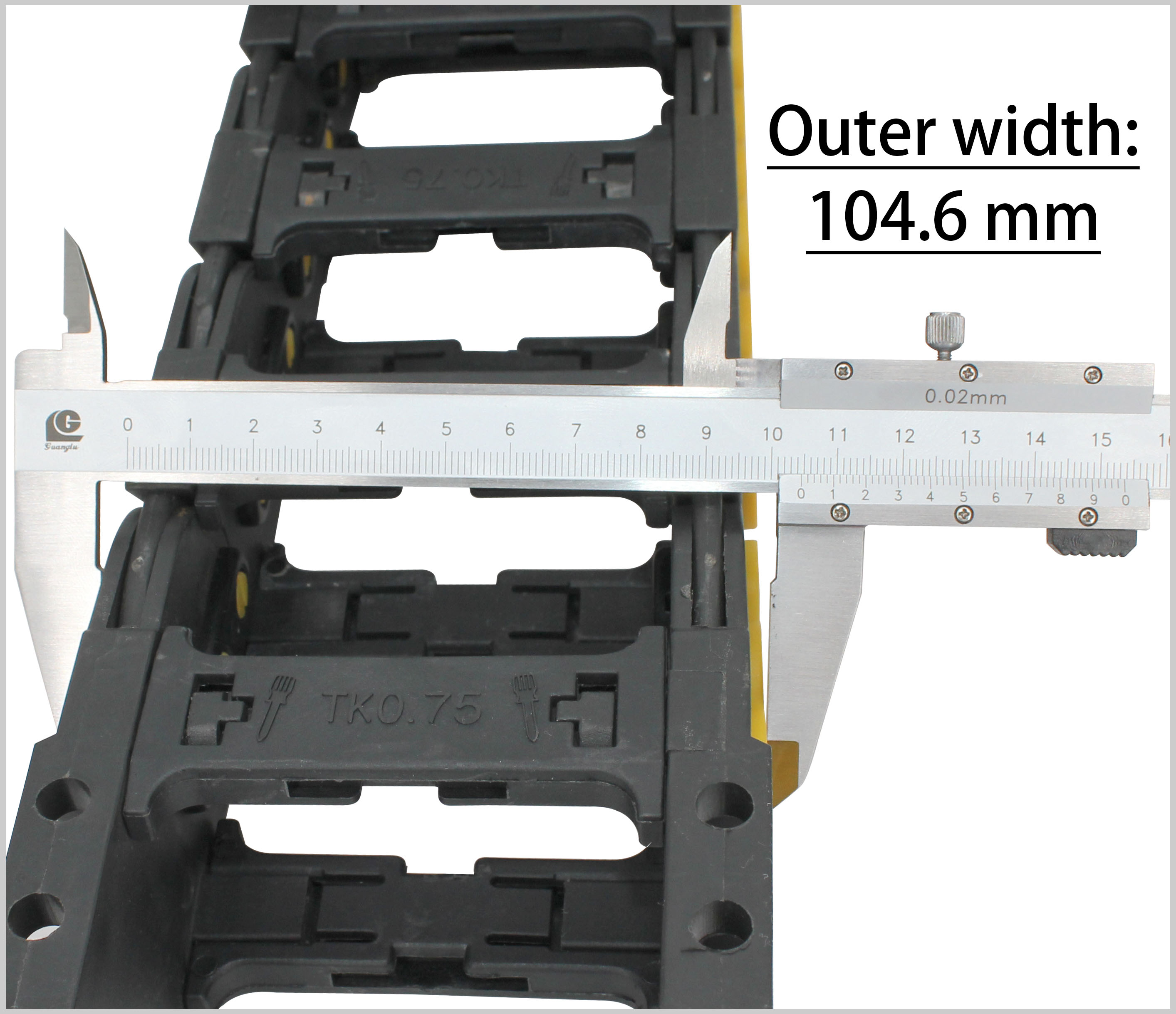

		38*75		60*104		64.6	16	2
		38*100		60*129		63.8	16	2.1
		38*125		60*154		64.3	16	2.2
		38*151		60*180		64.2	16	2.3
		38*175		60*204		63	16	2.4
		38*200		60*229		63	16	2.5
VMTK48	48*60	73*88	R96 R115 R140 R165 R190 R215 R240 R265	72	13	2.5
		4875 open/4875 closed		73*106		76.3	13	2.6
		48100 open/48100 closed		73*131		76.3	13	2.7
		48125 open/48125 closed		73*156		76.3	13	2.8
		48*150 open/150 closed		73*181		72	13	3
		48*175 open/half-circle shaft		73*206		72	13	3.1
		48*200		73*231		72	13	3.2

Products with an inner height dimension over 48 will display the larger size.

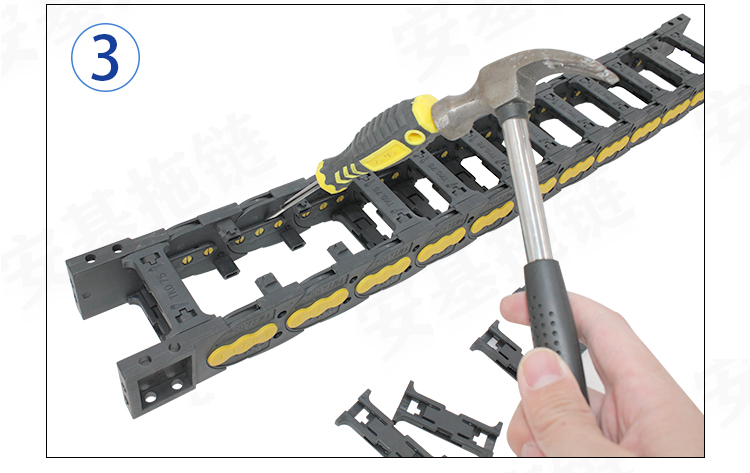

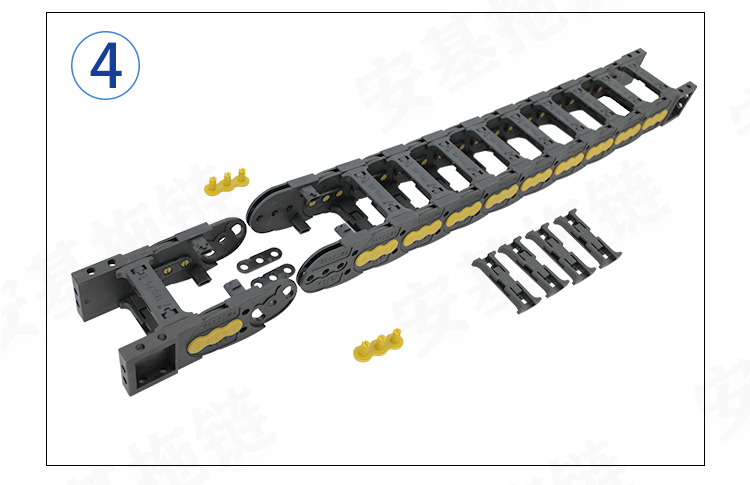

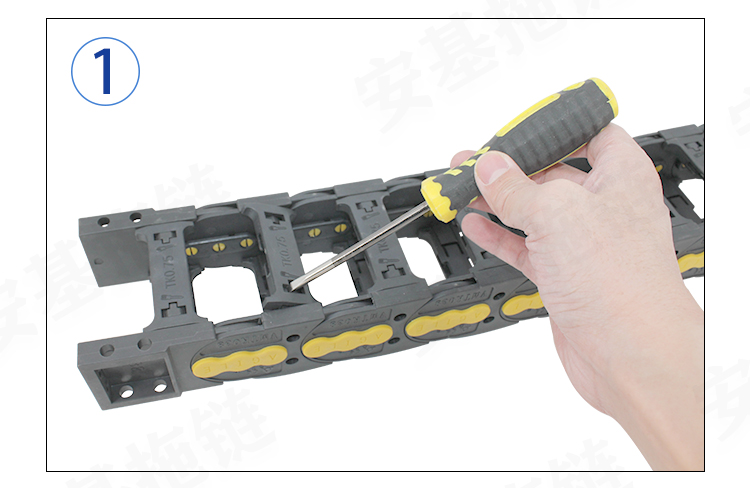

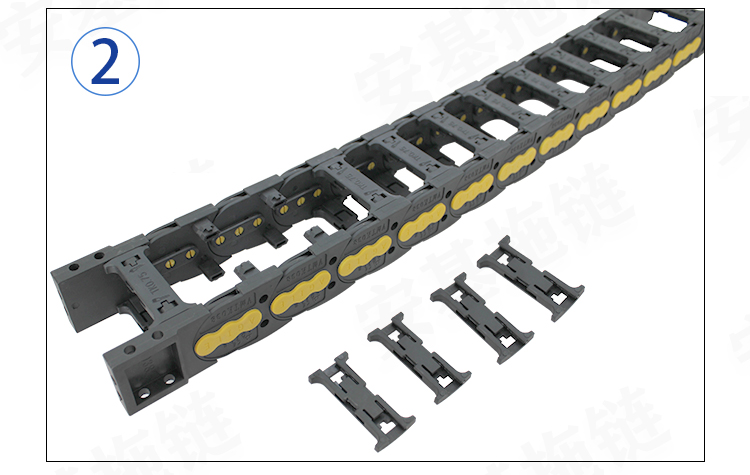

Dismantling of VMTK

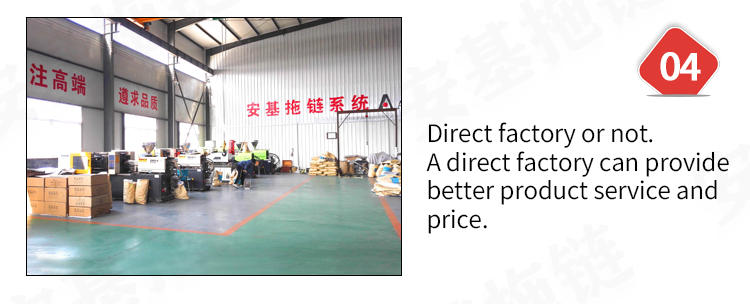

Production Process

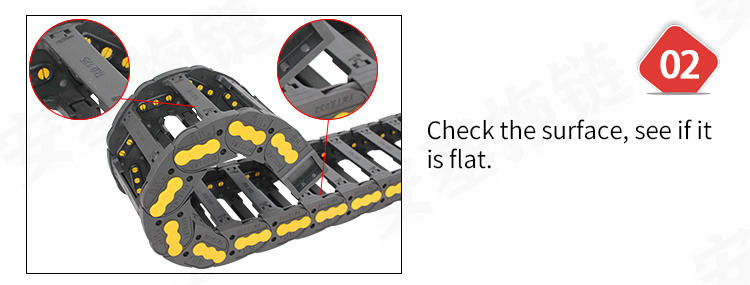

Quality Control

Quality Control
1	Raw material control, including various tests, such as US DSC, flow rate, moisture content test, tensile test, etc.
2	product control. Production must be carried out strictly in order, and quality inspection during production is very important.
3	feedback. We seek feedback from all users and are constantly improving our quality and correcting any structural deficiencies.
