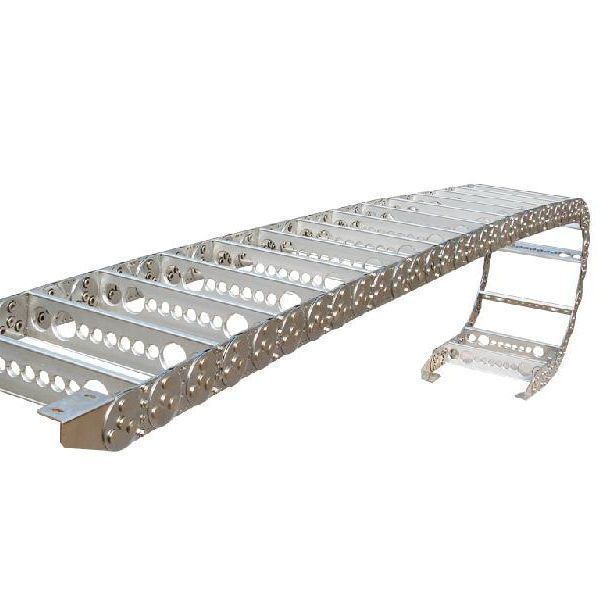

TL series steel cable drag chain drag chain metal drag chain

Click here to contact
Product details
Core components:bracketsPackage preview:
Showroom location:not anyPackaging Details:TL Series Steel Cable Tray Drag Chain Drag Chain Metal Chain 1 Small order we will pack it in carton. 2 We will pack big orders in pallets.
product name:TL series steel cable drag chain drag chain metal drag chainMaterial:Stainless steel
Model:TL, TLGPurpose:Protection wire\cable\pipe
temperature range:40C-130CMechanical test report:Not available
Video shipment inspection:Not availableCard:Huayuan
Weight (kg):1Applicable industries:manufacturing plant
structure:combination chainHealth status:new
Marketing Type:New Products 2020Certificate:CE ISO9001
application:CNC machine toolBending radius:75-650
payment terms:Western Union, T/T, PaypalSupply capacity:1000 meters per month
title:TL series steel cable drag chain drag chain metal drag chainbrand:Huayuan, Huayuan
port:TianjinWarranty:6 months
type:drag chaincolor:silver
Product Description
TL drag chain is mainly composed of chain plate (high-quality stainless steel chrome plated) and supporting plate
(extruded aluminum alloy) and pin (alloy), etc. There is no relative movement between the cable/rubber hose and the energy chain, no deformation or twisting. The chrome-plated chain plate has beautiful appearance, reasonable structure, flexibility and high strength. It is reliable and easy to operate, install, disassemble or assemble. It is worth mentioning that due to the use of wear-resistant materials and alloy pins, the wear resistance has been greatly improved.
The product has flexible bending, small resistance and low noise. it lasts a long time
Nothing deforms or spreads.
type
Minute width(mm)
height (mm)
Bending radius (mm)
TL30
..40-100
25
20
TL45
35..
32
50/75/90/114/145
TL65
50..
49
75/90/115/125/145/185
TL80
55
56
100/115/125/145/185/200/250/300
TL95
60
75
114/145/200/250/300
TL115
70
86
145/200/225/250/300/350
TL125
80
96
200/250/300/350/470/500/575/700/750
TL155
Post-90s
120
200/250/300/350/450/500/600
TL180
100
144
250/300/350/450/490/600/650
TL225
160
200
400/450/600/750/800/850/1000
TL250
190
220
400/450/500/600/750/800/1000
detailed image
The product is beautiful, making the overall beauty of the machine tool, making the machine tool and machinery
more competitive in the international market.
1. The maximum adaptability of drag chain. Movement speed 40m/sec.
2. At the maximum driving speed, the noise sound pressure shall not exceed 68 decibels.
3. The service life of the drag chain is not less than 1 million times (reciprocating).

The product has flexible bending, small resistance and low noise. it lasts a long time
Nothing deforms or spreads.
