Automatic Capsule Tablet Pill Filling Counting Filling Machine

Supplier: Ruian Furis Import & Export Co., Ltd.
Region: Zhejiang, China
Contact: Mr Harold Zhang
Price: $7800.00 / 1 - 1 sets
$7000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

place of origin; place of origin:	Zhejiang, China	Showroom location:	USA, Germany, Mexico, Russia, Spain
Automatic level:	semi-automatic or automatic	Local service location:	USA, Germany, Mexico, Russia
Material:	stainless steel 304	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Main selling points:	long lasting	Advantage:	No need to change the mold
Weight (kg):	50	State of health:	new
Power (kW):	0.35	Certification:	EU/ISO
port:	Ningbo Shanghai	Warranty:	1 year
Capacity (bottle/min):	600 - 10800 bottles/min	feature:	high precision
Voltage:	220V50HZ/110V60HZ	counting:	1-99999
brand:	financial reporting system	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
payment terms:	L/C, Western Union, D/P, D/A, T/T	Mechanical test report:	if
Marketing Type:	New Products 2020	After-sales service provided:	Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support
usage:	capsule	Supply capacity:	1 set per month
Features:	Capsule tablet count in bottle or bag	Capsule and Tablet Sizes:	different kinds of
Applicable industries:	Manufacturing plants, food and beverage plants, home use, food and beverage stores	Bottling capacity (piece/bottle):	1 - 99999 pcs/bottle
product name:	Capsule Counting Machine	Suitable Size:	0.5-3cm
Capacity (pieces/hour):	360,000 pieces/hour	Core component warranty:	1 year
power supply:	0.5 kW	Video shipment inspection:	if
Dimensions (LWH):	12808001100mm

Product overview

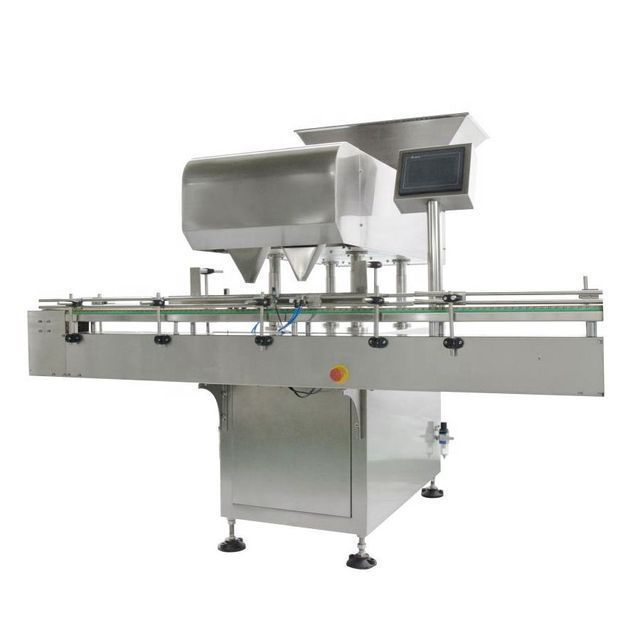

FRS Automatic Semi-automatic Capsule Filling and Counting Machine

This machine is used for fillingTablets (including abnormal tablets), capsules, gels (including abnormal gels, transparent gels and opaque gels), pills and most solid granules are packed into plastic bottle bags, etc.This is a great idea for pharmaceutical companies,We are a professional pharmaceutical machinery supplier from China, we can provide you with capsule filling machine, tablet press machine, capsule counting machine line, blister packaging machine, etc. Our machines are mainly exported to the United States.

feature

With touch screen and PLC, the operation is very simple, counting tablets or capsules of different sizes without changing the mold.

avoid material clogging
The special structure of the hopper mouth prevents material clogging, and the small mouth bottle can be filled quickly
Protect materials from harm
The bag is evenly fed, and the special patented filling parts are not broken.
Detection and sorting function
No bottle doesn't count and fill. Automatically reject filling abnormalities and broken bottles.
Error self-diagnosis and stop working, error alarm. dust-proof
Using the self-developed high dust-proof sensor technology, the machine works accurately and has good stability in a large dust environment
Condition.

Product parameters

Model	FRS-8
capacity	10-30 bottles/minute (by count)
channel number	8 channels
strength	220V/50HZ/0.6kw
Dimensions (mm)	145011001400
weight	250 kg
The scope of work	2-9999 pcs per bottle adjustable
Applicable	00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills

Model	FRS-16
capacity	30-70 bottles/min (by count)
channel number	16 channels
strength	220V/50HZ/0.6kw
Dimensions (mm)	66012801780
weight	460 kg
The scope of work	2-9999 pcs per bottle adjustable
Applicable	00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills

Model	FRS-24
capacity	10-130 bottles/minute (by count)
channel number	24 channels
strength	220V/50HZ/0.6kw
Dimensions (mm)	185012801780
weight	460 kg
The scope of work	2-9999 pcs per bottle adjustable
Applicable	00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills

Model	FRS-32
capacity	10-180 bottles/min (by count)
channel number	32 channels
strength	220V/50HZ/0.6kw
Dimensions (mm)	200013001700
weight	580 kg
The scope of work	2-9999 pcs per bottle adjustable
Applicable	00-5# capsules, soft capsules, ф5.5-12 ordinary tablets, special-shaped tablets, coated tablets, ф3-12 pills

Model	capacity ( capsule /Hour)	capsule size	fill rate	strength	vacuum pump	noise	oversized and heavy machine
DTJ-V semi-automatic capsule machine	25000 depending on capsule size	00-5 or 000	=>99%	1.5kw	0.02-0.06Mpa	<80dBA	12006001700mm 500 kg

Model Automatic Capsule Filling Machine	capacity ( capsule /minute)	capsule size	fill rate	strength	vacuum pump	noise	dust collector	oversized and heavy machine
NJP-200	200	00-5	=>99%	7 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	8706701900mm, 700 kg
NJP-400	400	00-5	=>99%	7 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	8706701900mm, 700 kg
NJP-800	800	00-5	=>99%	7 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	9708201900mm, 900 kg
NJP-1200	1200	00-5	=>99%	7 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	10208601970mm, 1000 kg
NJP-1500	1500	00-5	=>99%	7 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	150010401970mm, 1300 kg
NJP-2500	2500	00-5	=>99%	7 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	150010401970mm, 1500 kg
NJP-3800	3800	00-5	=>99%	7.6 kW	0.02-0.06Mpa	<80dBA	700m3/H, 2X105pa, 3507001000mm, 40 kg	150014502100mm, 2000 kg
NJP-7500	7500	00-5	=>99%	13.5kw	0.02-0.09Mpa	<80dBA	900m3/H, 2X105pa, 3507001000mm, 40 kg	170014502150mm, 3800 kg
