Hot Selling Automatic Soft Capsule Tablet Counting Filling Machine Price

Product details
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
Advantage:No need to change moldsVideo external inspection:if
Power (kW):0.35place of origin; place of origin:Zhejiang, China
Local service location:United States, Germany, Mexico, Russiacounting:1-99999
Applicable industries:Manufacturing Plants, Food and Beverage Plants, Household, Food and Beverage Storespayment terms:L/C,Western Union,D/P,D/A,T/T
Health status:newCertification:CE/ISO
Marketing Type:New Products 2020Main selling point:long lasting
Warranty:1 yearMechanical test report:if
Dimensions (L*W*H):1280*800*1100mmFunction:Counting the capsules into a bottle or bag
power supply:0.5kwMaterial:Stainless Steel 304
Capacity (pieces/hour):180000/hourShowroom location:United States, Germany, Mexico, Russia, Spain
Suitable size:0.5-3cmSupply capacity:1 set per month
Bottle capacity (pcs/bottle):1 - 99999 pcs/bottleVoltage:220V50HZ/110V60HZ
brand:Financial Reporting StandardsWeight (kg):50
Capsule and Tablet Size:different kinds ofCore Components Warranty:1 year
Auto grade:semi-automatic or automaticfeature:high precision
After-sales service provided:Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support, online supportproduct name:Capsule Counting Machine
Capacity (bottles/min):600 - 10800 bottles/minport:Ningbo Shanghai
usage:capsule
product description

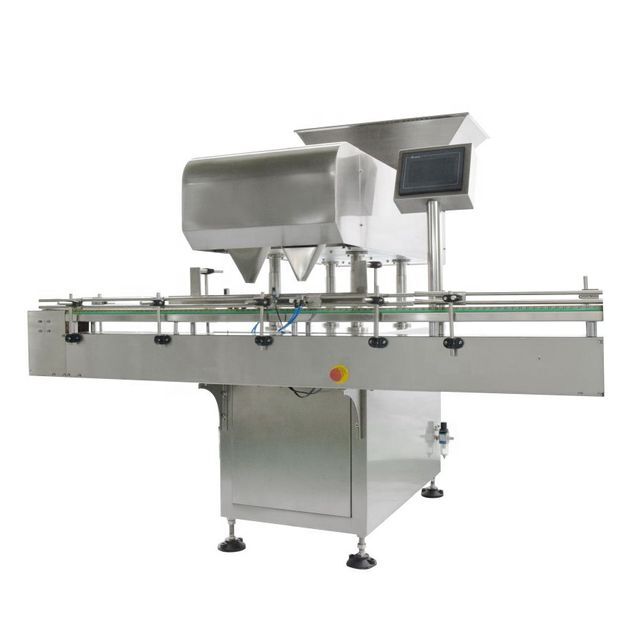

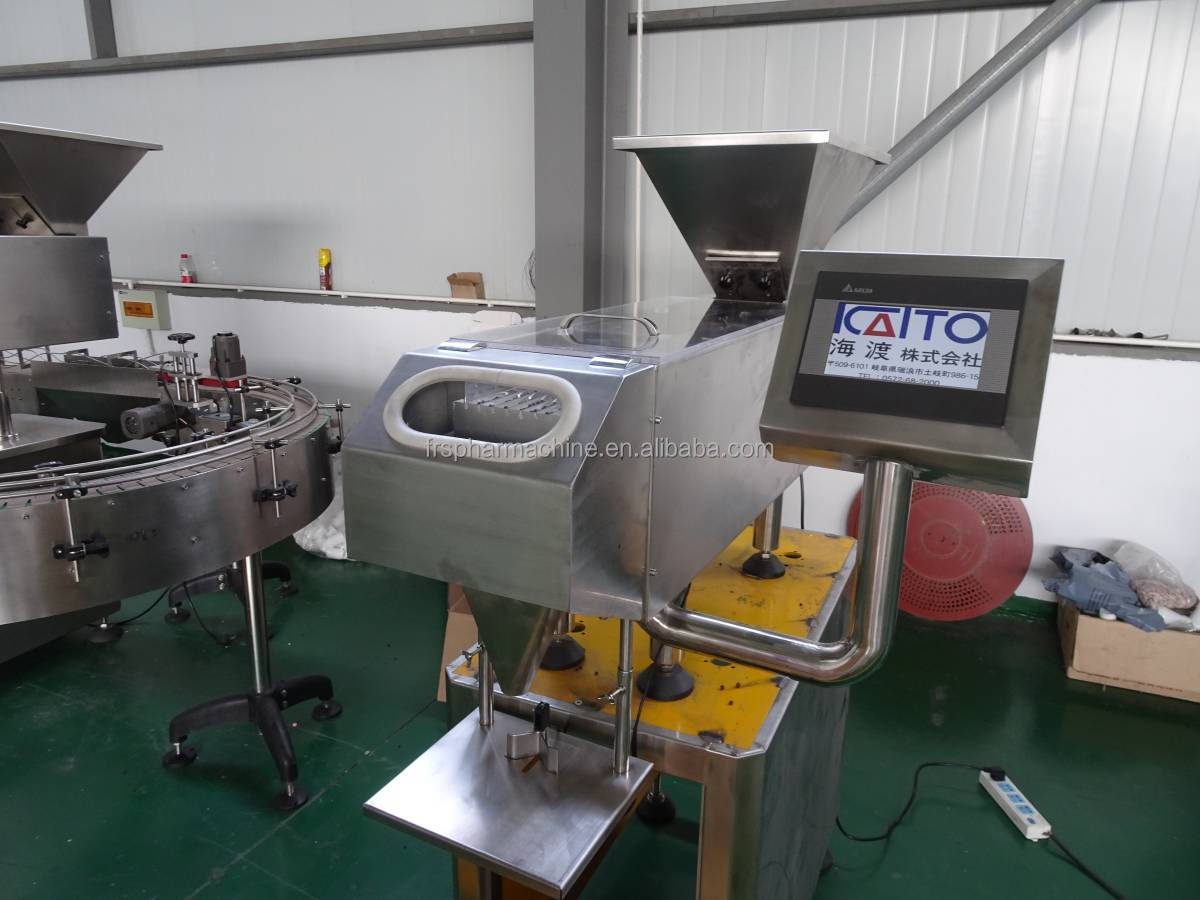

FRS automatic semi-automatic capsule filling and counting machine
This machine is used for fillingTablets (including abnormal tablets), capsules, gels (including abnormal gels, clear gels, and opaque gels), pills, and most solid particles are packed in plastic bottle bags, etc.It's a good idea for pharmaceutical companies,We are a professional pharmaceutical machinery supplier from China, we can provide you with capsule filling machine, tablet press, capsule counting machine line, blister packaging machine, etc. Our machines are mainly exported to the United States.
feature
With touch screen and PLC, the operation is very simple, counting tablets or capsules of different sizes without changing the mold.
Avoid material clogging
Hopper mouth with special structure to prevent material clogging, small mouth bottle can be filled quickly
Protect material from harm
The quiver is used for uniform feeding, and the special patented filling part is used for continuous feeding.
Detection and sorting function
No bottle will not count and fill. Automatically reject filling abnormal and broken bottles.
Self-diagnosing errors and stopping work to alert on errors. dust-proof
Using self-developed high dust-proof sensor technology, the machine works accurately and has good stability in heavy dust environment
condition.
Product parameters

Model

FRS-8

capacity

10-30 bottles/min (according to count)

channel number
8 channels

strength

220V/50HZ/0.6kw

Dimensions (mm)
1450*1100*1400

weight

250kg

The scope of work

Adjustable 2-9999 per bottle

Applicable

00-5# Capsules, Soft Capsules, ф5.5-12 Ordinary Tablets, Special-Shaped Tablets, Coated Tablets, ф3-12 Pills

Model

FRS-16

capacity

30-70 bottles/min (according to count)

channel number
16 channels

strength

220V/50HZ/0.6kw

Dimensions (mm)
660*1280*1780

weight

460kg

The scope of work

Adjustable 2-9999 per bottle

Applicable

00-5# Capsules, Soft Capsules, ф5.5-12 Ordinary Tablets, Special-Shaped Tablets, Coated Tablets, ф3-12 Pills

Model

FRS-24

capacity


10-130 bottles/min (by count)

channel number
24 channels

strength

220V/50HZ/0.6kw

Dimensions (mm)
1850*1280*1780

weight

460kg

The scope of work

Adjustable 2-9999 per bottle

Applicable

00-5# Capsules, Soft Capsules, ф5.5-12 Ordinary Tablets, Special-Shaped Tablets, Coated Tablets, ф3-12 Pills

Model

FRS-32

capacity


10-180 bottles/min (by count)

channel number
32 channels

strength

220V/50HZ/0.6kw

Dimensions (mm)
2000*1300*1700

weight

580kg

The scope of work

Adjustable 2-9999 per bottle

Applicable

00-5# Capsules, Soft Capsules, ф5.5-12 Ordinary Tablets, Special-Shaped Tablets, Coated Tablets, ф3-12 Pills
Model
capacity
(capsule
/Hour)
capsule
size
Fill rate
strength
vacuum pump
noise
Oversized size and weight
machine
DTJ-V semi-automatic capsule machine
25000 depending on capsule size
No.00-5 or 000
=>99%
1.5kW
0.02-0.06Mpa
<80dBA
1200*600*1700mm
500kg
Model
Automatic capsule filling machine
capacity
(capsule
/minute)
capsule
size
Fill rate
strength
vacuum pump
noise
dust collector
Oversized size and weight
machine
NJP-200
200
00-5
=>99%
7kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
870*670*1900mm,
700kg
NJP-400
400
00-5
=>99%
7kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
870*670*1900mm,
700kg
NJP-800
800
00-5
=>99%
7kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
970*820*1900mm,
900kg
NJP-1200
1200
00-5
=>99%
7kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1020*860*1970mm,
1000kg
NJP-1500
1500
00-5
=>99%
7kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1500*1040*1970mm,
1300kg
NJP-2500
2500
00-5
=>99%
7kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1500*1040*1970mm,
1500kg
NJP-3800
3800
00-5
=>99%
7.6kW
0.02-0.06Mpa
<80dBA
700m3/H, 2X105pa,
350*700*1000mm,
40kg
1500*1450*2100mm,
2000kg
NJP-7500
7500
00-5
=>99%
13.5kW
0.02-0.09Mpa
<80dBA
900m3/H, 2X105pa,
350*700*1000mm,
40kg
1700*1450*2150mm,
3800kg
