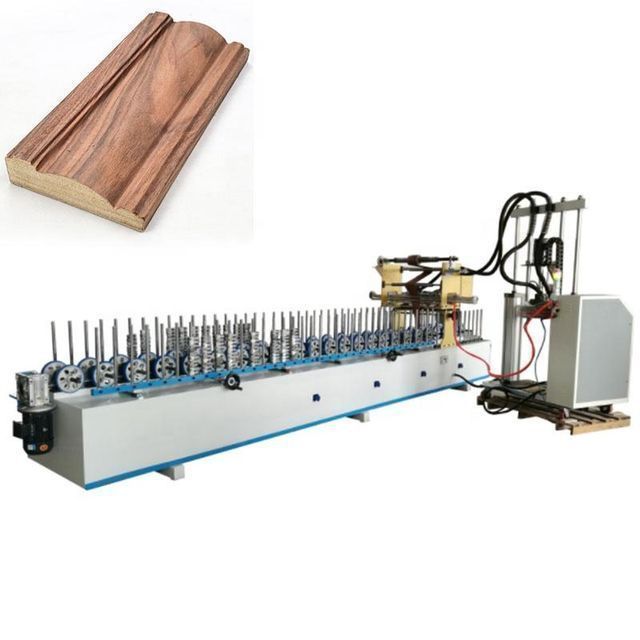

PUR hot melt adhesive profile winding machine

Supplier: Shanghai Win Star Woodworking Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms cerol liu
Price: $11000.00 / 1 - 1 sets
$8000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

strength:	11.5kw	Minimum working length:	600mm
Packaging Details:	Each profile winding machine is packed in a wooden box	Mechanical test report:	if
name:	veneer wrapping machine	Video shipment inspection:	if
place of origin; place of origin:	China Shanghai	port:	Shanghai Port
Dimensions (LWH):	59007502100mm	Applicable industries:	furniture workshop
Weight (kg):	1350	Feed rate:	0-25m/min
Core component warranty:	1 year	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Wooden Veneer Packing Machine
Core components:	PLC, motor	total measurement:	59007502100mm
Supply capacity:	100 wood veneer packaging machines per month	Showroom location:	Vietnam, Indonesia, Malaysia
Main selling points:	easy to operate	brand:	Silver Star
Warranty:	12 months	Model:	PUR350C
color:	necessary	Maximum package width:	300mm
Marketing Type:	New Products 2022	application:	veneer
Total power:	11.5kw	State of health:	new
Voltage:	380V 50HZ	weight:	1350 kg

PUR hot melt adhesive profile winding machine

Product Description

model	PUR350C
total power	11.5kw
packing speed	0-25m/min
Maximum packing width	300mm
Minimum package length	600mm
weight	1350 kg
Dimensions	59007502100mm

feature

The profile winding machine uses PUR hot-melt polyurethane reactive glue and automatic scraper system. The machine has the functions of automatic dust removal, gluing, profile heating, automatic edge scraping, protective film and so on. This machine adopts frequency conversion speed regulation, worm gear transmission.

1. Complete the surface, side and bottom of the curved surface at one time.

2. It is controlled by touch screen, programmable controller PLC and frequency converter, which is easy to operate and has high precision.

3. 45# steel solid base, connectors, columns, durable, the error is less than 0.02 mm.

4. The special unit system can solve the problems of wrinkling and unstable pressure during the line coating process.

5. The rubber roller adopts silicon rubber wheel, which has the characteristics of high strength, good elasticity, and is not easy to separate from the metal surface.

6. The equipment is equipped with two sets of feeding shafts, which are used to alternate PVC decoration materials to improve work efficiency.

7. The precision metering pump is adopted, and the feeding speed can be adjusted according to the user's needs.

8. It can be equipped with a substrate cleaning machine, which automatically cleans and cleans the substrate into the machine.

detailed picture

application

This process has been widely used in some developed countries in Europe and America. It is a new direction for the development of modern building materials. The product will not open due to temperature changes and high temperatures. Moreover, the glue is very environmentally friendly, does not contain toxic solvents, and the interior decoration materials are more secure. Because PUR glue has anti-aging, high bonding strength, moisture-proof, irreversible and other factors, the finished product of this equipment can be used in various conventional harsh environments.
