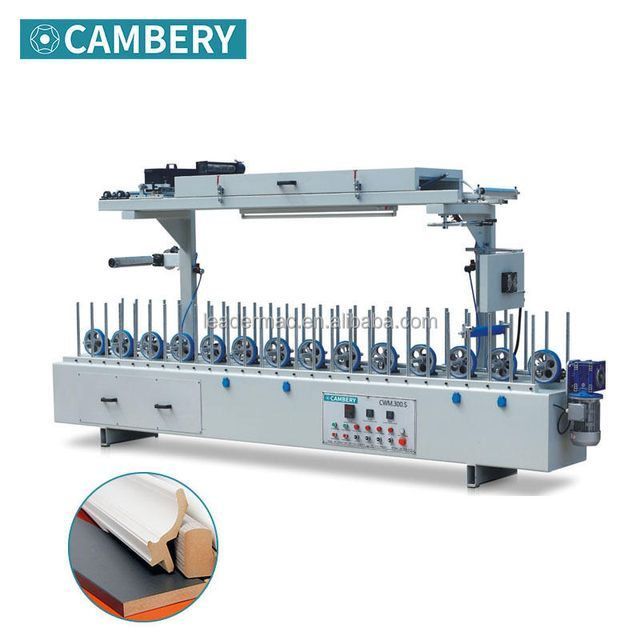

Cpl cold solvent glue profile wrapping machine engineering wood veneer solvent glue profile wrapping machine
- 6600.00 1 - 4 sets
- 5500.00 >=5 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Foshan, Guangzhou, Shenzhen | Key selling points: | High precision |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Glue Type: | Solvent adhesive |
| Payment Terms: | Letter of Credit, Telegraphic Transfer | Product Name: | Profile wrapping machine |
| Profile length: | Minimum 600 mm | Foil Width: | Max. 300 mm |
| strength: | 9 kW | Brand Name: | Camberley |
| Health status: | New | Core component warranty: | 1 year |
| Warranty: | 1 year | Profile Width: | Max. 300 mm |
| Foil core diameter: | 3 inches. | Profile Height: | Max. 90 mm |
| Applicable industries: | Manufacturing plants, construction engineering, carpentry | Video factory inspection: | if |
| Pneumatic load: | 6 bar | Marketing Type: | New Products for 2021 |
| Feed rate: | Up to 35 m/min | Dimensions (L*W*H): | 4000x600x1800 mm |
| Mechanical test report: | if | Foil outer diameter: | Up to 400 mm |
| Voltage: | 220V 50Hz, 3 phase (customized) | Weight (kg): | 1300 |
| Origin: | Guangdong, China | Exhibition Hall Location: | No |
Product Information
Technical Features
Overall dimensions | About 4000mm*600mm*1800mm |
weight | About 1300 kg |
power supply | 220V 50Hz, 3 phase (customized) |
Total Power | 9 kW |
Pneumatic loading | 6 bar |
Feed rate | Up to 35 m/min |
Profile application specifications | Width range: up to 300 mm; Height range: up to 90 mm; Length: minimum 600 mm. |
Foil Application Specifications. | Core diameter: 3 inches; Foil outer diameter: maximum 400 mm; Foil width: max. 300 mm. |
Glue Type | Solvent adhesive |
Electronic components | Schneider® or equivalent |
Pneumatic components | AirTac® or equivalent |
Details display
Stable bed frame
● The stable bed frame is manufactured with a rigid foundation using sophisticated welding, CNC machining, tempering and painting processes.

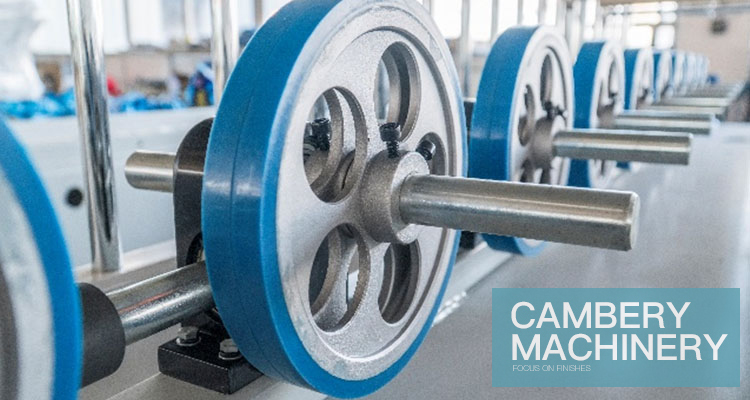

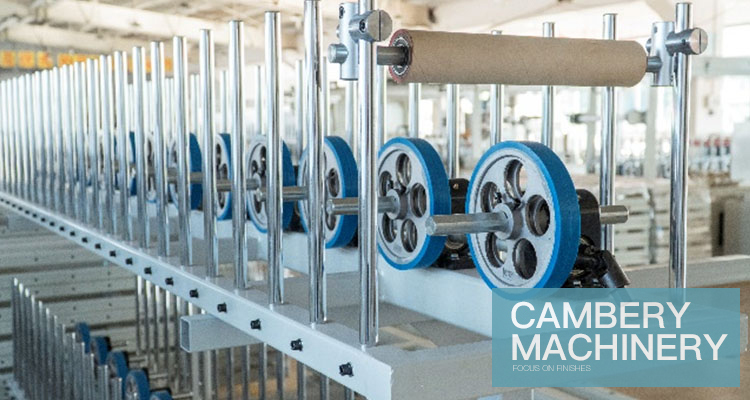

Material Driven
● Use frequency converter to control motor drive and speed regulation.
● Transmission is through lateral 90° helical metal gears.
● Install sturdy aluminum alloy wheels.
● The design can be changed quickly and flexibly to suit a variety of intended uses.
● Transmission is through lateral 90° helical metal gears.
● Install sturdy aluminum alloy wheels.
● The design can be changed quickly and flexibly to suit a variety of intended uses.

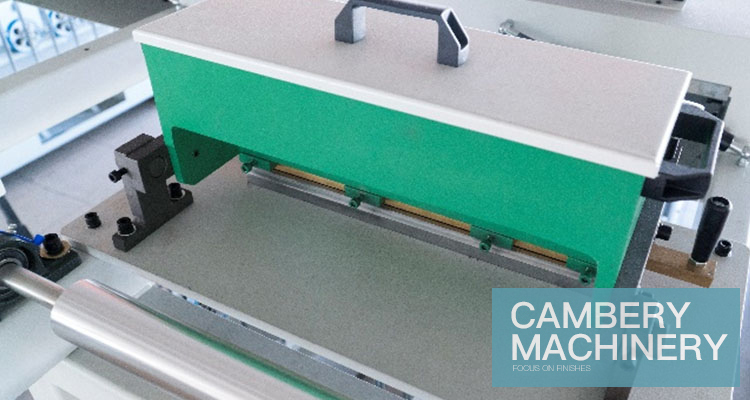

Glue applicator
●Non-stick surface treatment.
● Applicator is adjustable, 10-300mm.
● Easy to load, clean and replace.
● Applicator is adjustable, 10-300mm.
● Easy to load, clean and replace.

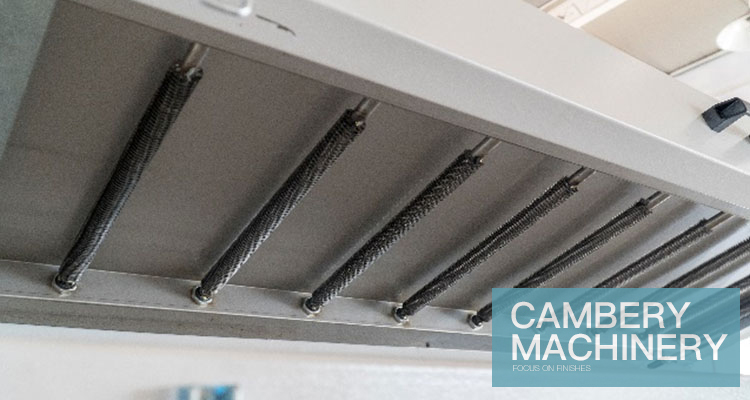

Heating system
● Top heating to remove moisture.
● Vertical heating, preheat before pasting.
● Heat gun, to repair special contours.
● Vertical heating, preheat before pasting.
● Heat gun, to repair special contours.

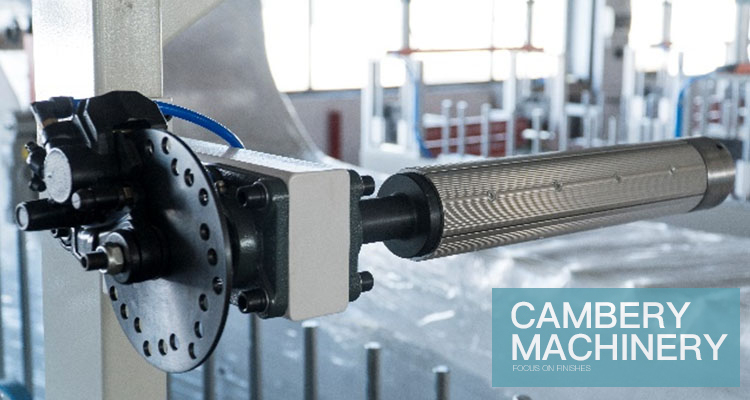

Foil Unwinding Reel
● Pneumatic axis for foil unwinding.
● Pneumatic brake or manual brake is optional.
● Pneumatic brake or manual brake is optional.

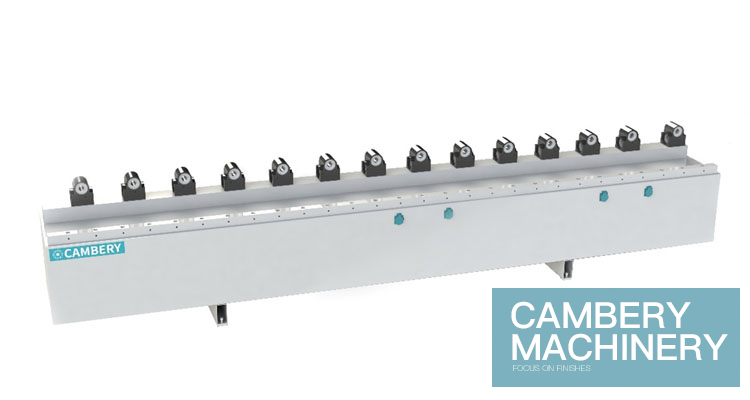

Interchangeable frame
● Applicable to profiles of various shapes
● Easy to change, easy to set up
● Economic investment
● Easy to change, easy to set up
● Economic investment

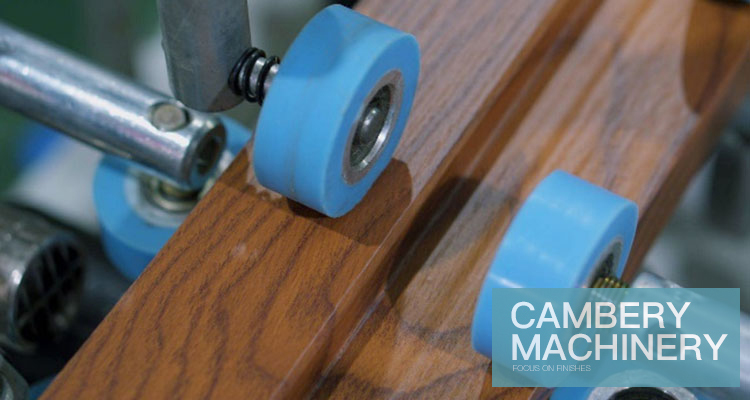

Packaging Kit
● 23 winding kits including stainless steel rods, locking clips, swivel heads, wheel pins and assorted pinch rollers

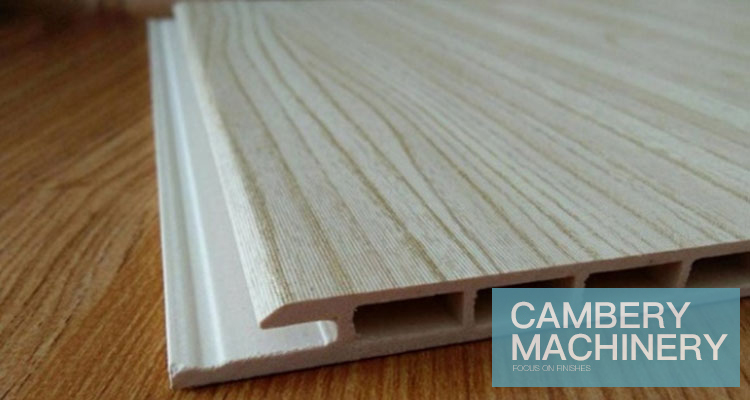

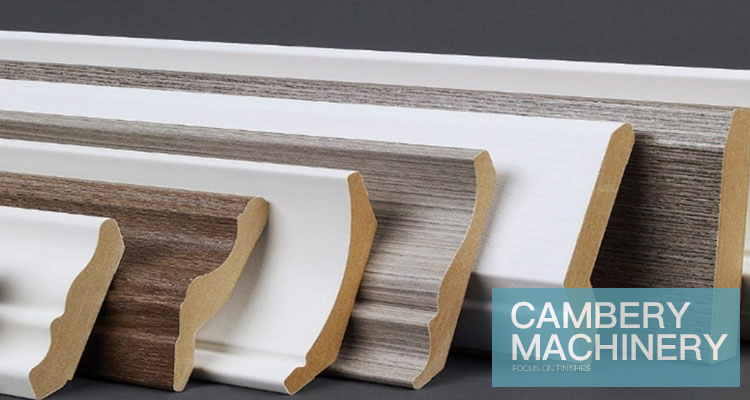

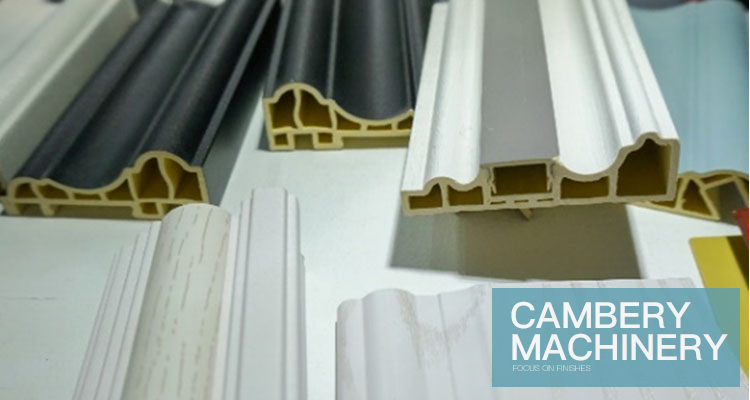

application
● Solvent adhesive for all kinds of roll papers, foils, PVC.
● CWM.300.S is the most economical machine for carrying out decoration business.
● CWM.300.S is the most economical machine for carrying out decoration business.
