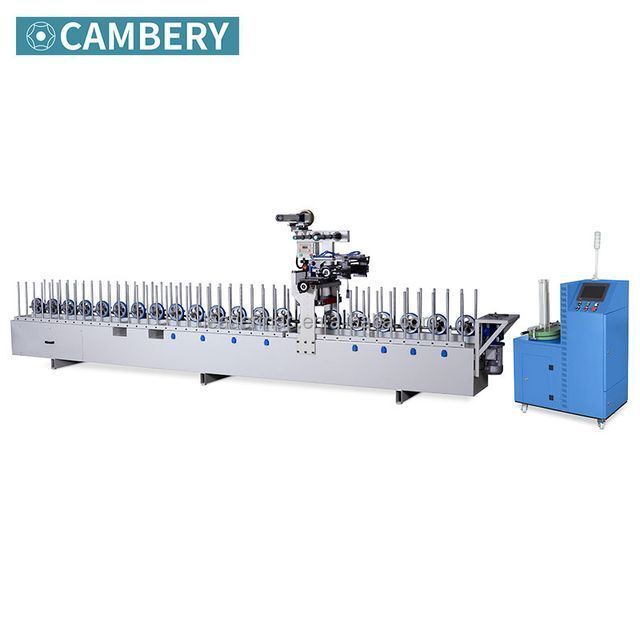

Wood frame making PVC profile wrapping machine PUR hot melt glue veneer profile wrapping machine

Click here to contact
Product details
Marketing Type:New Product 2021;Name:profile wrapping machine;
Product Name:PVC Profile Wrapper;Glue Type:PUR;
Warranty of core components:1 Year;Covered Material:PVC/Foil/Paper/Veneer;
Voltage:380V;Total Power:14 kW;
Applicable Industries:Building Material Shops,Manufacturing Plant,wood working;Based profile:Wood/ Metal/ Plastic/ Foam;
Key Selling Points:High-accuracy;Core Components:PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Profile Width:Up to 300mm;Weight (KG):1400;
Machinery Test Report:Provided;Pneumatic Load:6 bar;
Supply Ability:50 Sets per Month;Port:Guangzhou Port/ Shenzhen Port/ Shunde Port;
Dimension(L*W*H):5200x1000x1800mm;Brand Name:CAMBERY;
Payment Terms:L/C,T/T;Warranty:1 Year;
Place of Origin:Guangdong, China;Working Speed:Up to 60 m/min;
Condition:New;Power:14kW;
Video outgoing-inspection:Provided;Profile Height:Up to 90mm;
Showroom Location:Canada,United Kingdom,United States,Italy,France,Germany,Thailand,South Korea,Japan,Australia;Packaging Detail:Standard Wrapping;
PRODUCT INFORMATION
TECHNICAL CHARACTERISTICS
Overall Size
Approx. 5200mm*1000mm*1800 mm
Weight
Approx. 1400 kg
Power Supply
380V 50Hz or customized
Total Power
14 kW
Pneumatic Load
6 bar
Working Speed
Up to 60 m/min
Profile Application Spec.
Width Range: Up to 300mm
Height Range: Up to 90mm
Length: Min. 600mm
Foil Application Spec.
Core Dia.: 3in.
Foil O.D.: Up to 400mm
Foil Width: Up to 300mm
Control System
Schneider® PLC with 10in. full color touch screen.
 Glue Melter
(20-Liter Pail Melters)
Non-circulating Tank Type
Holding Capacity: 29kg
Melt Capacity: 27kg/hr
Num. of Hoses: 1
Temp. Control Sensor: PT100
Glue Type: PUR.
Electronic Components
Schneider® or equivalent
Pneumatic Components
AirTac® or equivalent

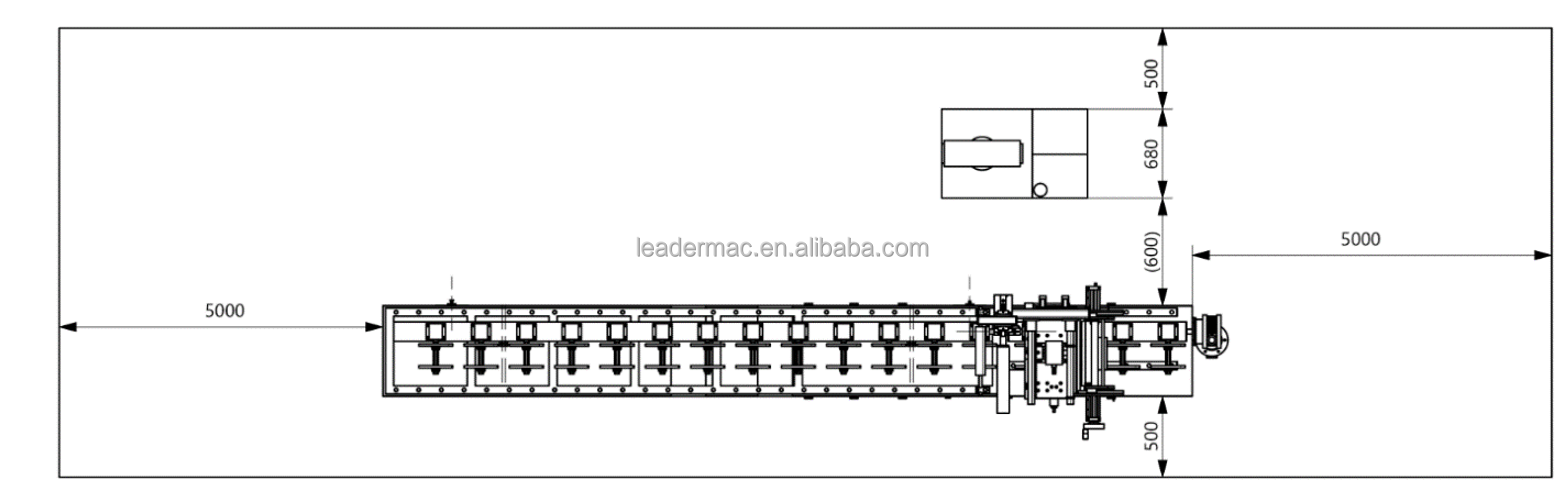

Layout of Machine
Auxiliary Device/Material
Items
Qty.
Description
Slitting Machine
1
Slits the wrapped foil in specified width.
Air Compressor
1
Supplies the compressed air for the PUR wrapping machine and slitting machine.
Foil
As requested
Foil for wrapping.
Glue
As requested
Glue for wrapping.
DETAILS DISPLAY
STABLE BEDFRAME
● Stable bedframe which is manufactured by a rigid foundation, with superior welding, CNC machining, tempering and painting process.

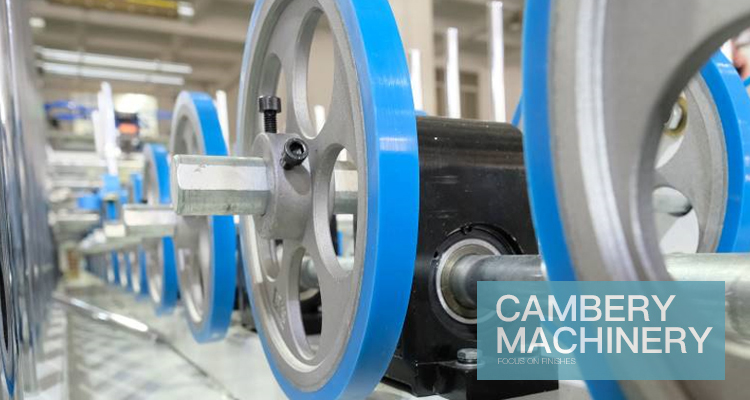

MATERIAL DRIVING
● Driving by the motor with inverter control for speed regulation.
● Through a lateral 90°helicoidally metal gear transmission.
● Installed with robust aluminum alloy wheels.
● Fast and flexible changed design for various intended use.

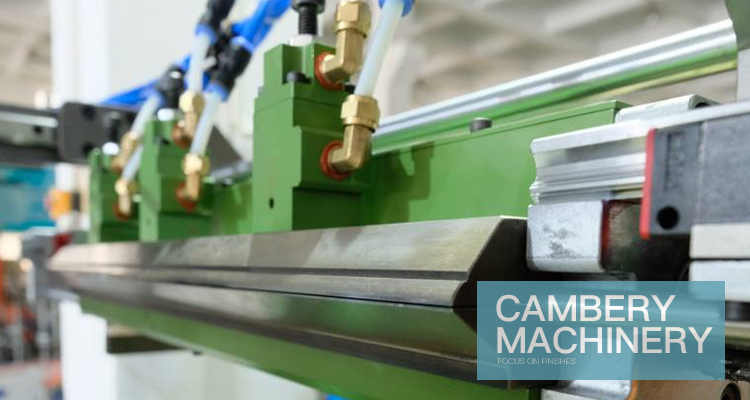

ADJUSTABLE SLOT NOZZLE
● Manufactured with Japanese SLD steel.
● Teflon non-stick surface treatment.
● One-piece adjustable opening and precise glue application.
● Easy-to-replace glue mesh filter.
● Multiple glue feeding valves.
FOIL UNCOILING SHAFT
● 3in. Pneumatic shaft for foil uncoiling.
● Graduated shaft for fast loading and positioning.
● Independent magnetic breaker for tension control.
● Installed with fast lateral adjustable motor.

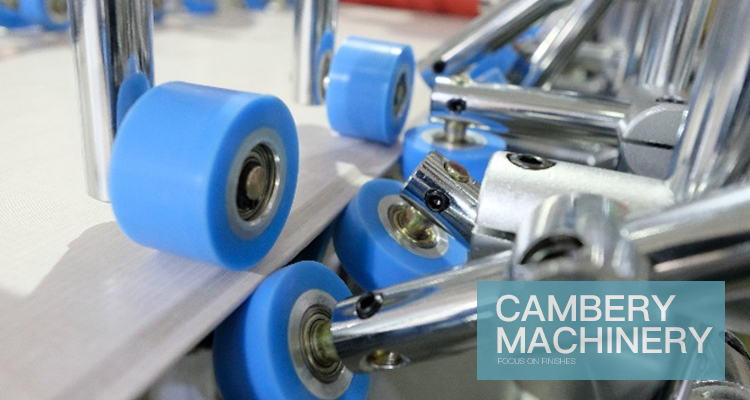

WRAPPING KITS
● 25 Sets wrapping kits, including stainless steel bars, locking clamps, movable heads, wheel pins and various pressing wheels.

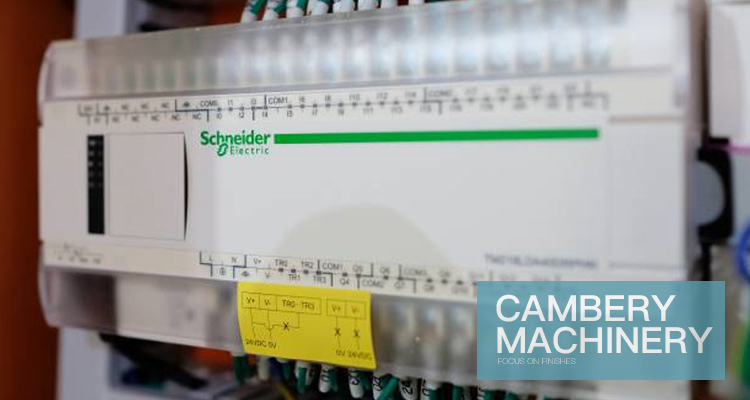

ELECTRONIC SYSTEM
● Equipped with Schneider PLC control system.
● 10in. Full color HMI.
● Schneider electronic components.
● Well-organized wiring.

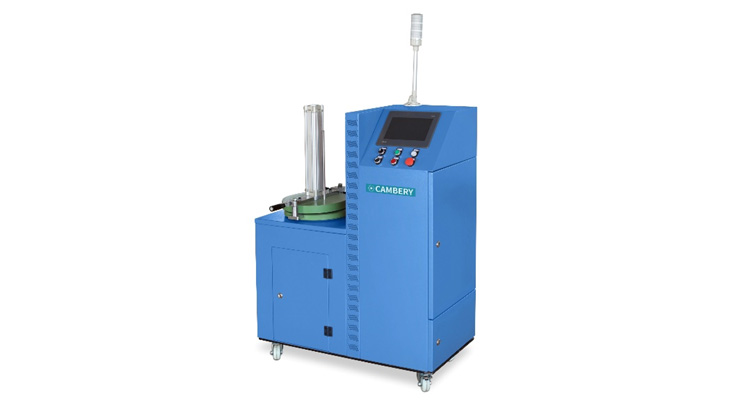

Non-circulating Tank MELTERS
● With uninterrupted dosage system, resulting precise and quality production.
● Non-stick Teflon surface treatment and quick opening design, which allows the fast and easy operation of the cleaning in less than
10 minutes.
● Fully monitoring and error indication system to ensure the safety and smoothness of the production.

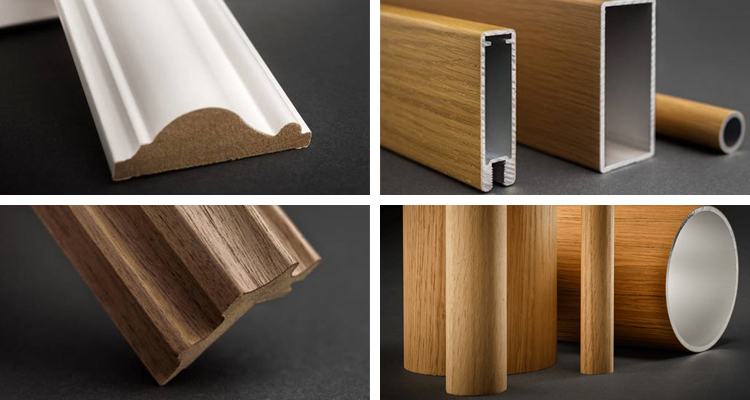

APPLICATION
Ideal system with ease and precision for wrapping of profiled wood, extruded plastics and metal substrates with various papers, foil, PVC or veneer in roll.
HOT SALE
COMPANY OVERVIEW
WELCOME TO VISIT US
Cooperation with up to 50 countries around the world.
OUR CERTIFICATION
FAQ
Q1. Warranty
A1. 12 months warranty is effective from the date of acceptance of the machine.

Q2. Payment Terms
A2. TT 30% down payment, 70% before shipment.

Q3. Delivery Time
A3. 15-30 working days from the receipt of the down payment.

Q4. Machine installation
A4. Cambery could assign the technician to the place for the on-site installation if requested by the purchaser.

Q5. Technical Support
A5. Every machine is assigned by a specialist. The response is available within 12 hours while the solution for the
troubleshooting is provided within 48 hours.

Q6. Demo and Testing
A6. Cambery built a training center for the clients and employees to study the machines operation. You are welcome to visit our factory anytime for the machines’ demo. Furthermore, we could run the machine with the materials provided by you and help you achieve your business efficiently.
