Woodworking vertical hinge drilling machine MZ73032 Cabinet hinge drilling machine

Supplier: Shanghai Win Star Woodworking Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms cerol liu
Price: $1200.00 / 1 - 1 sets
$1000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 months	Core Components Warranty:	1 year
port:	Shanghai Port	brand:	Haiying Star
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Hinged Drill	place of origin; place of origin:	China
Power (kW):	2.2	use:	carpentry
CNC or not:	normal	Packaging Details:	Each set of hinge drilling machine is packed in a wooden case.
Mechanical test report:	if	Weight (kg):	500kg
type:	double head	model:	MZ73032
Maximum Drilling Diameter:	35mm	application:	Drilling holes in the board
Applicable industries:	furniture workshop	Voltage:	220v/380v
Motor Type:	Standard motor	Health status:	new
Main selling point:	long lasting	Showroom location:	Vietnam, Indonesia
Maximum working length:	1500mm	Name:	Hinged Drilling Machine
rated power:	1.1kw*2	Maximum drilling depth:	50mm
Dimensions (LWH):	17008001550mm	phone number:	double
Video external inspection:	if	Spindle speed:	2840 rpm
Core components:	motor	Marketing Type:	New Products 2022
Supply capacity:	100 sets/month hinged boring machine

Woodworking vertical hinge drilling machine MZ73032 Cabinet hinge drilling machine

Product Description

model	MZ73031	MZ73032
Maximum hole diameter	35mm	35mm
Maximum drilling depth	50mm	50mm
working length	1000mm	1500mm
Spindle speed	2840 rpm	2840 rpm
Number of spindles	3*1	3*2
rated power	1.1kw	1.1kw*2

feature

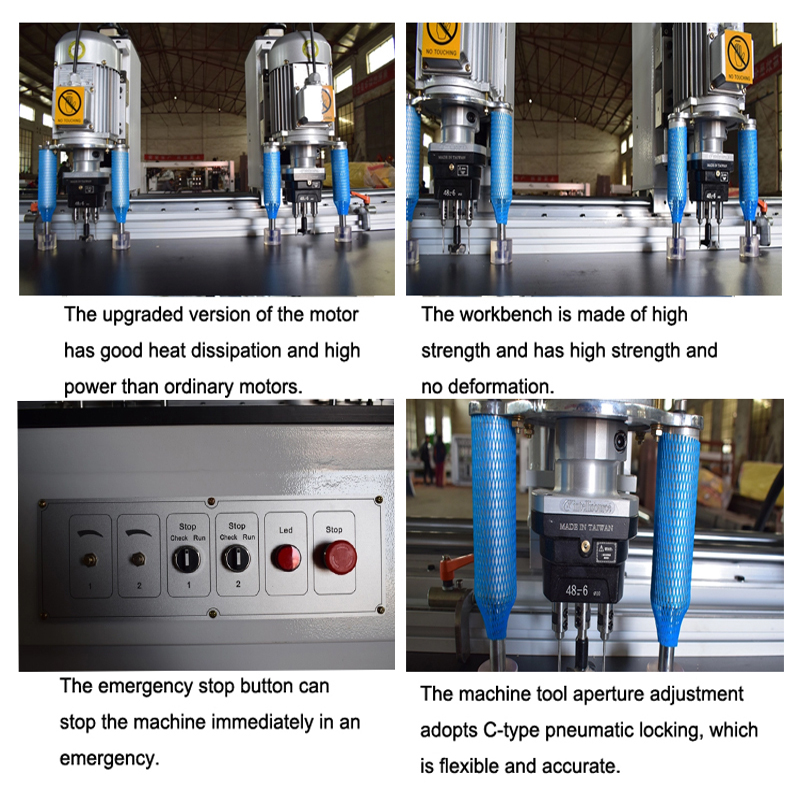

1. This machine adopts an upgraded motor, which has good heat dissipation effect and more efficient power than ordinary motors.
2. The worktable is manufactured with high-strength operation, with high strength and no deformation.
3. Stable structure, convenient operation and long service life.

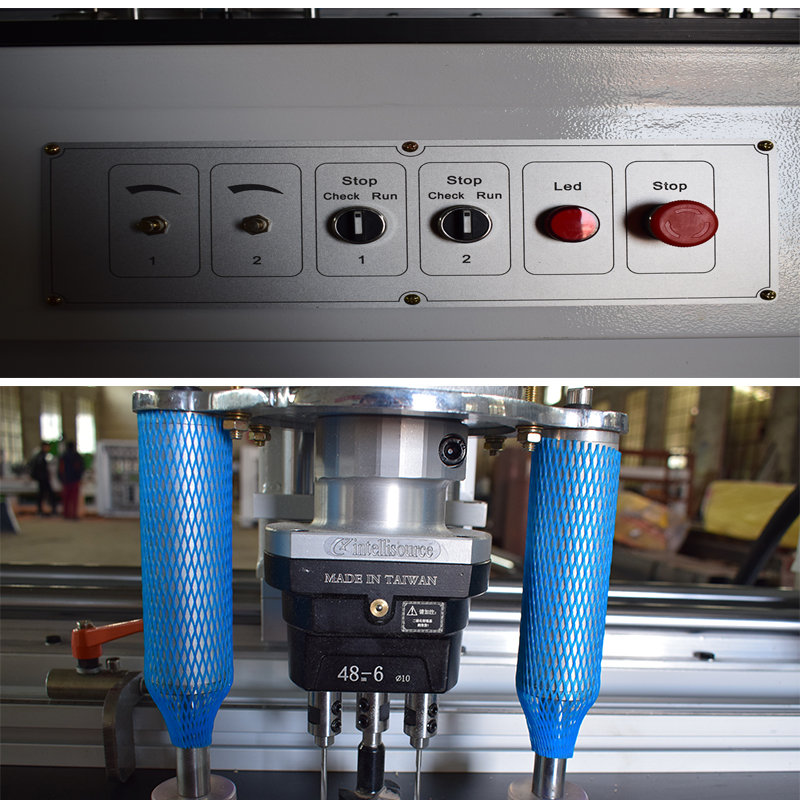

4. Emergency stop button can immediately stop the machine in emergency.
5. Operation handle, accurate and smooth cutting, smoother cutting surface.
6. The hole diameter adjustment of the machine tool adopts C-type pneumatic locking, which is flexible and accurate.

Detailed description
