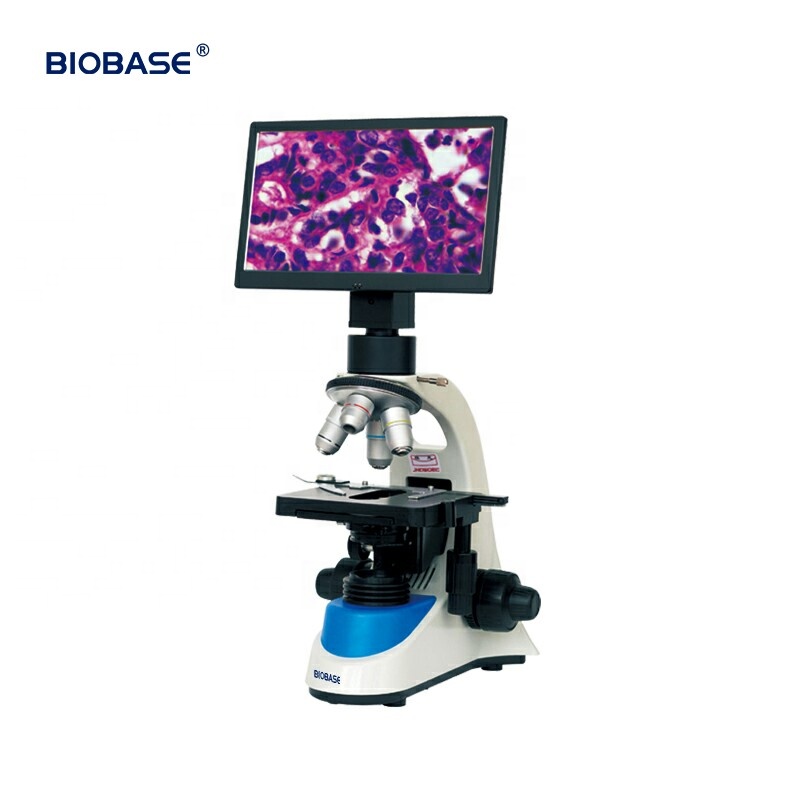

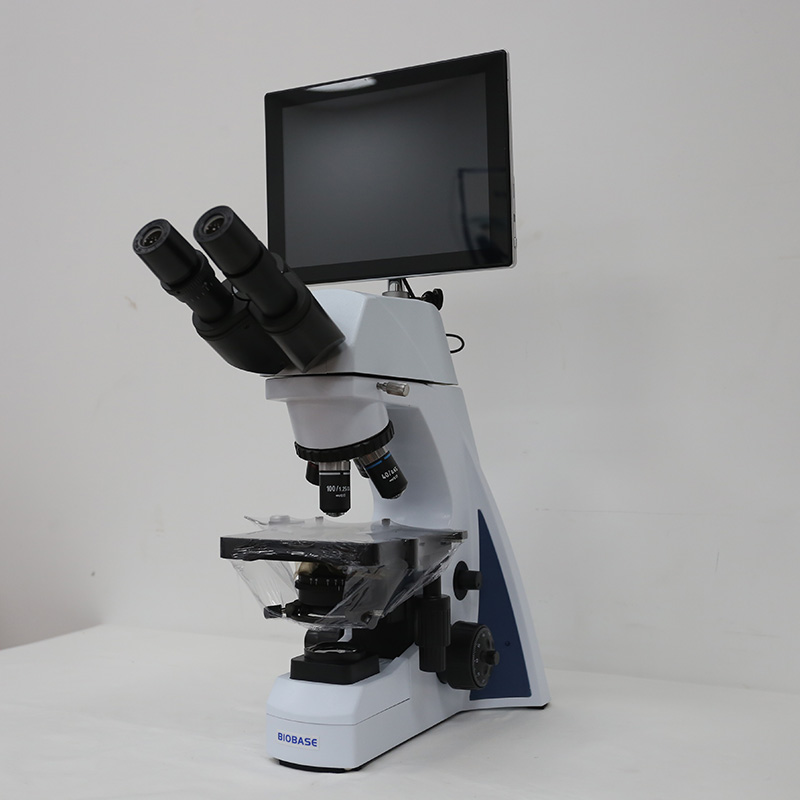

BIOBASE Laboratory LCD Screen Biological Digital Microscope Trinocular Binocular Microscope

Click here to contact

Product details

Optical system:	finite optical system	Pull tube:	Three eyes
exhibit:	9'' touch screen LCD monitor	Optional accessories:	camera, display
Customization support:	OEM production	product name:	LCD digital biological microscope
Nose pads:	Racquet Quadruple Objective Turntable	Condenser:	ABBE NA1.25 condenser
objective:	Achromatic 4X, 10X, 40X(S) 100X(S,O)	Warranty:	1 year
payment terms:	L/C, T/T	place of origin; place of origin:	Shandong China
model:	BXM-1B	Package preview:
stage:	Double-layer mechanical stage 135*140mm	brand:	biological base
Packaging Details:	Standard wooden package or on demand.	eyepiece:	WF10X/18mm
port:	Qingdao	Supply capacity:	1200 pieces per month
illumination:	Built-in lighting, halogen lamp 6V/20W, power supply 90-230V	theory:	Microscope

Product Description

feature:

* 9'' touch screenLCD Monitor

* supportWiFi and Bluetooth,SD card expansion.

* Integrated structure design, saving space.

* Effective anti-mildew design, can be used in high temperature and high humidity environment.

Model		DM-300
optical system	finite optical system	√
eyepiece	WF10X/18	√
observation head	Monocular head tilted 30°	-
	Seidentopf binocular viewing head tilted 30°, Pupil distance 48~78mm	√
	Seidentopf trinocular viewing head tilted 30°, Pupil distance 48~78mm	-
	30° inclined digital observation head, pupil distance 48-78mm, 5 million pixels, support Wifi	-
	30° inclined digital observation head, pupil distance 48-78mm, 5 million pixels, 8'' LCD, Android operating system	-
Achromatic Objectives	4X NA=0.1 WD=17	√
	10X NA=0.25 WD=7	√
	40X NA=0.65 WD=0.53	√
	100X NA=1.25 WD=0.13	√
Nosepiece	Rear Quadruple Nosepiece	√
stage	Double-layer mechanical stage 140x140mm, moving range 75x50mm	√
condenser	NA 1.25 Abbe Condenser	√
condenser	Dark field condenser (dry type, oil type)	-
Focusing system	Coaxial coarse and fine adjustment, differential 0.002mm, Moving index 25mm	√
illumination	S-LED lighting	-
	S-LED lighting with charger	√
	Kohler Lighting	-
	Environmental protection function	-
	plano-concave mirror	-
Fluorescent Accessories	Fluorescent lighting, LED lights	-
Fluorescent Accessories	Fluorescent lighting, 100W HBO lamp	-
power supply	AC110/220V±10%, 50/60Hz	√
Accessories	Polarization device	-
Accessories	Phase difference kit	-
Package dimensions	370260465mm	√
total weight	8.5 kg	√
