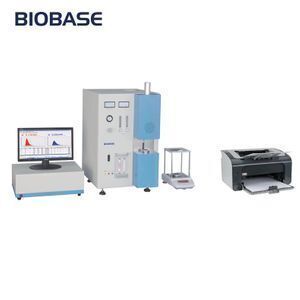

BIOBASE High Frequency Infrared Carbon & Sulfur Analyzer, BK-CSA5

Supplier: Biobase Biotech (Jinan) Co., Ltd.
Region: Shandong, China
Contact: Ms Icey Zhou
Price: $3500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Place of Origin:	Shandong China;	Port:	Qingdao, Guangdong;
Analysis Pool:	2PCS;	Brand Name:	BIOBASE;
Name:	High-frequency infrared carbon & sulfur analyzer;	Analysis Time:	20~100s adjustable (normally: 35s);
Working Cycle:	24 hours;	Model Number:	BK-CSA5;
Supply Ability:	2600 Unit/Units per Year;	Type:	laboratory products;
Model:	BK-CSA5;	Consumption:	2.2KW;
Accuracy:	C/S: 0.1ppm;	Packaging Detail:	Wooden or carton package, ensure the good's safety in shipment;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Working principle:	High-frequency inductive combustion and infrared absorption system;
Sample Weight (Solid steel):	Standard 0.5g;	Power Supply:	AC220V±10%, 50/60Hz;

Online Shop

Product Description

BIOBASE High Frequency Infrared Carbon & Sulfur Analyzer, BK-CSA5

More details, please send inquiry or directy contact Cherry:

Mail Address: sales37(at)biobase.cc

Mobile: +86-18253101630

Introduction:

High-frequency Infrared Carbon & Sulfur Analyzer can determine the percentage of carbon and sulfur in steel, iron, alloy, nonferrous metal, cement, mineral, glass and other material.

1.Analysis software

Using Delphi software compiler, WINDOWS XP, Win7, Win8, Win10 system.

Using the drop-down menu and shortcut operation, With the functions of multi-user administrator, curve fitting, coefficient correction, treatment of results, printing, system diagnosis and others.

2.Infrared detecting pool

Gold-plating carbon sulfur analysis pool and high precision of pyroelectric infrared detector.

New platnum infrared light source, heating duration, spectral characteristics of high efficiency. Microstepping motor, good thermal stability.

3.High precision pump

In response to the input pressure change, to ensure that the analysis of gas flow. Constant output, so as to ensure the stable and reliable analysis results.

4.Control circuit

Double CPU modular design, high integration, stable and reliable. 24 bit high speed sampling chip, high sampling precision.

5.High frequency oscillating circuit

Current / Voltage / Power / Choosing the way to regulate the furnace temperature, suitable to various materials of samples.

Technical Parameters:

Model	BK-CSA5	BK-CSA6
Appearance	Desktop detector, with desktop high-frequency furnace, save space	Separate work station, with vertical high-frequency furnace
Analysis Range	C: 0.0005%~6.0000% (can be extended to 99.999%) S: 0.0005%~0.35000% (can be extended to 99.999%)	C: 0.0001%~10.0000% (can be extended to 99.999%) S: 0.0001%~2.0000% (can be extended to 99.999%)
Analysis Pool	2 pools	2 pools (optional 4 pools)
Consumption	2.2KW	2.5KW
Power Supply	AC220V±10%, 50/60Hz
Package Size (WDH)	1380760980mm	1550750910mm, 7405801410mm
Gross Weight	200kg	330kg
Standard Accessories	Main unit, high frequency automatic inductive combustion furnace, electric balance, computer, printer
Standard Accessories	1000 times effective analysis of spare parts	2000 times effective analysis of spare parts
