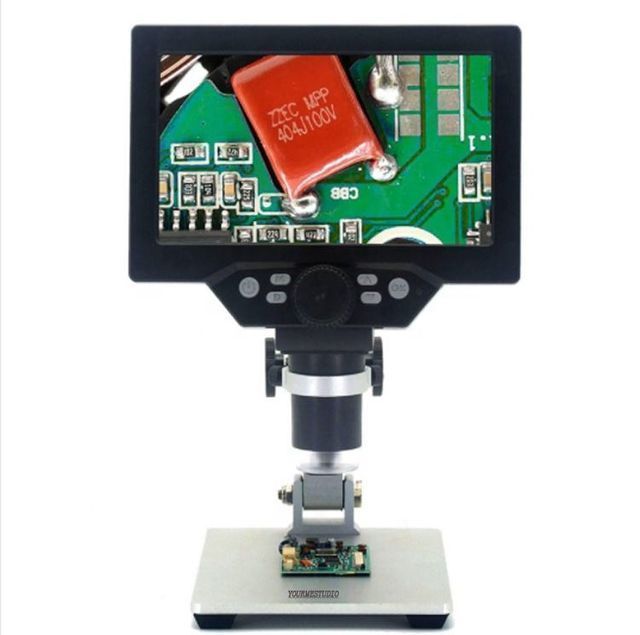

Hot selling HD 7 inch G1200 digital microscope 1200 times electron microscope mobile phone repair microscope

The main parameters:
1: Pixel: HD 12 million pixels
2: Display: 7-inch high-definition LCD display.
3: Magnification: 1-1200 times continuous magnification system.
4: Object distance: 10MM to infinity (different object distances correspond to different multiples)
5: Plug in the power supply or built-in super lithium battery. (Please note that the built-in battery is not standard)
6: Sixteen language systems: English, Spanish, Russian, Korean, Japanese, Thai, Hebrew, Portuguese, German, French, Italian, Turkish, Czech, Polish, Traditional Chinese, Simplified Chinese .

Heavyweight improvements:
Advantage one:
An upright microscope has an important disadvantage because it is used for many work purposes, such as soldering of circuit boards and PCBs, model recognition of some tiny chips, metals and other objects, and it is easy to see the details of objects because of reflection.
Our product has been specially improved for this problem. It is a digital microscope with an adjustable angle. Solved the problem of high reflection. It was a very good experience in the electronic repair industry. The distance is longer than others, because there is a certain operating space, it is very convenient to use tweezers, electric soldering iron, etc. under the microscope.

Advantage two:
Most other microscopes are a magnification of two gears. Either the magnification is too large or the magnification is too small, there will always be regrets in perception.
This is a digital microscope with continuous zoom and zoom functions. Compared to other microscopes, it has a wide selection of observations, from 1x continuous to 1200x magnification, and you can always find the right magnification to view objects.


switch button
Short press for two seconds to turn on and off
M key: function setting key
Screen Saver: Off · 30 seconds · 1 minute · 2 minutes (optional)
Auto Power Off: Off · 3 minutes · 5 minutes · 10 minutes
Hertz light source: 50Hz 60Hz
Language options: 16 languages ​​to choose from
Date adjustment: year month day | hour, minute, second
Format: yes/no
Default setting: yes/no
V.1.0 version number; Version: H69G-V1.0-20190824
In recording mode:
Resolution: 1080FHD, 720P, VGA
Loop recording: Off/3 minutes/5 minutes/10 minutes, when the flash memory card is full, the first recorded data will be deleted, and then the video will be saved.
HDR High Dynamic Range: On/Off (When on, if there is an object moving under the lens, the recording function will automatically turn on, no manual operation is required.)
Exposure Compensation: 7-stop option
Date Label: Option to show/close screen - date and time
In photo mode:
Photo delay: single shot · 2 seconds · 5 seconds · 10 seconds
Photo pixel: 1.3M·2M·5M·8M·10M·12M
Continuous shooting: 3 continuous shooting
Photo Quality: Premium · Standard · Compressed
Sharpness: Strong · Standard · Soft
Color: none, black and white, nostalgic
ISO: Auto·100·200·400
Exposure Compensation: 7-stop selection
Photo Assist: Stabilization On/Off
Date Label: On/Off
Storage:
Watch: Up and Down Delete Protection
D key: Mode key:
Switch: Photo mode · Photo mode · Play mode:

Up key, down key, OK key (photo/video, open key)
1: Power DC interface (Micro USB).
2: Flash memory card slot (MicroSD), support 1-128GB. Class10 and above speed
3: Light brightness adjuster.
4: REST key, system restore key. (If the machine becomes inoperable, use a sharp pin to press the button in this hole to restart the machine)
5: 8 high-brightness LED lights, continuous service life of up to 100,000 hours.



1* Digital microscope



picture display
