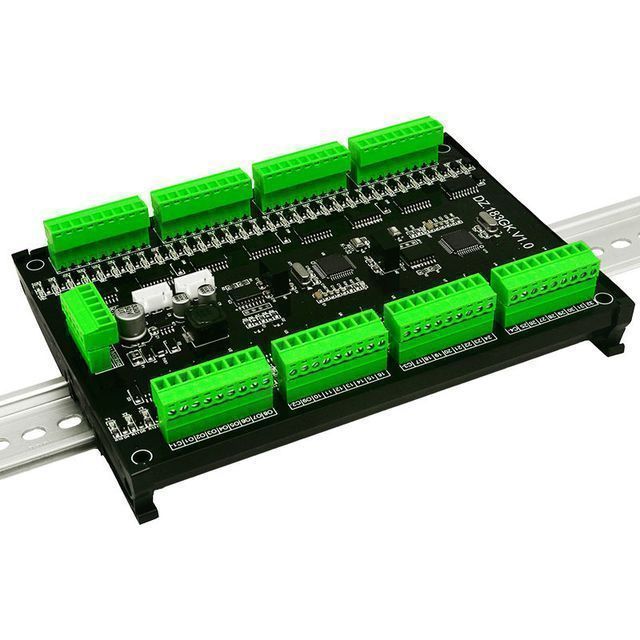

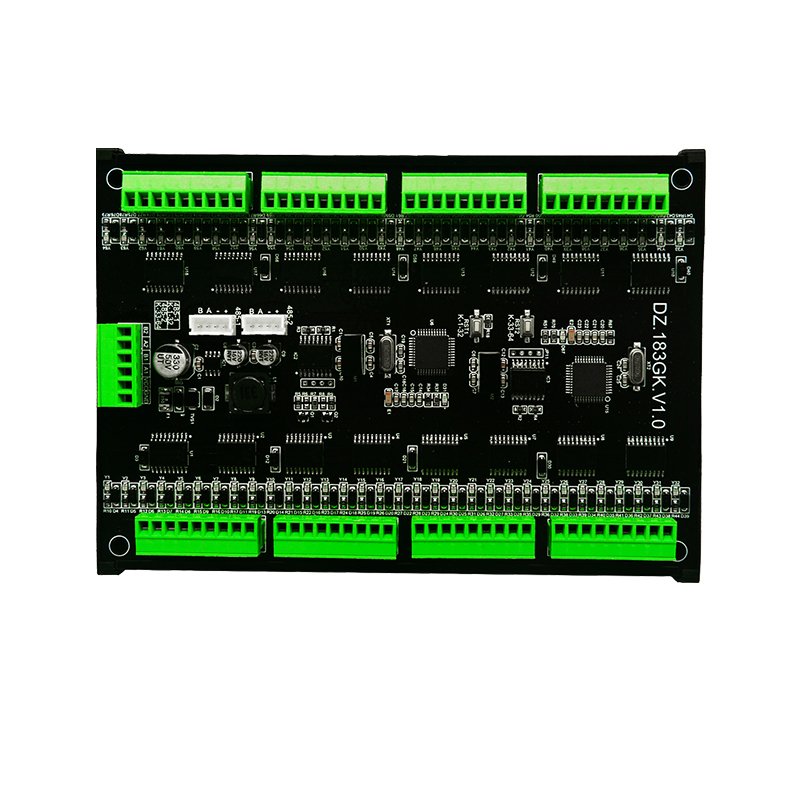

64-channel output optocoupler isolation 485 communication triode relay amplifier board supports Modbus protocol
- 49.00 1 - 499 pieces
- 48.60 500 - 9999 pieces
- 48.00 >=10000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Sales unit: | Item | Single package size: | 29X15X6 cm |
| Interface Type: | Analog input, angle output, digital input, digital output, encoder input, IO-Link, pulse output, serial communication, temperature input, others | place of origin; place of origin: | Guangdong, China |
| network: | EtherNet/IP, Profibus DP, Profibus IO, IO-Link, EtherCAT, CompoBus/S, COMPONET, Modbus, others | brand: | Sanwa Relay |
| model: | TKRS485 | Gross weight per piece: | 2.000 kg |
| Protection class: | IP67 | product brand: | Sanwa Relay |
| Module brand | Sanwa Relay |
| Module model | DZ.183GK |
| output method | No relay output |
| output quantity | 64 channel output |
| Operating Voltage | DC24V |
| Communication Interface | RS485 interface, standard MODBUS-RTU protocol |
| Communication baud rate | Baud rate 9600-115200 |
| Communication distance | RS485 communication distance<1000M |
| product stability | Imported chips, built-in watchdog, high reliability |
| Degree of protection | Input port optocoupler isolation, communication port isolation withstand voltage 3000Vrms500DC continuous, +/-15kv ESD protection, lightning protection, anti-surge: total load can reach 256 nodes: meet AEC-Q100 standard: meet EN2368 standard: humidity sensitivity level ( MSL) 3 |
| ambient temperature | -40°~55°C (no freezing, no frosting) |
| environment humidity | 5-82%RH |
| installation method | ts35/7.5/ns32 standard rail |
