SGL DC 160A Solar System Transfer Switch, Electric Manual Changeover Switch

Product details
poles:3 & 4;Supply Ability:10000 Piece/Pieces per Month Changeover Switch Free Sample Contact Us;
Model Number:SGL-DC-160/4P;Layer:one;
Original:Zhejiang, China;Color:White;
Port:Ningbo or Shanghai;Max. Voltage:1000v;
Standard:CE/IEC;Packaging Detail:Changeover Switch Packing : Export Carton;
Type:manual changeover switch;Brand Name:SMICO;
mechanical life:at least 2 years;operation:manual;
Place of Origin:Zhejiang China (Mainland);main market:millde,asia and america;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;working current:160A;
Max. Current:630A;

You are here:Home>>Switch >>Isolated switch

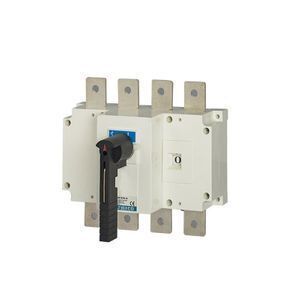

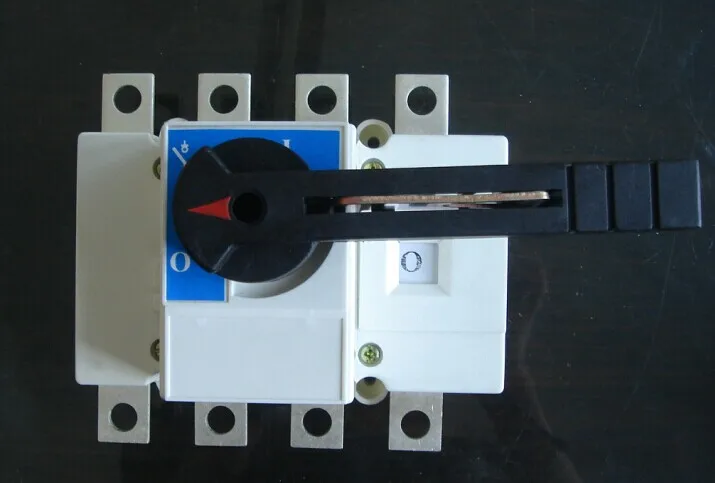

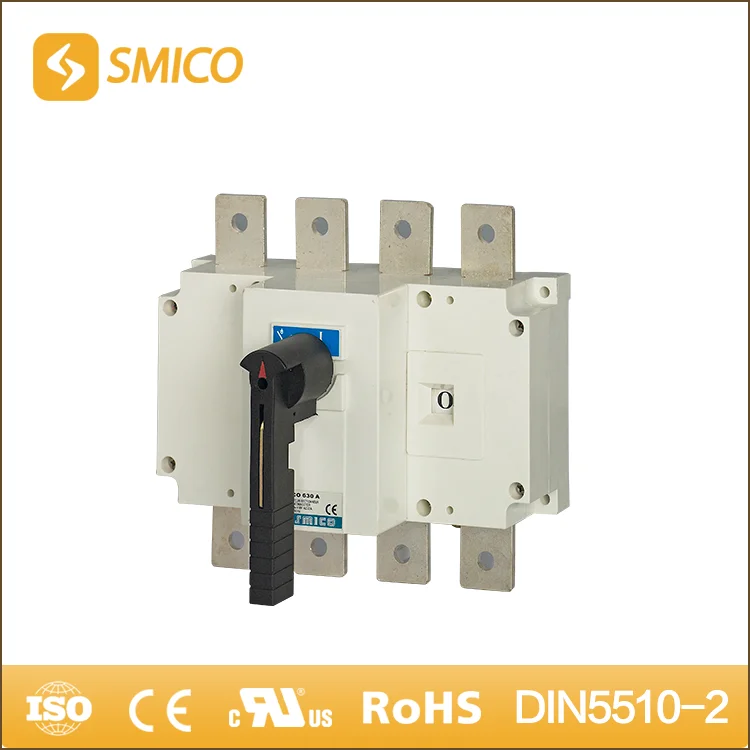

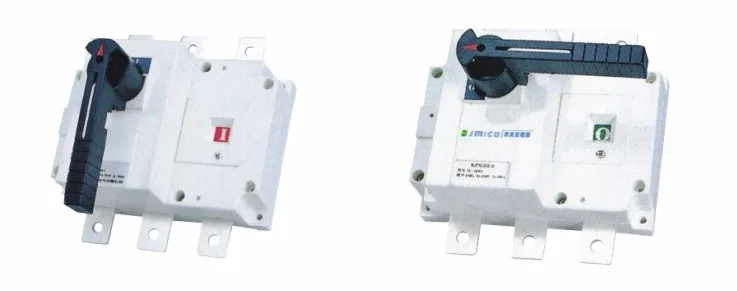

SGL DC 160A solar system Transfer Switch / electric manual changeover switch

                    Item                                    SGL-160A

Rating amper

125~3200A

Rating voltage

280V

Frequency50/60HZ
Poles3/4 P
Copper bridgeorder separately
Protection rangeIP65













+

Amps

Interruptor O-I  4P

On-Off switch   type

Direct

handle

Shaft Extensions

160A

SGL-DC-160/4P

Black

handle same the direct one

250A

SGL-DC-250/4P

Black

handle same the direct one

630A

SGL-DC-630/4P

Black

handle same the direct one



SGL DC 160A solar system Transfer Switch/electric manual changeover switch





Available from 160A-250A-630A(DC20) in 4P version, acting as a load break switches for DC current.



Especially indicated for installations for photovoltaic energy generators, which require a safe disconnection. Standard handle is supplied pad lockable in position “OFF” for maintenance. Bridging links available for series connections.



Also available under request.



Rated operational category



DC21/DC22 following IEC 60947-3



DC21: Resistive loads(moderate overloads included)



DC22:Resistive and reactive loads(inductive or capacitive)







Relevant characteristics for photovoltaic installations



Ui(V) rated insulation voltage (off load) I = 0A (equivalent to category of utilization DC20).



Uoc(V) Open circuit voltage of the photovoltaic system.



Uef(V) photovoltaic installation functioning voltage on load



Ief(A)Installation working current under load.



Icf(A) Short-circuit current of the photovoltaic installation.



In certain places of Pv Systems, reative component must be considered(cables, inverter, etc.).



The sizing of the switch must be done considering open circuit voltage as maximum operation voltage.



It necessary to comply with UI>Uoc. We recommend to set UI between 10 and 15% over Uoc. Ue≥Uef  Ie≥Ief  Ie≥Icf





drawing:

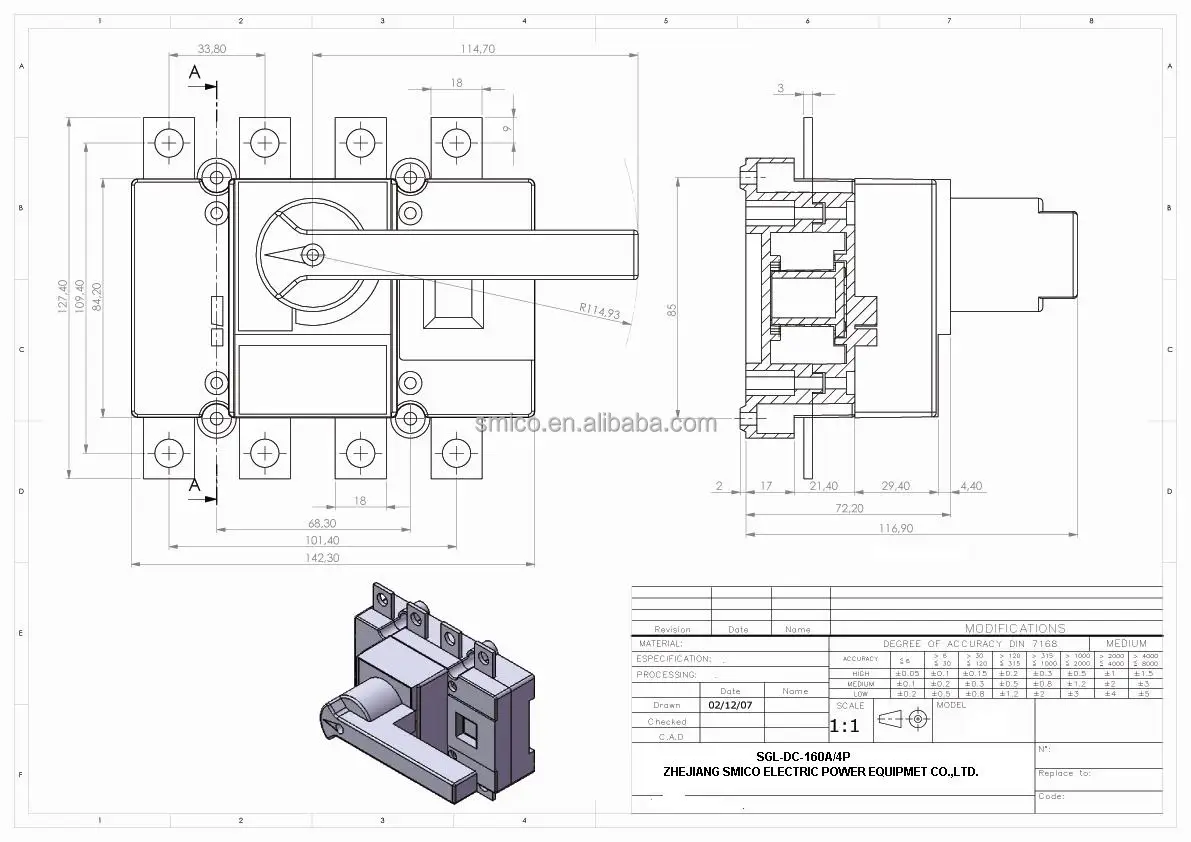

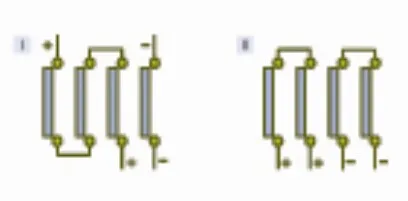

Connecting drawings







SGL-DC Technical information



+

ACCORDING WITH STANDARD IEC-EN-UNE 60947-1 & 60947-3

DC load switch datas

A

160

250

630

Rated thermalcurrent

Ith

In ambient at

40°C

A

160

250

630

50°C

A

160

250

600

Rated insulation voltage AC20/DC20

Ui

50Hz,1min

V

1000

1000

1000

Rated dielectric strength



V

4000

5000

5000

Rated impulse withstand voltage

Uimp

KV

8

8

12

DC rated operational current

Ie

48V

A

DC23A 160

DC23A 250

DC23A 630

110V

A

DC23A 160

DC23A 250

DC23A 630

230V

A

DC23A 125

DC23A 250

DC23A 630

400V

A

DC22A 50

DC23A 200

DC23A 500

250V

A

DC21B 85

DC23A 200

DC23A 500

600V

A

DC21B 65

DC22A 190

DC23A 300

750V

A

DC21B 55

DC22A 185

DC22A 285

800V

A

DC21B 50

DC22A 175

DC22A 270

850V

A

DC21B 45

DC22A 175

DC22A 270

900V

A

DC21B 40

DC22A 125

DC22A 200

Rated making and breaking capacity

A

DC21 900V 55

DC22 900V 125

DC22 900V 200

Short-circuit behavior

Short-circuit making capacity(peak value)

Icm

KA(pico)

10

14

26

Short0time withstand current(1 sec.)

Icw

KA rms

6

10

16

Conditions’ short-circuit current(ms value)

KA rms

100

100

100

Maximum cut-off current(peak value)

KA(pico)

20

33

39

Maximum power dissipation

A2s(*103)

198

1000

1600

Min.number of mechanical operations

Ciclos

30000

20000

10000

Min.number of electrical operations

Ciclos

DC21B 750V 300

DC22A 900V 1000

DC22A 900V 1000
