High Speed Lab Plastic Raw Material Mixer Machine

Product details
Application:Plastics mixing;Condition:New;
Material:PLASTIC;Raw material:Pvc Wpc Powder;
Voltage:380V/50Hz/3Phase;Certification:CE ISO9001 BV;
Production Capacity:375L;Dimension(L*W*H):2700*980*1200mm;
Weight:800kgs;Warranty:1 Year;
After-sales Service Provided:Field installation, commissioning and training,Field maintenance and repair service,Online support;Color:Cusotmized;
Port:Shanghai and other main port in China;Supply Ability:1000 Set/Sets per Year;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Usage:plastics;
Power(W):83 KW;Mixer type:Vertical Screw Mix;
Packaging Detail:Wood packing for export;Place of Origin:China (Mainland);
Name:Plastic Mixer Machine;Brand Name:Tianhua;
After-sales Service Provided:Engineers available to service machinery overseas;Automatic Grade:Semi-Automatic;

Product Description



The high speed plastic raw material mixer is for plastics, rubber, daily chemical industry and laboratory materials mixing, stiring, dry blasting, painting and other craft.

The high speed plastic raw material mixer pot cover has applied dual sealing.

Self-friction, electric heating and various heating methods.

Discharge methods use automatic temperature control and manual control.

The blade is whole Stainless steel cast, and refined through the static and dynamic balance test.

 Total VolumeEffective VolumePowerShaft speedSizeHeating methodDischarge
SHR-5A531.11400620*300*730Self-frictionManual
SHR-10A107320001200*300*830Self-friction  Manual
 SHR-25A25  20 5.5 1440 1200*350*850  Self-friction  Manual
 SHR-50A 5035  7/11 750/1500 2100*700*1100 Electric Pneumatic
 SHR-100A 100 70 14/22 650/1300 2100*800*1510 Electric  Pneumatic
 SHR-200A 200 150 30/42 475/950 2400*850*1580  Electric  Pneumatic
 SHR-300A 300 225 40/55 475/950 2800*1080*1680  Electric  Pneumatic
 SHR-500A 500 37547/67  430/860 3060*1150*1180  Electric  Pneumatic
 SHR-800A  800 600 83/110 370/740 3385*1380*2750   Electric  Pneumatic
 SHR-1000A 1000 750 110/160 325/650 3460*1140*2900 Self-friction Pneumatic



+

Model

SHR-500A

Total Volume

500 L

Effective Volume

375 L

Shaft Amount

3

Shaft Speed

430 / 860 rpm

Heating Method

 Electric and Self-friction

Mixing Time

6~10min/batch

Drive Motor

Double speed motor

Motor Power

47 / 67 kw

Motor Rotational Speed

1475 rpm

Voltage

380 V

Discharge Method

Pneumatic

Dimension

3060 X 1150 X 1180 mm

Electric Control Part:

+

Vertical Electric Cabinet

1 set

Air Source

Compressed Air 0.39-0.49MPa

Dimension of Vertical Electric Cabinet

1100×450×1500 mm

Dimension of Control Panel

540×200×420 mm



Product Display

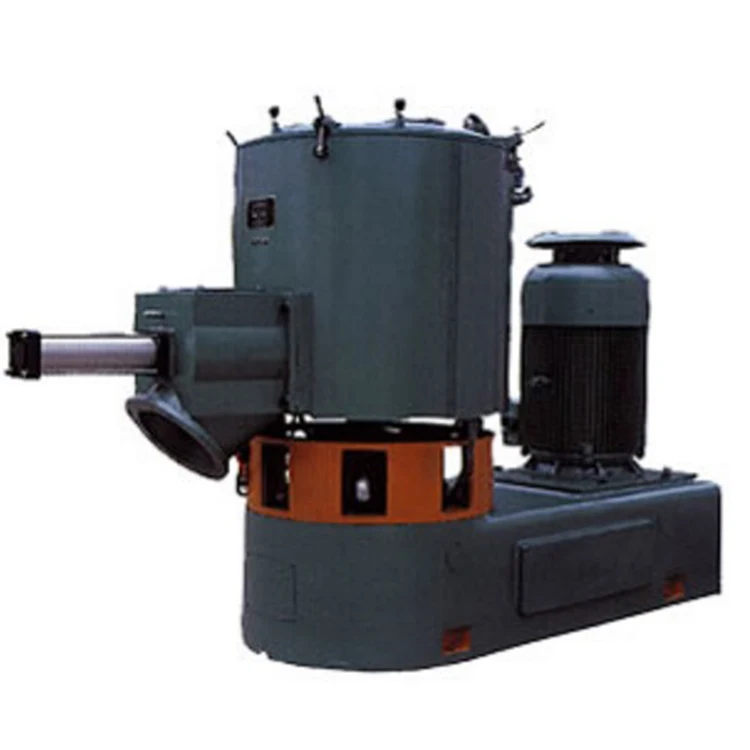

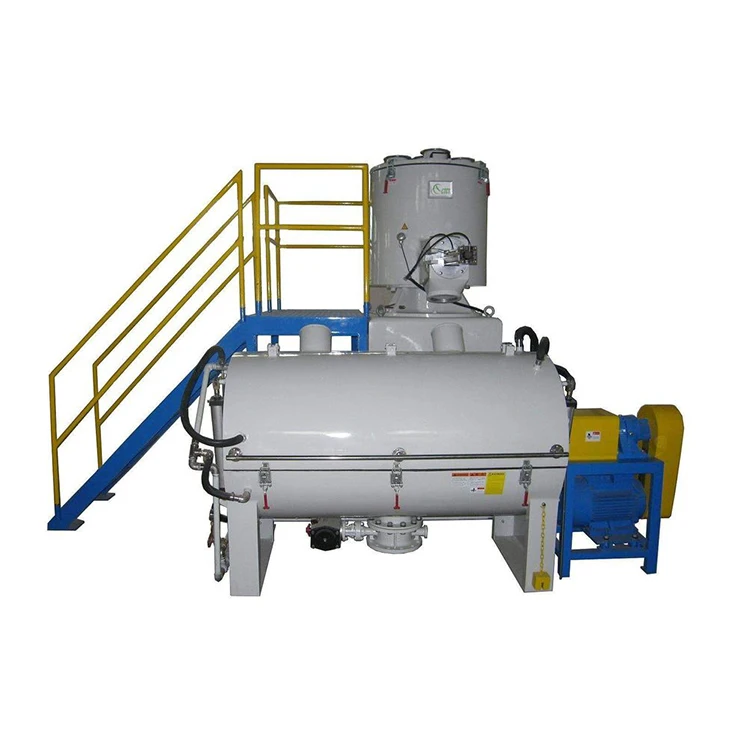

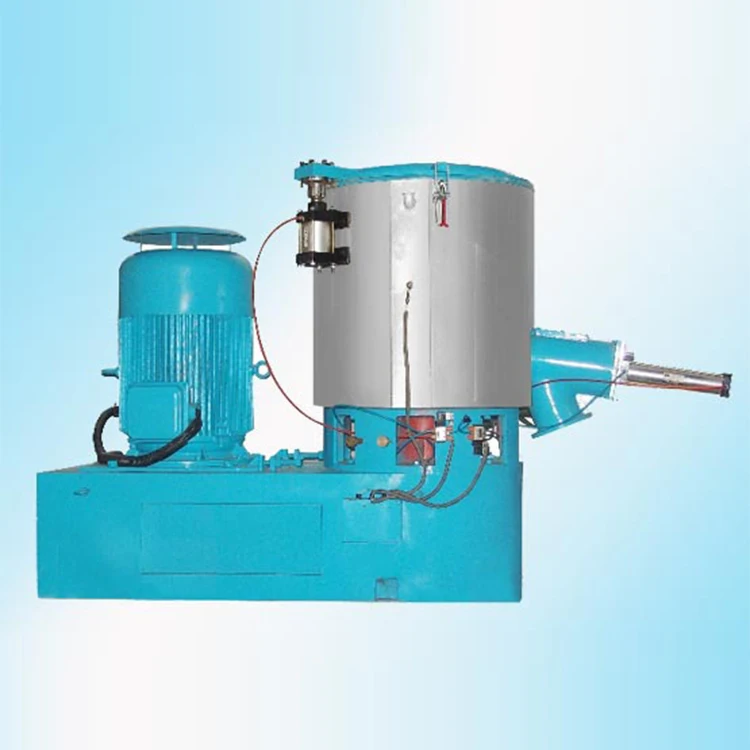

 (3) (2) (4) (1)
