AC/DC Digital Multimeter LCD Digital Voltage Amplifier Ohm Tester Voltmeter Ammeter Overload Protection XL830L

Supplier: Shenzhen Shengtaixin Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr shaosheng xu
Price: $3.30 / 1 - 9 sets
$2.50 / 10 - 49 sets
$2.30 / 50 - 99 sets
$2.25 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	Western Union, T/T, MoneyGram	port:	Shenzhen
brand:	original	model:	original
Customization support:	OEM production	specification:	see description below
Mailing method:	DHL\UPS\Fedex\EMS\TNT\Aramex	place of origin; place of origin:	China
best price:	Please contact us	Package preview:
Supply capacity:	10000 sets per week

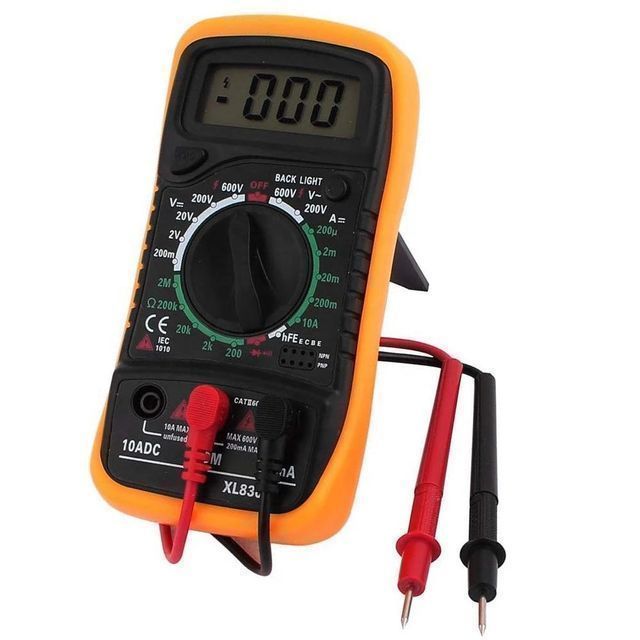

AC/DC Digital Multimeter LCD Digital Voltage Amplifier Ohm Tester Voltmeter Ammeter Overload Protection XL830L

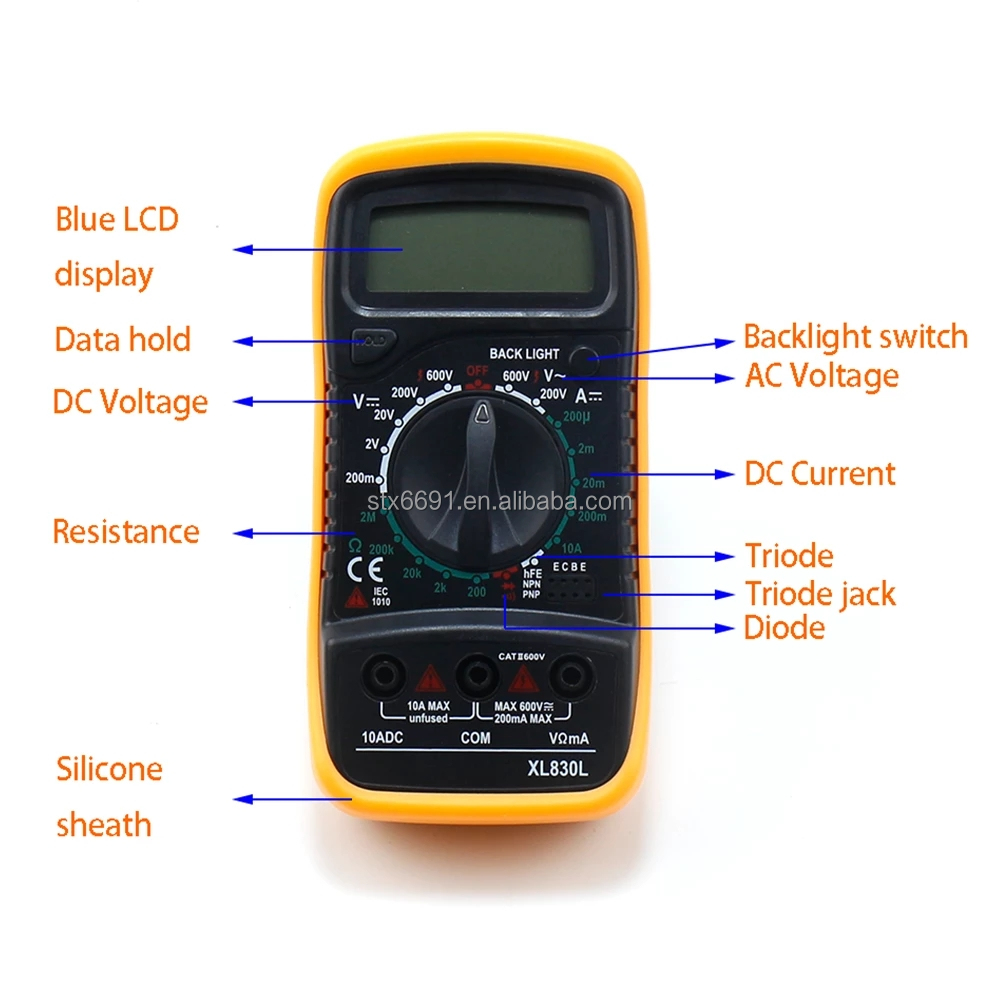

feature:
Overload protection for all ranges
Mounts in a sturdy rubber boot with integral stand
Low battery voltage indication
Portable and compact design
Data hold function and diode test equipment
20 position rotary switch
Removable thick rubber case protects the multimeter from splashes and minor bumps

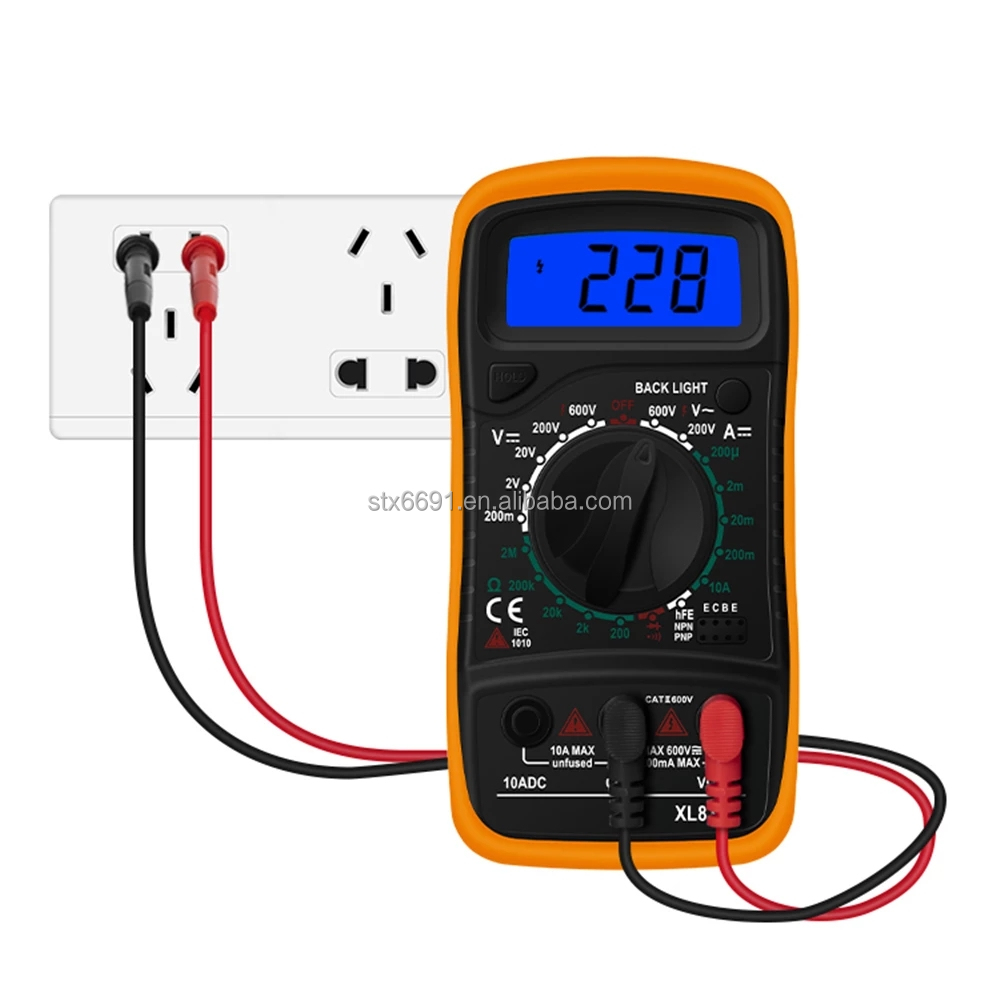

Measures AC and DC voltage, DC current, resistance, audible continuity, diode/transistor verification mode
Specification:
DC voltage 200mV/2V/20V/200V/600V±(0.5%)
AC voltage 200V/600V±(1.0%)
DC current 200μA/2mA/20mA/200mA/10A±(1.0%)
Resistance 200Ω/2kΩ/20kΩ/200Ω/2MΩ±(1.0%)
Transistor measurement is (PNP/NPN triode hFE)
Input resistance 1MΩ
Battery type 9V (not included)
maximum. show 1999
Display size 45 X 20MM
Color: Black (without cover) | Green | Blue | Red | Yellow
Dimensions 145 x 70 x 40 mm

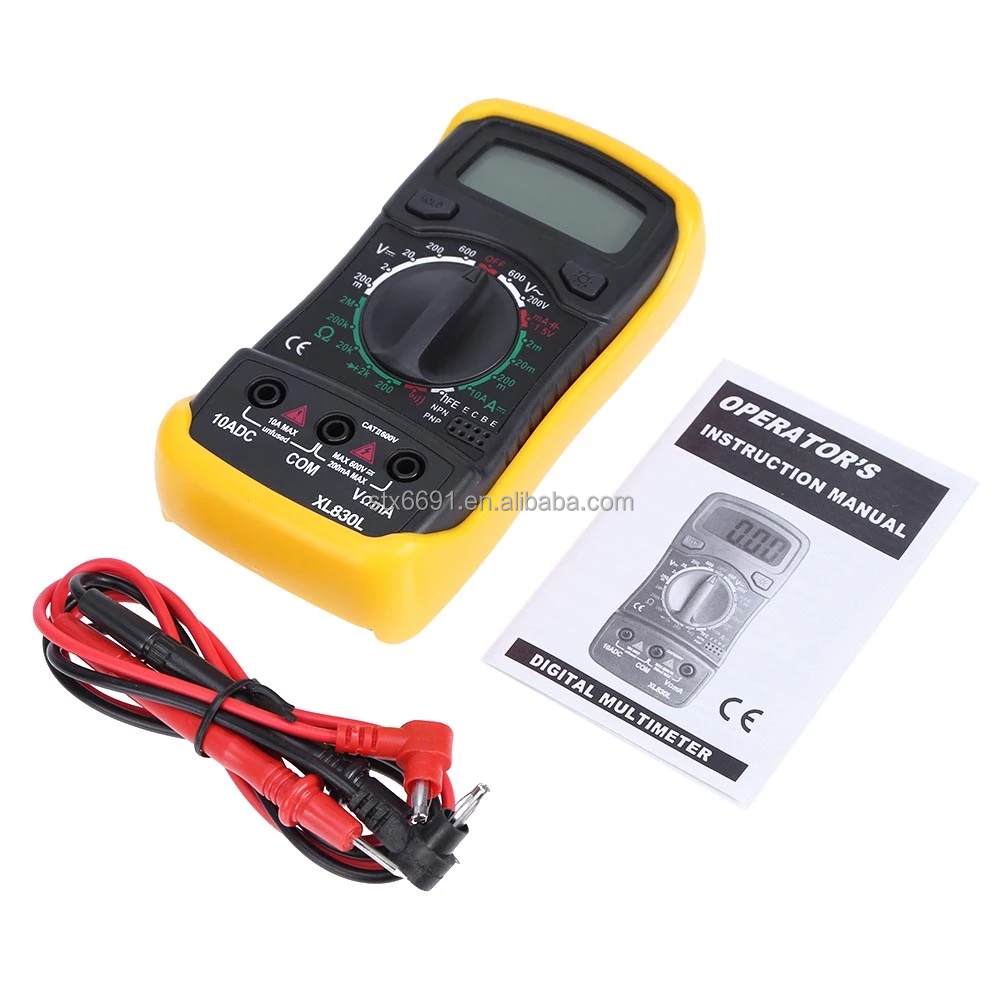

packing list:
1 x Digital LCD Multimeter
1 x test lead
1x manual

type of packaging:
Due to the shipping channel, the product does not contain batteries. If necessary, please contact customer service.

Since we have a variety of electronic stocks, we cannot upload them one by one. If you can't find what you need in our store, please contact us and we will provide it as soon as possible. Thank you in advance.
