Compressed Natural Gas Cylinders for Vehicles (CNG-1)
- 50.00 >=100 pieces
| Marketing Type: | normal product | After warranty service: | online support |
| payment terms: | wire transfer | Dimensions (L*W*H): | 325*930*60L |
| Packaging Details: | bag or wooden pallet | capacity: | 60L |
| Supply capacity: | 300000 pieces per month | Internal material: | Steel Pipe |
| Main selling points: | competitive price | weight: | 66 |
| Maximum working pressure (MPa): | 20MPa | Warranty: | over 5 years |
| place of origin; place of origin: | Zhejiang, China | Core components: | pressure vessel |
| After-sales service provided: | online support | brand: | TE |
| Local service location: | not any | Outer material: | Steel Pipe |
| Core component warranty: | 5 years | State of health: | new |
| Volume (cubic meter): | 28L-150L | Working temperature(℃): | -20 - 60°C |
| Design pressure (MPa): | 30 | Video shipment inspection: | not available |
| Mechanical test report: | not available | design standards: | ISO11439 |
| port: | Ningbo | Showroom location: | not any |
| Applicable industries: | Energy and Mining |
CNG cylinders for vehicles, CNG cylinders for passenger cars, type 1 CNG cylinders
Specification
1. ISO11439 standard
2.34CrMo4 CNG cylinder
3.WP/TP:200/300bar
4. Natural Gas Powered Motorcycles
5. ISO BV, ECER110
CNG cylinders for vehicles, working pressure 200/300bar
Standard: Production in strict accordance with ISO11439:2000;
Test: carry out the hydraulic pressure test and UT test required by the ISO standard for each cylinder;

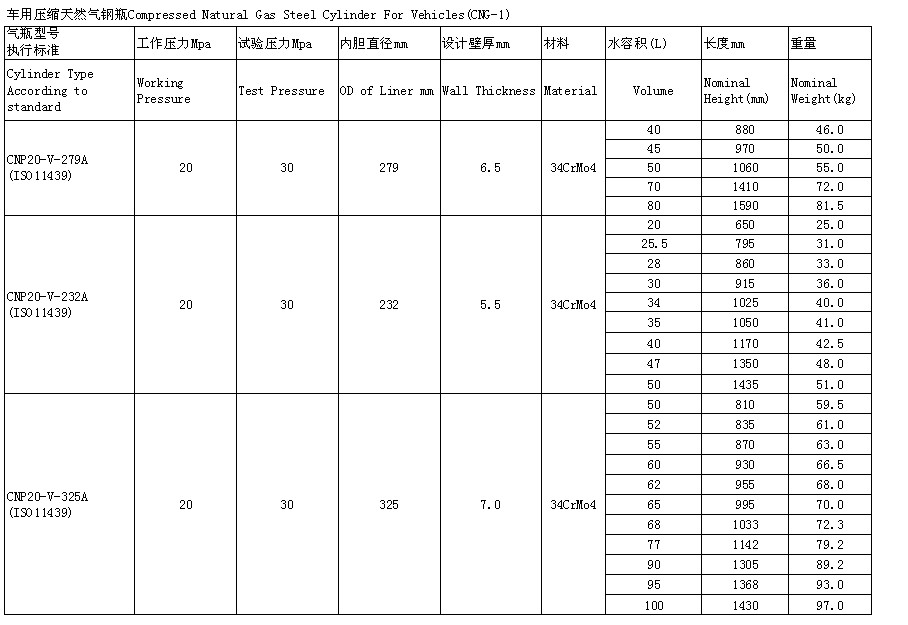

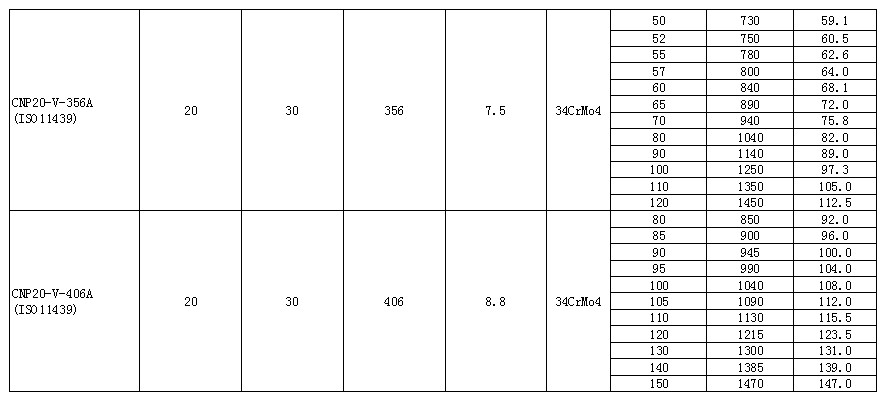

ISO11439 CNG cylinder series for vehicles:
Outer diameter (mm): 232, 325, 356, 406;
Water capacity (L): 20, 25, 28, 34, 40, 50, 52, 55, 60, 65, 70, 75, 80, 90, 100, 110, 113, 130, 140, 145, 160, etc.;
Composite cylinders are also available.
company:
Monthly export quantity: 20,000 pieces
Customers from: CIS, Latin America, Asia, Europe, Middle East, Africa, etc.
Types of: CNP20-60-325A sort of
Manufacturer: Zhejiang Tianen Pressure Vessel Co., Ltd.
Nominal outer diameter (mm):325
Volume (L):60
Length (mm):930
Weight (kg):66
Nominal working pressure (MPa): 20
