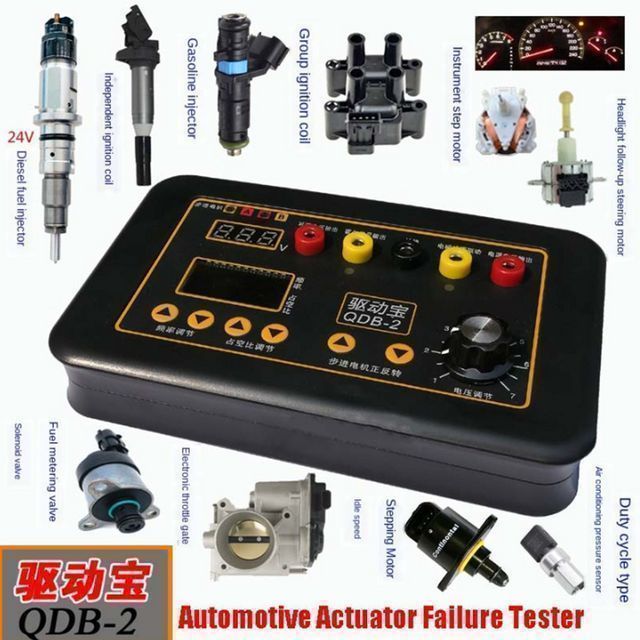

QDB-2 automobile ignition coil fuel injector solenoid valve idling stepper motor meter motor fault detector diagnostic drive disk
- 35.00 >=5 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Customization support: | OEM production | Supply capacity: | 10000 pieces per day |
| place of origin; place of origin: | China | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
Product Description
Functions and Features:
1. Direct drive ignition coil: including independent ignition, group ignition, coil type, modular type
2. Direct drive injector: including gasoline vehicle 12V injector and diesel vehicle 12V 24V injector
3. Directly drive various duty cycle controlled solenoid valves, fuel metering valves, etc.
4. Directly drive various duty ratio control motors, urea pump motors, etc.
5. Direct drive idling stepper motor, instrument stepper motor, headlight follow-up steering stepper motor, etc.
6. Output Hall signal, adjustable frequency, amplitude and duty cycle
Used to simulate various duty cycle sensors
For example: air conditioner pressure sensor (duty cycle type), air flow meter (duty cycle type), etc.
7. Power supply voltage range: 12V-24V, with reverse polarity protection, over-current protection
8. Magnetic coil driving current range: 0-3.5A
9. Output frequency range: 1HZ-100KHZ
10. Duty cycle adjustment: 1%-100%
11. Adjustable voltage 1.25V-11.5V
