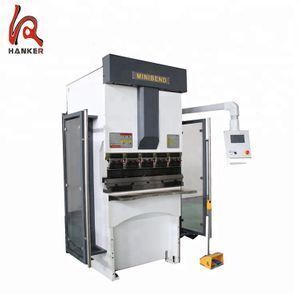

Mini Hydraulic Press Brake Services
-
Supplier: Xiamen Chengyang Mechanical & Electrical Equipment Co., Ltd. -
Region: Fujian, China -
Contact: Mr Bob Chen -
Price: $21500.00 /set -
Min. Order: 1 set
| Material / Metal Processed: | SS, MS, Carbon Steel, Aluminum; | Warranty: | 1 Year; |
| Length of Working Table (mm): | 1050; | Product Name: | Mini Hydraulic Press Brake Services; |
| Max.Bending Width: | 1050 mm; | Weight: | 2750 kgs; |
| Condition: | New; | Main Power: | 4 kw; |
| Port: | Shanghai, China; | Machine Type: | Press Brake; |
| Raw Material: | Sheet Metal; | Throat Depth: | 200 mm; |
| After-sales Service Provided: | Field installation, commissioning and training; | Power: | Hydraulic, CNC; |
| Oil Volume: | 140 L; | Supply Ability: | 10 Set/Sets per Month; |
| Certification: | ce; | Packaging Detail: | Wrapped in Film suitable for sea transportation; |
| Automation: | Automatic; | Place of Origin: | Fujian China (Mainland); |
| Brand Name: | Chengyang; | Norminal Pressure: | 350 KN; |
| Nominal Pressure (kN): | 350; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Payment Terms: | T/T; | Dimension: | 165*145*235 cm; |
| Year: | 2019; |
Mini Hydraulic Press Brake Services

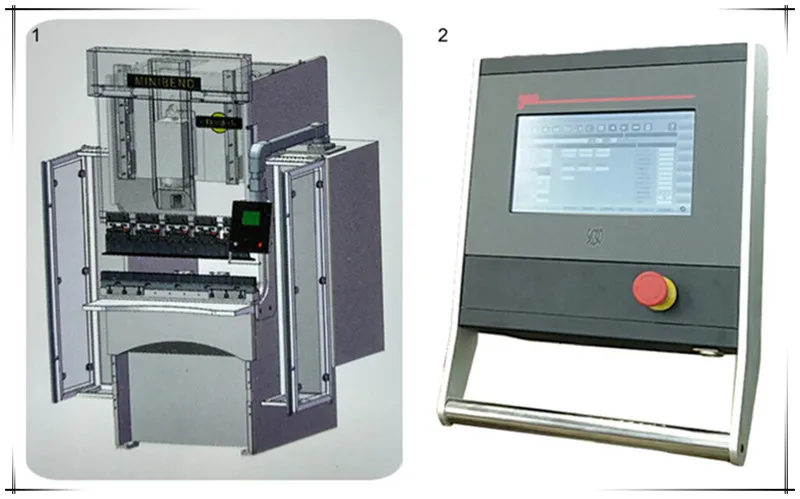

1. Cylinder with a special structure
Approaching speed is not affected by upper beam weight
Fast speed, imporves production efficiency.
Large size heavy duty Linear Guide ensures upper beam run smoothly.
2. Italy ESA S630 Control System

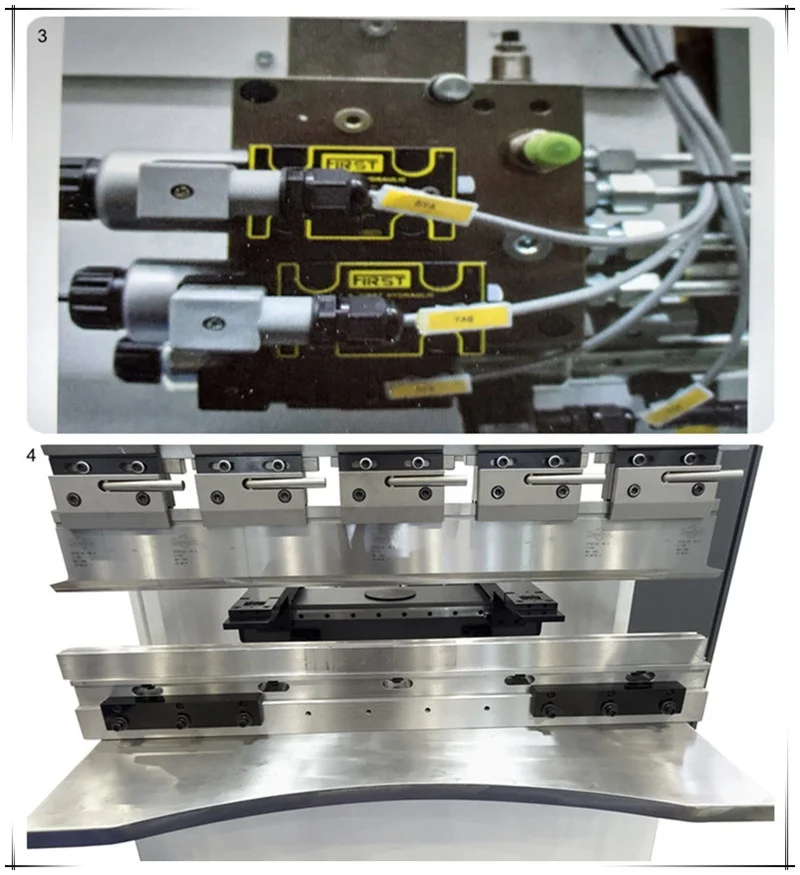

3. Hydraulic system
Highly integrated, compact structure, low failure rate
Controlled by proportional overflow valve
Flow control use high precision proportional directional valve
High precision & stable performance
4. Stainless steel support platform
Easy to hold small workpieces
Allows the operator to take the posture, reduces labor intensity.

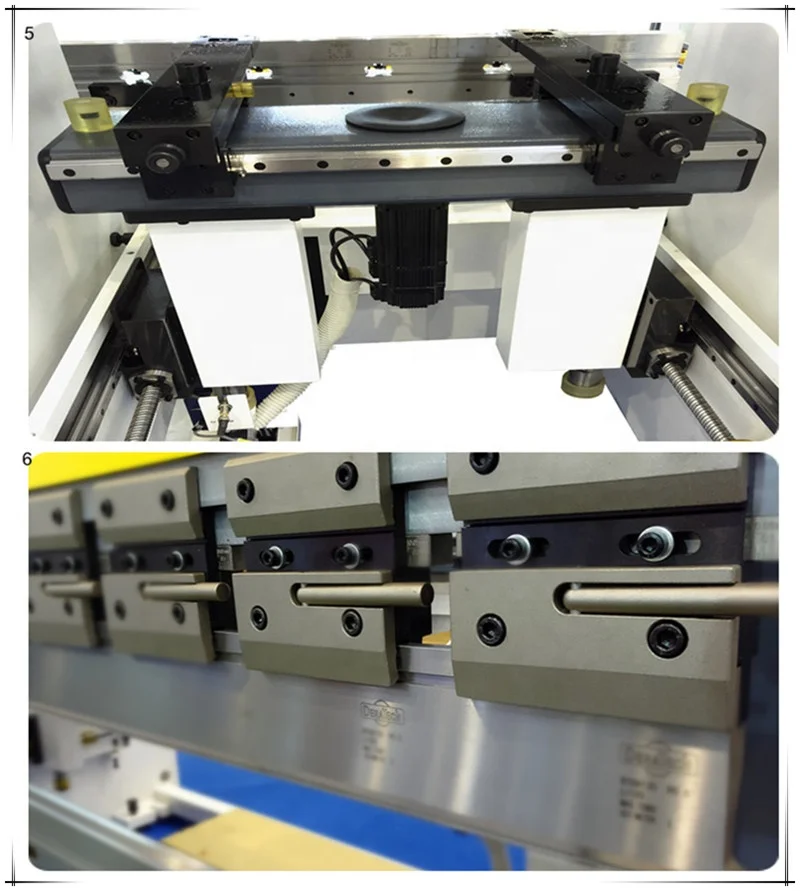

5. Precise solid back gauge system
Innovative, unique & multistage stop design
Expanded the scope of position.
6. Precision fast clamping device
Fast & convenient set-up
Reduce labor intensity
Improve production efficiency

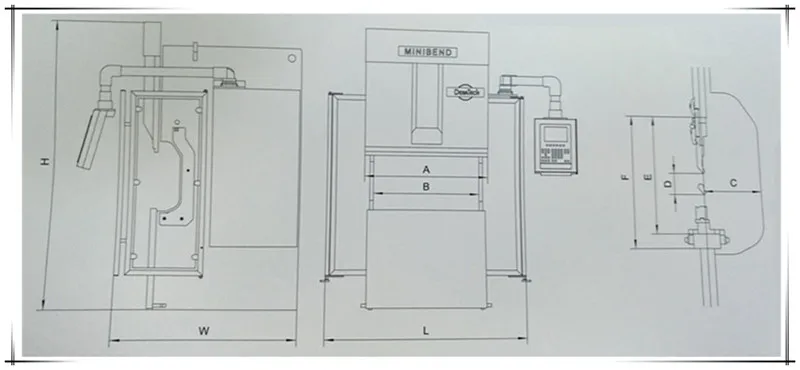

| A | B | C | D | E | F |
|
|
|
|
| |
Model | Nominal Pressure (KN) | Max. Bending Width (mm) | Distance Between Uprights (mm) | Throat Depth (mm) | Cylinder Stroke (mm) | Opening Height (mm) | Die Setting Height (mm) | Main Power (KW) | Oil Volume (L) | Speed (mm/s) | ||
|
|
|
|
|
|
|
|
|
| Approach-ing speed | Work-ing speed | Return-ing speed |
TAM-35/1050 | 350 | 1050 | 900 | 200 | 160 | 410 | 460 | 4 | 140 | 200 | 15 | 200 |
-
