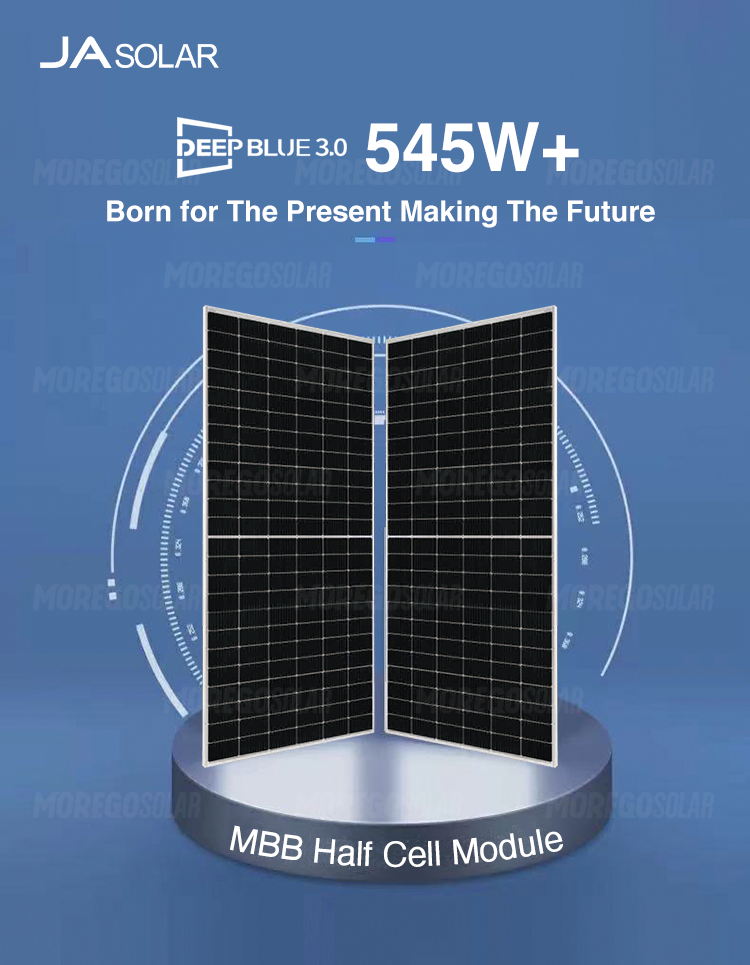

JA Solar Panel Solar 540w 545W 550W MBB Monocrystalline PERC Photovoltaic Panel JAM72S30 530-550/MR
-
Supplier: Nanjing Moge New Energy Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Nicole Wu -
Price: $0.26 / 540 - 999999 pieces
$0.20 / >=1000000 pieces -
Min. Order: 540 pieces
Product details
| type: | 144cell solar panel, PERC, Half Cell, MBB | Package configuration: | 31 per tray |
| Panel Efficiency: | 21.2% | Unit size: | 182mmx182mm |
| Solar battery: | Polysilicon PERC 158.75mm | brand: | JA Solar |
| place of origin; place of origin: | Hubei, China | Connector: | QC 4.10 (1000V), QC 4.10-35 (1500V) |
| Packaging Details: | Tray packing 540w solar panel mono | OEM order: | acceptable |
| payment terms: | L/C, Western Union, T/T | Junction Box: | IP 68, 3 diodes |
| port: | Shanghai/Ningbo | Certificate: | CE/TUV |
| Supply capacity: | 1,000,000 watts per month | Card: | JA solar original authentic |
| weight: | 28.6 kg | application: | The Sun can generate system |

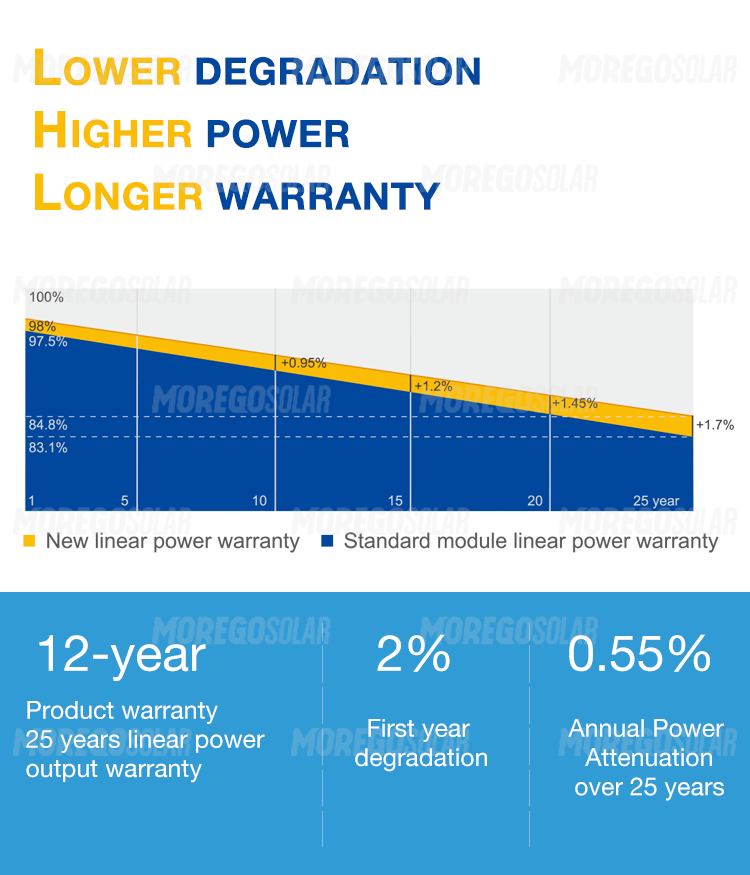

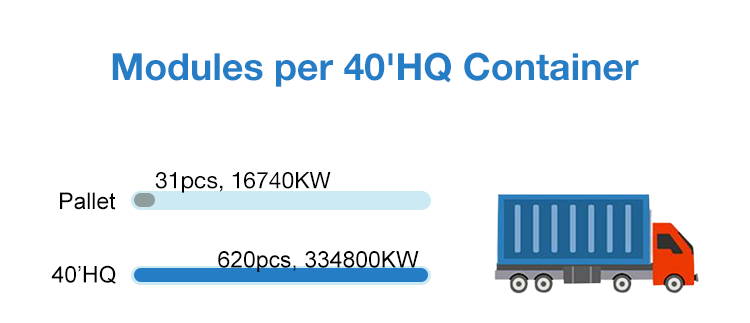

| Warranty: | 25 Year Linear Warranty | 40' HQ: | 682 |

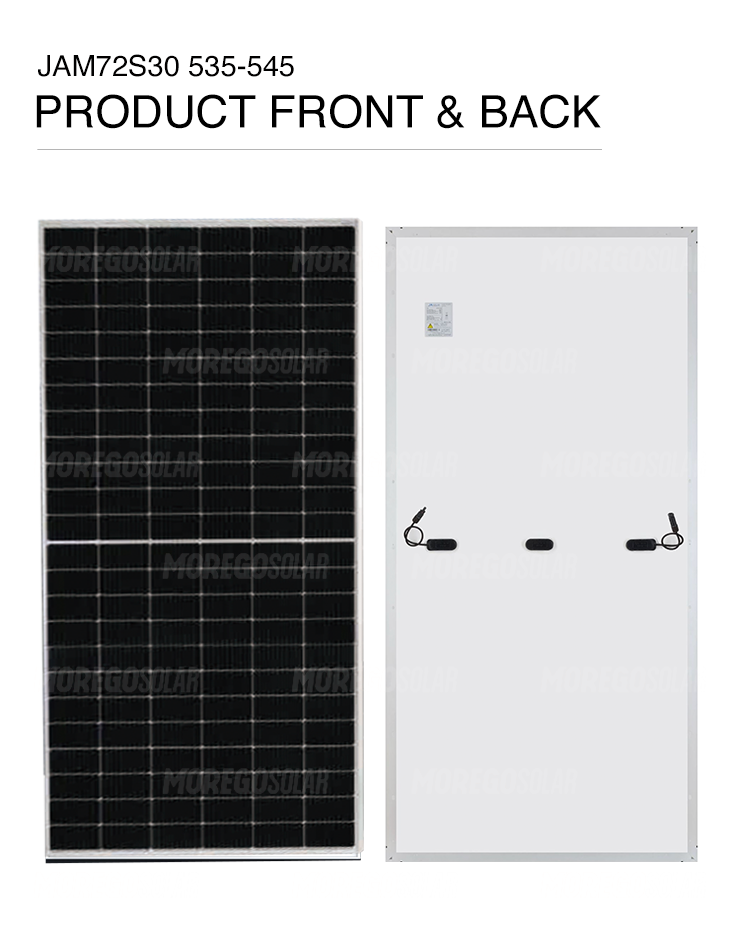

| Panel size: | 2279*1134*35mm | model: | JAM72S30 530-550/Mr. |
Product Description
Nanjing Moge New Energy is the official authorized dealer of JA Solar.We are the largest authorized reseller of branded solar panels in China:Longi Solar, Canadian Solar, Trina Solar, JA Solar...
We offer a full range of JA solar panels.
InoOn Moregosolar, you can find the best prices for Tier 1 Solar Panels, so don't waste time, buy the best product safely and start your business on Moregosolar.
We are the official authorized distributor of JA Solar.
Supply a full range of genuine JA solar panels

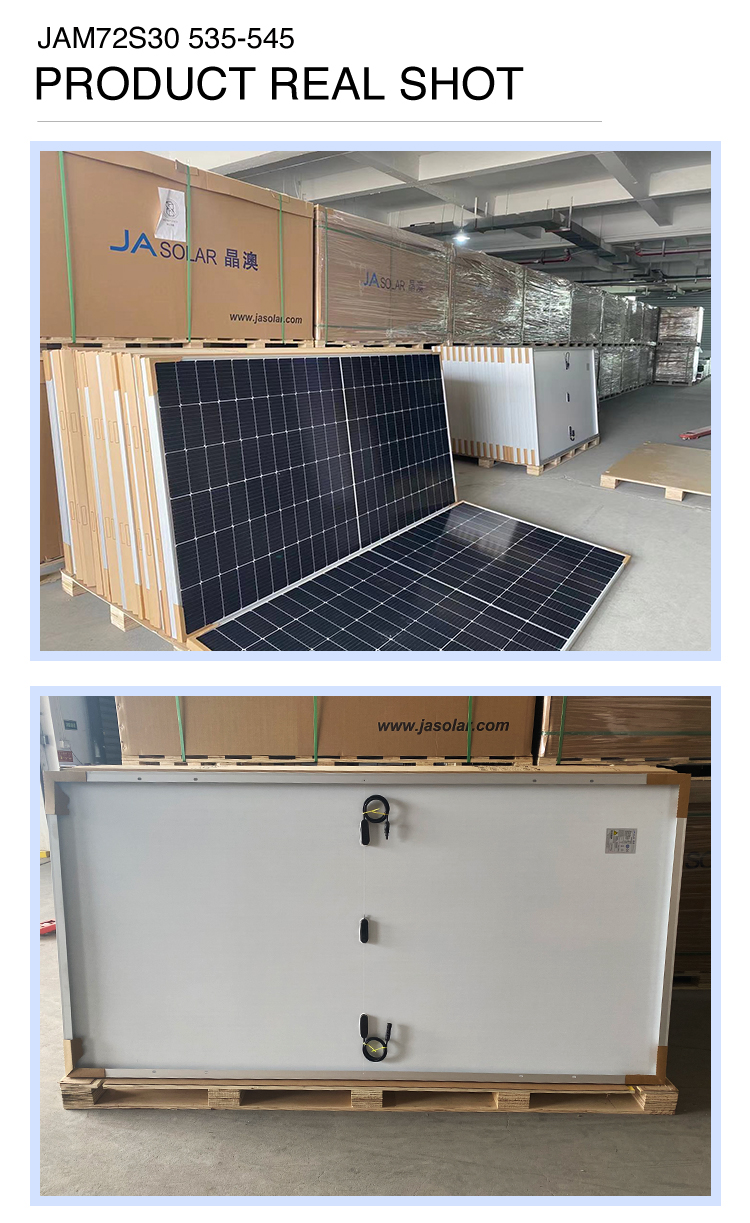

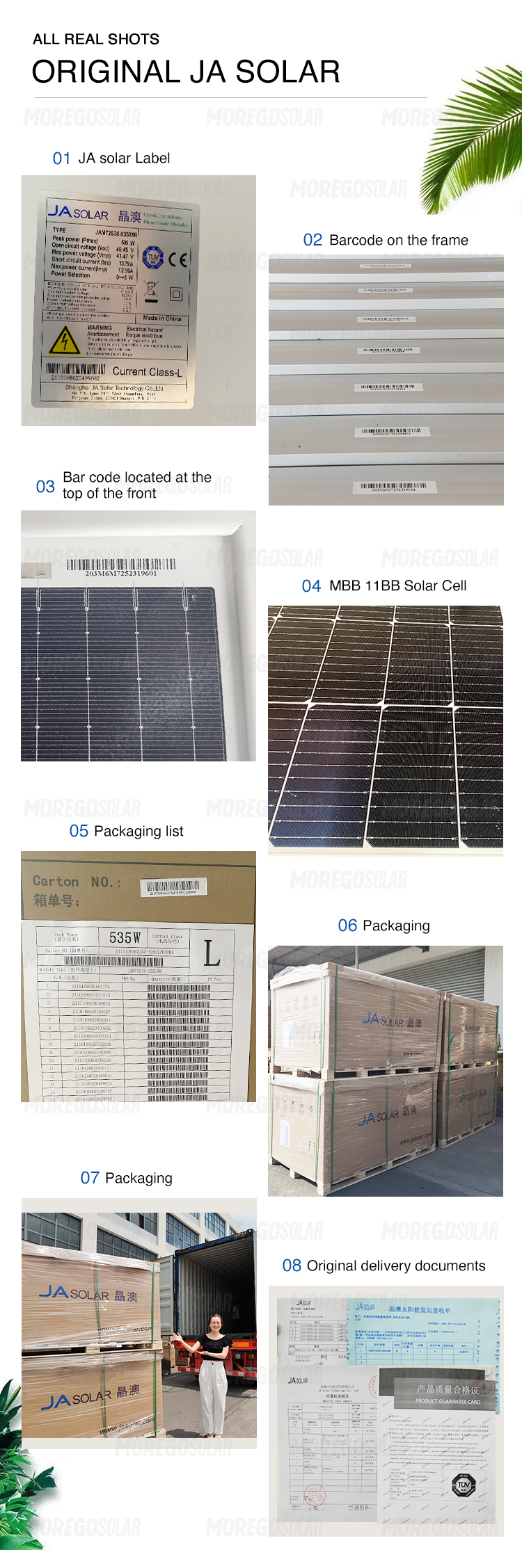

Original JA Solar
scope
Mechanical Specifications | ||||||
Format | 2279mm x 1134mm x 35mm | |||||
weight | 28.6kg±3% | |||||
cell | 144(6 x 24) monocrystalline cells | |||||
Junction Box | IP68, 3 diodes | |||||
cable | 4mm2, 12 AWG | |||||
electrical characteristics | ||||||||||
Minimum performance under standard test conditions, stc1 (power tolerance -0~+5w) | ||||||||||
Model | 535W | 540W | 545W | 550W | ||||||
open circuit voltage | Volatile Organic Compounds | 49.45V | 49.60V | 49.75V | 49.90V | |||||
short circuit current | Isc | 13.79A | 13.86A | 13.93A | 14.00A | |||||
maximum. voltage | Voltage | 41.47V | 41.64V | 41.80V | 41.96V | |||||
maximum. supply current | kid | 12.90A | 12.94A | 13.04A | 13.11A | |||||
Efficiency² | n | 20.7% | 20.9% | 21.1% | 21.3% | |||||
Certifications | ||||||||
1. IEC 61215, IEC 61730, UL 1703, UL 61215, 2. ISO 9001:2015: Quality Management System 3. ISO 14001:2015: Environmental Management System 4. ISO45001:2018: Occupational Health and Safety Management System 5. IEC TS 62941 2016: Ground-use photovoltaic modules, photovoltaic module design review and quality assurance guidelines for finalization | ||||||||
