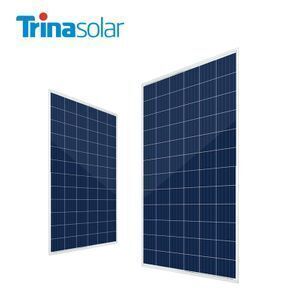

Suppliers of Trina solar panel 320w 325w 330w Trina solar goods in stock with top 1 sales

Click here to contact
Product details
Certificate:CE / TUV / ISO;Size:1956*992*40MM;
Working temperature:-40℃ ~ +85℃;Junction Box:IP67;
Glass:3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass;Selling Units:Single item;
Single gross weight:22.5 KG;Connector:MC4 Compatible Connector;
Brand Name:Trina Solar;Warranty:25years;
Accept:OEM / ODM;Frame:Anodized aluminilum;
Front glass:3.2mm high transparent with anti-reflection glass;Model Number:TSM-320-325PD05;
Trade assurance order:Acceptable;Single package size:1960X991X35 cm;
Place of Origin:Jiangsu China (Mainland);Type:Standard Solar Panel;
Package Type:Carton and pallets;
Introduction

Suppliers of Trina solar panel 320w 325w 330w Trina solar goods in stock with top 1 sales

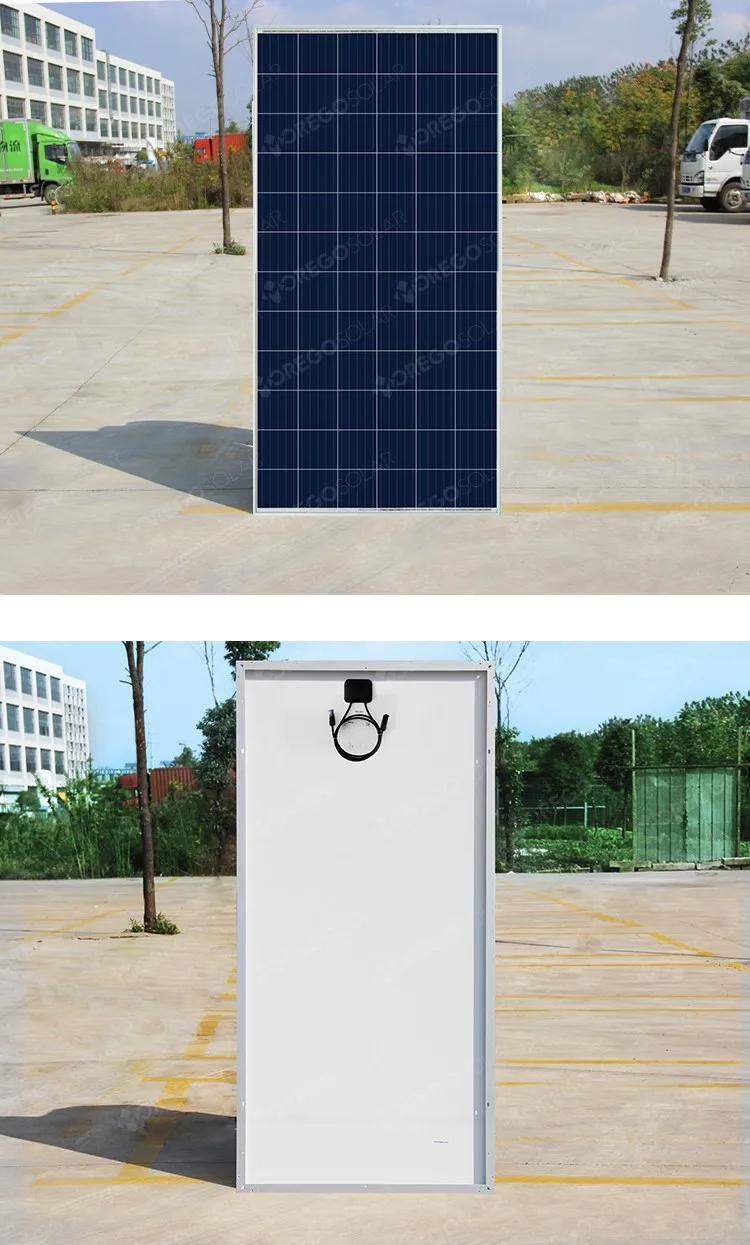

Real Shot
Parameter
MECHANICAL DATA
Module Dimensions
1956*992*40mm (77.0 x39 x1.57 inches)
Weight
22.5kg (49.6 Ib)
Frame
Sliver Anodized Aluminium Alloy (PD05.08, PD05.05)
Glass
3.2 mm (0.13 inches), High Transmission, AR Coated Tempered Glass
Junction-Box
IP 67 or IP 68 rated
Cables
Photovoltaic Technology Cable 4.0mm² (0.006 inches²), 1000 mm (39.4 inches)
Connector
MC4 or Amphenol H4/UTX
Cell Orientation
72 cells(6*12)
Solar Cells
Multicrystalline 156.75 × 156.75 mm (6 inches)
ELECTRICAL DATA (STC)
Model
TSM-320PD14
TSM-325PD14
Max. Power
PMAX
[W]
320
325
Open Circuit Voltage
Voc
[V]
45.6
45.9
Short Circuit Current
ISC
[A]
9.1
9.25
Max. Power Voltage
Vmp
[V]
37.1
37.2
Max. Power Current
Imp
[A]
8.63
8.76
Module Efficiency
ŋ
[%]
16.5
16.7
STC: Irradiance 1000W/m2, Cell Temperature 25°C, Air Mass AM1.5.
*Measuring tolerance: ±3%.

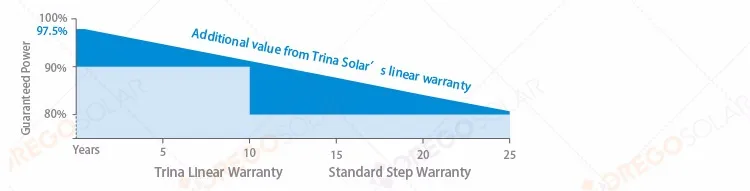

PERFORMANCE WARRANTY
25 Year linear output performance
10 Year product workmanship warranty
QUALIFICATION AND CERTIFICATES
Trina Genuine

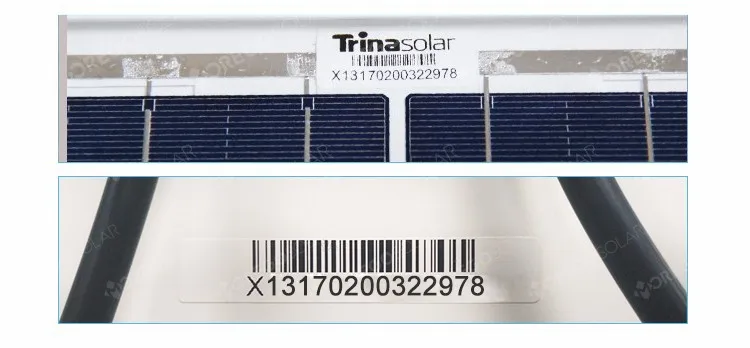

01/ Name Card

         Name card: with logo, model, certification, scan QR code of product.

02/ Bar Code

         The bar code at the name lamination, back side is same.

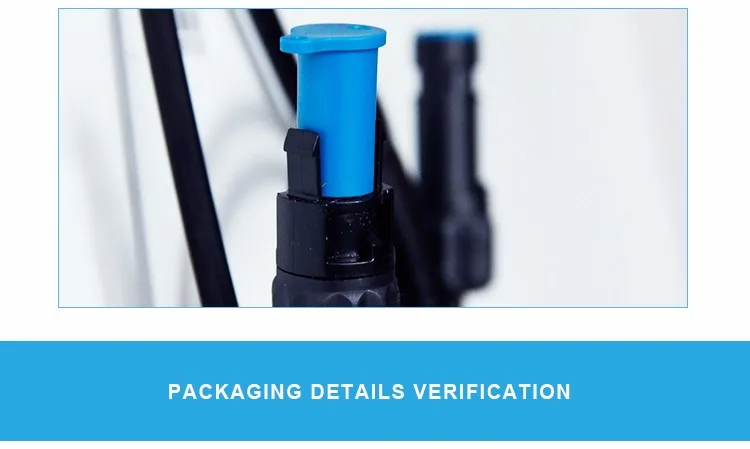

03/ Dustproof Pug

          A dust plug is added at the joint to ensure the integrity of the joint.

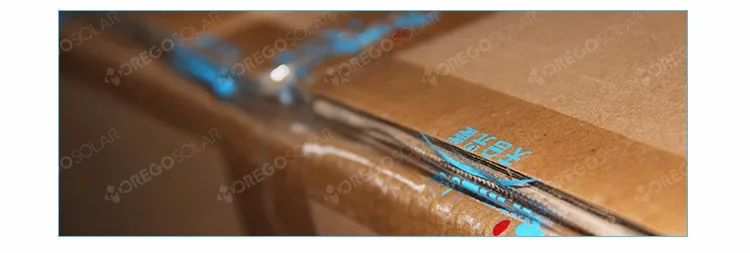

01/ Trinasolar Logo Tape

          Trinasolar logo tape file on the seal of outer package

02/ Bar Code,Dismantling Instructions

         There is bar code and dismantling instructions file on the side of carton.

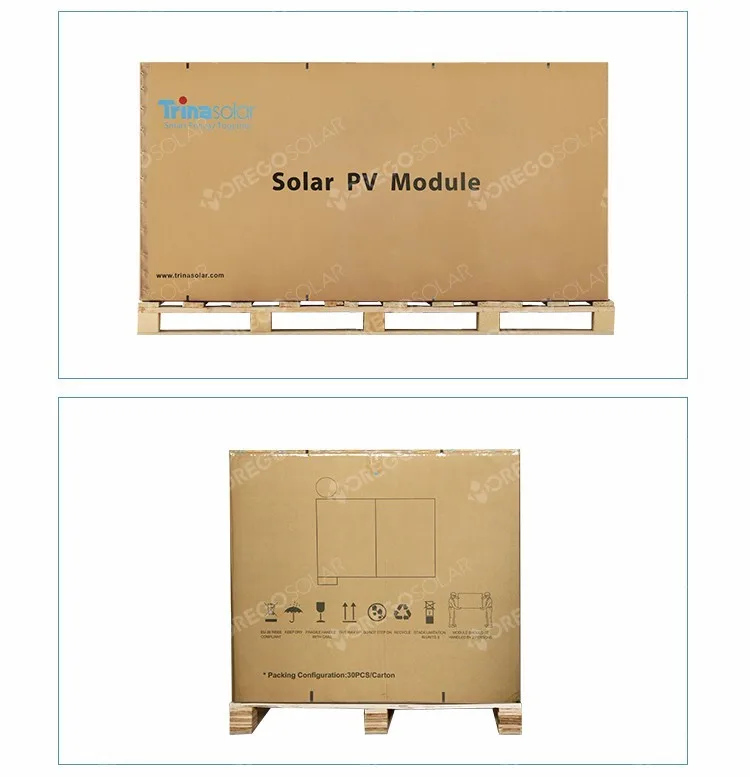

03/ Original Packaging
Related Products

Brand


Solar Panel

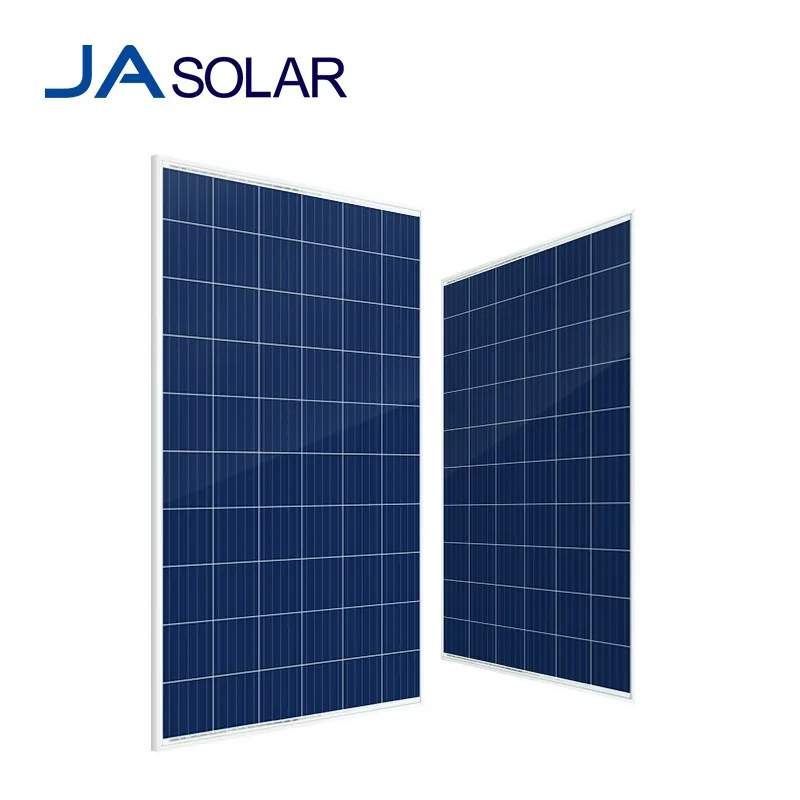

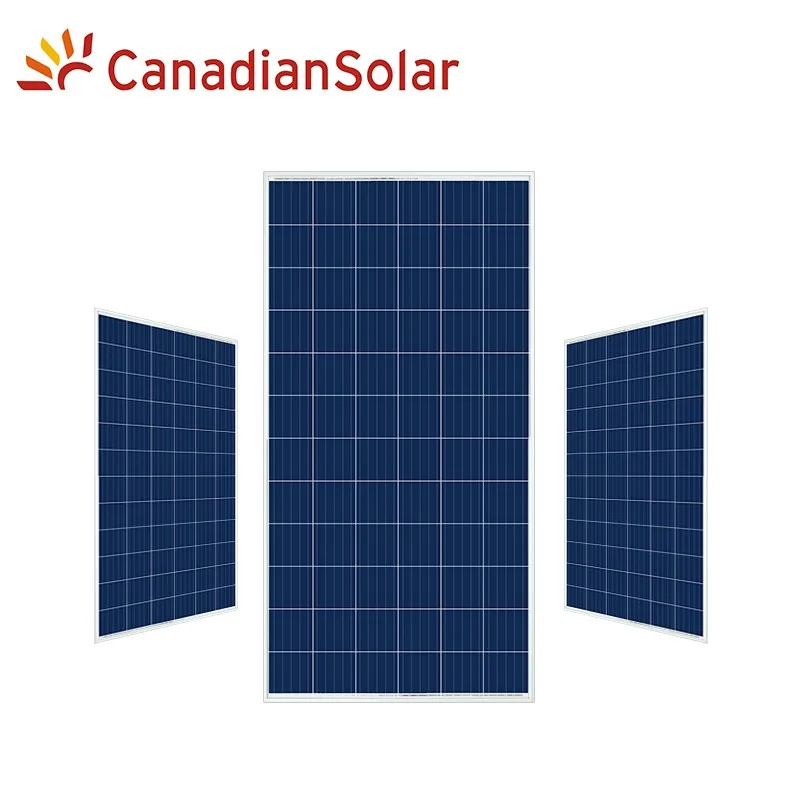

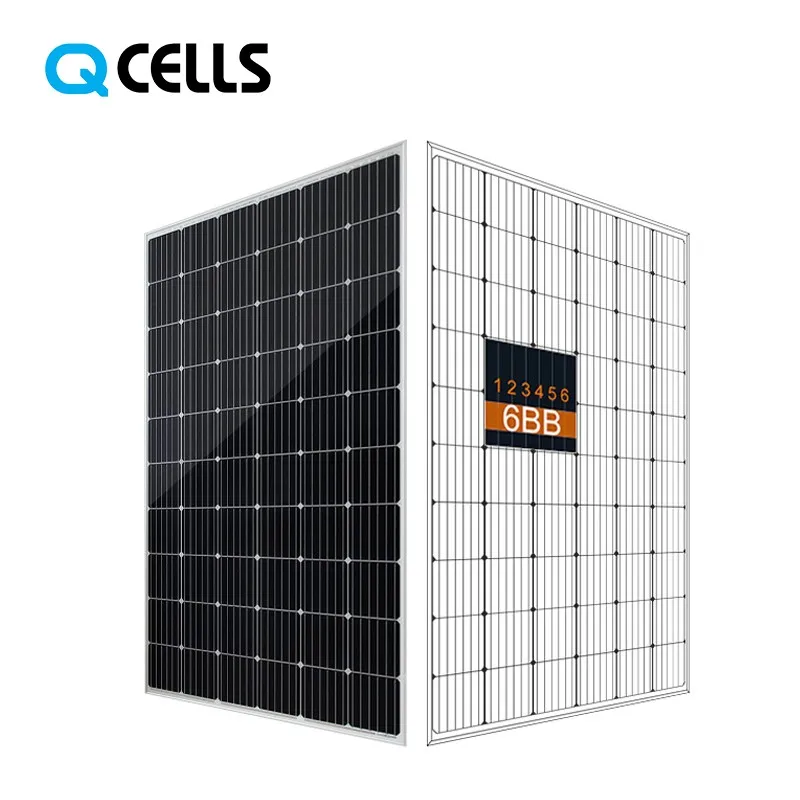

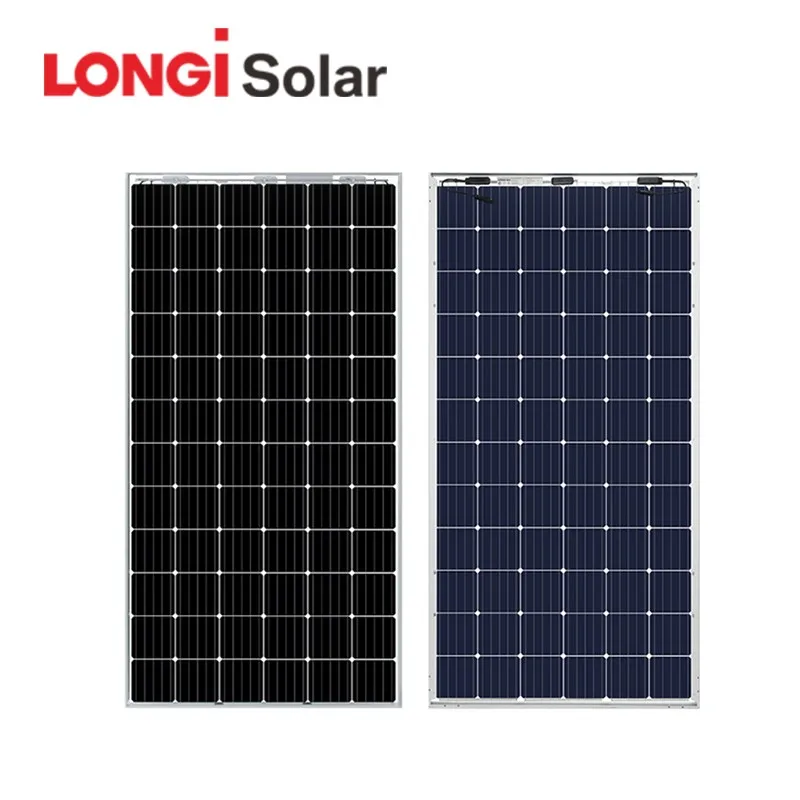

         Canadian solar                               Q CELLS solar                                    JA Solar                                     LonGi solar

         Poly 320-330W                             PERC 300-310W                             Poly 265-280W                         Bifacial 350w-375W


Accessories

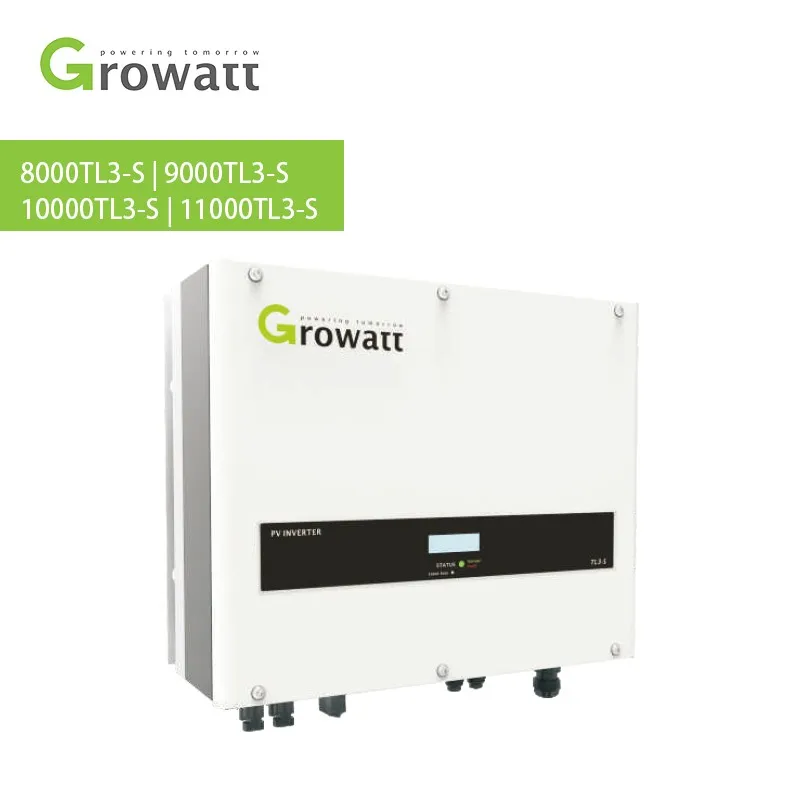

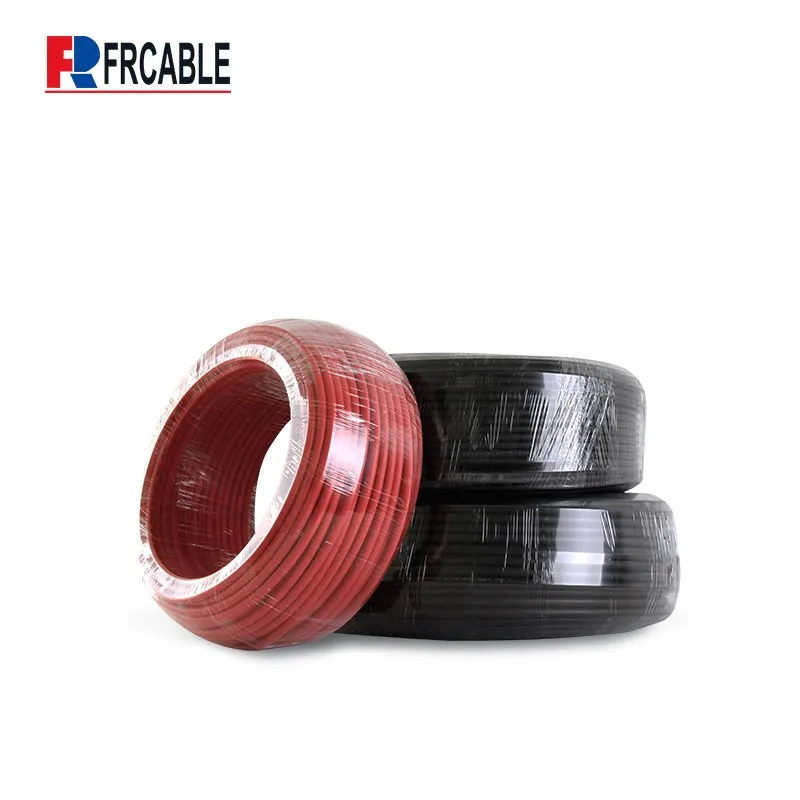

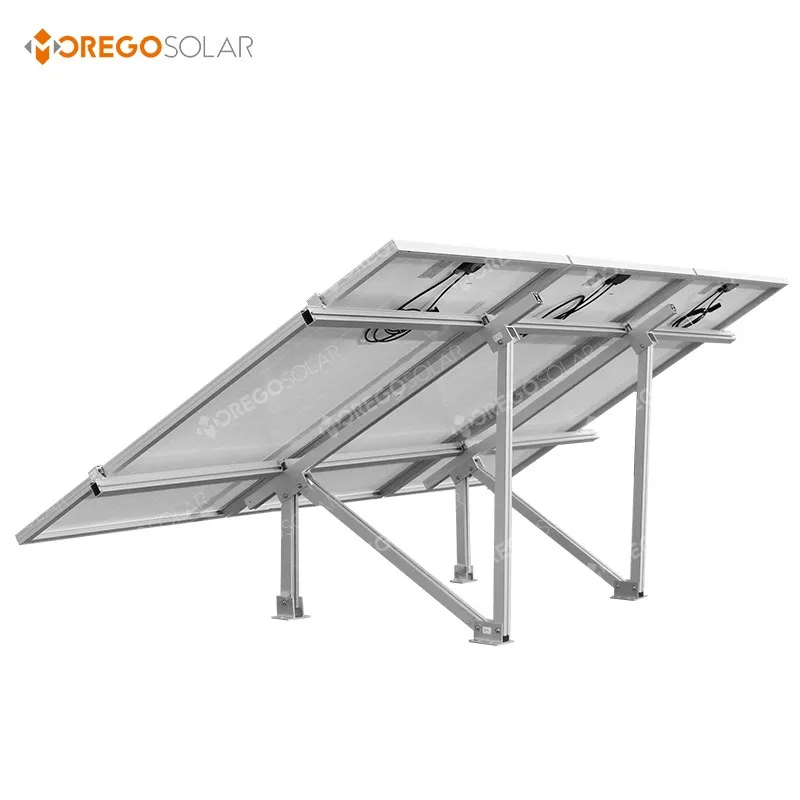

           Growatt inverter                             SAJ inverter                           PV brackets                                     PV cable

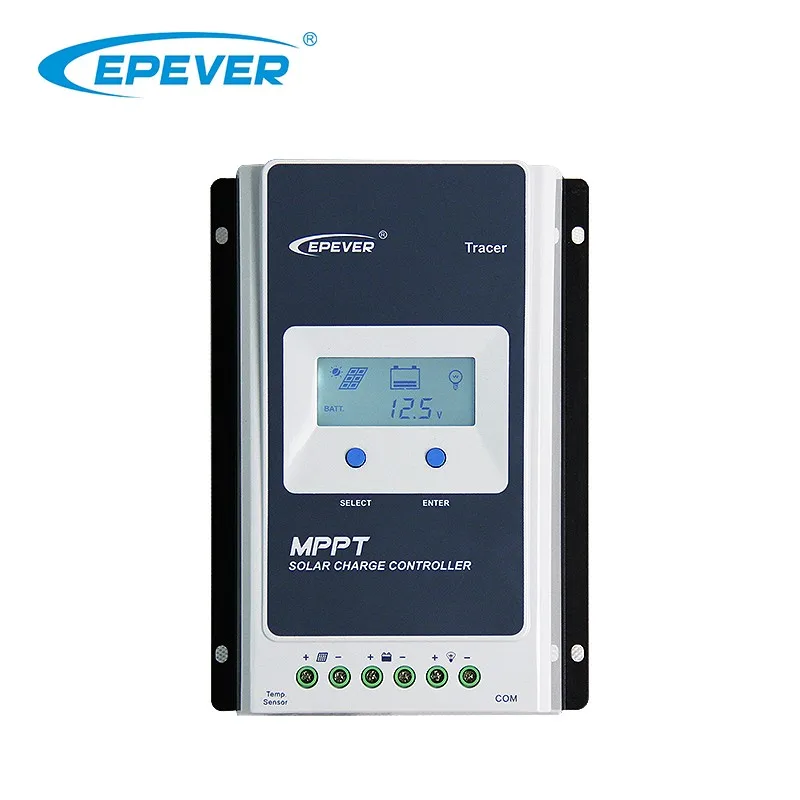

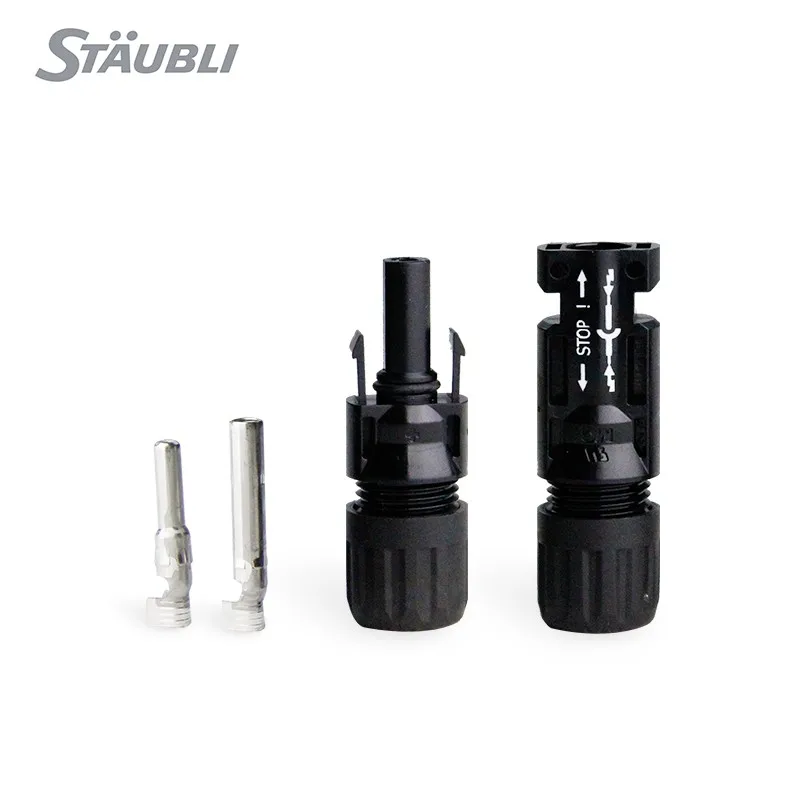

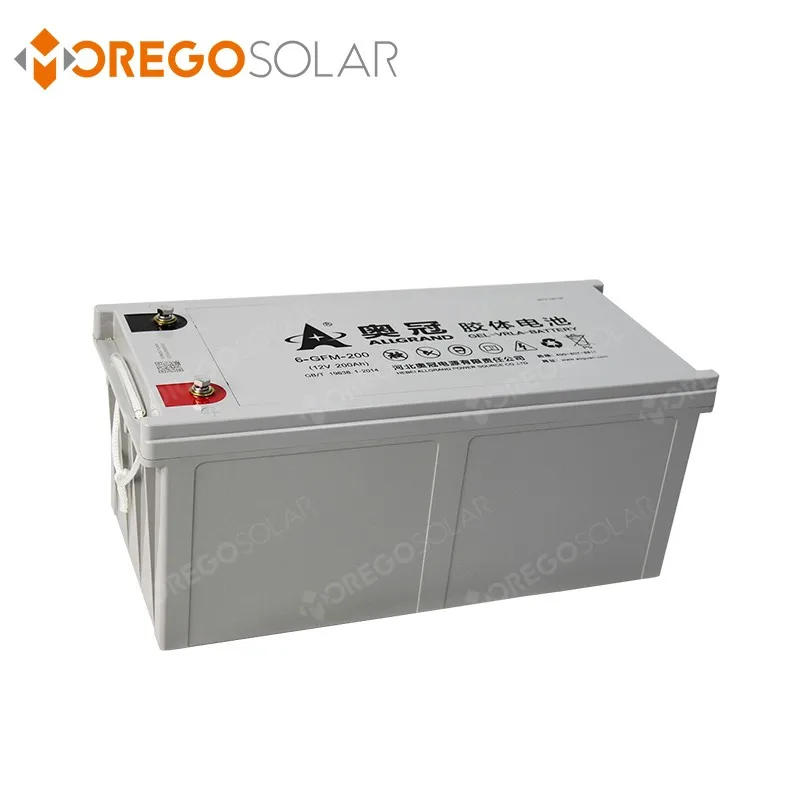

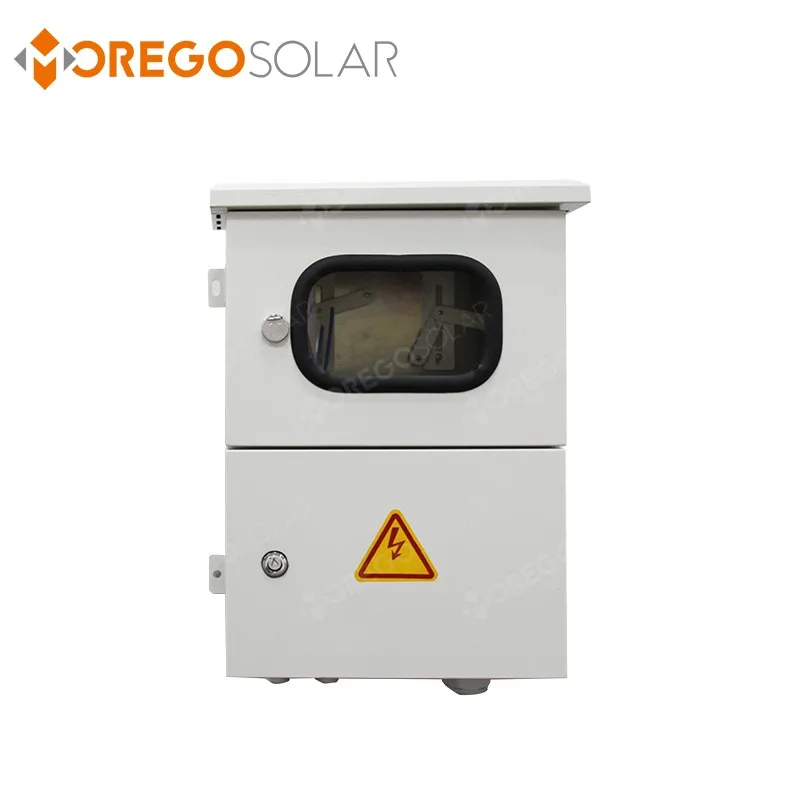

            PV connector                             Distribution box                              Controller                                     GEL batttry
