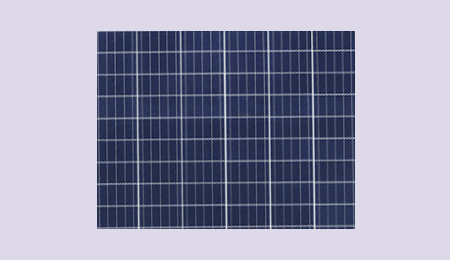

Amorphous 100W 150W 500W 330W 350W Price Solar Panel 300W
- 0.22 1000 - 49999 pieces
- 0.20 50000 - 999999 pieces
- 0.18 >=1000000 pieces
Registered Supplier
Direct Contact
Inquiry via Message

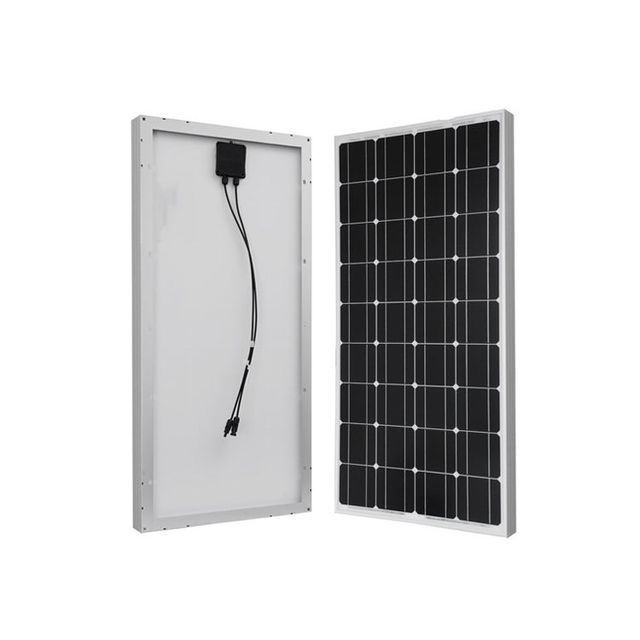

Product Details
| Origin: | Fujian China | application: | commercial |
| Junction Box: | IP67 rating | Packaging Details: | Carton with pallet/Wooden case with pallet |
| brand: | solar first | port: | Xiamen, China |
| color: | blue black | model: | SF-SP002 |
| weight: | 23.5 kg | Panel Efficiency: | 20.93% |
| Unit size: | 210mmx210mm | Warranty: | 10 years, 10 years |
| frame: | Anodized aluminum alloy | Connector: | compatible connector |
| product name: | Solar panels | Supply capacity: | 14 million watts per week |

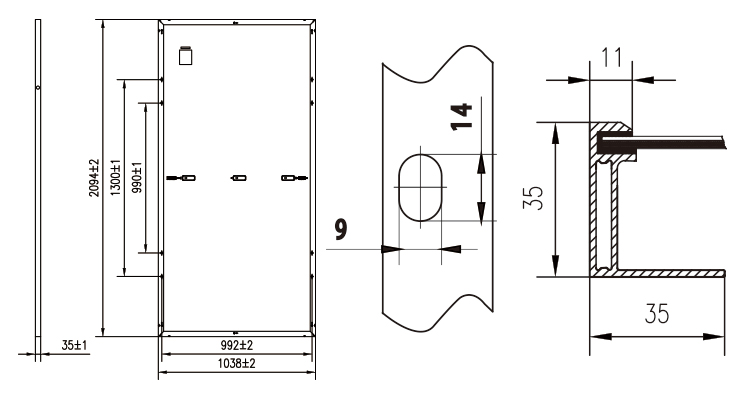

| type: | Standard Solar Panel, PERC, Half Cell, Full Black | Panel size: | 2094*1035*35mm |
| Certificate: | TUV CE ISO, ISO/CE/TUV/ETL/IEC | payment terms: | L/C, T/T |
Product Description

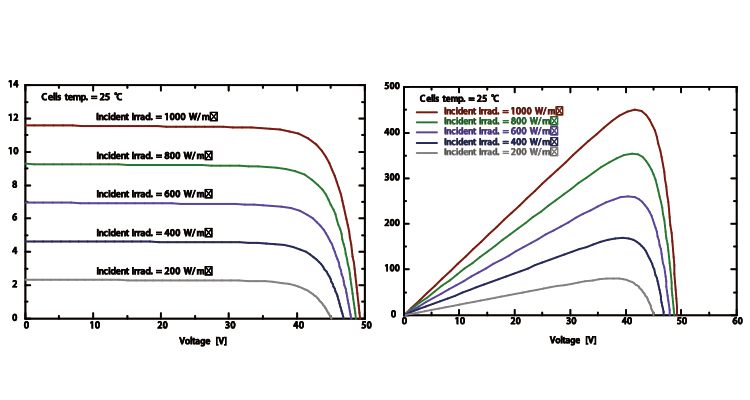

Specification
Model | 430M | 435M | 440M | ||
Maximum power | 430 | 435 | 440 | ||
Operating point voltage | 40.70 | 40.90 | 41.10 | ||
operating point current | 10.57 | 10.64 | 10.71 | ||
open circuit voltage | 48.50 | 48.70 | 48.90 | ||
short circuit current | November 31 | 11.39 | 11.46 | ||
Photovoltaic module efficiency | 19.78% | 20.01% | 20.24% | ||
Standard Test Conditions | Air quality Am1.5, irradiance 1000w/m2, battery temperature 25°C | ||||
Model | 445M | 450M | 455M | ||
Maximum power | 445 | 450 | 455 | ||
Operating point voltage | 41.30 | 41.50 | 41.70 | ||
operating point current | 10.78 | 10.85 | 10.92 | ||
open circuit voltage | 49.10 | 49.30 | 49.50 | ||
short circuit current | 11.53 | 11.60 | 11.66 | ||
Photovoltaic module efficiency | 20.47% | 20.70% | 20.93% | ||
Standard Test Conditions | Air quality Am1.5, irradiance 1000w/m2, battery temperature 25°C | ||||
1. High-efficiency photovoltaic cells
2. High PID resistance
3. Color classification ensures consistent appearance of each module
4. Appearance consistency
3. Color classification ensures consistent appearance of each module
4. Appearance consistency

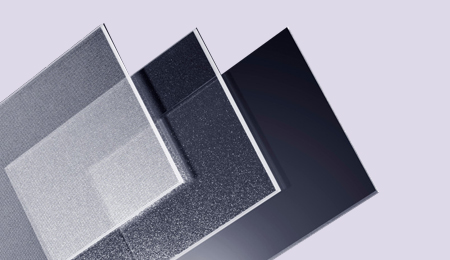

1. Anti-reflective glass
2. Translucency of normal brightness increased by 2%
3. Self-cleaning function
4. Module efficiency increased by 2%
3. Self-cleaning function
4. Module efficiency increased by 2%

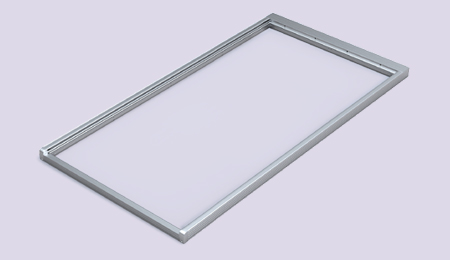

1. Silver or black frame is optional
2. Improve the carrying capacity and prolong the service life
3. The design tensile strength of the serrated clip
3. The design tensile strength of the serrated clip

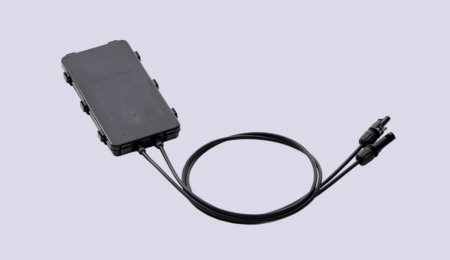

Junction Box
1. IP67 protection level 2. High-quality diodes ensure safe operation of the modules
3. Excellent heat dissipation performance
4. Long service life
3. Excellent heat dissipation performance
4. Long service life

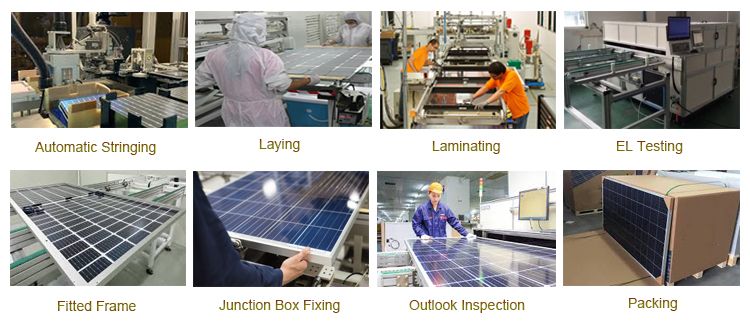

production process
