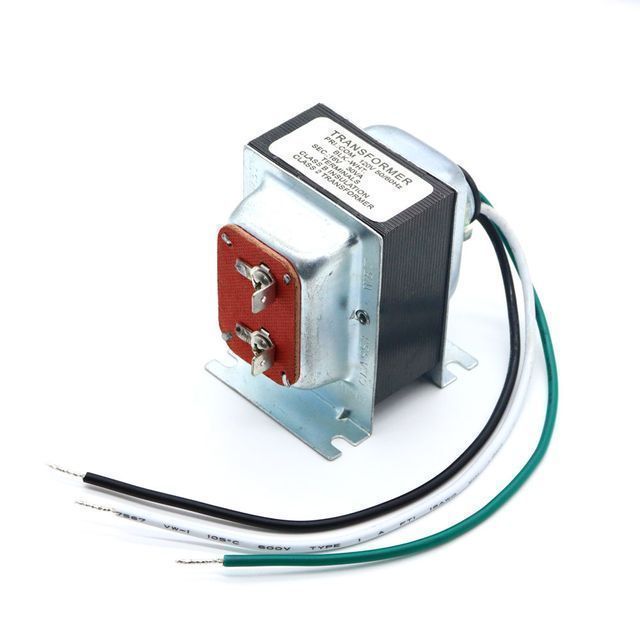

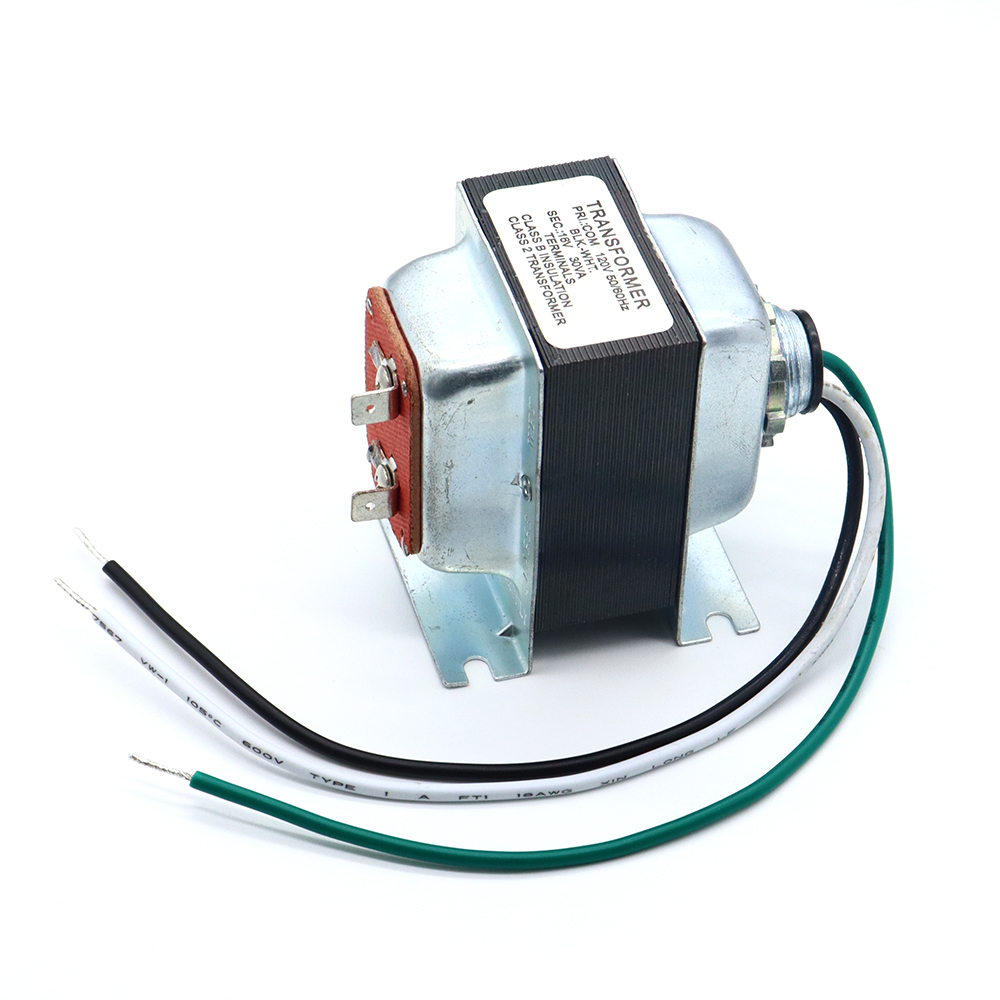

Doorbell Transformer 16V 30VA AC Power Thermostat Power Adapter Hardwired Doorbell Transformer
- 3.20 >=100 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| application: | doorbell, thermostat | Supply capacity: | 200000 pieces per month |
| Certification: | ROHS Directive | product name: | doorbell transformer |
| Rated primary voltage: | 120 | brand: | Shunxin Power |
| frequency: | 50/60 Hz | Packaging Details: | Product size 70.5*48*66mm Inner box size 95*65*72mm Product net weight 574g Outer box size 30*34*23.7cm 30PCS/BOX Net weight/carton 17.2Kg Gross weight/carton 18Kg |
| protective device: | Fuse 115℃ 2A 250V | Rated secondary voltage: | 16VAC |
| The output voltage: | A16V | Product number: | T57-1630VA |
| port: | Yantian, | place of origin; place of origin: | Guangdong, China |
| Input voltage: | AC120V | Material: | copper |
| Rated Capacity: | 30W | strength: | 16V30VA |
| model: | T57-1630VA | payment terms: | L/C, T/T |
Product Description
product name | doorbell transformer |
Product number | T57-1630VA |
Input voltage | AC120V |
The output voltage | 16VAC |
Rated Capacity | 16V30VA 30w |
frequency | 50/60 Hz |
application | doorbell, thermostat |
Certificate | UL, FCC |
safety standard | UL5085 |
Material | copper |
protective device | Fuse 115℃ 2A 250V |
Universal Compatibility | This 24v transformer is compatible with Ring video doorbell, Ring video doorbell 2, Ring video doorbell pro, Nest Skybell Doorbell, also compatible with Nest, Ecobee, Honeywell, and Sensi smart thermostats, and other devices that need to run 24/7 volt power operation. |
Warranty | 3 years |
Click here for full datasheet/certification/free sample
