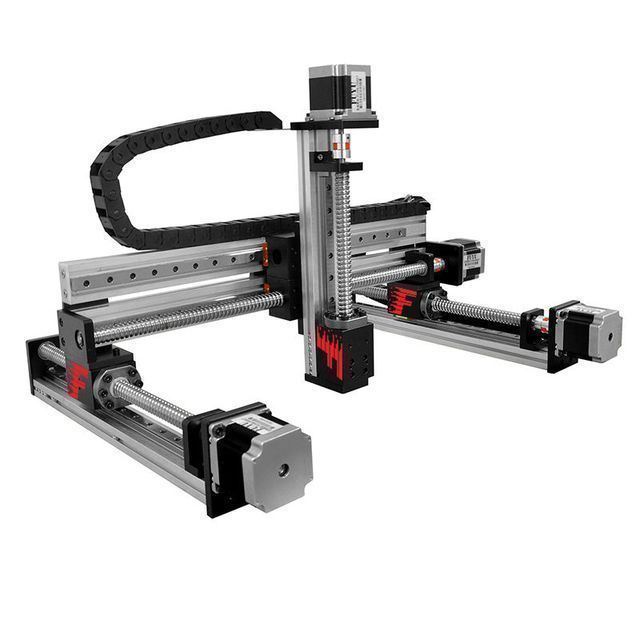

Linear Guide Ball Screw Actuator Robotic Arm Xyz Table Z-axis Table Cartesian Robot

Supplier: Chengdu Fuyu Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Leo Liu
Price: $67.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Supply capacity:	5000 pieces per month	Marketing Type:	normal product
Horizontal load capacity:	25 kg	payment terms:	L/C, D/P, T/T, MoneyGram
feature:	high precision	After warranty service:	online support
Position Accuracy:	0.03mm	Certification:	CE/FCC/RoHS/ISO9001
application:	Dispensing/Cutting/Drilling/Printing/Palletizing	Showroom location:	India
place of origin; place of origin:	Sichuan, China	Vertical load capacity:	15 kg
Dimensions (LWH):	12cm12cm12cm	Core components:	motor
brand:	Surplus	Core component warranty:	1 year
Production capacity:	98%	Mechanical test report:	if
Packaging Details:	Inner layer: film + waterproof membrane Outer layer: carton	Local service location:	India
Video shipment inspection:	if	Speed range:	255 mm/s
port:	Shanghai/Shenzhen/Chongqing	Health status:	new
Warranty:	1 year	Weight (kg):	12.4
Applicable industries:	Hotels, clothing stores, building supplies stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home use, retail, food stores, print shops, construction, energy and mining, food and beverage stores, advertising agencies

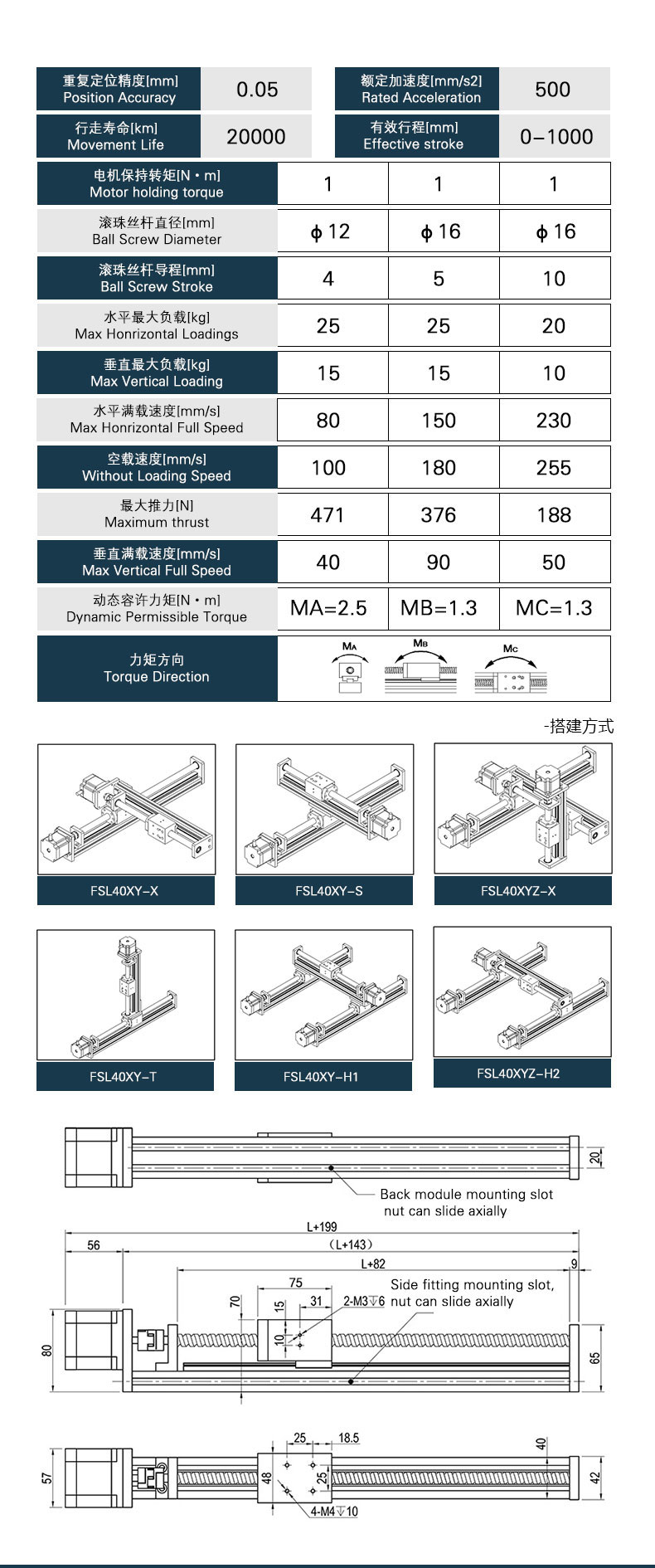

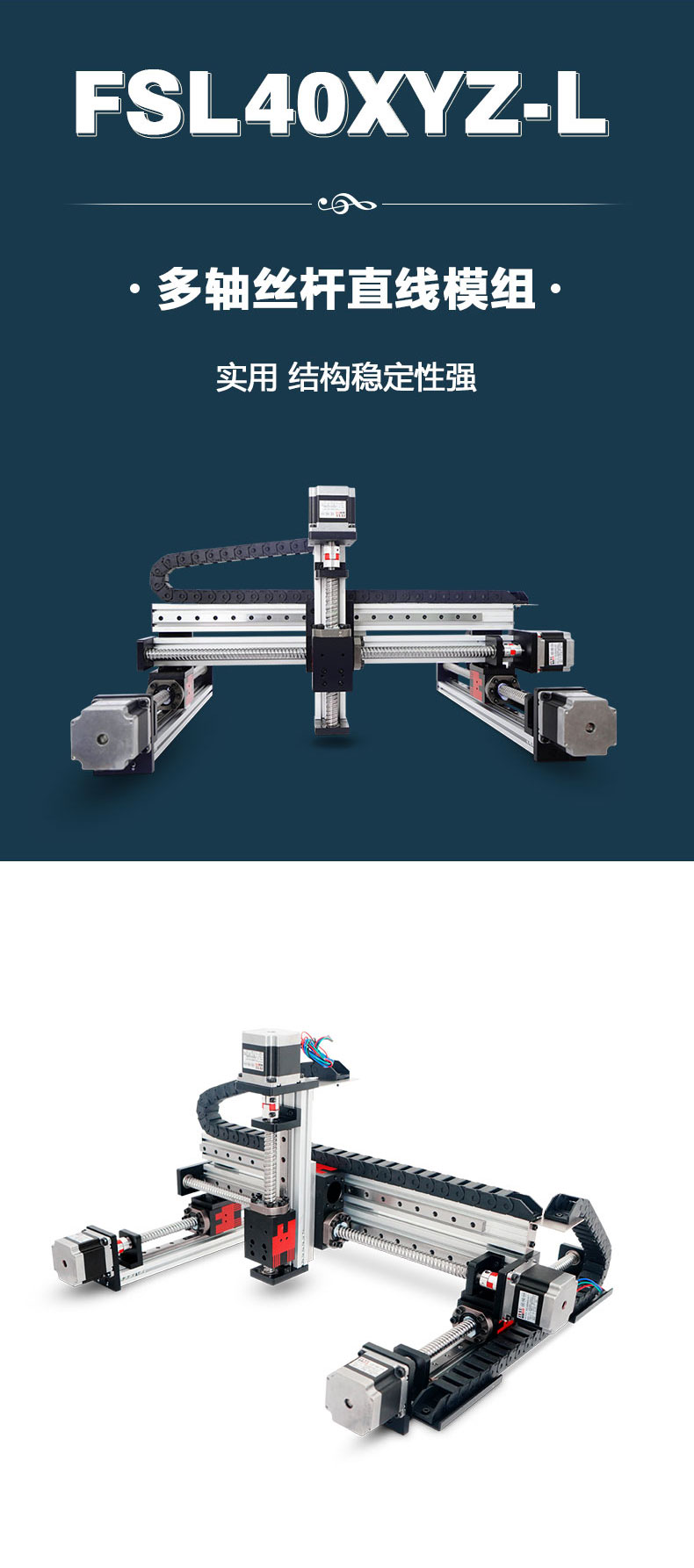

FSL40-Match list

touch screen	controller	limit switch	DC power supply model	Driver model
TPC7062HW	FSC-1A	SN04-N	PMT-24V350W	FMDD36D22NOM
	AMC4030		PMT-24V100W
			PMT-24V50W
			LRS-100-24
			LRS-350-24

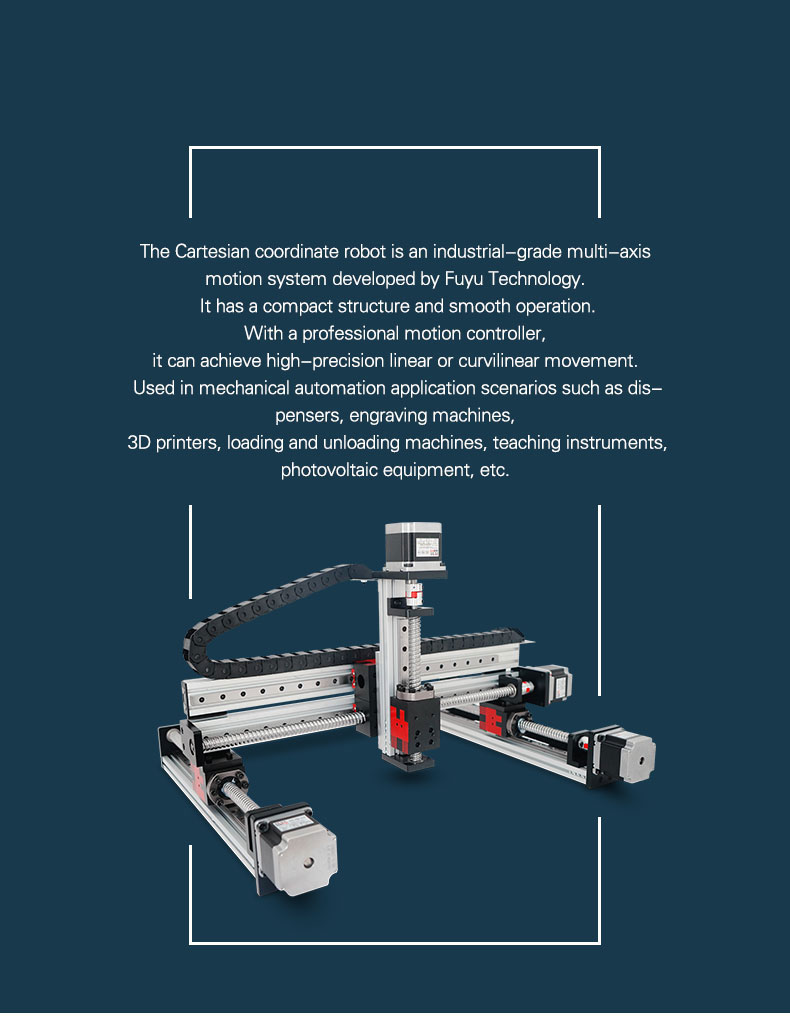

Gantry robots are based on a modular Cartesian axis concept based on standard components of the positioning system. The robot has flexibility up to 6 degrees of freedom and requires a minimal footprint due to its elevated axis arrangement. To operate the machine, simple programming is required - user guidance with motion control is provided. There are 8 standardized gantry sizes with payloads ranging from 5 to 100 kg. The position of the legs is variable and there are brakes on all motors. Outrigger height and working range are set according to customer needs.
