ZRS44.4-130H 425MM Large capacity of weft of HZS fishing net machine

Supplier: Yangzhou Naite Netting Gear Co., Ltd.
Region: Jiangsu, China
Contact: Ms Lisa Ji
Price: $80000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Product name:	ZRS44.4-130H 425MM TOYO HZS fishing net machine;	Condition:	New;
Application:	Trawl net,train net,safety net;	Brand Name:	NT;
Material Capabilities:	Nylon 210d/180-1200ply, PE 400d/90-300, PE braided 3.0-8.0mm;	Place of Origin:	Jiangsu China (Mainland);
Production Capacity:	8 Sets/months;	Packaging Detail:	Machine nude-packed into the container. Spare parts are put into the cartons. For 1x40ft container loading. For ZRS44.4-130H 425MM TOYO HZS fishing net machine;
Mesh Size:	78-200mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Brass shuttle:	130shuttles;	Supply Ability:	8 Set/Sets per Month fishing net machine;
Power(W):	5.5KW;	Certification:	CE ISO9001;
RPM:	10R/min;	Spool diameter:	425mm;
Voltage:	220V 380V 415V;	Port:	Shanghai, Yangzhou;
Pitch:	44.4mm;	Features:	Large capacity of weft;
Weight:	21500kgs;	Keywords:	Toyo fishing net machine;
Feature:	Large capacity of weft;	After-sales Service Provided:	Engineers available to service machinery overseas;
Knot type:	Single knot;	Dimension(LWH):	10000 x 5540 x 2650mm;
Warranty:	One Year;	Automatic Grade:	Semi-Automatic;

Product Description

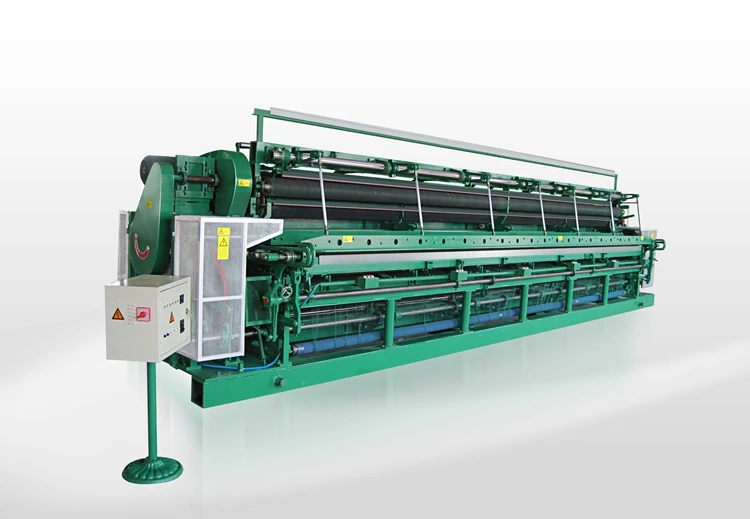

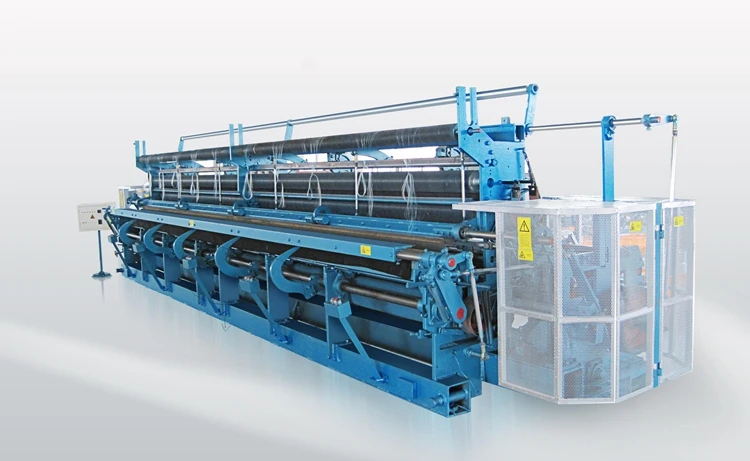

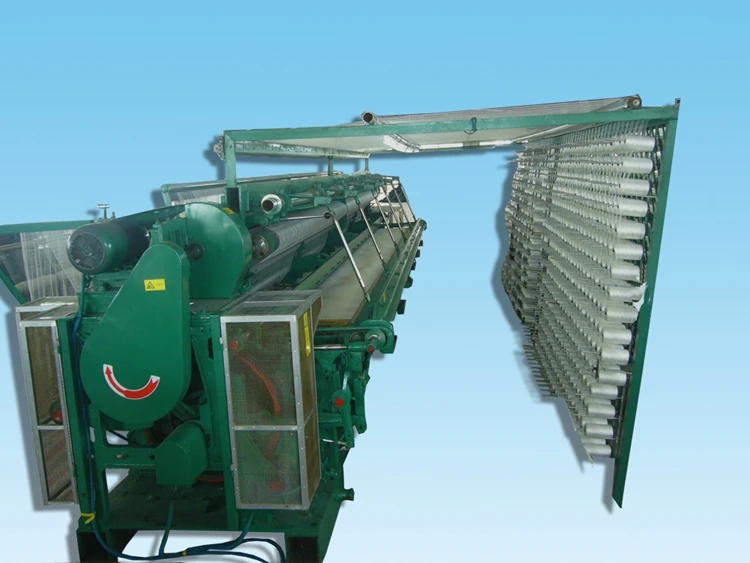

ZRS44.4-130H 425MM Large capacity of weft of TOYO HZS fishing net machine

Model	ZRS44.4-130H

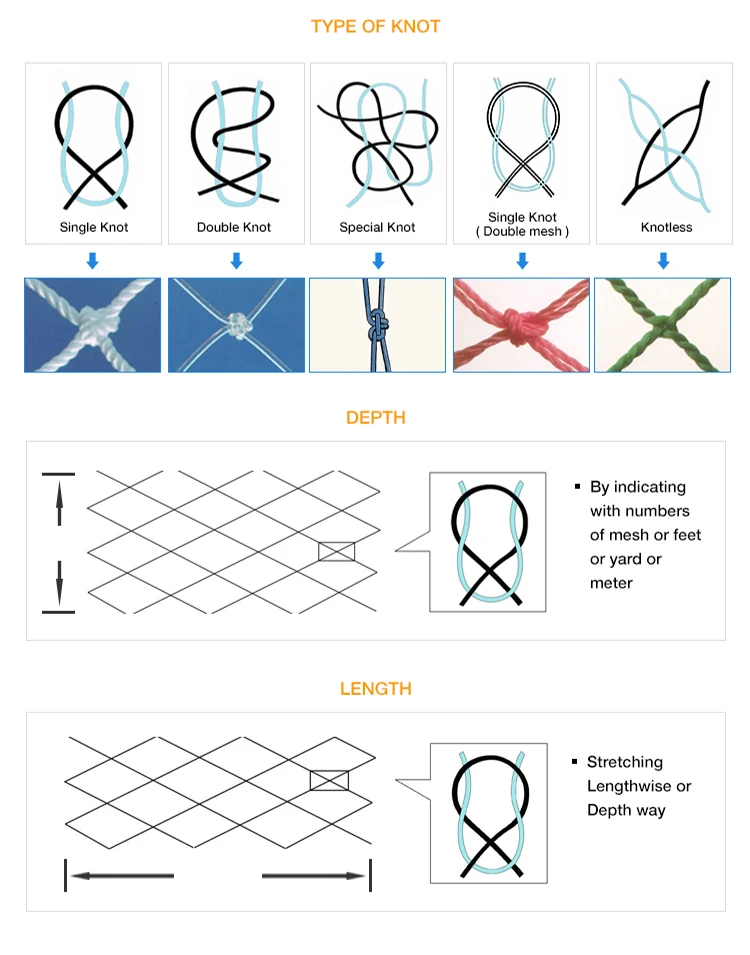

Knot type	Single knot
Pitch(mm)	44.4mm
Width(Nos of shuttle)	130shuttles
Spool diameter(mm)	425mm
Nylon multifilament (Denier/ply)	210d/180-1200ply
Nylon braided(mm)	3.0-8.0mm
PE braided (mm)	3.0-8.0mm
PE twine (Denier/ply)	400d/90-300ply
Mesh size (mm)	78-200mm
R/min	10
Motor Power (kw)	5.5kw
Length x Width x Height (mm)	10000 x 5540 x 2650mm
Weight (kgs)	21500kgs

Optional Devices:
1, Large mesh making device for up to 450mm in stretch
2, Extra large mesh making device for up to 3000mm in stretch
3, Double mesh making device
4, Totally installed safety guards at both ends
5, Net splitting device
6, Resining device

Equipped With:
1, Large selvage making device
2, Lid opening and closing system of shuttles
3, Net delivery device
