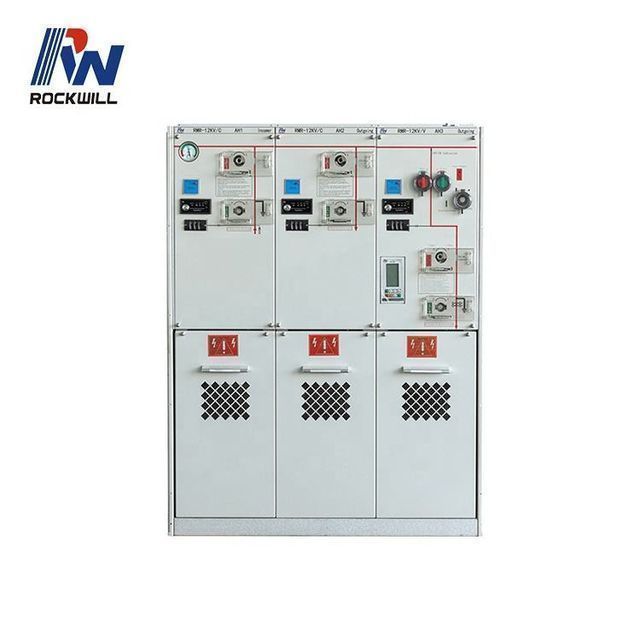

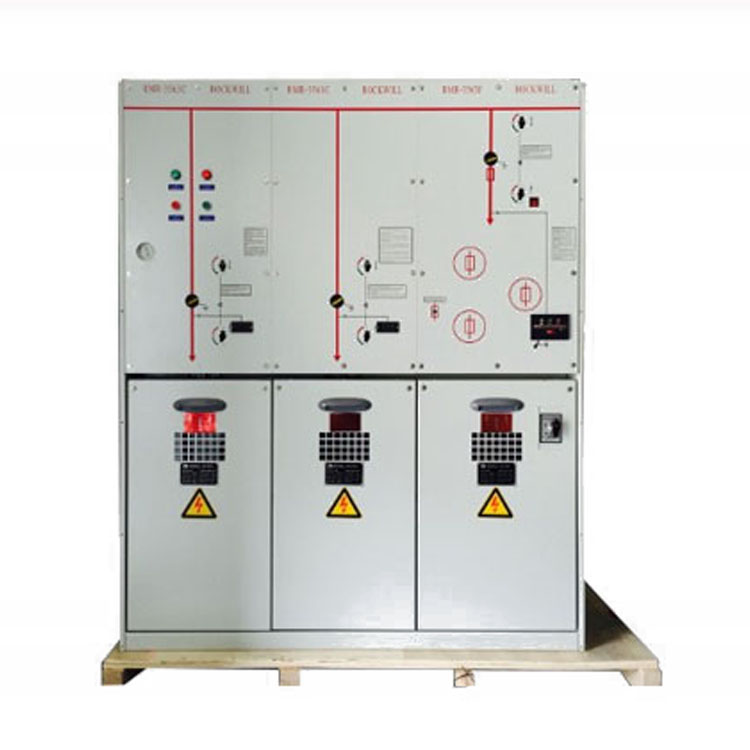

11KVA 12KV SF6 Gas Insulated Main Unit Ring Compact Distribution Board
- 1000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Certificate: | CE, ISO, VOV | frequency: | 50/60 Hz |
| Rated voltage: | 12kV, 24kV, 36kV | model: | RMR-1 |
| brand: | rockwell | Warranty: | 12 months |
| place of origin; place of origin: | Zhejiang, China | port: | Ningbo or Shanghai |
| color: | grey | Key words: | Gas Insulated Switchgear |
| payment terms: | L/C, T/T | Rated current: | 630A |
| Processing: | Yes | Packaging Details: | wooden packaging |
| Supply capacity: | 500 sets per month | Package preview: | |
| Package: | wooden box | application: | Indoor, outdoor, substation |
| Configuration: | Circuit breakers, fuses, load switches |
Do not. | thing | unit | C module (load break switch) | V module (breaker) | |||||||||
1 | Rated voltage | kV | 12 | twenty four | 36 | 12 | twenty four | 36 | |||||
2 | rated current | One | 630(200A/F) | ||||||||||
3 | rated frequency | hertz | 50/60 | ||||||||||
4 | 1 minute power frequency withstand voltage | kV | 45 | 55 | 80 | 45 | 55 | 80 | |||||
5 | Lightning impulse withstand voltage | kV | 75 | 125/150 | 170/ 195 | 75 | 125/ 150 | 170/ 195 | |||||
6 | Rated transmission current | One | 1700 | 1400 | 1200 | / | |||||||
7 | Rated active load and closing and breaking current | One | 630 | ||||||||||
8 | Rated cable charge breaking current | One | 50/10 | ||||||||||
9 | Rated short-circuit breaking current | Ka | / | 20 | 16 | 16/20 | |||||||
10 | Rated short-circuit making current (peak value) | Ka | 63 | 50 | 40/50 | 63 | 50 | 40/50 | |||||
11 | Short time (2s) withstand current, load switch/earth | Ka | 25/ 20 | 20/ 20 | 16/ 20 | 25/ 20 | 20/ 20 | 16/ 20 | |||||
12 | Rated withstand current (peak value) | Ka | 63 | 50 | 40/50 | 63 | 50 | 40/50 | |||||
13 | Institution life | Second-rate | 3000 | 2000 | 10000 | 3000 | 5000 | ||||||
Note: Short circuit breaking and peak current are based on fuse plus module combination.
