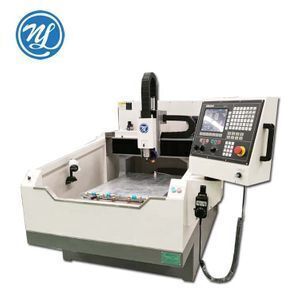

cnc milling and engraving machine cnc metal engraver cnc metal milling machine 6060 6090 Moulding Machine

Supplier: Jinan ND Precision CNC Co., Ltd.
Region: Shandong, China
Contact: Ms Mary SUN
Price: $16350.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	ND;	CNC or Not:	CNC;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Rail guide:	Taiwan Hiwin 20mm rail guide;
Working area:	600900150mm;	Applicable Industries:	Manufacturing Plant;
Voltage:	220/380V;	Transmission:	C7 level 25mm ball screw;
Supply Ability:	100 Set/Sets per Month cnc milling metal machine;	Dimension(LWH):	160019001800MM;
Repeatability (X/Y/Z) (mm):	0.0005;	Control system:	Weihong NK260 control system;
Type:	Universal;	Spindle Cold:	Water cooling;
Condition:	New;	Weight (KG):	1300;
Packaging Detail:	1. packed the cnc center with plastic sheet for cleaning and damp proofing. 2. put the cnc machine in the plywood case for safety and clashing. 3. transport the plywood case into the container.;	Power(W):	5kw;
Certification:	CE ISO;	Warranty:	1 Year;
Place of Origin:	Shandong China (Mainland);	Product name:	CNC milling machine;
Model Number:	ND6090HL;	Port:	QinDao,TianJin,ShenZhen,ShangHai;
Lubrication System:	Auto oil lubrication system;	Machine Bed Material:	Iron cast body;
Positioning Accuracy (mm):	0.001;	Key Selling Points:	High-accuracy;
After-sales Service Provided:	Field installation, commissioning and training;	Table Travel (mm):	600*900mm;
After-sales Service Provided:	Engineers available to service machinery overseas;	Servo motor and driver:	Pansonic 750w servo motor and driver;
Range of Spindle Speed(r.p.m):	0 - 40000;

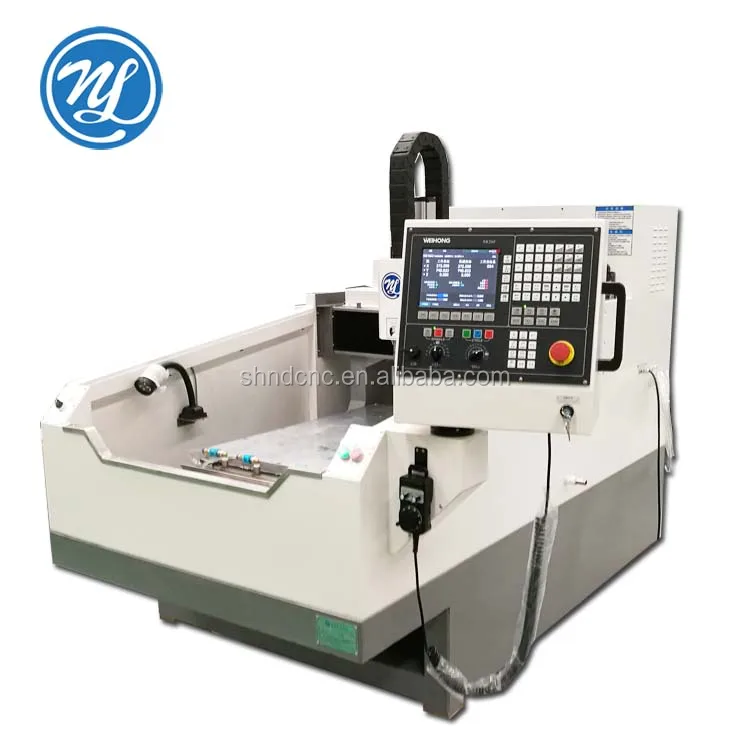

cnc milling and engraving machine cnc metal engraver cnc metal milling machine 6060 6090 Moulding Machine

Application

This machine is mainly used for milling,engraving ,carving ,grinding,metal material ,such as stainless steel ,carbon steel,copper,aluminum ,etc.

Feature:

1.Iron cast body with high accuracy.

2.XYZ driver system is servo motor and driver, the best driver system in the world.

3.XYZ use Hiwin ball screw and linear square rails, repeatability positioning accuracy is 0.01mm.

4.Gantry fixed and table moving design, make machine faster and more precise.

5.High speed and anti-shake spindle, make produce fine more detail.

6.Automatic oil feeding system make the machine keep precise and long life

7.Professional engineer assembling machine, guarantee machine quality.

8.The professional team provide better solution for you.

Technicla Parameter

Model	ND6090HL
Application	Metal,such as stainless steel ,carbon steel,copper,aluminum ,etc.
Working Area	600x900x150mm
Spindle Power	2.2kw
Spindle Speed	24000RPM
Spindle Clamp Size	80mm
Moving Processing Accuracy	0.018/300mm
Repeatability Positioning Accuracy	0.01mm
Max Moving Speed	9m/min
Max Machining Speed	6m/min
Lubrication System	Automatic Oil Feeding
Spindle Cooling System	Water
Drive System	Panasonic Servo Motor and Driver
Weight	800kg
Machine Bed Material	Iron cast body

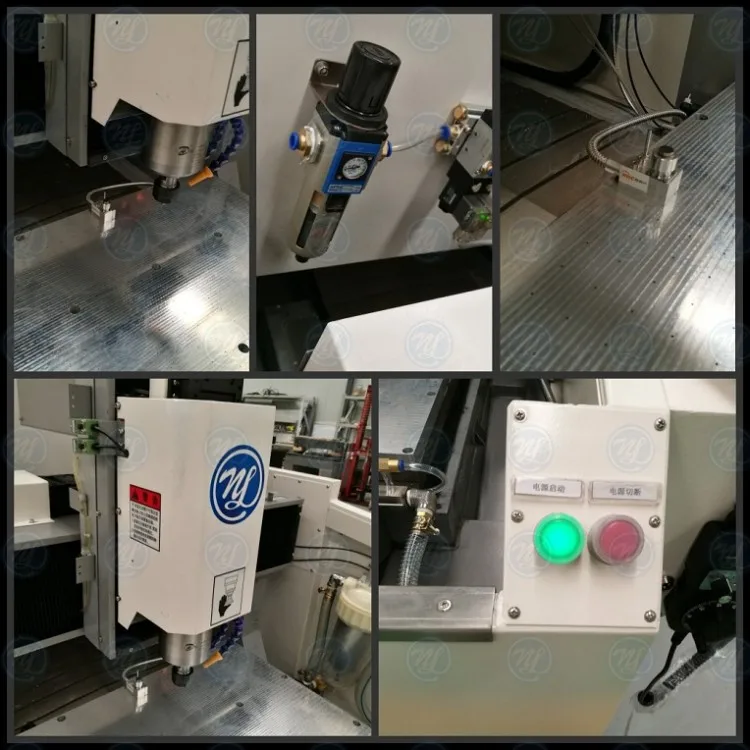

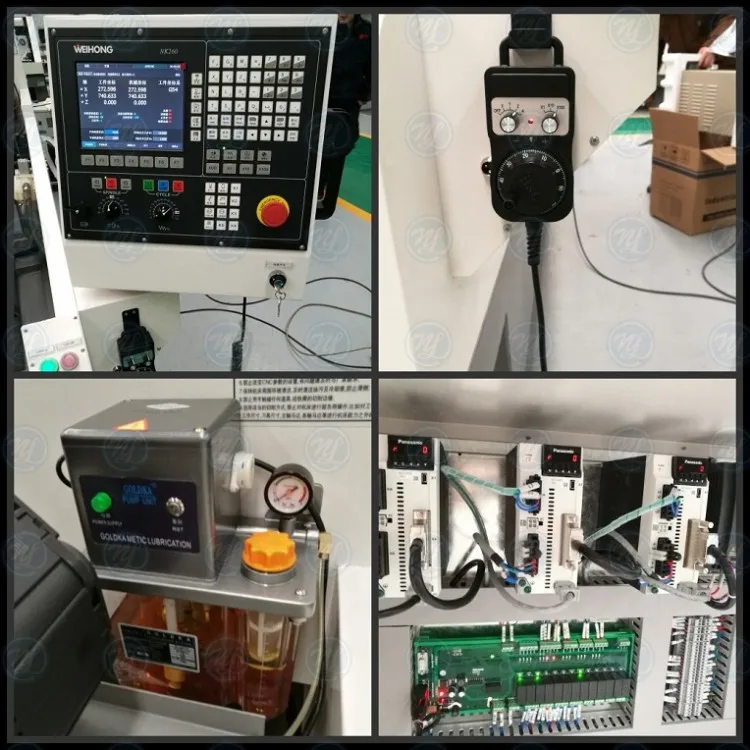

Machine parts :

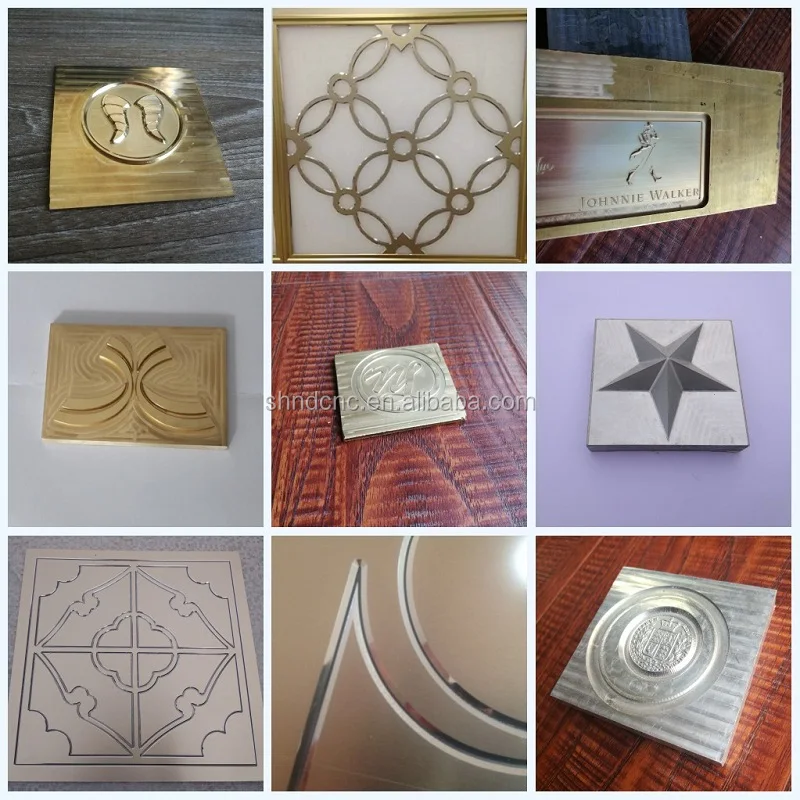

Sample

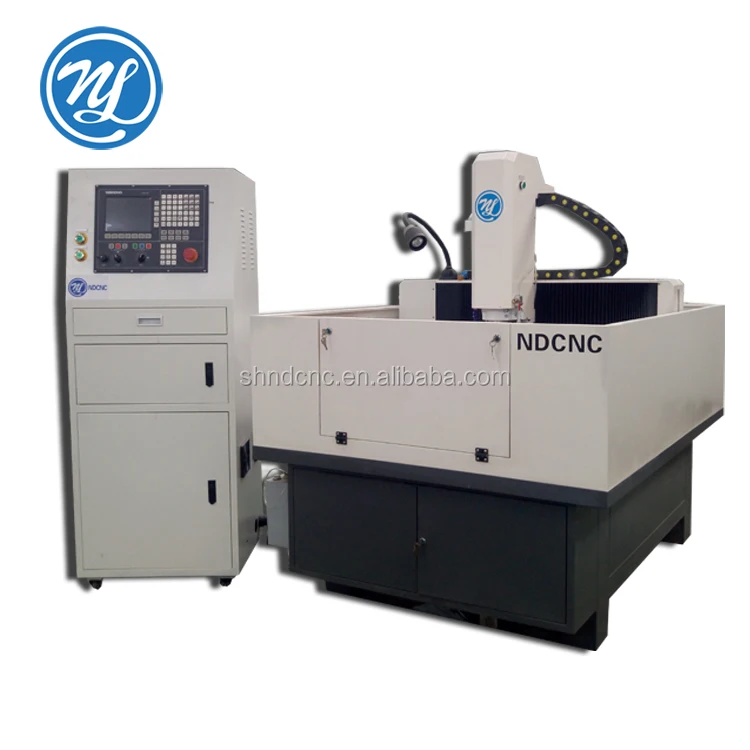

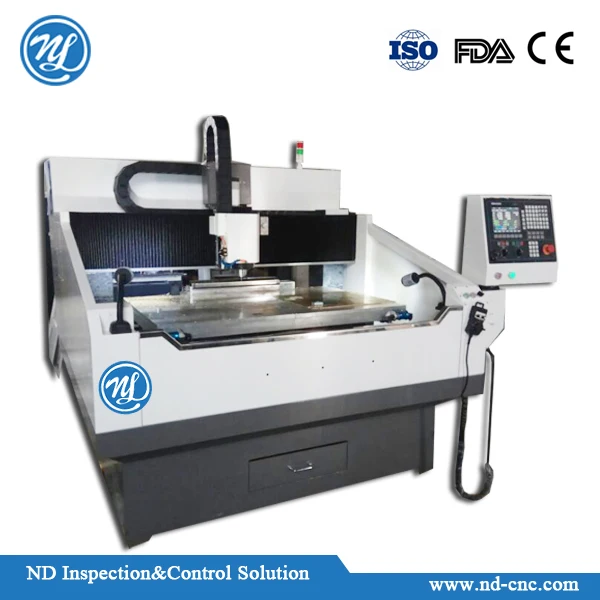

Related machine

Packing & Shipping

Firstly, the machine is to be packed with plastic sheet for cleaning and damp proofing.

Secondly, fasten the machine into the wood case for safety and against clashing.

Thirdly, transport the wood case into the container.

Certification:

After-Sales Service

1.12months guarantee of the whole machine,we will provide the consumable parts at an agency price when you need replacement .
2.Our engineer could support you technology to your country if necessary.
3.Our engineer could service on weekend even on vacation.
4.Our engineer could train on you at your factory for free.
5.Our engineer could service you 24 hours online by Skype,YAHOO,MSN,QQ,WEIXIN,or cellphone.
6.English manual and CD video for machine using and maintaining will send you with the machine.
   a.Hardware :1year on all parts and labor.
   b.Software:Whole life on update for free.
   c.Maintenance and technology support:whole life.
