China XD 11kV SF6 Main Unit RMU Manufacturers Electrical Equipment Supplies
- 4000.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| brand: | XD | color: | grey |
| Rated current: | 630/1000/1250/1600/2000/2500/3150A | Installation type: | sulfur hexafluoride |
| place of origin; place of origin: | Shaanxi, China | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Material: | Stainless steel | frequency: | 50/60 Hz |
| Protection class: | IP30/IP32/IP40/IP65/IP66 | Packaging Details: | Wooden boxes suitable for sea transportation |
| application: | power transmission | size: | custom size |
| Rated voltage: | 12KV | Certificate: | CE ISO CCC IEC |
| port: | Shanghai Port, Lianyungang Port, Guangzhou Port, Dalan Port | model: | HXGN15-12(SF6) |
| Supply capacity: | 200 pieces per month | standard: | IEC60439 |
Product Description

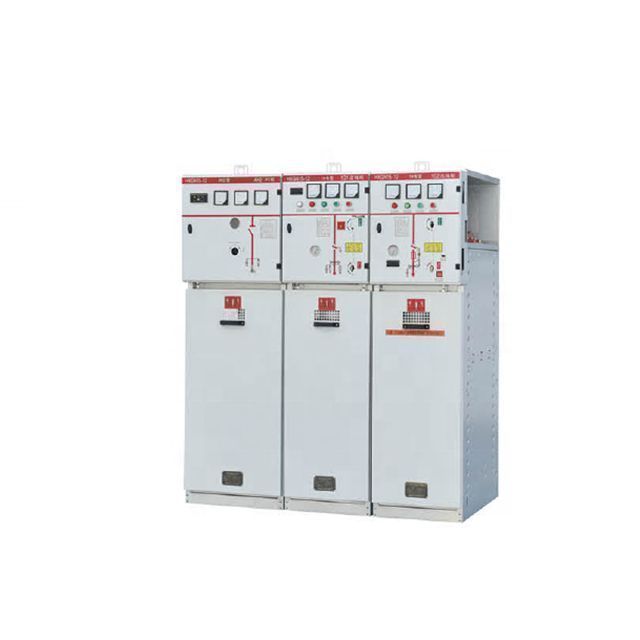

HXGN15-12 (sf6) unit metal closed-loop switchgear is a newly designed high-voltage electrical equipment that adopts foreign advanced technology and complies with IEC62271-200:2003 and GB3906 standards. Its main switch operating mechanism and components adopt HAD/US type SF6 switch produced by ABB company.
Specification
thing | unit | data |
Rated voltage | kV | 12 |
rated frequency | hertz | 50 |
Rated current of main busbar/maximum rated current of fuse | One | 630,125 |
Rated short-time withstand current of main circuit/earth circuit | kA/s | 20,3 |
Rated peak withstand current of main circuit/earth circuit | Ka | 50 |
Rated short-circuit withstand current of main circuit/earth circuit | Ka | 50 |
Breaking times of load breaker at full capacity | Second-rate | 100 |
Fuse breaking current | Ka | 31.5,40 |
Rated closed loop breaking current | One | 630 |
Rated transfer current | One | 1600 |
Mechanical life | Second-rate | 2000 |
1min power frequency withstand voltage (peak value) | kV | 42,48 |
Lightning impulse withstand voltage | kV | 75,85 |
Secondary circuit 1min power frequency withstand voltage | kV | 2 |
degree of protection | IP3X |
