manual hydraulic pressure hand pump 700BAR

Supplier: Huaxin Instrument (Beijing) Co., Ltd.
Region: Beijing, China
Contact: Ms sales Huaxin
Price: $600.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply Ability:	500 Set/Sets per Month manual hydraulic pressure hand pump;	Dimension:	210mm210mm140mm;
type:	manual hydraulic pressure hand pump;	Port:	any china port;
pressure range:	(0~600)bar,(0~700) bar;	Delivery Detail:	2 weeks;
Adjust resolution:	1mbar;	Working Media:	Distilled water;
Material:	Body:Stainless Steel/Aluminium Seals:Buna-N;	Place of Origin:	Beijing China (Mainland);
calibration objects:	pressure (different pressure) transducers, precision pressure gauges;	Brand Name:	SINO INSTRUMENT;
weight:	2.6kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,paypal;
Model Number:	HS705A;	Output Interface:	M20*1.5 Female;
Packaging Detail:	standard package with carton;	output:	2;

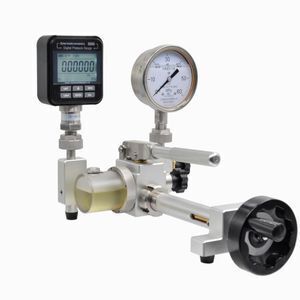

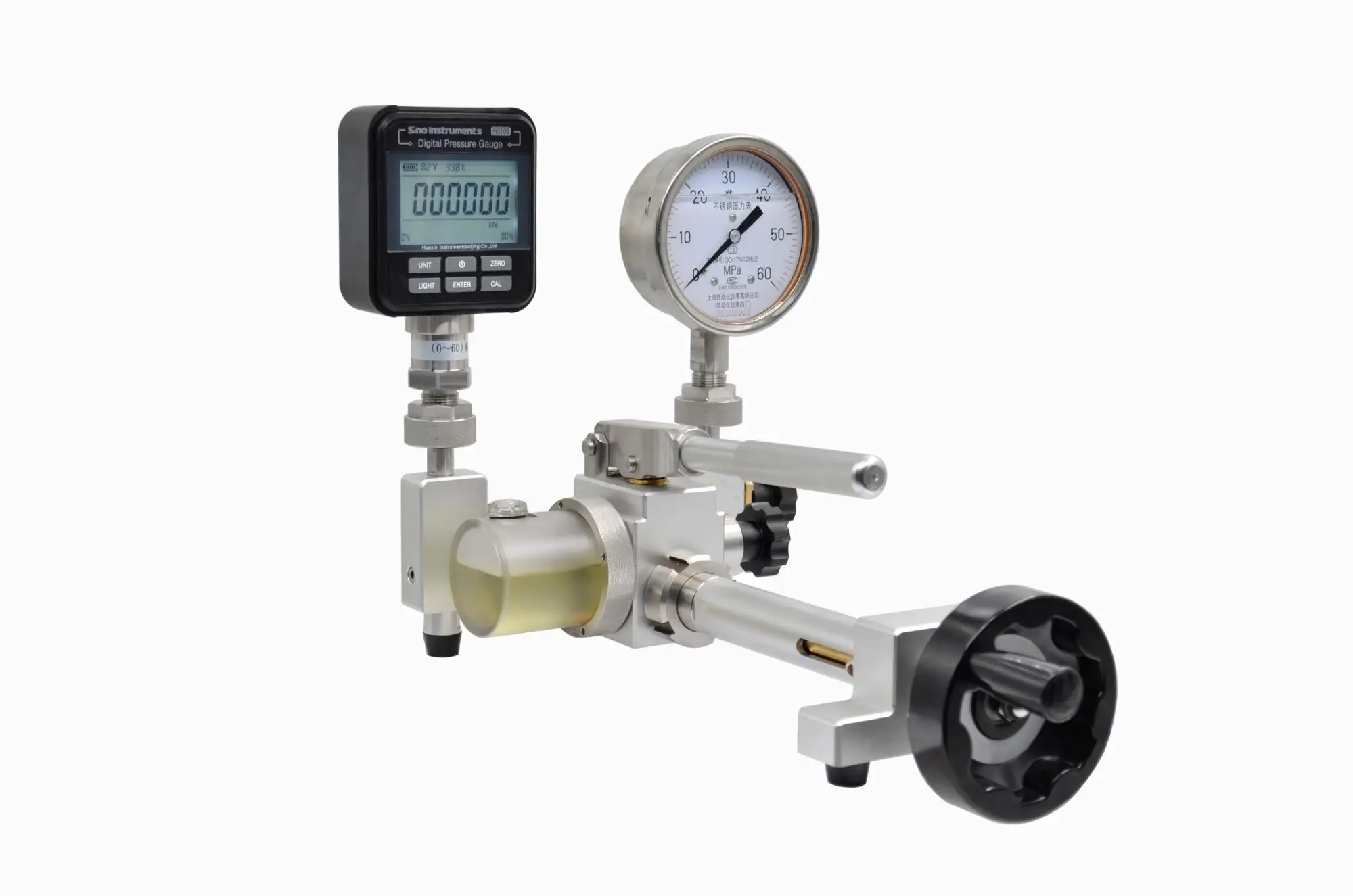

HS705A manual hydraulic pressure hand pump

Product Description

HS705A manual hydraulic pressure hand pump is made up of hand pump, lead screw, fine-adjustment valve, relieve valve, water tank and output interface.

HS705A adopts advanced stainless steel and lithium alloy special process, compact dimension, light weight. It is portable structure and designed to generate pressure range up to 700bar. The screw pump design makes the high pressure operation more easy and save labor, the F-adjust valve adjust the exact pressure value .A detachable oil cup is easy to clean and maintenance, user could check the work medium timely from the transparent oil cover. Two standard pressure outputs are easy to connect gauges under test without using the wrenches. It widely calibrates pressure instruments in field and laboratory.

Functions

HS705A Hand pump Hydraulic pressure comparator calibrator can supply pressure for calibrating pressure gauges, Such as pressure (different pressure) transducers, precision pressure gauges, general pressure gauges and other pressure gauge.

Technology Specification

Pressure range	(0 ~ 700) bar
Stability	better than 0.05% F.S
Pressure-transmitting media	distilled water
Output interface	M20×1.5 Female
Overall Dimensions	210mm×210mm×140mm
Weight	2.6Kg
