Ultra-high pressure 250Mpa piston self-weight tester pressure gauge calibration self-weight tester
-
Supplier: Xi'an Xinyi Instrument Technology Co., Ltd. -
Region: Shaanxi, China -
Contact: Ms Mollie Jones -
Price: $3399.00 / 1 - 9 pieces
$3199.00 / 10 - 99 pieces
$2999.00 / >=100 pieces -
Min. Order: 1 piece
Product details
| Package preview: | Warranty: | 2 years | |
| Supply capacity: | 3000 pieces per month | type: | Pressure Calibration Equipment |
| application: | Digital pressure gauge, pressure sensor, pressure transmitter | Moderate: | Transformer Oil/Sebacic Acid |
| Origin: | Shaanxi, China | port: | Shenzhen Railway Station |
| Material: | Tungsten carbide | accuracy: | 0.05% 0.02% etc. |
| Customization support: | OEM, OEM | lower limit: | 5 MPa |
| model: | YWT-250, self-weight tester | brand: | Xinyi YB |
| Maximum: | 250MPa | product name: | Self-weight tester |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Customization support: | OEM, ODM, OBM |
| Packaging Details: | Carton |
Product Description

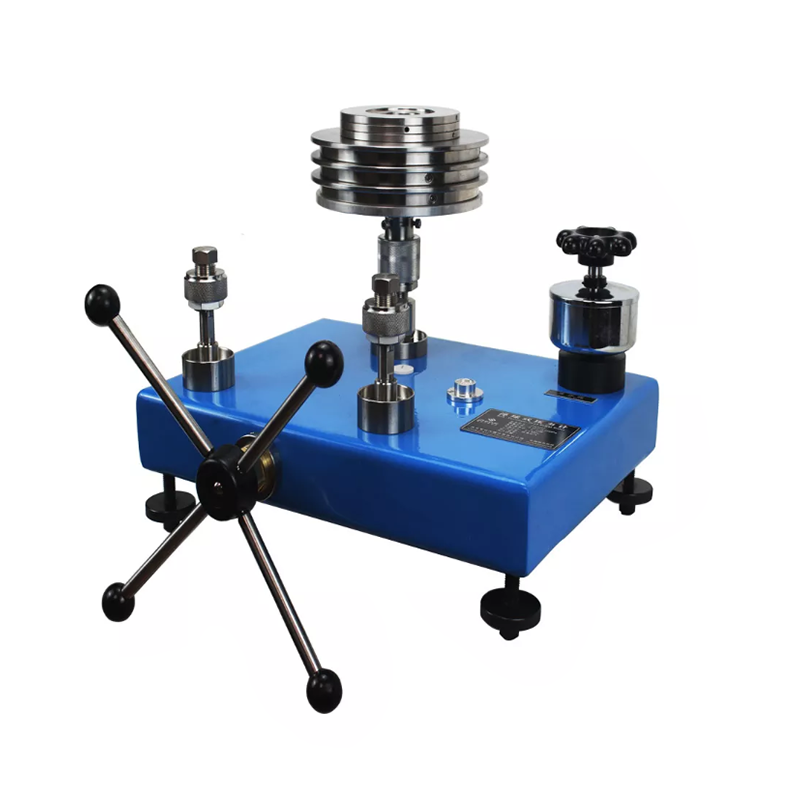

Ultra high pressure 250Mpa 2500bar self-weight tester self-weight tester for pressure gauge calibration
YWT~250 Piston Pressure Gauge Self-Weight Tester can generate pressure up to 250MPa, and is mainly used in metrological verification laboratories to verify digital pressure gauges, pressure sensors, pressure transmitters, precision pressure gauges and ordinary pressure gauges and other pressure gauges. It is suitable for the measurement departments of advanced measurement institutions, pressure instruments, instrument manufacturers and modern factories. Measuring range: 2-160MPa, 5-250MPa ★Accuracy grade: 0.05, 0.02, 0.01, 0.005 ★The most cutting-edge built-in pipeline layout, the desktop is simple and clean; ★With pre-compression function, easy to pressurize at high pressure; ★Piston and piston cylinder It is made of cemented carbide tungsten carbide material with high strength, high hardness and low low temperature linear expansion coefficient after careful grinding. The working environment temperature is wide and the performance is stable at 20±5°C; oil medium lubrication, high piston sensitivity; superhard material, The piston has a long service life and the pressure deformation is negligible; Manufactured according to the user's local gravity acceleration; Each weight is equipped with an adjustment cavity, which is convenient for regular inspection and adjustment; Please contact me for more information suitable for your specific requirements information.
Ordering Information
Warranty: Pressure Calibrator / Deadweight TesterOne year limited warranty to original purchaser. We will replace or repair defective products free of charge. This warranty does not apply to any equipment that has been modified, misused, or neglected. We will provide you with technical support 24 hours a day.
