Pneumatic Pressure Comparison Pump
- 0.10 unit
| Port: | Beijing; | Payment Terms: | L/C,T/T; |
| Supply Ability: | 500 Unit/Units per Month; | Medium: | Air; |
| Brand Name: | Sino Instruments; | Packaging Detail: | Paper Carton; |
| Resolution: | 0.0001bar; | Delivery Detail: | 7 working days; |
| Connector: | M20X1.5Female; | Model Number: | HS703; |
| Place of Origin: | Beijing China; | Pressure range: | -0.95~ 60) Bar; |
| Application: | Pressure Calibrator; |
Summary

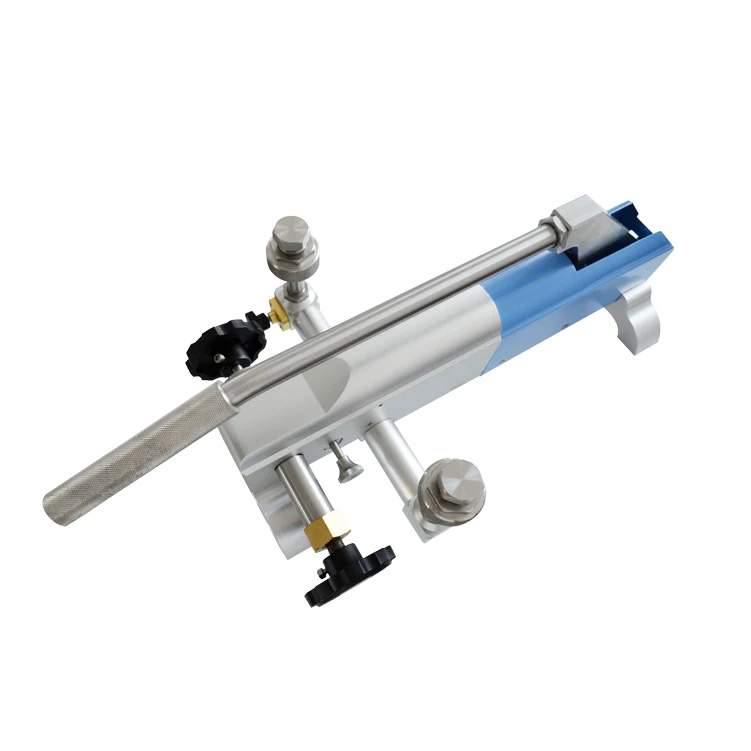

HS703 Pneumatic comparator is portable structure and designed to generate pressure from vacuum to 60bar.The F-adjust valve could accomplish 0.1mbar(10Pa)pressure resolution.Especially the lever lead screw design makes user operate in economize labor.The design of reverse valve makes the switch of vacuum and positive pressure more smooth.Two standard pressure outputs are easy to connect gauges under test without using the wrenches.It widely calibrates pressure instruments in field and laboratory.
Functions
HS703 provides pressure measurement for calibrating pressure instruments in field and laboratory.It can be extensively used in power,chemical,petrol, metallurgy,metering,military industry,etc.
Characteristics
l Portable structure
l User operate in economize labor
Technical Specification
Model:HS703 Pneumatic comparator
Generated pressure range:(-0.95~40)bar,(-0.95~60)bar
Working media:Air
Adjust resolution:0.1mbar(10Pa)
Material:
Stainless Steel/Aluminium for body;
Stainless steel for outputs;
Buna-N for seals
Output interface connection:M20×1.5Female

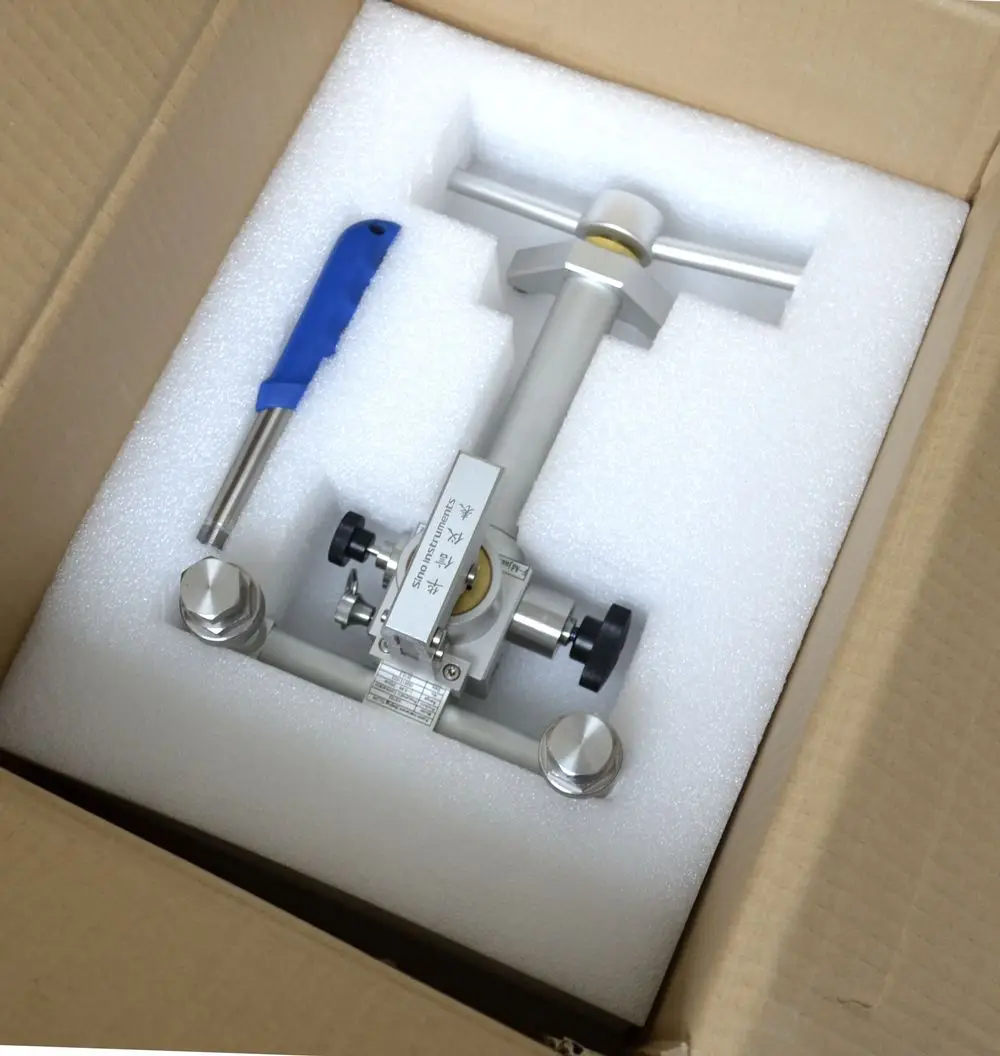

Package:Carrying black bag.Specialized cartons and foam wrarp(optional)
Weight:2.7kg
Dimension:286L×198W×140H(mm)
